Azure NVA backend routing communicate issue

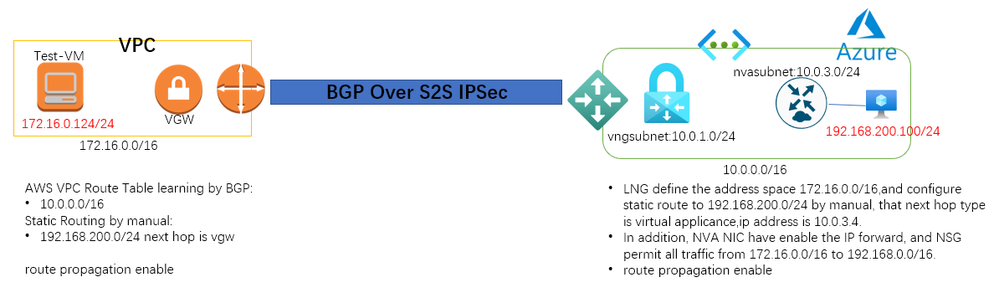

As shown in the picture, currently 172.16.0.124 and 192.168.200.100 cannot communicate. Is there any configuration I missed? Do I need to enable other functions?
