Why I don't see "properties"-column on my Azure-IoT-Central Device?

I just started learning Azure-IoT-Central yesterday. I tried the demo "dtmi:com:example:Thermostat;1" It has a writable property. I can see: "About, Overview, Command..." But why I don't see the...
  • OlivierBloch's avatar
    Apr 05, 2022

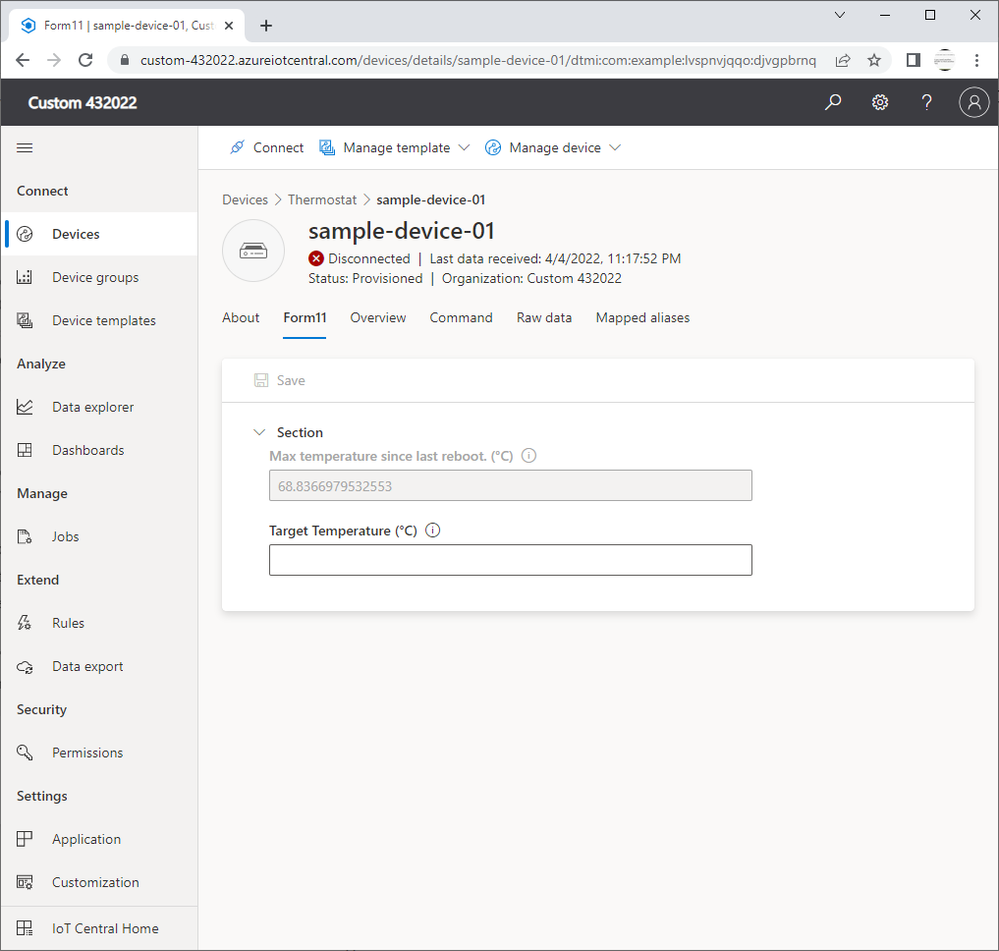

    Note that when using the "Create default views" feature, you will only see a tile for displaying the property (even if it's writable). In order to have a tile where you can edit the property to change it on the device, you need to add a new view in the device template and select the form type ("Editing device and cloud data"). To add a new view, go to the device template, click on "Views" then select "Editing device and cloud data", then select your writable property from the list, save and publish the template, then you should see the writable property in this new Form column
