Azure Durable Functions Performance Optimization Techniques

This blog is co-authored by Dr. Magesh Kasthuri, Distinguished Member of Technical Staff (Wipro) and Sanjeev Radhakishin Assudani, Azure COE Principal Architect (Wipro).



Performance is a very important aspect in any application. A slow performing application can result in high run costs in cloud. In this blog, we explain performance optimization steps with an example.

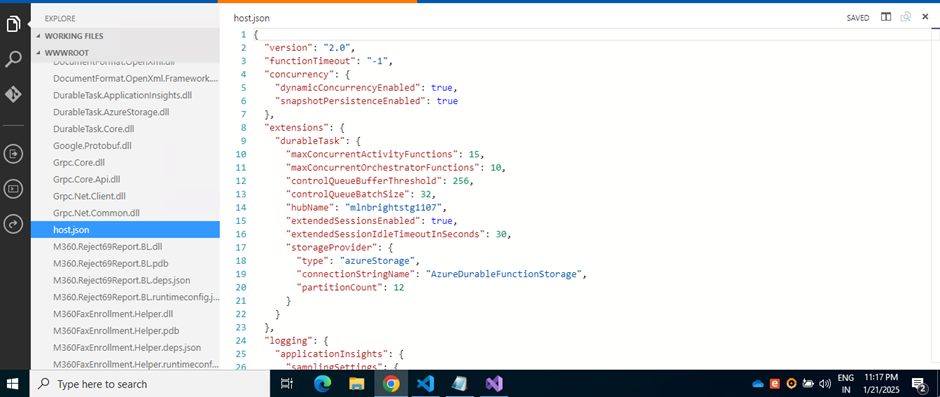

It is very important to review Durable function configuration for language runtime configurations. Durable function configurations are defined in the host.json file. There are some important configurations like maxConcurrentActivityFunctions, maxConcurrentOrchestratorFunctions that define the number of activity function and orchestrator instances that can run on a host. Depending on your application workloads, you will have to configure them.

Durable functions also use storage account for their internal working like state management, task execution etc. It is recommended to have a dedicated V1 storage account for cost optimizations.

Step 1: Optimize Function Code

Use Async/Await Appropriately

Asynchronous programming is key to non-blocking operations. Ensure that you are using async and await keywords appropriately. Avoid blocking calls and prefer async methods where possible to keep the event loop free.

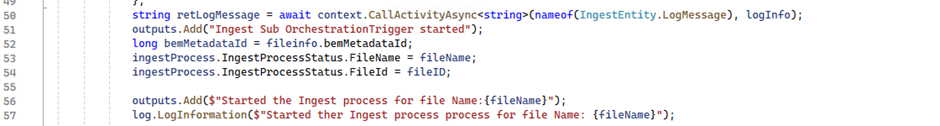

Screenshot: Example of async/await usage in Visual Studio.

Minimize Function Execution Time

Break down large tasks into smaller sub-tasks that can be processed independently. This not only speeds up execution time but also improves reliability and error handling.

Screenshot: Workflow diagram showing task breakdown.



Step 2: Optimize Durable Task Management

Reduce Orchestrator Function Overhead

Ensure that the orchestrator functions are lightweight and primarily responsible for orchestrating activities rather than doing the heavy lifting. Offload complex processing to activity functions.

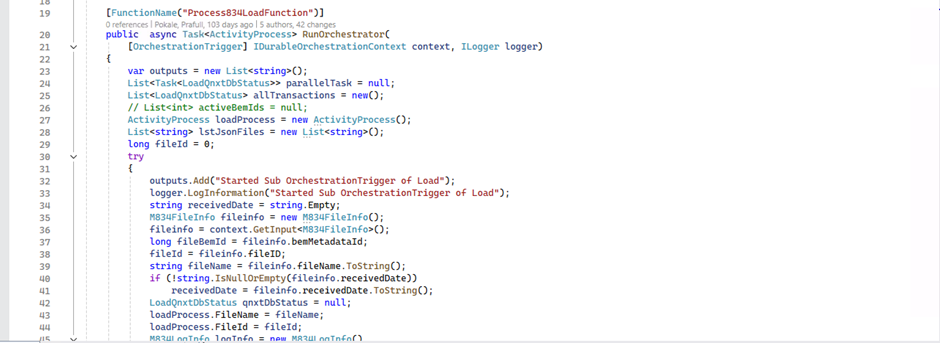

Screenshot: Example orchestrator function code.

Parallelize Tasks

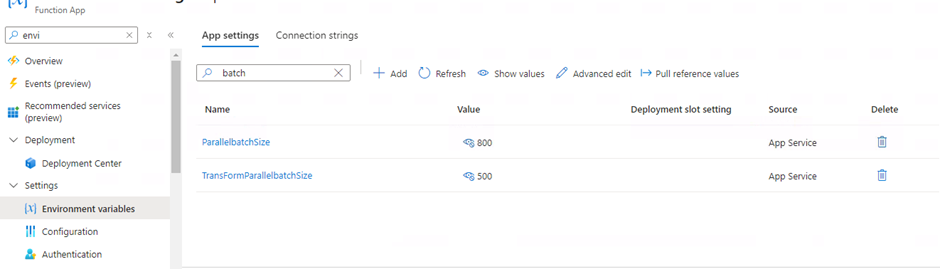

Where possible, run tasks in parallel to decrease overall execution time. Durable Functions support parallel task execution patterns, allowing multiple activities to be executed simultaneously.

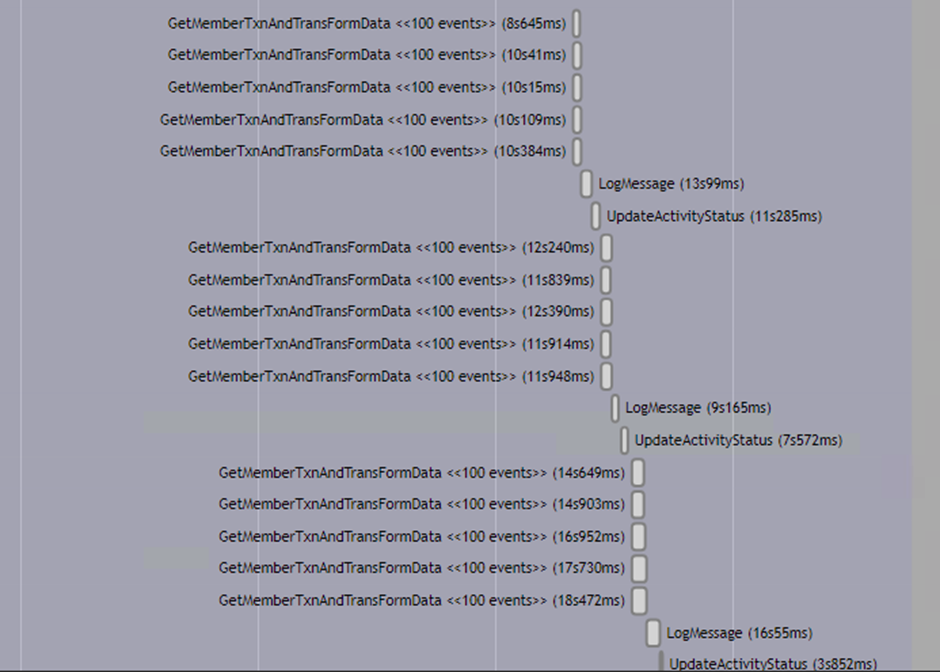

Screenshot: Parallel task execution example.

Step 3: Optimize Resource Allocation

Scale-Out Strategies

Configure your Azure Functions to scale out efficiently. Use the Azure Functions Premium Plan or Dedicated (App Service) Plan for better scaling options and resource allocation.

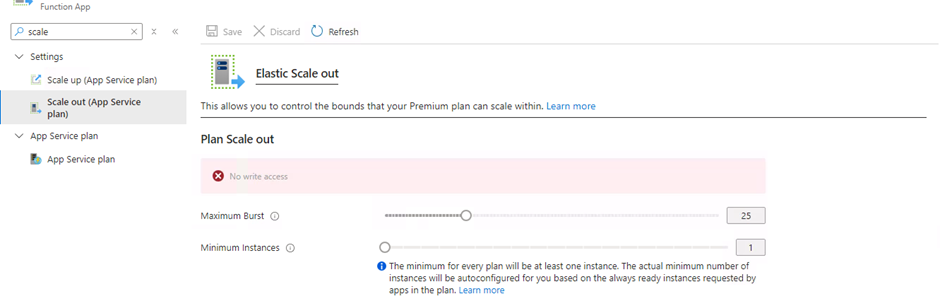

Screenshot: Scaling settings in Azure portal.

Use Appropriate Pricing Plans

Choose a pricing plan that aligns best with your workload. For instance, the Premium plan offers features such as better scaling, VNET integration, and always-on capabilities.

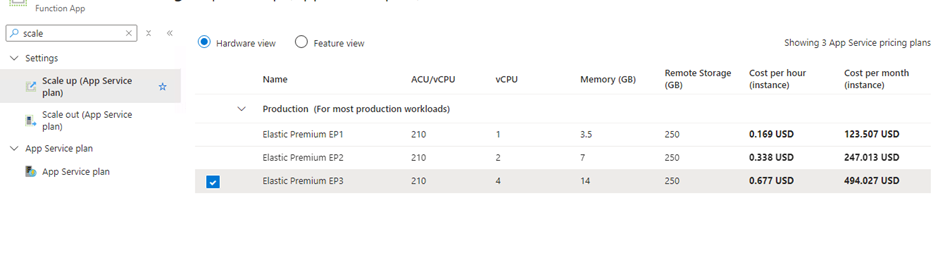

Screenshot: Pricing plan options in Azure portal.

Monitor and Allocate Resources

Regularly monitor function performance using Azure Monitor and Application Insights. Adjust resource allocations based on the observed metrics to ensure optimal performance.

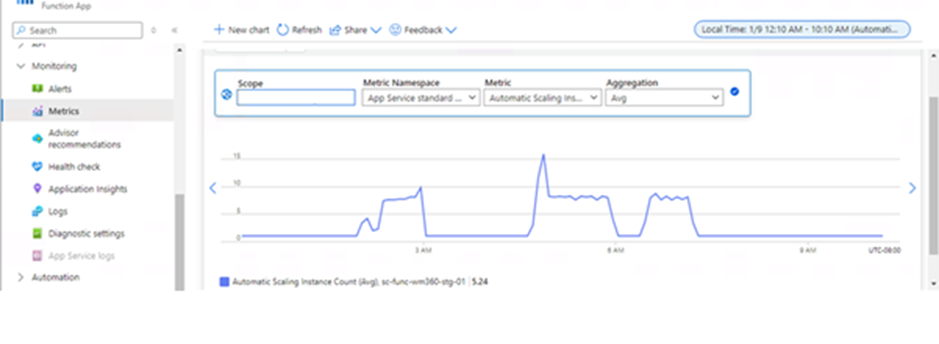

Screenshot: Monitoring function performance in Azure Monitor.

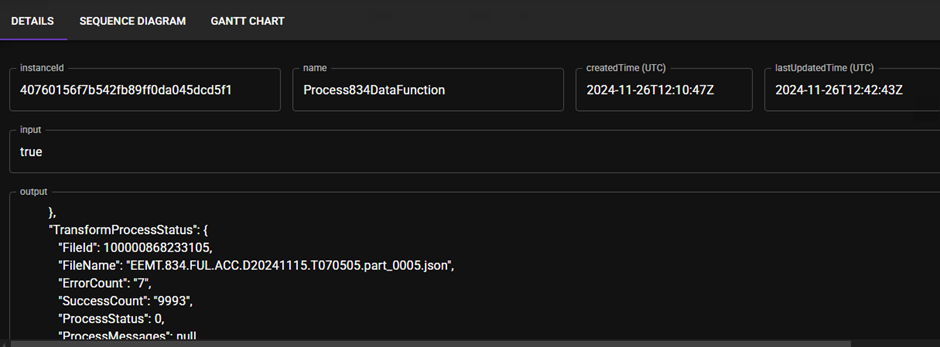

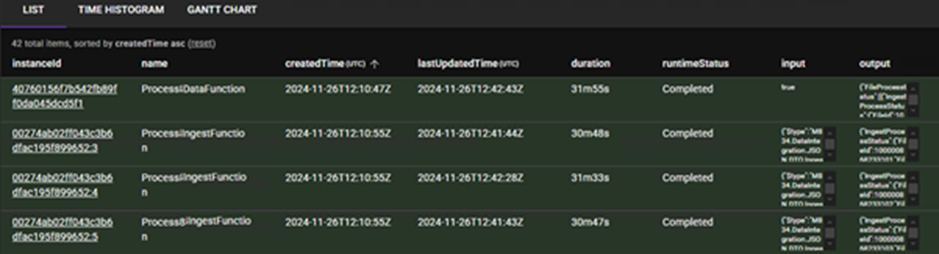

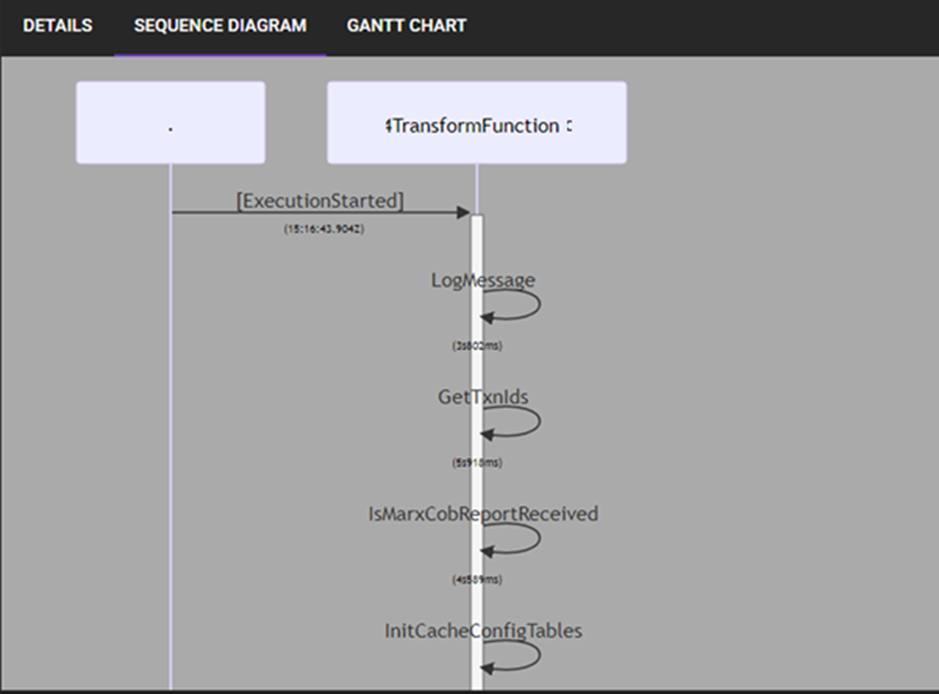

Durable Function Monitor

Step 4: Optimize Storage and Data Handling

Efficient State Management

Durable Functions rely on Azure Storage for state management. Ensure efficient usage by minimizing the size and frequency of state updates. Batch state updates where possible to reduce storage operations.

Screenshot: State management settings in Azure portal.

Optimize Input/Output Operations

Reduce the latency of I/O operations by optimizing data access patterns. Use faster storage solutions like Azure Cosmos DB or Redis for frequently accessed data.

Screenshot: Data access optimization settings.

Manage Concurrency

Control the concurrency levels of your functions to prevent throttling and ensure fair usage of resources. Use the maxConcurrentActivityFunctions and maxConcurrentOrchestratorFunctions settings to manage concurrency effectively.

Screenshot: Concurrency settings in Azure portal.

Step 5: Enhance Error Handling and Retries

Implement Robust Retries

Configure retry policies for transient errors. Durable Functions support customizable retry policies, allowing you to define the interval and duration for retries, which can improve resilience and performance.

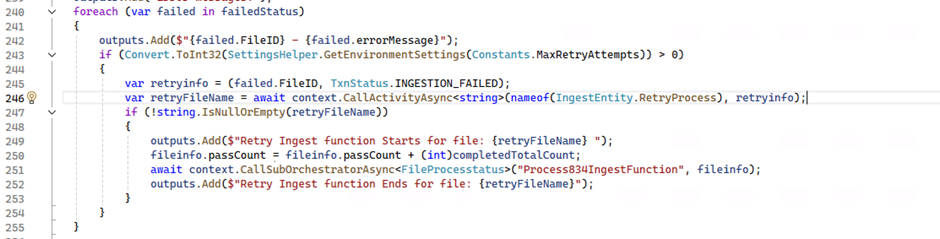

Screenshot: Retry policy configuration.

Graceful Error Handling

Ensure that your functions handle errors gracefully. Use try-catch blocks and centralized error handling mechanisms to capture and log errors effectively. This will help in diagnosing performance issues and improving reliability.

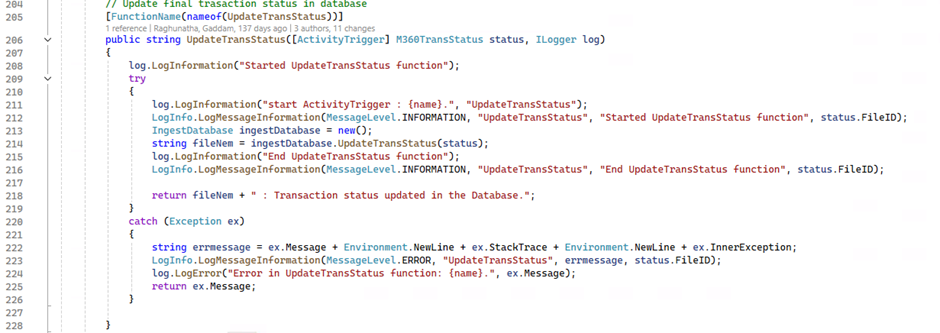

Screenshot: Error handling example in function code.

Monitor and Analyze Failures

Use Azure Monitor and Application Insights to track and analyze function failures. Understanding the root cause of failures can provide insights into performance bottlenecks and areas for improvement.

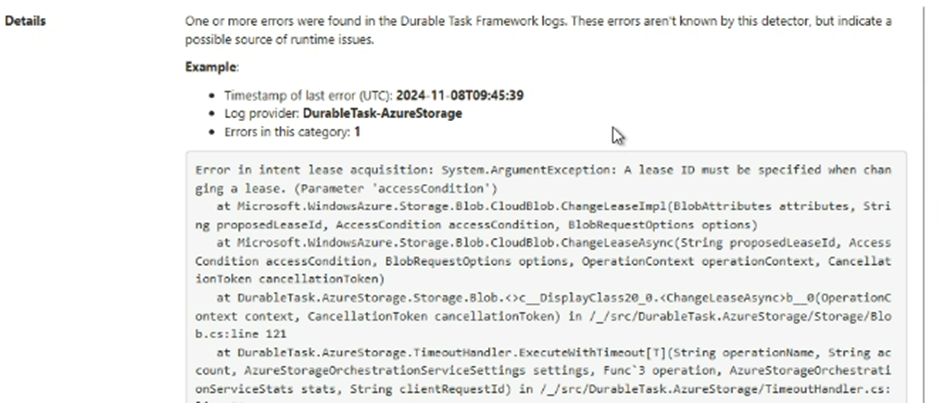

Screenshot: Failure analysis in Application Insights.

Step 6: Leverage Best Practices and Tools

Implement Best Practices

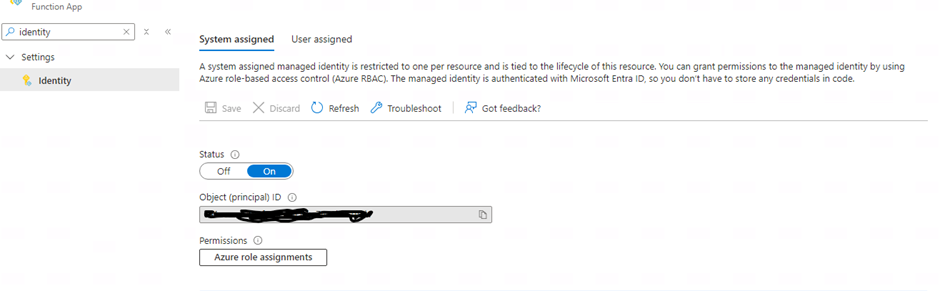

Follow Azure’s best practices for developing serverless applications. This includes keeping functions stateless, minimizing dependencies, and using managed identities for secure resource access.

Screenshot: Best practices documentation in Azure portal.

Use Application Insights

Application Insights provides powerful telemetry and monitoring capabilities. Use it to gain insights into function performance, request rates, failure rates, and other critical metrics.

Screenshot: Application Insights dashboard.

Regularly Review and Refactor

Periodically review and refactor your function code and orchestration logic. As workloads evolve, continuous optimization ensures that your functions remain performant and scalable.

Screenshot: Code review session example.

Results

After implementing key performance optimization techniques for Azure Durable Functions, we observed significant increase the total number of transactions per minute processed.

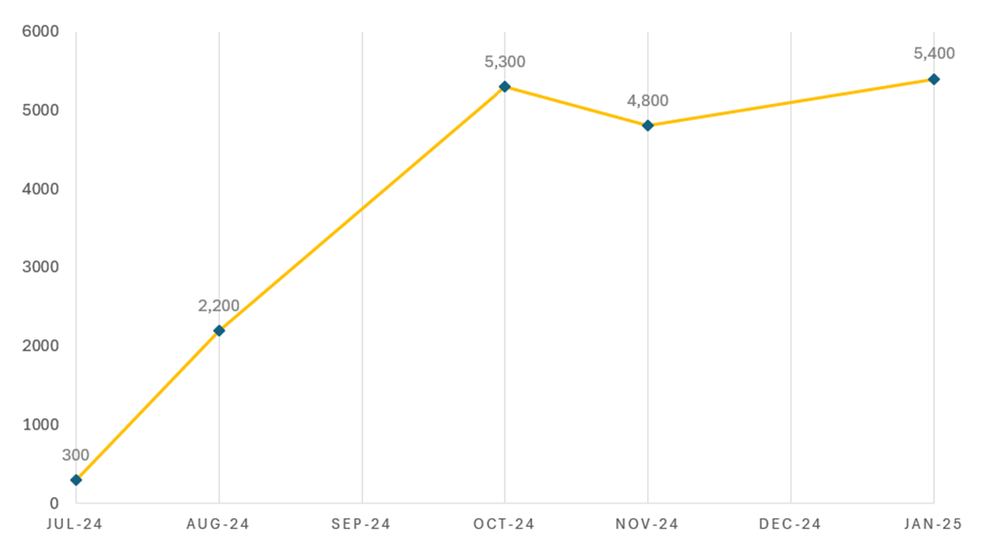

                                                                  Transactions Per Minute
