Zigbee Dongle vs. Dedicated Gateway for Azure IoT: An Architecture Choice
Hello Azure IoT Community, I'm deep into the architecture phase of a large-scale smart building project, using Azure IoT Hub as our central command. We're incorporating numerous Zigbee-based sensors and actuators for energy and environment monitoring. A critical debate has emerged: should we rely on a centralized Zigbee USB dongle, or deploy distributed, dedicated Zigbee gateways like the OWON SEG-X5? This decision impacts system resilience, cloud integration efficiency, and long-term operational stability. The Core Trade-off: Simplicity vs. Resilience Option A: The Centralized Dongle Approach This model uses a USB dongle connected to a gateway server, which becomes the sole coordinator for the Zigbee network before relaying data to IoT Hub. The Appeal: Low initial cost and simplicity for prototyping. The Scalability Risk: This creates a Single Point of Failure (SPOF). If the host server needs maintenance or encounters an issue, the entire Zigbee network—and all dependent automations—go offline. For a commercial building, this is a critical operational risk. Option B: The Distributed Gateway Architecture This model employs dedicated, standalone Zigbee gateways (e.g., https://www.owon-smart.com/zigbee-gateway-zigbeeethernetble-seg-x5-product/) deployed across different zones or floors. Each forms its own robust mesh and connects directly to Azure IoT Hub. The Resilience Gain: Faults are isolated. One gateway’s maintenance affects only its zone. The Edge Intelligence Advantage: Modern gateways can process data and execute rules locally. For instance, a gateway can directly process inputs from a Zigbee Door/Window Sensor (DWS 312) and a Multi-Sensor (PIR 323) to trigger a local light switch, all without a round-trip to the cloud. This aligns perfectly with the Azure IoT Edge paradigm, ensuring responsiveness and offline operation. Streamlined Cloud Integration: Gateways like the SEG-X5 come with integrated MQTT API support, allowing them to send structured data directly to IoT Hub, simplifying device management and message routing in the cloud. A Practical Insight from an ODM Case Study Our experience as an IoT ODM manufacturer has shown this shift in practice. In a project akin to the Hotel Room Management case in our portfolio, the initial design using a central server with dongles presented reliability concerns. The final solution utilized distributed OWON SEG-X5 Zigbee Gateways in each hotel wing. These gateways managed all in-room devices—from Smart Sockets (WSP 406 series) and Light Switches (SLC series) to Thermostats (PCT 504)—locally. They used their MQTT API to send consolidated occupancy and energy data to the building's cloud platform (integrated with IoT Hub). The result was a system where guest room automation remained functional despite network fluctuations, and maintenance could be performed per wing without building-wide impact. Conclusion and Discussion For proof-of-concepts, dongles are sufficient. For production-grade, scalable deployments where uptime is critical, dedicated gateways provide the necessary architectural foundation. I'm keen to hear from the community: In your Azure IoT solutions, how have you integrated non-IP protocol devices like Zigbee? What strategies do you employ to balance edge processing with cloud analytics? For those using gateway architectures, how do you handle device provisioning and security at scale? If you're interested in the technical specifics of how Zigbee gateways interface with cloud platforms, including API structures and network design considerations, we've elaborated on these topics in a technical overview on our site: [https://www.owon-smart.com/news/zigbee-dongles-vs-gateways-how-to-choose-the-right-network-coordinator/ ]. Looking forward to a fruitful discussion.
Routing on IOT Edge
Hi, I have a problem that I have been dealing with for quite some time. Trying to put a "where" in a routing for AZIOT edge hub. have tested this which works. FROM /messages/* WHERE $connectionModuleId = 'noded' INTO BrokeredEndpoint("/modules/testjob/inputs/edgehub") . But what I want to do is a "where" against appProperties. I have tried every conceivable "syntax" for this?? Inserts an example message. { "message": { "systemProperties": { "contentType": "application/json", "contentEncoding": "UTF-8", "iothub-message-source": "deviceMessages", "iothub-enqueuedtime": "2017-05-08T18:55:31.8514657Z" }, "appProperties": { "processingPath": "{cold | warm | hot}", "verbose": "{true, false}", "severity": 1-5, "testDevice": "{true | false}" }, "body": "{\"Weather\":{\"Temperature\":50}}" } } Thanks for any help I can get. Can't find any documentation for this?
IoT Edge certificate renewal
Hi all, We are currently implementing an IoT Edge on a lot of Devices which will be at remote locations. We have cleared out that IoT Edge can use up to 3 certificates: Certificate to perform the TLS communication with IoT Hub Device certificates for internal use with modules, leave devices, etc. DPS (Optional is you use certificates) We are currently looking for a solution for point 1 and 2. 1. We understand that this can be solved with keeping IoT Edge up-to-date, but how do perform this is these devices are Remote and we have a lot of them? I know this will not happen that often that this certificate will expire but still it can, so we want to be prepared. 2. Device certificates should also be renewed from time to time. How can you also orchestrated form IoT Hub? We currently where thinking of building a module, but when the device comes online again after some time and in the main time, the certificate has expired, than the module is not able to talk to IoT Hub. Or do you just install a device certificate a installation which will have an expiration date longer then the expected device lifetime? Thanks for the help and insights on this topic. Kr, StevenIOT device event twin change
What are the ways to catch IOT device event twin change in azure? I want to send notification or execute something like function app, when device twin event occur and reported property get change. I am using .net 8 and azure. let me know all possible ways. Thanks, Bhavin Bhesaniya.Detect IOT device twin report property and execute notification

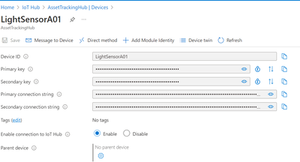

Hello Community, I am seeking for the help to achieve one functionality for my IOT device. I have crated one Azure IOT device under azure IOT hub. Now on the device twin whenever my device report property get change( any property), It should send some event notification to the end user. What is the best way to achieve this? I want to use Azure event grid but the template is not available in message routing you can see below. If i use Event Hub then there is a risk to increase latency. let me know if there is any other way to get this with lowest latency. Thanks, Bhavin Bhesaniya.
CNCF project Akri usage survey and latest update
We are looking to improve Akri and want to learn more about your experience with it! Please help us with a 3 minutes survey if you have tried/evaluated Akri for leaf device discovery. For more information about Akri, visit the Akri GitHub or check our presentation at KubeCon 2024. To learn what’s new for Akri, check our latest release: v0.12.20.
Problem with running Azure spatial-analysis container
Hi, I need to create and run Azure spatial analysis container on my desktop machine. Everything should be running fine according to IoT Hub. But i'm not getting any output and when looking to logs of the spatial-analysis module i saw this error a lot: 2024-03-06T19:46:45.429562642Z <warning> 93 [VIDEO_INGESTER-cognitiveservices_vision_spatialanalysis_1.store.spatialanalysisgraph.videosource] cognitiveservices_vision_spatialanalysis_1 Error: Failed to allocate shared buffer. Skipping frame. 2024-03-06T19:46:45.501593175Z <warning> 93 [VIDEO_INGESTER-cognitiveservices_vision_spatialanalysis_1.store.spatialanalysisgraph.videosource] cognitiveservices_vision_spatialanalysis_1 Failed to get CUDA handle: cudaIpcGetMemHandle failed with error 2 2024-03-06T19:46:45.502484545Z <error> 93 [VIDEO_INGESTER-cognitiveservices_vision_spatialanalysis_1.store.spatialanalysisgraph.videosource] cognitiveservices_vision_spatialanalysis_1 Cannot create cuda shared buffer. Size: 6684672 I have no idea what to do also this is report from nvidia-smi: +---------------------------------------------------------------------------------------+ | NVIDIA-SMI 530.30.02 Driver Version: 527.99 CUDA Version: 12.0 | |-----------------------------------------+----------------------+----------------------+ | GPU Name Persistence-M| Bus-Id Disp.A | Volatile Uncorr. ECC | | Fan Temp Perf Pwr:Usage/Cap| Memory-Usage | GPU-Util Compute M. | | | | MIG M. | |=========================================+======================+======================| | 0 NVIDIA GeForce RTX 3060 L... On | 00000000:01:00.0 On | N/A | | N/A 55C P8 16W / 115W| 2609MiB / 6144MiB | 28% Default | | | | N/A | +-----------------------------------------+----------------------+----------------------+ +---------------------------------------------------------------------------------------+ | Processes: | | GPU GI CI PID Type Process name GPU Memory | | ID ID Usage | |=======================================================================================| | 0 N/A N/A 34 G /Xwayland N/A | +---------------------------------------------------------------------------------------+ Thanks in advance for your help!Azure Certified for IoT and the Azure IoT Device Catalog
Update Feb. 2024 - The Azure Certified Device program has concluded on February 23, 2024. This means that the Azure Certified Device catalog, along with certifications for Azure Certified Device, Edge Managed, and IoT Plug and Play will no longer be available after this date. However, the Edge Secured-core program will remain active and will be relocated to a new home at aka.ms/EdgeSecuredCoreHome. ------------------------------------------- When businesses set out on an IoT project, they have many things to consider: how the device connects to the internet, supported industry protocols. compatible sensors, and more. As IoT increasingly moves into the cloud space, one of the most important considerations is cloud compatibility. As Azure continues to grow, Azure compatibility for IoT devices is becoming a key component of the device selection process. To help with this, Microsoft has two programs to help you ensure your IoT device is compatible and discoverable: The Azure Certified for IoT program and the Azure IoT Device Catalog. The Azure Certified for IoT program is a pre-requisite for a device being included in the Azure IoT Device Catalog. There are currently three different certifications a device can achieve: IoT Devices, IoT Start Kit and IoT Edge Device. IoT Device certification covers bi-directional connectivity between the device and Azure IoT Hub. IoT Starter Kit certification builds on IoT Device certification, adding the reading of data from attached sensors, which is then sent to the cloud. IoT Edge Device certification builds on the IoT Device and Starter Kit certifications, adding Azure IoT Hub connectivity, IoT Edge runtime pre-installation, and basic device management. Once your IoT device is certified, it is qualified for inclusion in the Azure IoT Device Catalog. Resources – Azure Certified for IoT Program FAQ Azure Iot Device certification guides Azure IoT Starter Kit certification guide Azure IoT Edge Device certification guide Azure Certified for IoT Device catalog Find more Intelligent Edge resources for device builders at the Intelligent Edge Device Builder Resource Center.Ready to dive in to IoT Plug and Play to get your device certified?
Update Feb. 2024 - The Azure Certified Device program has concluded on February 23, 2024. This means that the Azure Certified Device catalog, along with certifications for Azure Certified Device, Edge Managed, and IoT Plug and Play will no longer be available after this date. However, the Edge Secured-core program will remain active and will be relocated to a new home at aka.ms/EdgeSecuredCoreHome. ------------------------------------------------- If you are ready to get your feet wet and certify an IoT device as IoT Plug and Play ready, and get the hardware fast-tracked into the Azure Certified for IoT device catalog, these are the resources for you - Read IoT Central documentation to learn how to build solutions with IoT Plug and Play devices. Read the IoT Plug and Play documentation to learn how to build solutions using the Azure IoT platform. Learn how to build and certify IoT Plug and Play devices. View the Digital Twin Definition Language specification on GitHub. Tune in to the Internet of Things Show deep dive on September 11. Browse IoT Plug and Play devices on the Azure IoT Device Catalog. See a demo of IoT Plug and Play bridge with a MODBUS environmental sensor on the Channel 9 IoT Show. Try IoT Plug and Play bridge on GitHub. Learn how to implement IoT spatial analytics using Azure Maps and IoT Plug and Play location schema. Find more resources like these for Intelligent Edge device building at the Intelligent Edge Device Builder Resource Center.
