In the Windows world, SQL Server integrates into Windows Server Failover Cluster (WSFC) natively, and we have a dedicated installation for SQL Server Cluster. However, on Linux, you need to install standalone SQL Server instance in the nodes first, and then configure the instance as a SQL Server cluster instance.
I use SQL Server 2019 with RHEL 8.x in this tutorial, but it is possible to use SQL Server 2017 in RHEL 7.x or RHEL 8 to configure FCI.
Here is the step by step Video

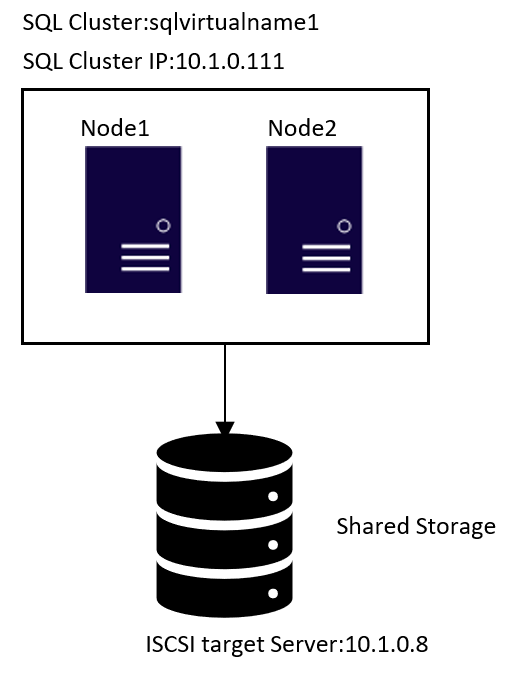

Topology
1.ISCSI target server configuration

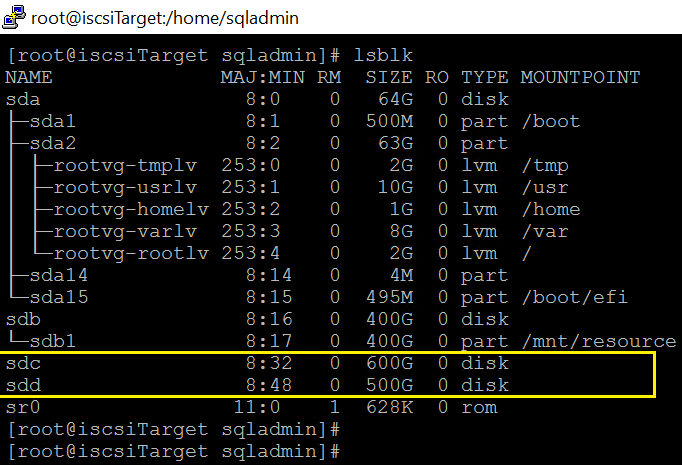

- The two highlighted disks will be the used as Shared Storage.
sdc is for the database files in /var/opt/mssql/data
sdd is for the user databases files. If all your databases are stored /var/opt/mssql/data, feel free to ignore all the steps link to device sdd.

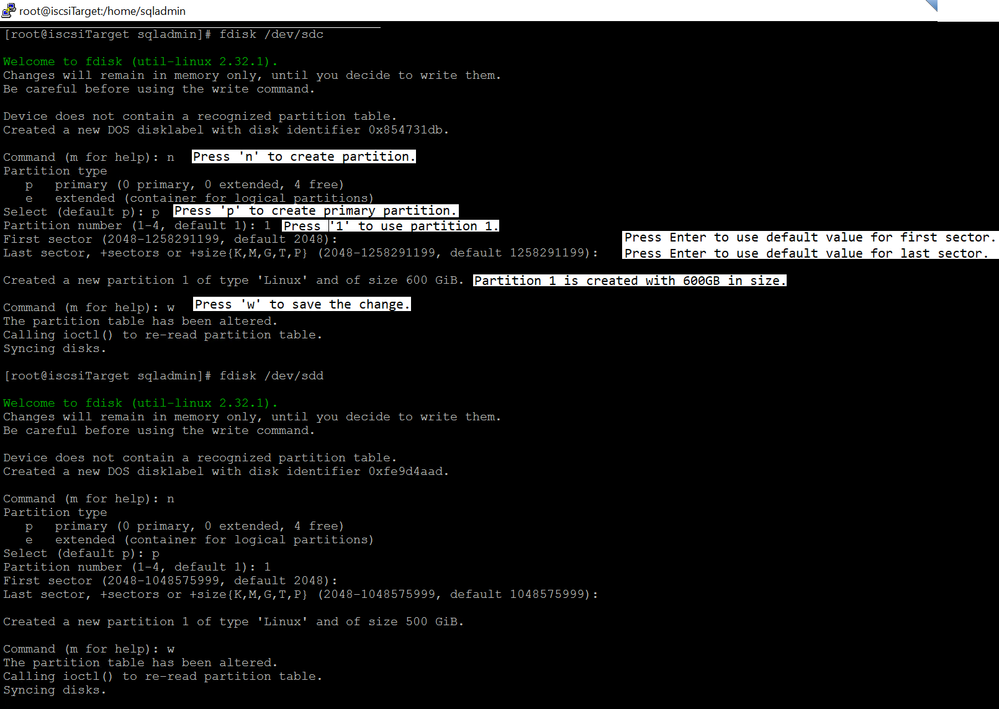

2.Run fdisk to create partition.
fdisk /dev/sdc
fdisk /dev/sdd

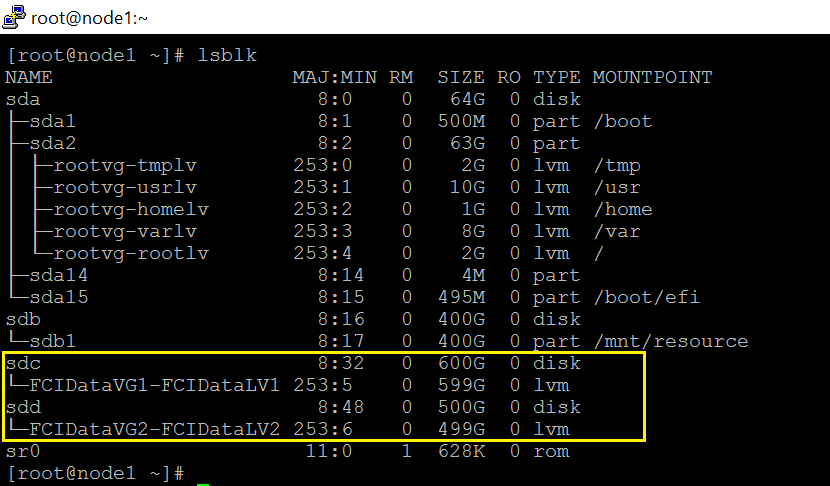

Run lsblk again
3.Install targetcli package.
yum -y install targetcli

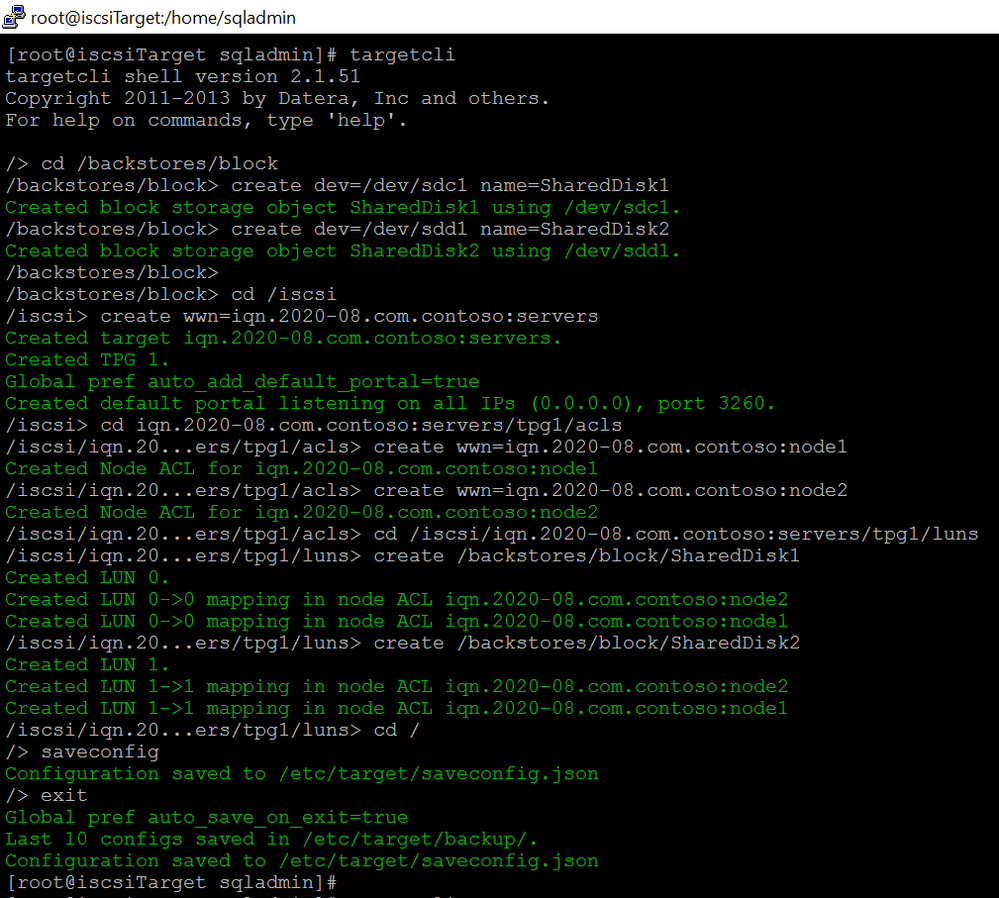

4.Run targetcli to create ISCSI target server.
I created two ACLs entries for the node1 and node2:
iqn.2020-08.com.contoso:node1
iqn.2020-08.com.contoso:node2
I’m not going to dig into the targetcli command, please review this article for detail.

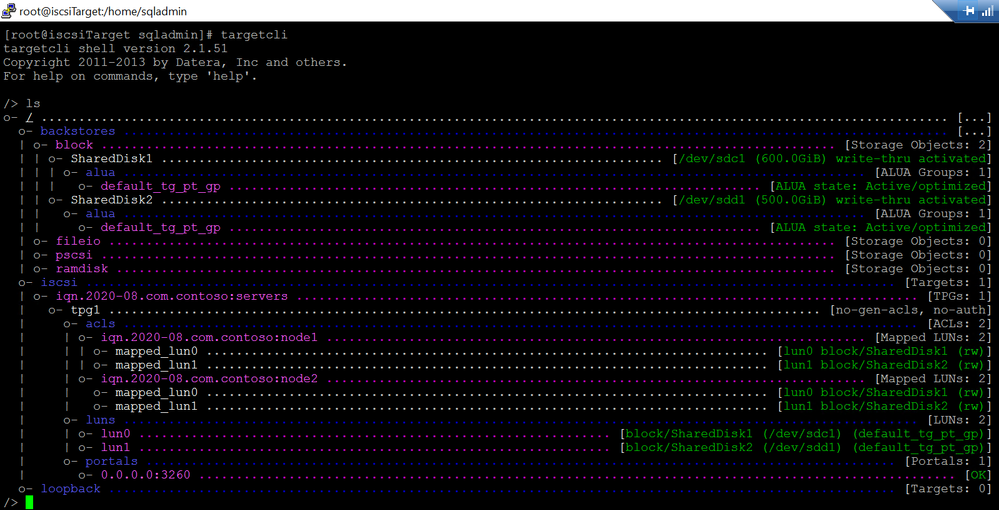

And I have following iscsi settings:
5.Run following bash command to expose tcp port 3260
firewall-cmd --add-port=3260/tcp --permanent
firewall-cmd --reload
- Enable and restart the target service.
systemctl enable target.service
systemctl restart target.service
2.ISCSI initiator configuration.
Choose one of the servers that will participate in the FCI configuration. It does not matter which one. I use node1 in this tutorial. Please note, All the steps in this section are performed in node1, unless stated otherwise.
1.Install iscsi-initiator-utils in all nodes.
sudo yum install iscsi-initiator-utils -y
2.Edit the /etc/iscsi/initiatorname.iscsi , replace the existing value with following keywords, the one I used in step 4 of section[ISCSI target server configuration]
InitiatorName=iqn.2020-08.com.contoso:node1
3.Discover iSCSI disk of the target.

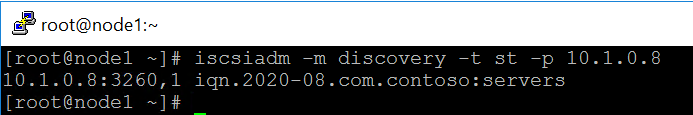

iscsiadm -m discovery -t st -p <ip of iscsi target server>
Here is the command in this tutorial.
iscsiadm -m discovery -t st -p 10.1.0.8

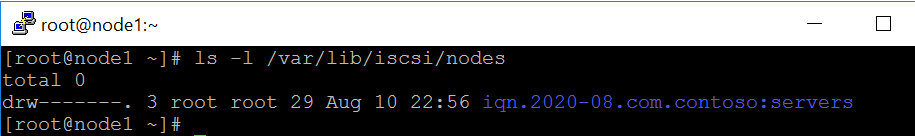

- (Optional step)After the discovery below database is updated.
ls -l /var/lib/iscsi/nodes

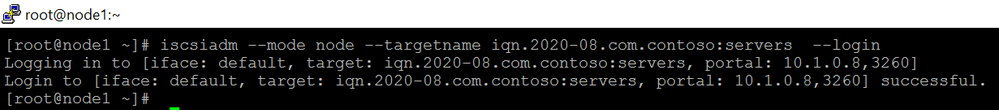

6.Make the connection to iscsi target.
iscsiadm --mode node --targetname iqn.2020-08.com.contoso:servers --login
- (Optional step)After logging in, a session with the iSCSI target is established.

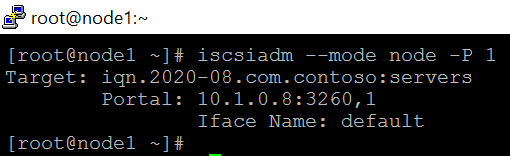

iscsiadm --mode node -P 1
- (Optional step)If you review the messages file, you will see following keywords
sudo grep "Attached SCSI" /var/log/messages
Aug 6 01:38:21 localhost kernel: sd 3:0:1:0: [sdb] Attached SCSI disk
Aug 6 01:38:21 localhost kernel: sd 2:0:0:0: [sda] Attached SCSI disk
Aug 6 04:26:01 localhost kernel: sd 6:0:0:0: [sdc] Attached SCSI disk
Aug 6 04:26:01 localhost kernel: sd 6:0:0:1: [sdd] Attached SCSI disk
9.Create physical volumes on the iSCSI disks.
sudo pvcreate /dev/sdc
sudo pvcreate /dev/sdd

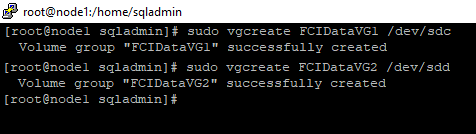

10.Create volume groups ‘FCIDataVG1’ and ‘FCIDataVG2’ on the iSCSI disk.
sudo vgcreate FCIDataVG1 /dev/sdc
sudo vgcreate FCIDataVG2 /dev/sdd
- Create logical name for the two groups. Run following commands in node1.
sudo lvcreate -L599G -n FCIDataLV1 FCIDataVG1
sudo lvcreate -L499G -n FCIDataLV2 FCIDataVG2
Check the device

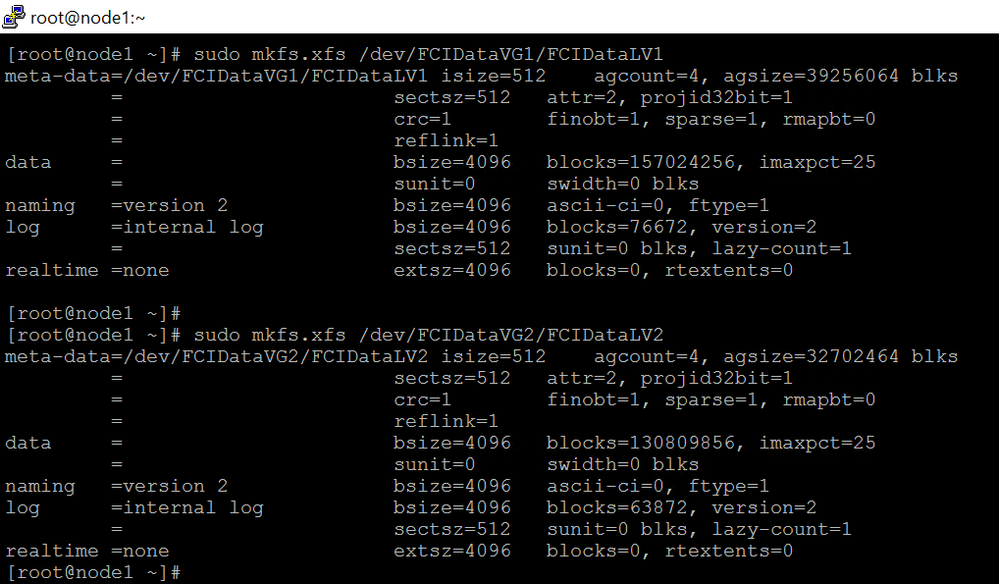

- Format the logical volume with a supported filesystem.
sudo mkfs.xfs /dev/FCIDataVG1/FCIDataLV1
sudo mkfs.xfs /dev/FCIDataVG2/FCIDataLV2
13.Repeat the step1~step6 in rest of the nodes.
Please note,
1)Do not do step6 in rest of node2 before step12 is completed in node1. Else you maybe not able to failover.
2)All the steps but step 2 are exactly same. Here is the value for node2
3)After the step6 is executed in rest of the nodes, you will see the same devices as node1.

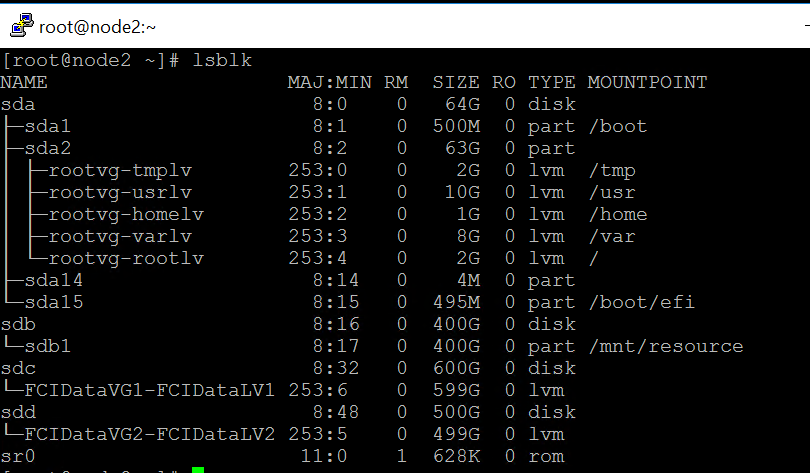

Here is a screenshot of node2 after step 6 is executed.
3.SQL Server configuration.
Please note, All the steps in section are performed in node1, unless stated otherwise.
1.Run following queries to create login used by pacemaker
CREATE LOGIN [sqlpackmaker] with PASSWORD= N'YourStrongP@ssword1'
ALTER SERVER ROLE [sysadmin] ADD MEMBER [sqlpackmaker]
2.Drop the default server name and create a new server name. The new server name is SQL Virutal name.
exec sp_dropserver node1
go
exec sp_addserver 'sqlvirtualname1','local'
- Restart SQL Server to take effect.
sudo systemctl stop mssql-server
sudo systemctl restart mssql-server

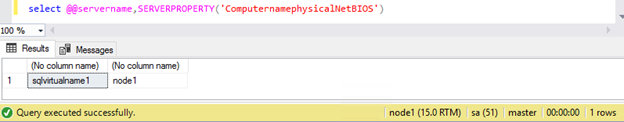

4.Run following queries to check change.
select @@servername, SERVERPROPERTY('ComputernamephysicalNetBIOS')
5.Stop SQL Server in all nodes(node1,node2 ).
sudo systemctl stop mssql-server
6.Copy the /var/opt/mssql/secrets/machine-key of node1 to node2.
7.Create temporary directories to store the SQL Server data and log files.
mkdir /var/opt/mssql/tempdir
mkdir /var/opt/mssql/tempuserdata
8.Copy the SQL Server data and log files to the temporary directories.
cp /var/opt/mssql/data/* /var/opt/mssql/tempdir/
cp /var/opt/mssql/userdata/* /var/opt/mssql/tempuserdata/
9.Delete the files from the existing SQL Server data directory in node1.
rm -f /var/opt/mssql/data/*
rm -f /var/opt/mssql/userdata/*
10.Mount the iSCSI logical volume in the SQL Server data folder.
mount /dev/<VolumeGroupName>/<LogicalVolumeName> <FolderName>
Here are the commands in this tutorial.

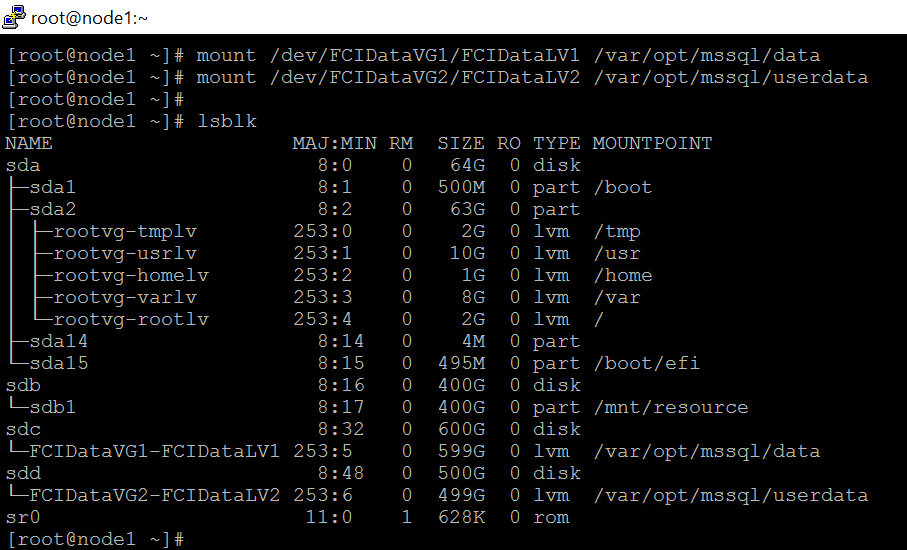

mount /dev/FCIDataVG1/FCIDataLV1 /var/opt/mssql/data
mount /dev/FCIDataVG2/FCIDataLV2 /var/opt/mssql/userdata
11.Change the owner of the mount to mssql.
chown mssql:mssql /var/opt/mssql/data
chown mssql:mssql /var/opt/mssql/userdata
12.Change ownership of the group of the mount to mssql.
chgrp mssql /var/opt/mssql/data
chgrp mssql /var/opt/mssql/userdata
13.Copy the files from temp folders back to /var/opt/mssql/data and /var/opt/mssql/userdata.
cp /var/opt/mssql/tempdir/* /var/opt/mssql/data
cp /var/opt/mssql/tempuserdata/* /var/opt/mssql/userdata
14.Check the two temp folders and make sure the files are copied.
- Change ownership of files to mssql.
chown mssql:mssql /var/opt/mssql/data/*
chown mssql:mssql /var/opt/mssql/userdata/*
16.Configure auto mount to make the OS mount the devices automatically.

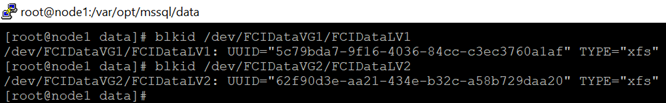

1) makeGet the UUID. Please downdown the UUID ,TYPE and directory
blkid /dev/FCIDataVG1/FCIDataLV1
blkid /dev/FCIDataVG2/FCIDataLV2
2).Edit /etc/fstab to configure auto mount in node1,node2.

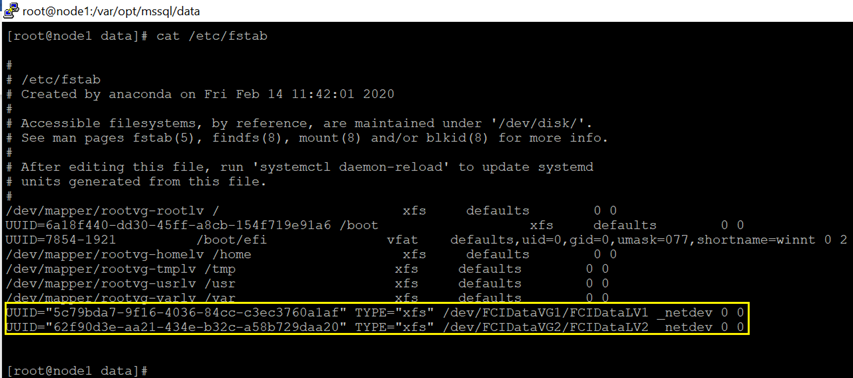

Here is a screenshot in node1.
Please review this article for more detail
4.Cluster configuration.

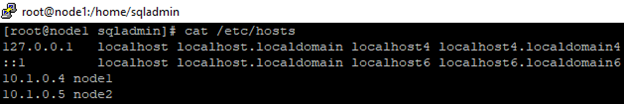

1.Edit /etc/hosts to speicfy the node and ips in node1 and node1. Do the same thing in node1 and node2
2.Create a file to store the SQL Server username and password for the Pacemaker login. Run the following command in node1 and node2 (The same login name and password specified in step 1 of section [SQL Server configuration]
sudo touch /var/opt/mssql/secrets/passwd
sudo echo 'sqlpackmaker' >> /var/opt/mssql/secrets/passwd
sudo echo 'YourStrongP@ssword1' >> /var/opt/mssql/secrets/passwd
sudo chown root:root /var/opt/mssql/secrets/passwd
sudo chmod 600 /var/opt/mssql/secrets/passwd
3.On both cluster nodes, open the Pacemaker firewall ports. To open these ports with firewalld, run the following command in node 1 and node2
sudo firewall-cmd --permanent --add-service=high-availability
sudo firewall-cmd --reload
4.Install Pacemaker packages in node 1 and node2
sudo yum install pacemaker pcs fence-agents-all resource-agents
5.Set the password for the default user that is created when installing Pacemaker and Corosync packages. Use the same password in node 1 and node2
sudo passwd hacluster
6.To allow nodes to rejoin the cluster after the reboot, enable and start pcsd service and Pacemaker. Run the following command in node 1 and node2
sudo systemctl enable pcsd
sudo systemctl start pcsd
sudo systemctl enable pacemaker
7.Create the cluster. Run following command in node1. The password should be as same as the one in step 5.

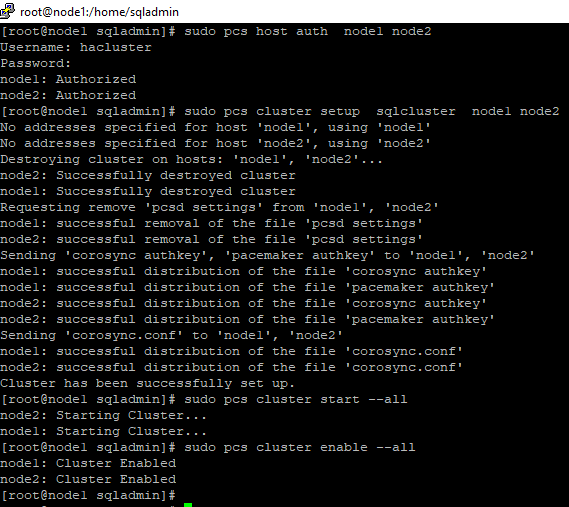

sudo pcs host auth node1 node2
sudo pcs cluster setup sqlcluster node1 node2
sudo pcs cluster start --all
sudo pcs cluster enable --all
8.Disable the stonith-enabled for test purpose. Run following command in node1.
sudo pcs property set stonith-enabled=false
9.Install the FCI resource agent for SQL Server. Run the following commands in node1 and node2
sudo yum install mssql-server-ha
10.Create disk resource and this resource belongs to a resource group(RGfci in this demo). Run following command in node1
sudo pcs resource create iSCSIDisk1 Filesystem device="/dev/FCIDataVG1/FCIDataLV1" directory="/var/opt/mssql/data" fstype="xfs" --group fci
sudo pcs resource create iSCSIDisk2 Filesystem device="/dev/FCIDataVG2/FCIDataLV2" directory="/var/opt/mssql/userdata" fstype="xfs" --group fci

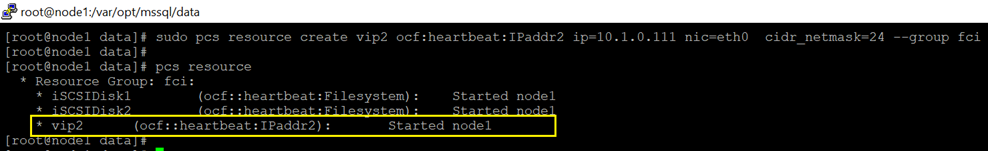

11. Create IP resource that will be used by FCI, and this resource belongs to the same resource group created in previous step.
sudo pcs resource create vip2 ocf:heartbeat:IPaddr2 ip=10.1.0.111 nic=eth0 cidr_netmask=24 --group fci

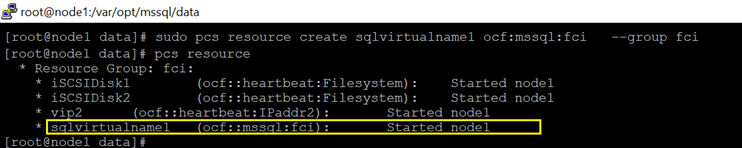

12.Create FCI resource. The resource name should be exactly same to the SQL Virtual name created in step 2 in section [SQL Server configuration]
sudo pcs resource create sqlvirtualname1 ocf:mssql:fci --group fci
Failover
===

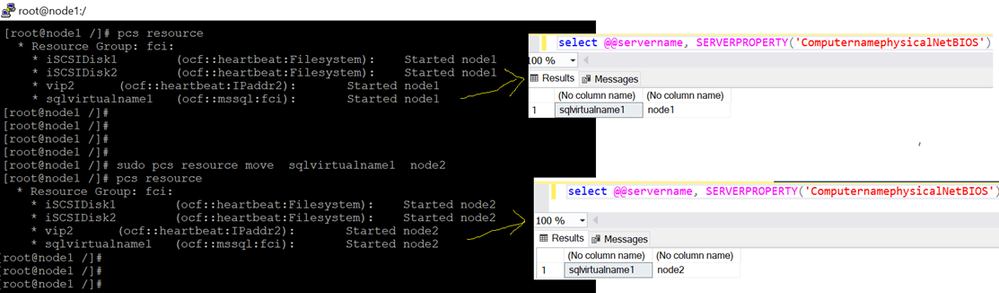

sudo pcs resource move sqlvirtualname1 <NodeName>
