Using parameterized functions with KQL-based custom plugins in Microsoft Security Copilot







In this blog, I will walk through how you can build functions based on a Microsoft Sentinel Log Analytics workspace for use in custom KQL-based plugins for Security Copilot. The same approach can be used for Azure Data Explorer and Defender XDR, so long as you follow the specific guidance for either platform. A link to those steps is provided in the Additional Resources section at the end of this blog.

But first, it’s helpful to clarify what parameterized functions are and why they are important in the context of Security Copilot KQL-based plugins. Parameterized functions accept input details (variables) such as lookback periods or entities, allowing you to dynamically alter parts of a query without rewriting the entire logic

Parameterized functions are important in the context of Security Copilot plugins because of:

1. Dynamic prompt completion:
   Security Copilot plugins often accept user input (e.g., usernames, time ranges, IPs). Parameterized functions allow these inputs to be consistently injected into KQL queries without rebuilding query logic.
2. Plugin reusability:
   By using parameters, a single function can serve multiple investigation scenarios (e.g., checking sign-ins, data access, or alerts for any user or timeframe) instead of hardcoding different versions.
3. Maintainability and modularity:
   Parameterized functions centralize query logic, making it easier to update or enhance without modifying every instance across the plugin spec. To modify the logic, just edit the function in Log Analytics, test it then save it- without needing to change the plugin at all or re-upload it into Security Copilot. It also significantly reduces the need to ensure that the query part of the YAML is perfectly indented and tabbed as is required by the Open API specification, you only need to worry about formatting a single line vs several-potentially hundreds.
4. Validation:
   Separating query logic from input parameters improves query reliability by avoiding the possibility of malformed queries. No matter what the input is, it's treated as a value, not as part of the query logic.
5. Plugin Spec mapping:
   OpenAPI-based Security Copilot plugins can map user-provided inputs directly to function parameters, making the interaction between user intent and query execution seamless.

Practical example

In this case, we have a 139-line KQL query that we will reduce to exactly one line that goes into the KQL plugin. In other cases, this number could be even higher.  Without using functions, this entire query would have to form part of the plugin

Note: The rest of this blog assumes you are familiar with KQL custom plugins-how they work and how to upload them into Security Copilot.



CloudAppEvents | where RawEventData.TargetDomain has_any ( 'grok.com', 'x.ai', 'mistral.ai', 'cohere.ai', 'perplexity.ai', 'huggingface.co', 'adventureai.gg', 'ai.google/discover/palm2', 'ai.meta.com/llama', 'ai2006.io', 'aibuddy.chat', 'aidungeon.io', 'aigcdeep.com', 'ai-ghostwriter.com', 'aiisajoke.com', 'ailessonplan.com', 'aipoemgenerator.org', 'aissistify.com', 'ai-writer.com', 'aiwritingpal.com', 'akeeva.co', 'aleph-alpha.com/luminous', 'alphacode.deepmind.com', 'analogenie.com', 'anthropic.com/index/claude-2', 'anthropic.com/index/introducing-claude', 'anyword.com', 'app.getmerlin.in', 'app.inferkit.com', 'app.longshot.ai', 'app.neuro-flash.com', 'applaime.com', 'articlefiesta.com', 'articleforge.com', 'askbrian.ai', 'aws.amazon.com/bedrock/titan', 'azure.microsoft.com/en-us/products/ai-services/openai-service', 'bard.google.com', 'beacons.ai/linea_builds', 'bearly.ai', 'beatoven.ai', 'beautiful.ai', 'beewriter.com', 'bettersynonyms.com', 'blenderbot.ai', 'bomml.ai', 'bots.miku.gg', 'browsegpt.ai', 'bulkgpt.ai', 'buster.ai', 'censusgpt.com', 'chai-research.com', 'character.ai', 'charley.ai', 'charshift.com', 'chat.lmsys.org', 'chat.mymap.ai', 'chatbase.co', 'chatbotgen.com', 'chatgpt.com', 'chatgptdemo.net', 'chatgptduo.com', 'chatgptspanish.org', 'chatpdf.com', 'chattab.app', 'claid.ai', 'claralabs.com', 'claude.ai/login', 'clipdrop.co/stable-diffusion', 'cmdj.app', 'codesnippets.ai', 'cohere.com', 'cohesive.so', 'compose.ai', 'contentbot.ai', 'contentvillain.com', 'copy.ai', 'copymatic.ai', 'copymonkey.ai', 'copysmith.ai', 'copyter.com', 'coursebox.ai', 'coverler.com', 'craftly.ai', 'crammer.app', 'creaitor.ai', 'dante-ai.com', 'databricks.com', 'deepai.org', 'deep-image.ai', 'deepreview.eu', 'descrii.tech', 'designs.ai', 'docgpt.ai', 'dreamily.ai', 'editgpt.app', 'edwardbot.com', 'eilla.ai', 'elai.io', 'elephas.app', 'eleuther.ai', 'essayailab.com', 'essay-builder.ai', 'essaygrader.ai', 'essaypal.ai', 'falconllm.tii.ae', 'finechat.ai', 'finito.ai', 'fireflies.ai', 'firefly.adobe.com', 'firetexts.co', 'flowgpt.com', 'flowrite.com', 'forethought.ai', 'formwise.ai', 'frase.io', 'freedomgpt.com', 'gajix.com', 'gemini.google.com', 'genei.io', 'generatorxyz.com', 'getchunky.io', 'getgptapi.com', 'getliner.com', 'getsmartgpt.com', 'getvoila.ai', 'gista.co', 'github.com/features/copilot', 'giti.ai', 'gizzmo.ai', 'glasp.co', 'gliglish.com', 'godinabox.co', 'gozen.io', 'gpt.h2o.ai', 'gpt3demo.com', 'gpt4all.io', 'gpt-4chan+)', 'gpt6.ai', 'gptassistant.app', 'gptfy.co', 'gptgame.app', 'gptgo.ai', 'gptkit.ai', 'gpt-persona.com', 'gpt-ppt.neftup.app', 'gptzero.me', 'grammarly.com', 'hal9.com', 'headlime.com', 'heimdallapp.org', 'helperai.info', 'heygen.com', 'heygpt.chat', 'hippocraticai.com', 'huggingface.co/spaces/tiiuae/falcon-180b-demo', 'humanpal.io', 'hypotenuse.ai', 'ichatwithgpt.com', 'ideasai.com', 'ingestai.io', 'inkforall.com', 'inputai.com/chat/gpt-4', 'instantanswers.xyz', 'instatext.io', 'iris.ai', 'jasper.ai', 'jigso.io', 'kafkai.com', 'kibo.vercel.app', 'kloud.chat', 'koala.sh', 'krater.ai', 'lamini.ai', 'langchain.com', 'laragpt.com', 'learn.xyz', 'learnitive.com', 'learnt.ai', 'letsenhance.io', 'letsrevive.app', 'lexalytics.com', 'lgresearch.ai', 'linke.ai', 'localbot.ai', 'luis.ai', 'lumen5.com', 'machinetranslation.com', 'magicstudio.com', 'magisto.com', 'mailshake.com/ai-email-writer', 'markcopy.ai', 'meetmaya.world', 'merlin.foyer.work', 'mieux.ai', 'mightygpt.com', 'mosaicml.com', 'murf.ai', 'myaiteam.com', 'mygptwizard.com', 'narakeet.com', 'nat.dev', 'nbox.ai', 'netus.ai', 'neural.love', 'neuraltext.com', 'newswriter.ai', 'nextbrain.ai', 'noluai.com', 'notion.so', 'novelai.net', 'numind.ai', 'ocoya.com', 'ollama.ai', 'openai.com', 'ora.ai', 'otterwriter.com', 'outwrite.com', 'pagelines.com', 'parallelgpt.ai', 'peppercontent.io', 'perplexity.ai', 'personal.ai', 'phind.com', 'phrasee.co', 'play.ht', 'poe.com', 'predis.ai', 'premai.io', 'preppally.com', 'presentationgpt.com', 'privatellm.app', 'projectdecember.net', 'promptclub.ai', 'promptfolder.com', 'promptitude.io', 'qopywriter.ai', 'quickchat.ai/emerson', 'quillbot.com', 'rawshorts.com', 'read.ai', 'rebecc.ai', 'refraction.dev', 'regem.in/ai-writer', 'regie.ai', 'regisai.com', 'relevanceai.com', 'replika.com', 'replit.com', 'resemble.ai', 'resumerevival.xyz', 'riku.ai', 'rizzai.com', 'roamaround.app', 'rovioai.com', 'rytr.me', 'saga.so', 'sapling.ai', 'scribbyo.com', 'seowriting.ai', 'shakespearetoolbar.com', 'shortlyai.com', 'simpleshow.com', 'sitegpt.ai', 'smartwriter.ai', 'sonantic.io', 'soofy.io', 'soundful.com', 'speechify.com', 'splice.com', 'stability.ai', 'stableaudio.com', 'starryai.com', 'stealthgpt.ai', 'steve.ai', 'stork.ai', 'storyd.ai', 'storyscapeai.app', 'storytailor.ai', 'streamlit.io/generative-ai', 'summari.com', 'synesthesia.io', 'tabnine.com', 'talkai.info', 'talkpal.ai', 'talktowalle.com', 'team-gpt.com', 'tethered.dev', 'texta.ai', 'textcortex.com', 'textsynth.com', 'thirdai.com/pocketllm', 'threadcreator.com', 'thundercontent.com', 'tldrthis.com', 'tome.app', 'toolsaday.com/writing/text-genie', 'to-teach.ai', 'tutorai.me', 'tweetyai.com', 'twoslash.ai', 'typeright.com', 'typli.ai', 'uminal.com', 'unbounce.com/product/smart-copy', 'uniglobalcareers.com/cv-generator', 'usechat.ai', 'usemano.com', 'videomuse.app', 'vidext.app', 'virtualghostwriter.com', 'voicemod.net', 'warmer.ai', 'webllm.mlc.ai', 'wellsaidlabs.com', 'wepik.com', 'we-spots.com', 'wordplay.ai', 'wordtune.com', 'workflos.ai', 'woxo.tech', 'wpaibot.com', 'writecream.com', 'writefull.com', 'writegpt.ai', 'writeholo.com', 'writeme.ai', 'writer.com', 'writersbrew.app', 'writerx.co', 'writesonic.com', 'writesparkle.ai', 'writier.io', 'yarnit.app', 'zevbot.com', 'zomani.ai' ) | extend sit = parse_json(tostring(RawEventData.SensitiveInfoTypeData)) | mv-expand sit | summarize Event_Count = count() by tostring(sit.SensitiveInfoTypeName), CountryCode, City, UserId = tostring(RawEventData.UserId), TargetDomain = tostring(RawEventData.TargetDomain), ActionType = tostring(RawEventData.ActionType), IPAddress = tostring(RawEventData.IPAddress), DeviceType = tostring(RawEventData.DeviceType), FileName = tostring(RawEventData.FileName), TimeBin = bin(TimeGenerated, 1h) | extend SensitivityScore = case(tostring(sit_SensitiveInfoTypeName) in~ ("U.S. Social Security Number (SSN)", "Credit Card Number", "EU Tax Identification Number (TIN)","Amazon S3 Client Secret Access Key","All Credential Types"), 90, tostring(sit_SensitiveInfoTypeName) in~ ("All Full names"), 40, tostring(sit_SensitiveInfoTypeName) in~ ("Project Obsidian", "Phone Number"), 70, tostring(sit_SensitiveInfoTypeName) in~ ("IP"), 50,10 ) | join kind=leftouter ( IdentityInfo | where TimeGenerated > ago(lookback) | extend AccountUpn = tolower(AccountUPN) ) on $left.UserId == $right.AccountUpn | join kind=leftouter ( BehaviorAnalytics | where TimeGenerated > ago(lookback) | extend AccountUpn = tolower(UserPrincipalName) ) on $left.UserId == $right.AccountUpn //| where BlastRadius == "High" //| where RiskLevel == "High" | where Department == User_Dept | summarize arg_max(TimeGenerated, *) by sit_SensitiveInfoTypeName, CountryCode, City, UserId, TargetDomain, ActionType, IPAddress, DeviceType, FileName, TimeBin, Department, SensitivityScore | summarize sum(Event_Count) by sit_SensitiveInfoTypeName, CountryCode, City, UserId, Department, TargetDomain, ActionType, IPAddress, DeviceType, FileName, TimeBin, BlastRadius, RiskLevel, SourceDevice, SourceIPAddress, SensitivityScore

With parameterized functions, follow these steps to simplify the plugin that will be built based on the query above

1. Define the variable/parameters upfront in the query (BEFORE creating the parameters in the UI). This will put the query in a “temporary” unusable state because the parameters will cause syntax problems in this state. However, since the plan is to run the query as a function this is ok

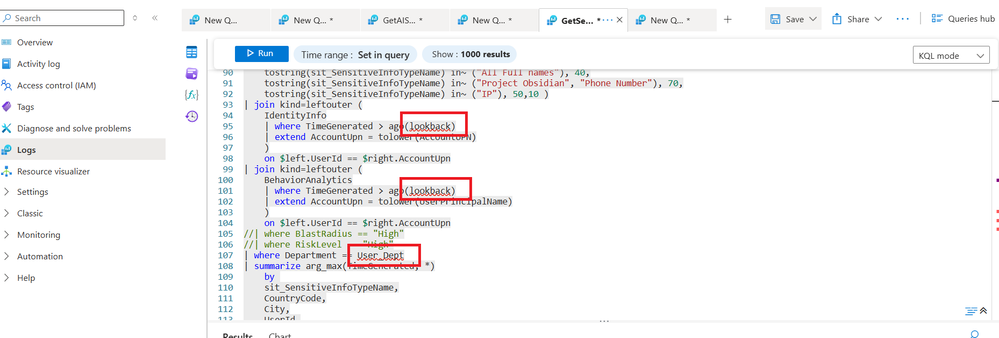

Fig. 1: Image showing partial query with the parameters to defined highlighted in red i.e. lookback and User_Dept

2. Create the parameters in the Log Analytics UI

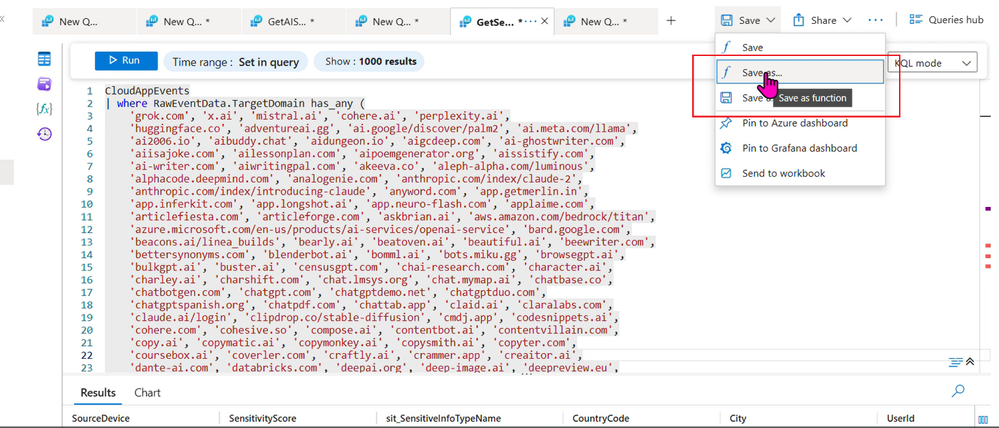

Fig 2. Screenshot showing how the function menu in the Log Analytics UI

Give the function a name and define the parameters exactly as they show up in the query in step 1 above. In this example, we are defining two parameters: lookback – to store the lookback period to be passed to the time filter and User_Dept to the user’s department.

Fig. 3. Function menu showing the two parameters defined in the function creation menu of Log Analytics

3. Test the query. Note the order of parameter definition in the UI. i.e. first the User_Dept THEN the lookback period. You can interchange them if you like but this will determine how you submit the query using the function. If the User_Dept parameter was defined first then it needs to come first when executing the function. See the below screenshot. Switching them will result in the wrong parameter being passed to the query and consequently 0 results will be returned.

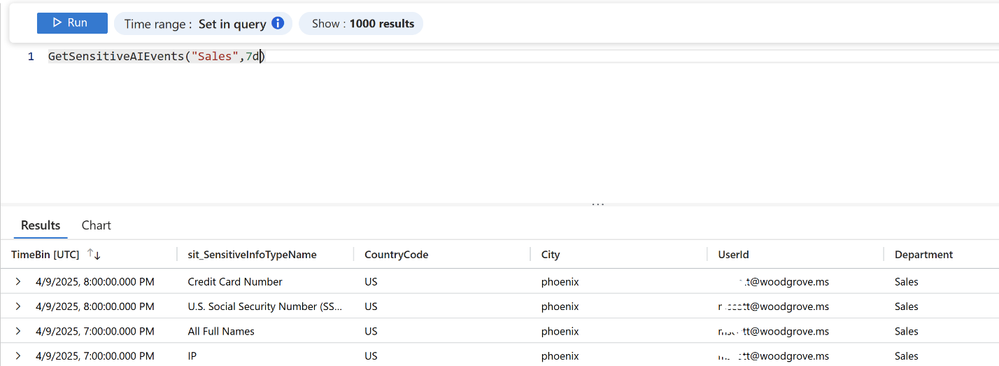

Fig. 4: Sample run of the function with the parameters specified in the correct order

Effect of switched parameters:

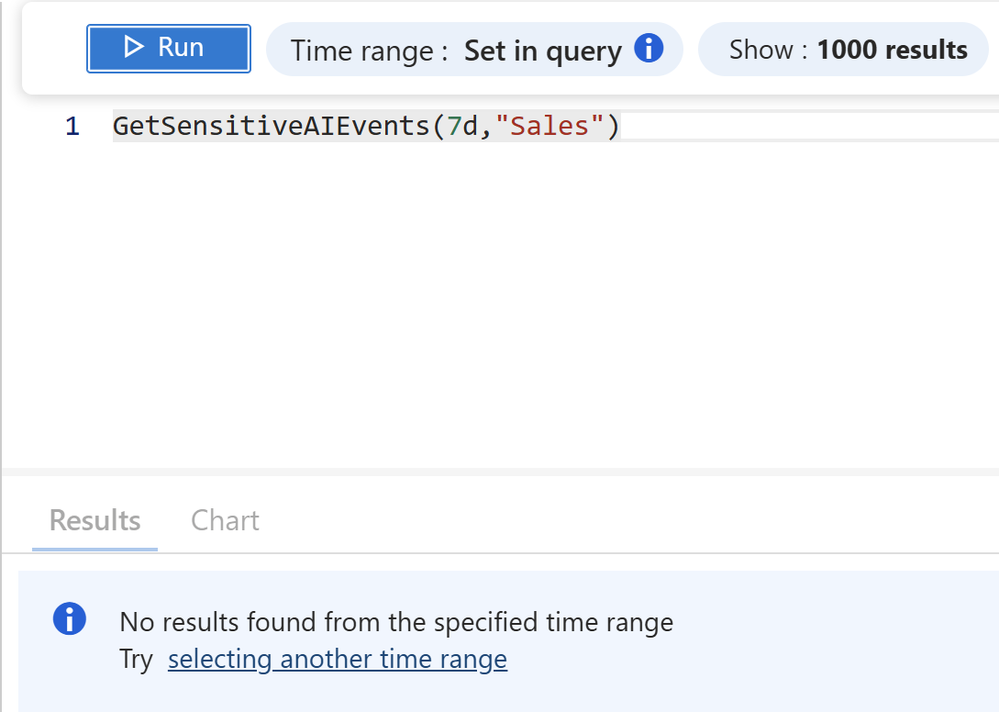

Fig. 5: Sample function run with the functions switched to show effect of this situation

To edit the function, follow the steps below:

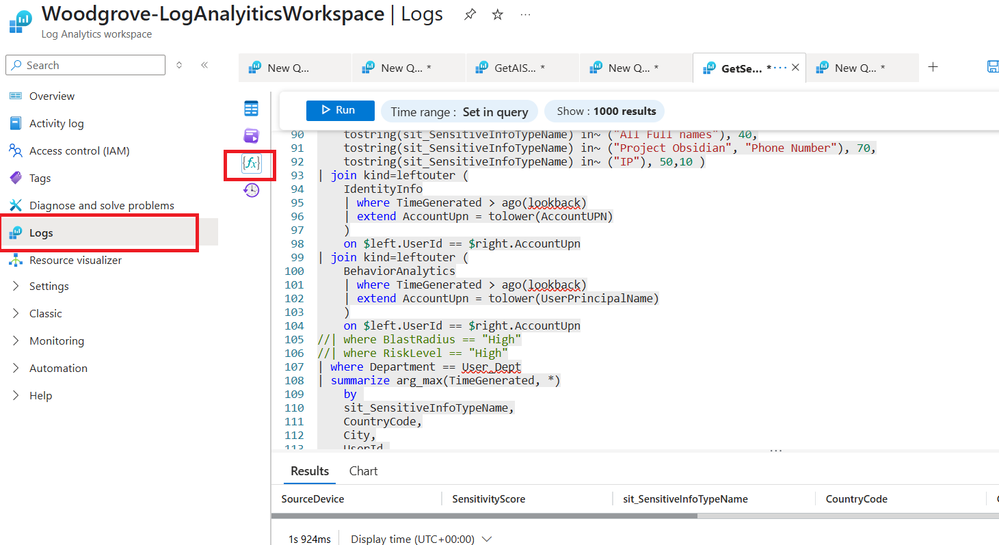

Navigate to the Logs menu for your Log Analytics workspace then select the function icon



Fig. 6: Partial view of the function being edited within the Log Analytics UI

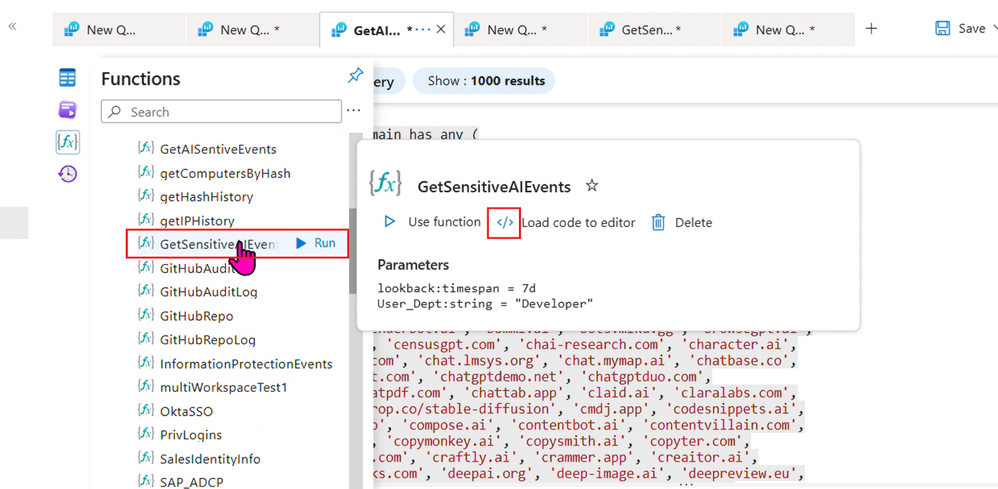

Fig. 7: Image showing how to select the code button in the function menu to edit the function code

Once satisfied with the query and function, build your spec file for the Security Copilot plugin. Note the parameter definition and usage in the sections highlighted in red below

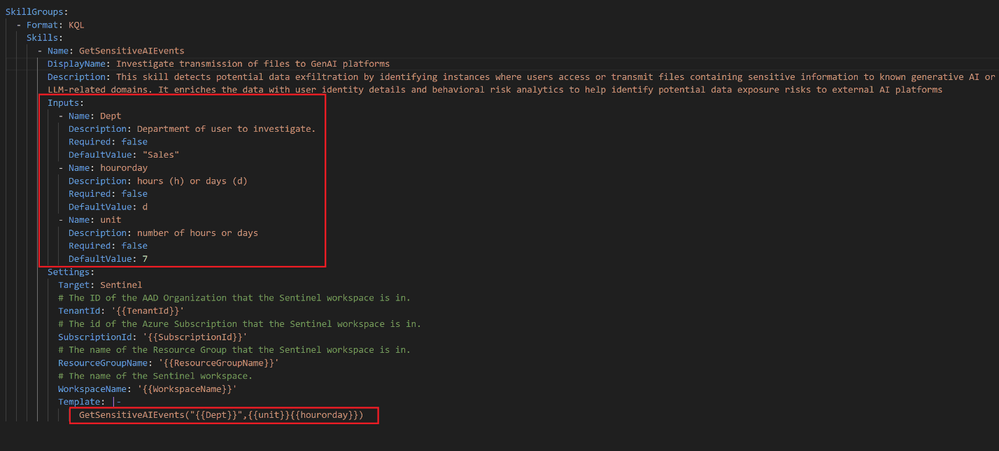

Fig. 8: Partial view of the YAML plugin showing the encapsulation of the 139 lines of KWL into a single one

And that’s it, from 139 unwieldy KQL lines to one very manageable one! You are welcome 😊

Let’s now put it through its paces once uploaded into Security Copilot. We start by executing the plugin using its default settings via the direct skill invocation method. We see indeed that the prompt returns results based on the default values passed as parameters to the function:

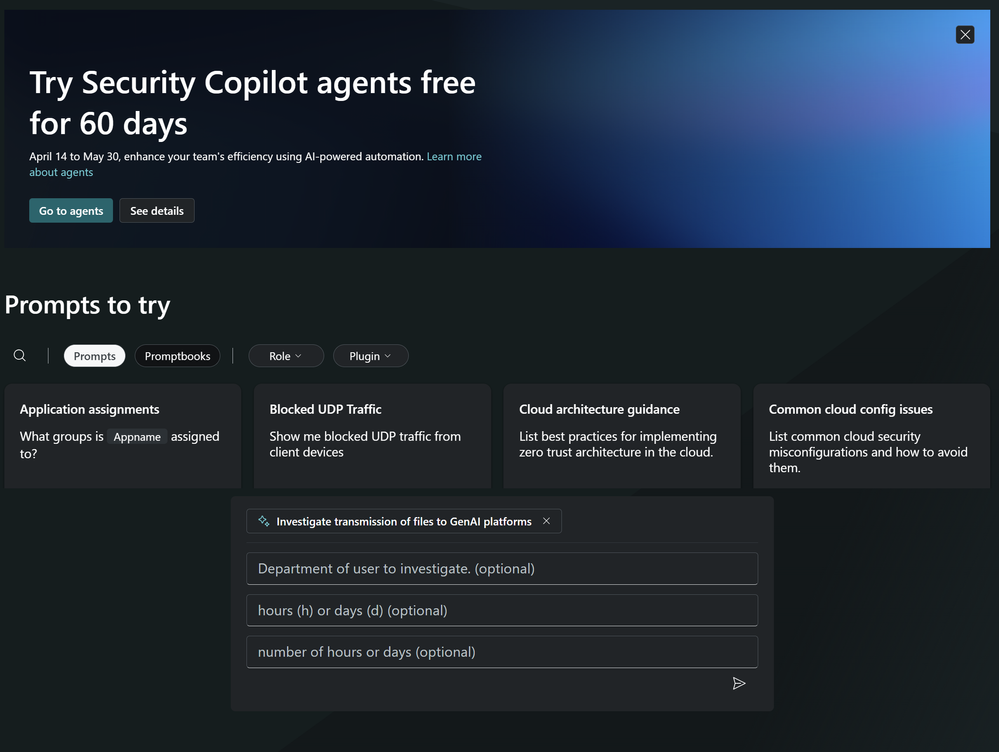

Fig. 9: View of Secuity Copilot landing page showing an example of direct skill execution of the created pluginFig. 10: Sample output showing records of users from the Sales department

Next, we still use direct skill invocation, but this time specify our own parameters:

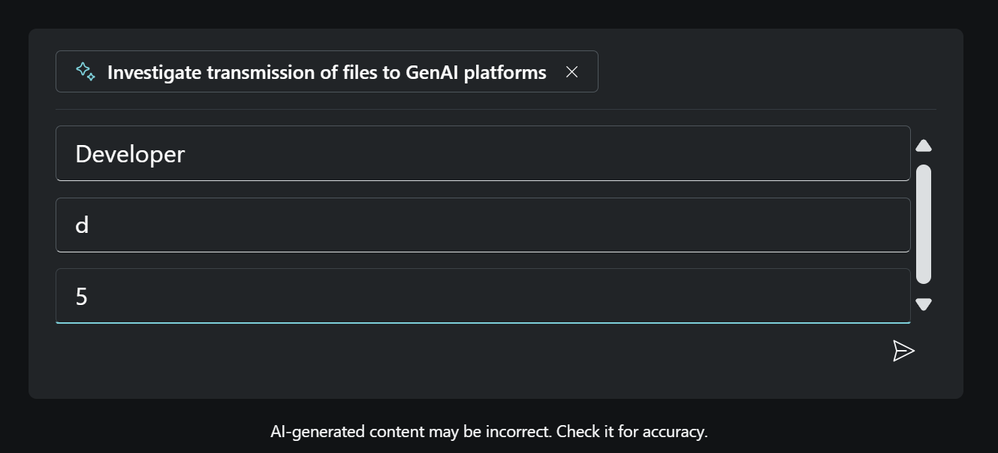

Fig. 11: Direct skill invocation example but with specified parameters-Department, and lookback periodFig 12: Prompt run showing the output corresponding to the selections of the previous direct skill invocation prompt

Lastly, we test it out with a natural language prompt:

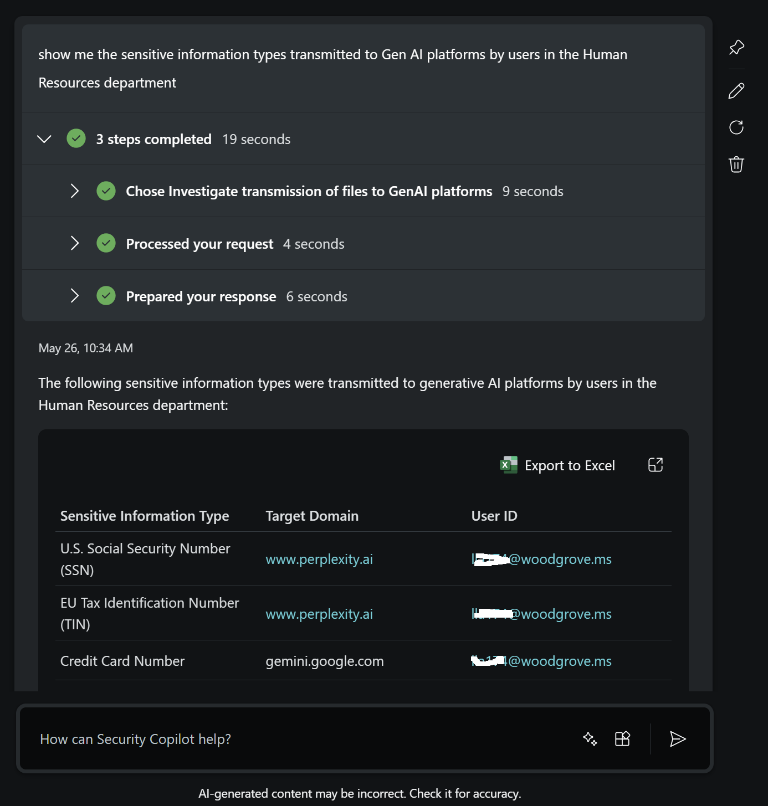

Fig 13: Security Copilot prompt bar showing example of natural language prompt seeking events related to users in the Human Resources departmentFig 14: Output from previous natural language prompt focused on users from the HR department

Tip: The function does not execute successfully if the default summarize function is used without creating a variable i.e. If the summarize count() command is used in your query, it results in a system-defined output variable named count_. To bypass this issue, ensure to use a user-defined variable such as Event_Count as shown in line 77 below:

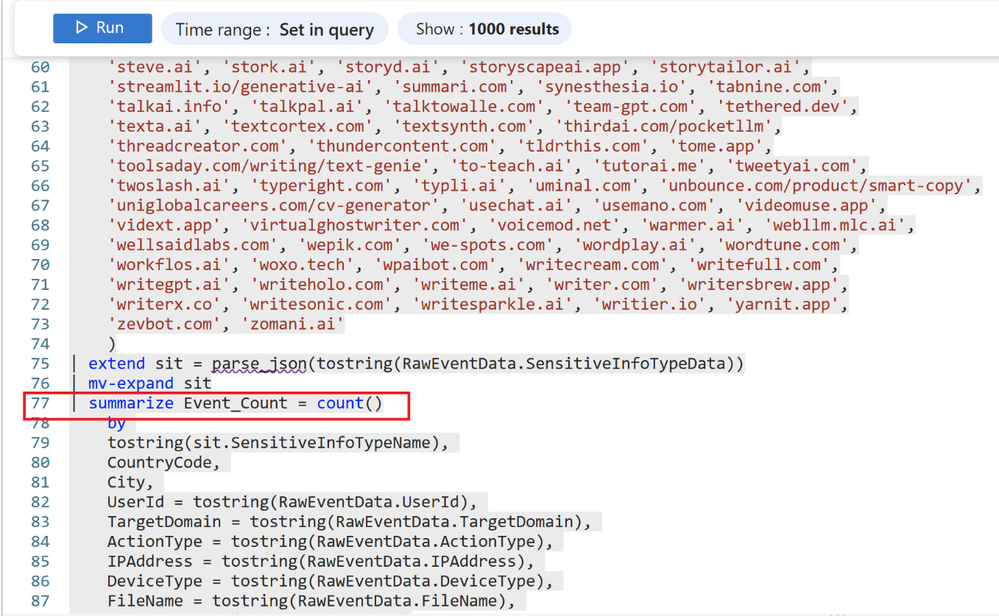

Fig. 15: Highlighting the creation of a variable to store results from the summarize count() command

Conclusion

In conclusion, leveraging parameterized functions within KQL-based custom plugins in Microsoft Security Copilot can significantly streamline your data querying and analysis capabilities. By encapsulating reusable logic, improving query efficiency, and ensuring maintainability, these functions provide an efficient approach for tapping into data stored across Microsoft Sentinel, Defender XDR and Azure Data Explorer clusters. Start integrating parameterized functions into your KQL-based Security Copilot plugins today and let us have your feedback.

Additional Resources

Using parameterized functions in Microsoft Defender XDR

Using parameterized functions with Azure Data Explorer

Functions in Azure Monitor log queries - Azure Monitor | Microsoft Learn

Kusto Query Language (KQL) plugins in Microsoft Security Copilot | Microsoft Learn

Harnessing the power of KQL Plugins for enhanced security insights with Copilot for Security | Microsoft Community Hub
