Overview
To ensure the security of SAP applications deployed in a virtual network, it is essential to protect them from unauthorized external access. However, certain scenarios require these applications to communicate with external networks or the internet.
This document outlines an approach for configuring SAPRouter with Azure Firewall, where SAPRouter—deployed within Azure—needs internet connectivity to reach the SAP Network. Acting as a proxy, SAPRouter enables outbound traffic from the Azure environment. To maintain security, it is critical to position a firewall between the SAPRouter and the external SAP Network.
The blog covers two possible SAPRouter configuration scenarios on the customer side using Azure Firewall:
- Single SAPRouter Configuration
- Cascade SAPRouter Configuration
Reference Network Architecture
Scenario#1 Single SAPRouter Deployment
In this scenario, a single SAPRouter instance is deployed to manage connectivity between the SAP-side SAPRouter and the Customer SAPRouter. This setup simplifies the routing architecture and is suitable for environments with straightforward connectivity requirements.

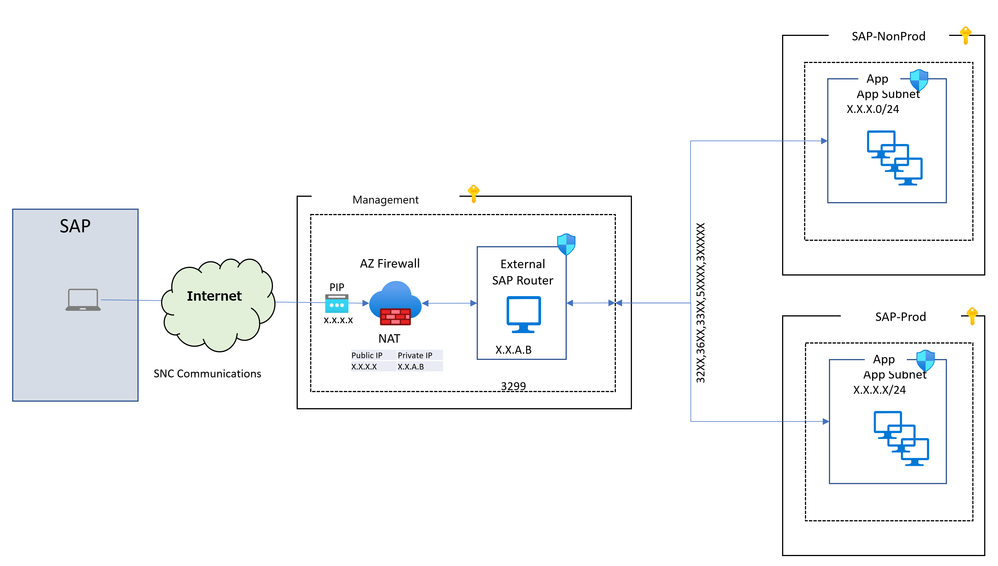

SAPRouter Reference Architecture
Key Components of the Architecture
SAP-Router:
The SAProuter is an SAP program that serves as a proxy in the network connection between SAP systems or between SAP systems and external networks. Its primary function is to safeguard the SAP network from unauthorized access.
Azure Firewall:
Azure Firewall is a cloud-based, fully managed network security service designed to protect your Azure Virtual Network resources. It is a stateful firewall with built-in high availability and unlimited scalability in the cloud.
Pre-requisites:
A Landing Zone deployed on Azure, including a Virtual Network and Subnet with SAP systems, is required.
This document assumes that the network architecture, whether Hub-Spoke or customer-preferred, as part of the Azure Enterprise Scale Landing Zone, is already implemented on the Microsoft Azure platform.
Deploy SAPRouter Virtual Machine
- Deploy a virtual machine Windows/Linux
Windows/Linux VM, preferably, dedicated for hosting SAPRouter required for the installation and configuration of SAPRouter.
- Download SAPRouter Software 30374 - SAProuter installation - SAP ONE Support Launchpad
- Install SAPRouter Software on the Virtual Machine.
- Review the status of SAPRouter Service.
Register SAPRouter with SAP
- Create an SAP OSS Case --> Raise an OSS under component XX-SER-NET-NEW for registering the New SAP Router in SAP premises.
- Capture details to update SAPRouttab file --> follow the SAP standard document to create the saprouttab entries. Below link to be followed SAProuter.
Example of SAPRouttab file
# SNC connection to and from SAP
KT "p:CN=sapserv2, OU=SAProuter, O=SAP, C=DE" 194.39.131.34 *
KT "p:CN=sapserv2, OU=SAProuter, O=SAP, C=DE" <firewall load balancer IP 1> 3299
# SNC connection to local systems
# * is optional, the rule can be further restrcited by using specific ports value & IP address of VM hosting SAP application
KP "p:CN=sapserv2, OU=SAProuter, O=SAP, C=DE" <internal hosts (SAP Server) IP> *
# Access from the local Network to SAP
# deny all other connections
D * * 1.65535
Azure Firewall Configuration

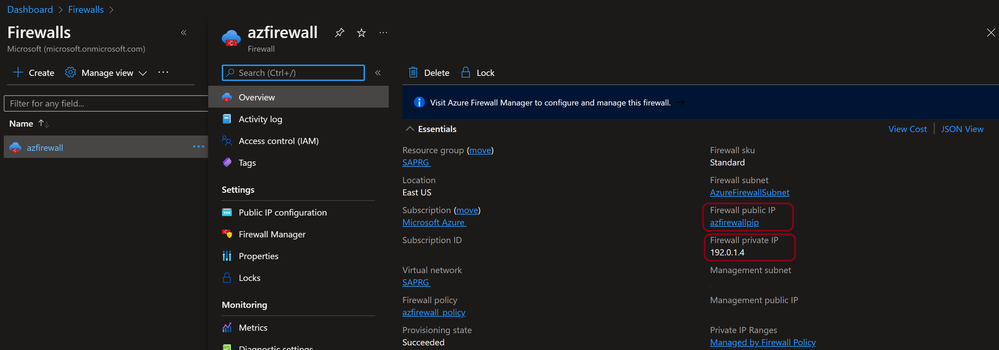

- Create/Review Azure Firewall
- Create/Review Public I.P Assignment
- Update NAT’in on Azure Firewall

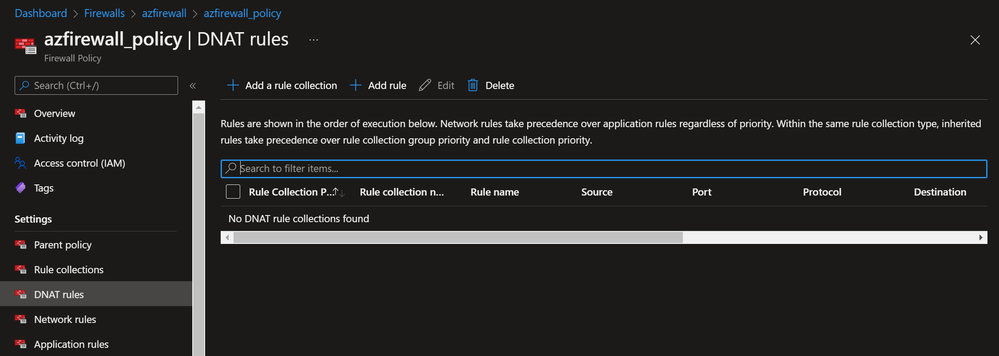

Go to Firewall Manager and select the Azure Policy
or select it from Overview page

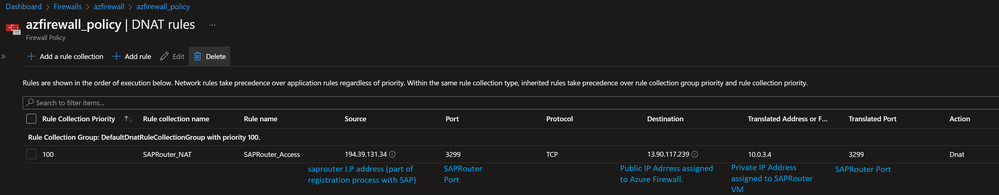

- Add rule collection group
Update SAP SAPRouter Configuration
- Review & update the SAPRouttab file as per point 2 of section Register SAPRouter with SAP.
- Allow azure firewall IP addresses in the SAPRouttab file. Once these steps are completed, perform sap backbone connectivity setup from SAP ABAP system and perform the test.
Example SAPRouttab file
# SNC connection to and from SAP
KT "p:CN=sapserv2, OU=SAProuter, O=SAP, C=DE" 194.39.131.34 *
KT "p:CN=sapserv2, OU=SAProuter, O=SAP, C=DE" <firewall load balancer IP 1> 3299
# SNC connection to local systems
# * is optional, the rule can be further restrcited by using specific ports value & IP address of VM hosting SAP application
KP "p:CN=sapserv2, OU=SAProuter, O=SAP, C=DE" <internal hosts (SAP Server) IP> *
# Access from the local Network to SAP
# deny all other connections
D * * 1.65535
Scenario#2 Cascade SAPRouter for Managing Connectivity
In this scenario, a cascade SAPRouter is used to manage the connectivity between the SAP(side)Router and the Customer SAPRouter. The customer's deployment will host two SAPRouters: one for external connectivity and one for internal connectivity.
Option#1
Option#2

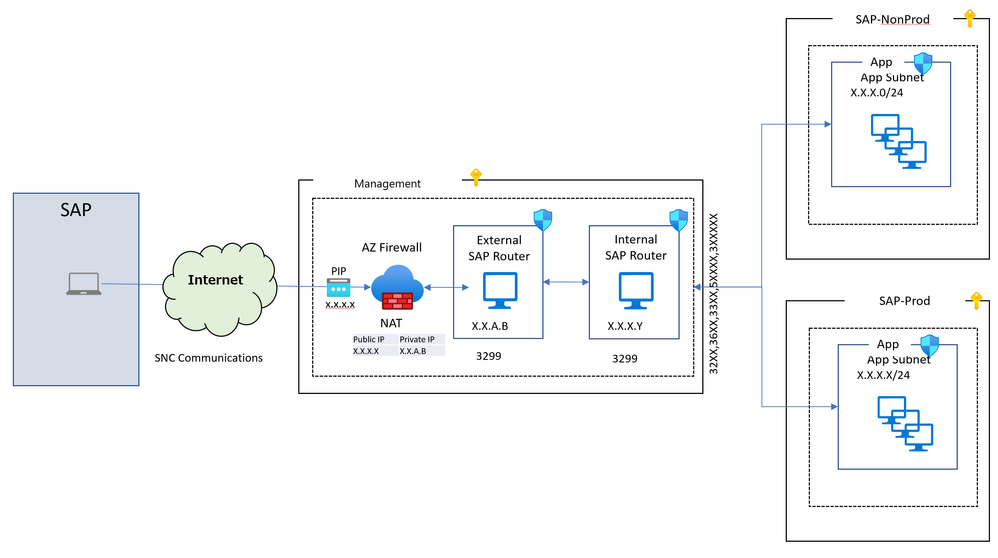

SAPRouter Cascade Reference Architecture
example SAPRouttab file:
External SAPRouttab example for cascade configuration
# SNC connection to and from SAP
KT "p:CN=sapserv2, OU=SAProuter, O=SAP, C=DE" 194.39.131.34 3299
KT "p:CN=sapserv2, OU=SAProuter, O=SAP, C=DE" <Azure internal firewall IP> 3299
# SNC connection to local systems
KP "p:CN=sapserv2, OU=SAProuter, O=SAP, C=DE" <internal router IP> 3299
# Access from the local Network to Internal SAPRouter
P <Azure internal firewall IP> <internal router IP> 3299
P <internal router IP> 194.39.131.34 3299
# deny all other connections
D * * 1.65535
Internal SAPRouttab example for cascade configuration
# Access from the local Network to Internal SAPRouter
P <External SAPRouter IP> <SAP R/3 server IP> <Port>
# From SAP Server to External SAPRouter
P <SAP R/3 server IP> <External SAPRouter ip> 3299
# deny all other connections
D * * *
Update the Azure firewall policy as scenario#1

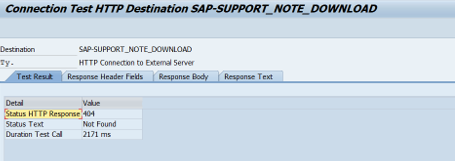

Test the connectivity
SAP OSS connection from satellite system to SAP (with the help of SAP)
Remote log on from SAP to managed system through R3
