Introduction

In this document we will describe a method of setting up periodic niping monitoring within an SAP infrastructure driven by the Telegraf monitoring agent, and reported via the Azure Monitor facility.

Disclaimer

We do not guarantee that documented configurations are correct or the best way to implement a function - the intention of creating this document is to describe a configuration that AGCE team has created and customers have found useful.

Overview

In an SAP environment it is useful to monitor various aspects of the VMs in the landscape, and to collect and alert on that monitored data. This is an example of setting up SAP niping to periodically report the inter-VM latency, specifically between the application servers and the ASCS, as well as between the application servers and the database. Here is a diagram of the configuration that we describe in this document:





SAP provides the niping application that is useful for network testing - there is a blog post describing the use of niping here. It can test latency, throughput and stability - in this document we will focus on its latency testing capability. niping is typically used for initial validation of an environment (i.e. not under any significant loading) and is not generally used continuously. However, this does provide a great example for this document, and a similar architecture can be used to monitor many other OS and SAP metrics. Please keep in mind that the measured latency between servers will vary based on the network load on the servers at the time.

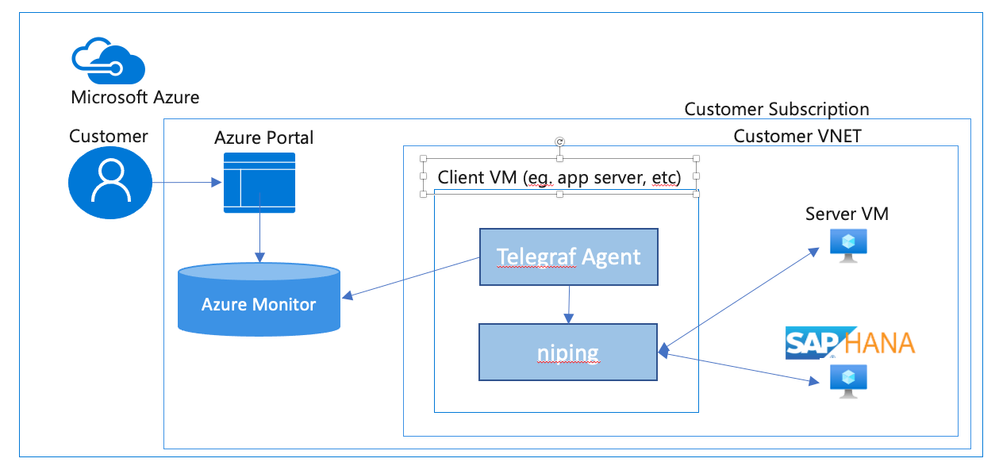

In this solution we will use the InfluxData Telegraf agent described in Azure documentation. This agent runs on the monitored VMs and sends the collected data to Azure Monitor. If you don't want to use telegraf you can collect the test data from niping and send the result to Azure monitor yourself. This would likely be done in a shell script scheduled with cron - however, this configuration won't be described in this document.

Requirements for this configuration

This solution has the following technical requirements:

  • niping application from SAP for network latency testing.

  • telegraf monitoring agent for invoking niping and sending the data to the Azure Monitor database.

  • system assigned identity for the virtual machine

  • virtual machine must be able to make requests to the Azure API, which is "Internet facing". This will typically require firewall access to any applicable firewalls or network appliances.

Installation & Configuration of NIPING on NIPING servers

The NIPING application is provided by SAP, as described in SAP Note 500235 Network Diagnosis with NIPING and is delivered in SAP kernel releases, as well as via SAPROUTER.



Download the latest version of the SAPROUTER SAR file, and place it onto all VMs to be tested. Use the sapcar program to unpack the SAR file, and place the niping program in a logical place. In this example, we will put all executable files in /usr/local/bin.

# ./sapcar -xf ./saprouter_710-80003478.sar
# cp niping /usr/local/bin

On all VMs that will be niping servers (i.e. the HANA database, and the ASCS), we need to create a system service that will run the niping service. Create the file /usr/lib/systemd/system/niping-server.service, with the following contents:

[Unit]
Description=SAP niping server
After=network.target

[Service] Type=simple Restart=always ExecStart=/usr/local/bin/niping -s -I 0 ExecReload=/bin/kill -HUP $MAINPID
[Install] WantedBy=multi-user.target

Do the following commands to make the niping service start on reboot, and to start it immediately:

#systemctl enable niping-server
#systemctl start niping-server

You can now verify that the niping program is running by doing the following:

#ps -eaf | grep niping
root      49966      1  0 14:54 ?        00:00:00 /usr/local/bin/niping -s -I 0
root      49970  47606  0 14:54 pts/0    00:00:00 grep --color=auto niping

Installation of NIPING on other servers

On the other servers in the environment, simply install the NIPING program. Use the sapcar program to unpack the SAR file, and place the niping program in a logical place. In this example, we will put all executable files in /usr/local/bin.

# ./sapcar -xf ./saprouter_710-80003478.sar
# cp niping /usr/local/bin

To test the niping connectivity to one of the servers (eg. hana1), you can do the following:

# /usr/local/bin/niping -c -H hana1

Thu Oct  1 15:19:57 2020
connect to server o.k.
send and receive 10 messages (len 1000)

------- times -----
avg     0.883 ms
max     1.108 ms
min     0.725 ms
tr   2210.668 kB/s
excluding max and min:
av2     0.875 ms
tr2  2231.505 kB/s

Note for clustered instances

In Azure, we use an Azure basic or standard load balancer to provide a "floating IP" for backend instances in a cluster. When testing the niping latency, you may want to test the latency to either individual instances behind the load balancer (i.e. use the actual hostname or IP address), or use the floating ip address, which is the frontend address in the load balancer. If you want to do the latter, make sure that the load balancer has the HA Ports configuration enabled (for the Standard Load Balancer), or you have a load balancer rule for the port that niping uses (default 3298).

Creation of niping shell script

On the monitored instances, we will use a shell script to execute niping and process the output into a Comma Separated Value (CSV) format. Create a file /usr/local/bin/niping_csv.sh with the following text:

#!/bin/bash
# set -x
/usr/local/bin/niping -c -H $1 -B 10 -L 60  -D 15 | tail -n 8  | head -n 7 | grep -v excluding | awk '
{
    for (i=1; i<=NF; i++)  {
        a[NR,i] = $i
    }
}
NF>p { p = NF }
END {
    for(j=1; j<=p; j++) {
        str=a[1,j]
        for(i=2; i<=NR; i++){
            str=str","a[i,j];
        }
        print str
    }
}' | head -n2

Then, make the shell script executable by performing chmod a+x /usr/local/bin/niping_csv.sh. You can test this by doing:

# /usr/local/bin/niping_csv.sh hana1
avg,max,min,tr,av2,tr2
1.217,5.405,0.833,16.053,1.151,16.967

This script runs niping with these parameters -c -H $1 -B 10 -L 60 -D 15, which are (in order)

-c run this as the client side of NIPING

-H $1 do niping tests against the host specified as the first parameter, we will pass this from the telegraf monitoring script

-B 10 use a 10 byte buffer size. This is appropriate for latency testing

-L 60 run 60 iterations of the test

-D 15 delay 15 milliseconds between iterations



Of course you can modify these parameters as you see fit for your testing scenario. The rest of the shell script takes the output from niping and formats it as a CSV (comma separated value) file for easy injestion into telegraf.

Installation of Telegraf monitoring agent

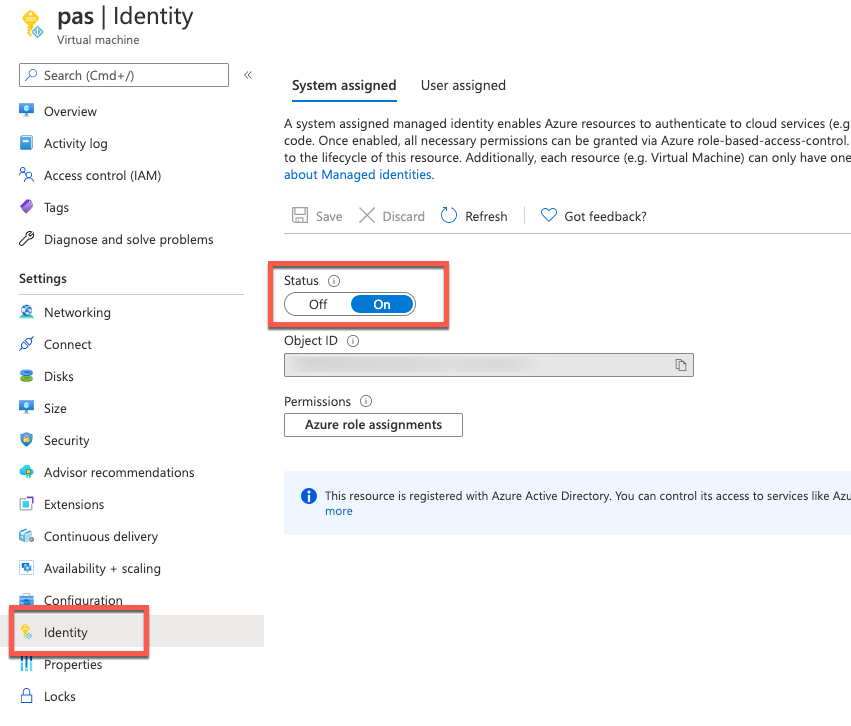

Before installation of telegraf, the monitored VMs must have credentials to upload data into Azure monitor. There are several ways to provide this identity (as described in the Telegraf source github repo), but the simplest way is to use the "system-assigned identity" in the VM, which we will configure next. Go to the Azure portal, view the VM, and navigate to the Identity tab, and ensure that your VM has a system-assigned identity set to On.



To install telegraf, refer to the Influxdata documentation. First install support for the go programming language. In SLES 15 SP4, you need to add the proper repo for go:

zypper addrepo https://download.opensuse.org/repositories/devel:languages:go/SLE_15_SP4/devel:languages:go.repo
zypper refresh
zypper install telegraf

Telegraf is configured via the file /etc/telegraf/telegraf.conf, which is installed with some default configurations. We are going to have a custom configuration though, that will invoke our shell script via the Telegraf "exec" input plugin. We'll create this configuration with the following step:

telegraf --input-filter exec --output-filter azure_monitor config > azm-telegraf.conf

Then open the azm-telegraf.conf with your editor, and find the section starting with

###############################################################################
#                            INPUT PLUGINS                                    #
###############################################################################

Replace the text, starting with [[inputs.exec]] to the end of the file with the following:

[[inputs.exec]]
  commands = [
    "/usr/local/bin/niping_csv.sh hana1"
  ]

  timeout = "5s"
  name_suffix = "_niping_hana"
  data_format = "csv"
  csv_header_row_count = 1

Of course, replace "hana1" with the name or IP address of the server you are testing the latency to. You can find more information on the exec input handler in the telegraf documentation.

You can test this by running the following:

# telegraf --config ./azm-telegraf.conf --test
2020-10-02T00:47:26Z I! Starting Telegraf
> exec_niping_hana,host=pas av2=0.958,avg=0.961,max=1.315,min=0.776,tr=20.328,tr2=20.39 1601599648000000000

Copy and activate the telegraf.conf file to the configuration directory:

# sudo cp azm-telegraf.conf /etc/telegraf/telegraf.conf
# systemctl restart telegraf

At this point, telegraph should be regularly executing the niping program, converting its output to CSV, and uploading the resulting data to Azure Monitor. Check the /var/log/messages file to see if there are any errors, using grep telegraf /var/log/messages.

Configuration of the telegraf agent is via the /etc/telegraf/telegraf.conf file. Looking at that file, you should see something like this near the beginning:

[agent]
  ## Default data collection interval for all inputs
  interval = "10s"

This sets the telegraf agent to run every 10 seconds, and it will run the above shell script and niping every 10 seconds as well. You can adjust this interval within practical limits. More configuration options are documented in the telegraf github repo.

Plot your niping data in the Azure portal

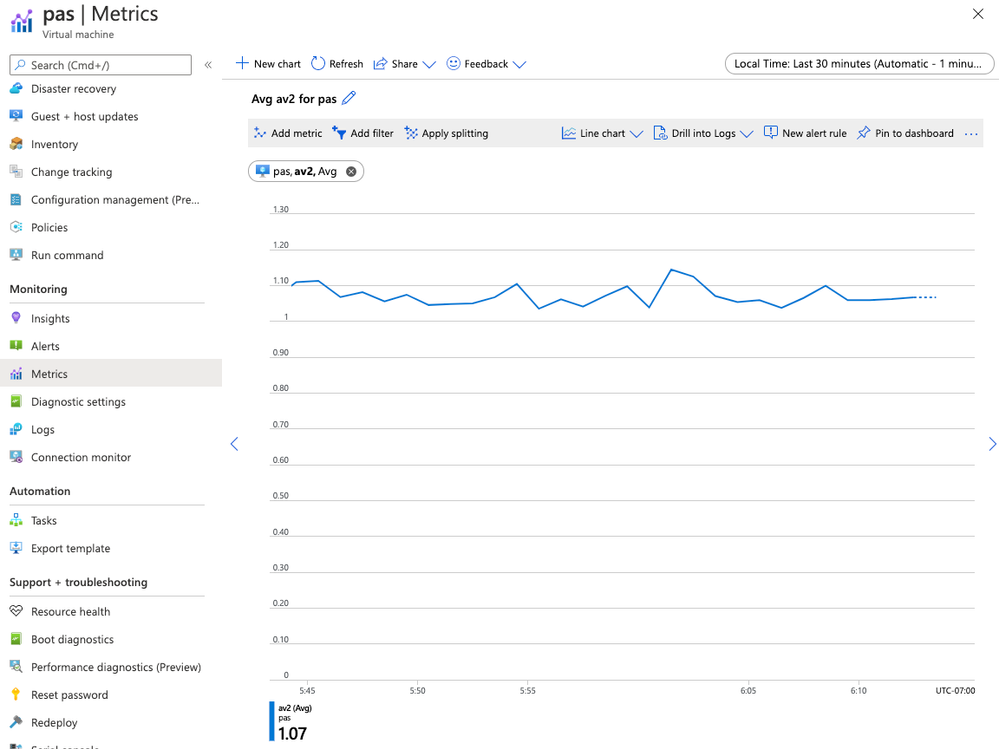

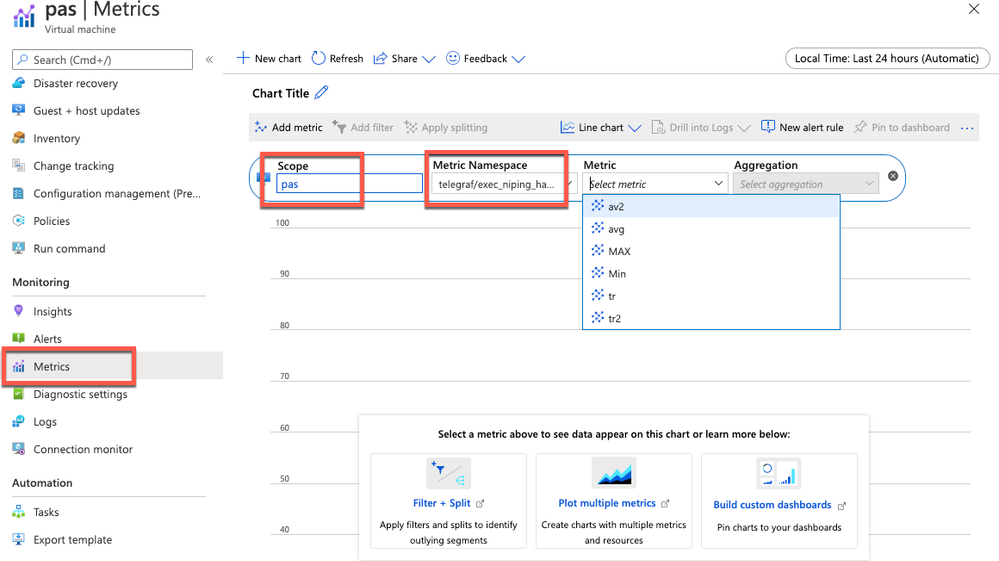

Open the Azure Portal, and navigate to the Monitor tab, then select Metrics, and select the VM you installed telegraf on in the resource selector.



Select the Telegraf/execnipinghana namespace, and select the av2 metric.



Additional monitoring configuration

You can have multiple [[inputs.exec]] sections in the telegraf.conf file if you want to test niping against multiple servers (i.e. the database and the ASCS). You can also configure the niping to test latency through the floating IP/load balancer front end IP address for clustered instances if you would like to, as described in the note for clustered instances above.



There are also over 150 input plugins available in the Telegraf agent that you can find in the InfluxData list of supported plugins, and creative use of the exec plugin (as we've used above) can monitor virtually anything on the VM.



You can create alerts on the data you are collecting. For example, you could create an alert that fires whenever the average of the av2 metric goes over a certain value, using a rolling 5 minute average evaluated once per minute.

Updated Mar 21, 2024
Version 3.0
  • While this post describes a completely Azure-based monitoring situation, it is possible to have the telegraf agent monitor things on-prem, and send that monitoring data to Azure monitor.  I tested this out, and there were only a couple of additional configuration steps necessary:



    In the blog post we use a 'managed service identity' for the telegraf monitor agent to authenticate with Azure for the data upload.  This works great and requires minimal configuration.  However, for machines that are not in Azure, you will have to use another method for authentication.  I created a service principal (using instructions here: https://docs.microsoft.com/en-us/azure/active-directory/develop/app-objects-and-service-principals#service-principal-object).  I used the Azure portal to add the "Monitoring Metrics Publisher" role for my service principal - you can make this permission for the resource group, log analytics workspace or virtual machine metrics that you are using for the metrics.



    Then I had to pass the credentials to the Telegraf agent - this is done via Linux environment variables, so I had to arrange for these to be sent to the telegraf system service. First, the file /usr/lib/telegraf/telegraf.service should have the following line:



    EnvironmentFile=/etc/default/telegraf

    This tells systemd or systemctl to load the file /etc/default/telegraf into the environment before invoking the telegraf agent. Next, I added the following to the /etc/default/telegraf file:

    AZURE_TENANT_ID="<your tentant id>"
    AZURE_CLIENT_ID="<your client id>"
    AZURE_CLIENT_SECRET="<your client secret>"

    Of course the values were replaced with the values I got when I created the service principal.

    I changed the /etc/telegraf/telegraf.conf file, making the following changes, filling in the values from my deployment:

    [[outputs.azure_monitor]]
    region = "<your azure region>"
    resource_id = "<your log analytics resource id>"


    Finally, I restarted the telegraf agent using systemctl restart telegraf. I checked the /var/log/messages file to make sure there were no telegraf errors, and I looked at the Azure portal, and found my new metrics under the resource id I used above.

  • I was recently involved in a project where we needed iostat metrics to be surfaced within the Azure portal, and also having the ability to create alerts based on this data. Here are my instructions on doing this:

    First, I created a shell script that runs iostat and collects the data in the proper format. Here is my script which I put in /usr/local/bin/iostat_sh.sh:

    #!/bin/bash

    while read -r device read_queued_sec write_queued_sec read_completed_sec write_completed_sec read_kbytes_sec write_kbytes_sec avg_sector_size avg_queue_len await_ms read_await_ms write_await_ms svctime_ms util_pct; do
        [ ! -z "$device" ] && echo "iostat,device=$device read_queued_sec=$read_queued_sec,write_queued_sec=$write_queued_sec,read_completed_sec=$read_completed_sec,write_completed_sec=$write_completed_sec,read_kbytes_sec=$read_kbytes_sec,write_kbytes_sec=$write_kbytes_sec,avg_sector_size=$avg_sector_size,avg_queue_len=$avg_queue_len,await_ms=$await_ms,read_await_ms=$read_await_ms,write_await_ms=$write_await_ms,svctime_ms=$svctime_ms,util_pct=$util_pct"
    done < <(iostat -dxyk 5 1 |  tail -n +4)
    exit 0

    Remember that the two number parameters for iostat are the interval and the count. In my case I used 5 seconds for the interval and 1 for the count – you may want to adjust the interval that you are measuring over. Then I did chmod a+x /usr/local/bin/iostat_sh.sh to make the shell script executable.

    Next I modified my /etc/telegraf/telegraf.conf to have this input section:

    [[inputs.exec]]
      commands = [ "/usr/local/bin/iostat_sh.sh" ]
      timeout = "10s"
      data_format = "influx"

    To make the new telegraf.conf take effect, you have to stop and restart the telegraf service:

    systemctl stop telegraf
    systemctl start telegraf

    After a few minutes, the metrics should come under the virtual machine metrics, and in my example below I split by the device:
