In-App Notification PCF Control

Overview

A robust Power Apps Component Framework (PCF) control for Dataverse, designed to deliver, display, and manage in-app notifications. This control supports secure environment variable lookup, publisher-agnostic logic, recipient resolution, and integrates with Microsoft Graph for advanced scenarios. It is built for easy adoption by developers and customers.

Testing Status: This control has been tested for minimum positive flow scenarios. Comprehensive testing for edge cases, error handling, and production readiness is recommended before deployment.

For more information about in-app notifications in Dataverse, see Microsoft Docs: Send in-app notifications within model-driven apps.

Build & Run

npm install npm run build

Features

• Notification Delivery: Send notifications to users or groups in Dataverse.
• Recipient Resolution: Fetch and display recipient names using systemuser IDs.
• Environment Variable Lookup: Secure, publisher-agnostic configuration.
• Microsoft Graph Integration: Authenticate and fetch data from Microsoft Graph using MSAL.js.
• Robust UI: Modern, responsive React components with Fluent UI styling.
• Error Handling: Graceful fallback for missing recipients and robust client-side logic.

Project Structure

NotificationControl/ components/ NotificationDetails.tsx # Displays notification details and recipient info NotificationForm.tsx # Main form for creating and sending notifications NotificationList.tsx # Lists all notifications and handles navigation NotificationForm.css # Styles for the notification form NotificationList.css # Styles for the notification list context/ NotificationContext.tsx # React context for notification state hooks/ useNotifications.ts # Custom hook for notification logic utils/ api.ts # Core notification logic, environment variable lookup, Graph API integration auth.ts # Authentication helpers for MSAL.js ControlManifest.Input.xml # PCF control manifest (input) ControlManifest.xml # PCF control manifest index.ts # Entry point for the control

Component Details & Usage

NotificationList.tsx

• Purpose: Displays a list of notifications and allows navigation to detail view. Notifications are grouped by title and body for efficiency.
• Props:
  • notifications: Array of notification objects.
  • onSelect: Handler to select a notification for detail view.
• Key Features:
  • Grouping: Notifications are grouped by title and body because the same notification is sent separately to each recipient in Dataverse. This prevents duplicate entries in the list view.
  • Lazy Loading: Recipients are loaded on-demand (lazy loaded) when you click to view details, reducing initial load time and improving performance.
  • Date Filtering: Only notifications from the last 7-14 days are loaded to keep the list manageable and avoid costly aggregation queries on large datasets.
• Adoption:
  • Use to provide users with an overview of all notifications. Passes context and props to child components.



 Sent notifications grouped by title and body, showing count and recipient access.



NotificationDetails.tsx

• Purpose: Displays the details of a notification, including title, body, icon, type, and recipient information.
• Props:
  • notification: The notification object to display.
  • showSystemUsers: Whether to show recipient info.
  • onBack: Handler to return to the notification list.
  • context: Dataverse context for API calls.
• Key Functions:
  • fetchNames: Fetches recipient names from Dataverse using systemuser IDs. Handles missing recipients gracefully by showing "No recipient assigned".
• Adoption:
  • Use in detail view to show notification info and recipient names. Handles all edge cases for missing or undefined recipients.



 Detail view with graceful fallback for missing recipients.



NotificationForm.tsx

• Purpose: Main form for creating and sending notifications. Centralizes environment variable and authentication logic.
• Props:
  • context: Dataverse context for environment variable lookup and authentication.
• Key Functions:
  • Handles user input, MSAL authentication, and notification submission.
• Features:
  • Multiple recipient selection options: System Users, Teams, Queues, and Outlook DLs
  • Required fields: Title and Body
  • Optional settings: Icon Type (Info, Success, Error, Warning) and Notification Type (Toast, Banner)
• Adoption:
  • Use as the entry point for users to create and send notifications. Integrates with Microsoft Graph for advanced scenarios.

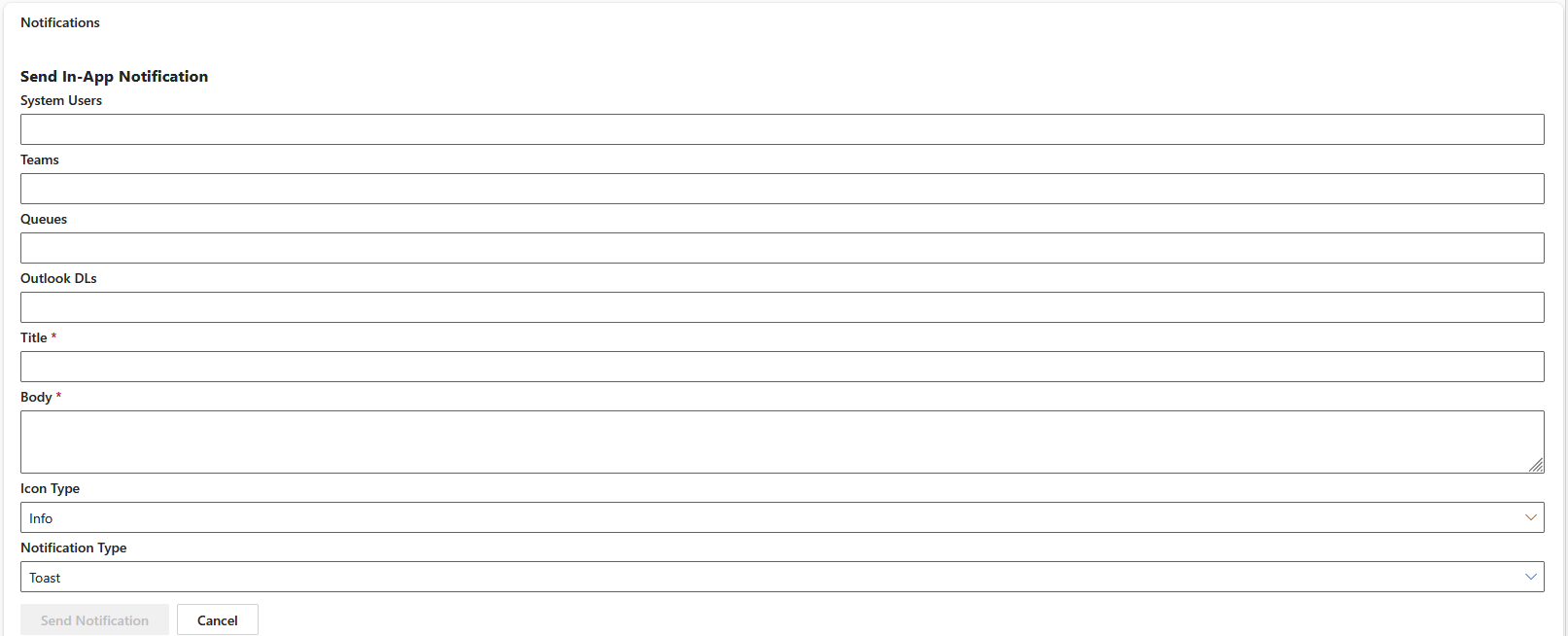

 Comprehensive form with multiple recipient selection options: System Users, Teams, Queues, and Outlook DLs.



NotificationContext.tsx

• Purpose: Provides global notification state and actions to components via React context.
• Adoption:
  • Use to share notification state and actions across components.

useNotifications.ts

• Purpose: Custom React hook for fetching, sending, and managing notifications.
• Adoption:
  • Use in components to access notification logic and state.

api.ts

• Purpose: Contains core logic for notification delivery, environment variable lookup, recipient resolution, and Microsoft Graph API integration.
• Key Functions:
  • getDLMemberObjectIds, getSystemUserIdsByObjectIds, getSystemUserNamesByIds: Utility functions for recipient resolution.
• Adoption:
  • Use for all backend logic and API calls related to notifications.

auth.ts

• Purpose: Handles authentication logic using MSAL.js for Microsoft Graph API access.
• Adoption:
  • Use to authenticate users and obtain tokens for Graph API calls.

How to Adopt This Control

1. Import the control into your Dataverse environment.
2. Configure environment variables for publisher-agnostic setup.
3. Grant users read privileges on the appnotifications entity. Users receiving in-app notifications must have read privilege on the appnotifications table in Dataverse to view their notifications.
4. Use NotificationForm to create and send notifications.
5. Display notifications using NotificationList and NotificationDetails.
6. Integrate with Microsoft Graph by configuring Azure AD app registration and MSAL.js.
7. Customize styles using the provided CSS files.

Prerequisites: Environment Variables & Attaching the Control

1. Environment Variables Setup

Important: This control uses Dataverse environment variables (not local .env files) to store configuration values like Azure AD app registration details for Microsoft Graph integration.

Required Environment Variables: You must create the following environment variables in your Dataverse organization:

1. InAppNotif_App_Tenant_Id - Your Azure AD Tenant ID
2. InAppNotif_App_Client_Id - Your Azure AD App Registration Client ID (for Microsoft Graph/MSAL authentication)

How to Create Environment Variables in Dataverse:

1. Go to Power Apps Maker Portal (make.powerapps.com)
2. Select Solutions from the left navigation
3. Open your solution (or create a new one)
4. Click New > More > Environment variable
5. Create each variable:
   • Display Name: InAppNotif App Tenant Id (or similar)
   • Name: InAppNotif_App_Tenant_Id
   • Data Type: Text
   • Default Value: Your Azure AD Tenant ID
   • Repeat for InAppNotif_App_Client_Id

How the Control Uses These Variables:

The control reads these environment variables at runtime using the Dataverse WebAPI:

// Example from api.ts const clientId = await getEnvironmentVariable("InAppNotif_App_Client_Id", context); const tenantId = await getEnvironmentVariable("InAppNotif_App_Tenant_Id", context);

This approach makes the control publisher-agnostic and easy to configure across different environments without modifying code.

2. Attaching the Control to a Form

This PCF control can be attached to any field on any form in Dataverse. The control supports the following field types:

• Single Line of Text
• Email
• Phone
• URL
• Multiple Lines of Text
• Whole Number

Important: The field value itself is not used by the control—it only serves as a placeholder for the control's UI. You can place this control on any entity (User, Account, Contact, custom entities, etc.) based on your requirements.

Steps:

1. Navigate to the Form Editor
   • Go to Power Apps Maker Portal (make.powerapps.com)
   • Select Tables from the left navigation
   • Choose your desired table (e.g., User, Account, Contact)
   • Click on Forms tab
   • Select and edit the form where you want to add notifications
2. Add or Select a Field
   • Find an existing field that matches one of the supported types (Text, Email, Phone, URL, Multiple Lines, Whole Number)
   • Or add a new field to the form if needed
   • Click on the field to select it
3. Add the Custom Control
   • With the field selected, click + Component in the right panel
   • Or right-click the field and select Properties > Components tab
   • Click + Component
   • Search for and select NotificationControl
   • The control will appear in the Components list
4. Configure Control Properties
   • Label: Set a custom label (e.g., "Notifications")
   • Hide label: Check this to hide the field label (recommended for cleaner UI)
   • Form field width: Set to desired column width (default: 1 column)
   • Show component on: Select platforms (Web, Mobile, Tablet)
   • Click Done
5. Set as Primary Control (Optional)
   • In the Components section, you'll see both the default field control and NotificationControl
   • You can make NotificationControl the primary control for better visibility
   • Or keep both and configure display preferences
6. Save and Publish
   • Click Save to save your changes
   • Click Publish to make the control available to users
   • The control will now appear on the form when users access it



 Example: NotificationControl configured on Primary Email field of User form



Result:

• The control will appear on the form, showing all in-app notifications for the current environment
• Users can view, create, and manage notifications directly from any form where the control is placed
• The control displays with a "New Notification" button and list of existing notifications grouped by title/body

Prerequisites: Outlook DL Selection & Graph API Access

1. Outlook Distribution List (DL) Selection

To enable users to select Outlook Distribution Lists (DLs) for notifications, your control integrates with Microsoft Graph API. This requires:

• Azure AD app registration with delegated permissions to read DLs and users.
• Environment variable(s) to store the Azure AD Client ID and other config.

Steps:

• Register an app in Azure AD (portal.azure.com > Azure Active Directory > App registrations).
• Add delegated permissions for Group.Read.All, User.Read, and any other required Graph scopes.
• Store the Client ID and other config in Dataverse environment variables.
• Configure your control to use these variables for Graph API calls.

2. App Registration & Graph API Access

• The app registration must allow access to Microsoft Graph for reading users and groups.
• Redirect URI should be set for SPA (Single Page Application) and implicit grant enabled.
• The control uses MSAL.js to authenticate and acquire tokens for Graph API.

Security Note:

• By default, the control stores the authentication token in the browser (local/session storage) for convenience and seamless user experience.
• If customers want to avoid storing tokens in the browser:
  • They can disable persistent authentication or use a different MSAL configuration.
  • This may require users to re-authenticate more frequently and could impact usability.
  • Document this option in your deployment guide and provide configuration instructions.

Example MSAL config:

const msalConfig = { auth: { clientId: clientIdFromEnvVar, authority: "https://login.microsoftonline.com/common", redirectUri: window.location.origin }, cache: { cacheLocation: "sessionStorage", // or "localStorage" storeAuthStateInCookie: false } };

Redirect URI Requirement for MSAL Silent Authentication

Why You Need a Redirect URI

For MSAL.js to perform silent authentication (acquire tokens without user interaction), your Azure AD app registration must include a valid redirect URI. In Dataverse/Power Apps, this is often set to an empty HTML web resource.

Purpose:

• The redirect URI is where MSAL will redirect the browser after authentication.
• For silent authentication, MSAL uses an iframe and the redirect URI must be a valid, accessible page in your environment.
• An empty HTML web resource is commonly used because it loads quickly and does not display content.

How to Set Up

1. Create an empty HTML web resource in Dataverse:
   • Go to Power Apps > Solutions > Add > Web Resource.
   • Name it (e.g., msal-redirect.html).
   • Content can be just:<html><head></head><body></body></html>
   • Save and publish.
2. Add the web resource URL as a redirect URI in Azure AD app registration:
   • Go to Azure Portal > Azure Active Directory > App registrations > Your app.
   • Under Authentication, add the web resource URL (e.g., https://<org>.crm.dynamics.com/WebResources/msal-redirect.html) as a redirect URI for SPA.
   • Enable Access tokens and ID tokens under Implicit grant.

Important: When adding your web resource redirect URI as a SPA in Azure AD app registration, ensure you enable both Access token and ID token under Implicit grant. This allows MSAL.js to acquire tokens for authentication and API access, enabling seamless user experience and secure integration with Microsoft Graph.

Example

Redirect URI: https://yourorg.crm.dynamics.com/WebResources/msal-redirect.html

Why This Matters

• Without a valid redirect URI, MSAL cannot complete silent authentication and users may be prompted to sign in more often.
• The empty HTML web resource acts as a safe landing page for token acquisition.

Using Dataverse Teams for In-App Notifications

If your organization configures on-floor teams as Dataverse Teams (with members assigned in Dataverse), supervisors can leverage this feature to send targeted in-app notifications to their team members.

How It Works

• Dataverse Team: A group entity in Dataverse that can have multiple users as members. Teams can represent departments, on-floor groups, or any logical unit.
• Supervisor Use Case: If you are a supervisor and your team is set up as a Dataverse Team, you can select the team in the notification form and send in-app notifications to all its members at once.

Benefits

• Targeted Communication: Easily notify all team members about important updates, tasks, or alerts.
• Efficient Workflow: No need to select individual users; simply select the team and send the notification.
• Integration: The PCF control fetches team members from Dataverse and ensures notifications are delivered to each member.

Example Scenario

A supervisor wants to notify their on-floor team about a shift change. The team is configured as a Dataverse Team. The supervisor selects the team in the notification form and sends the message. All team members receive the notification instantly in their Dataverse environment.

How to Set Up

1. Ensure your teams are created and configured in Dataverse (Power Apps > Teams).
2. Assign users as members to each team.
3. Use the notification form in the PCF control to select a team and send notifications.

This approach streamlines communication and ensures all relevant users are informed efficiently. For more details, see Microsoft Docs: Manage teams in Dataverse.

Using Queue Selection for Workstream Notifications

If your organization uses queues and workstreams (common in Customer Service or Omnichannel scenarios), you can leverage queue selection to send in-app notifications to all agents associated with a specific workstream.

How It Works

• Queue: A Dataverse entity that holds work items and is associated with agents who can work on those items.
• Workstream: A collection of queues and routing rules that define how work is distributed to agents.
• Agent Use Case: Supervisors or admins can select a queue in the notification form to send in-app notifications to all agents assigned to that queue's workstream.

Benefits

• Targeted Communication: Notify all agents working on a specific queue or workstream about important updates, new assignments, or urgent issues.
• Efficient Workflow: No need to manually identify and select agents; simply select the queue and the control will resolve all associated agents.
• Integration: The PCF control fetches queue members from Dataverse and ensures notifications are delivered to each agent.

Example Scenario

A supervisor wants to notify all agents working on the "Support Queue" about a critical system update. The supervisor selects the queue in the notification form and sends the message. All agents associated with that queue's workstream receive the notification instantly.

How to Set Up

1. Ensure your queues and workstreams are configured in Dataverse (Power Apps > Queues).
2. Assign agents to queues or workstreams.
3. Use the notification form in the PCF control to select a queue and send notifications to all associated agents.

This approach is especially useful for Customer Service and Omnichannel environments where agents are organized by workstreams. For more details, see Microsoft Docs: Manage queues in Dataverse.

For more details, see the Microsoft Docs: Use environment variables in Dataverse, Add PCF controls to forms, Microsoft Docs: Register an app with Azure AD, and MSAL.js configuration options.

Developer Notes

• All components are documented with JSDoc comments for easy understanding.
• Error handling and fallback logic are implemented for robust user experience.
• The codebase is modular and easy to extend for new notification types or integrations.

Contributing

• Fork the repository and create a pull request for improvements or bug fixes.
• Please document new components and functions using JSDoc comments and update the README as needed.

Testing & Production Readiness

Current Testing Status: This control has been tested for minimum positive flow scenarios only.

Before Production Deployment:

• Perform comprehensive testing including edge cases, error scenarios, and negative flows
• Conduct security audits and vulnerability assessments
• Test with your organization's specific Dataverse configuration and data
• Validate performance under expected load conditions
• Ensure compliance with your organization's governance and security policies

License

MIT

Disclaimer

USE AT YOUR OWN RISK

This control is provided as-is without any warranties, express or implied. Neither the author nor Microsoft Corporation are responsible for any issues, damages, or losses arising from the use, deployment, or adaptation of this control.

Important:

• This control has been tested for minimum positive flow scenarios only
• Organizations must conduct their own thorough review and testing before deployment
• Ensure the control meets your organization's security, compliance, and design standards
• No support or maintenance guarantees are provided

Responsibility: By using this control, you acknowledge that you have reviewed the code, tested it in your environment, and accept full responsibility for its deployment and operation within your organization.
