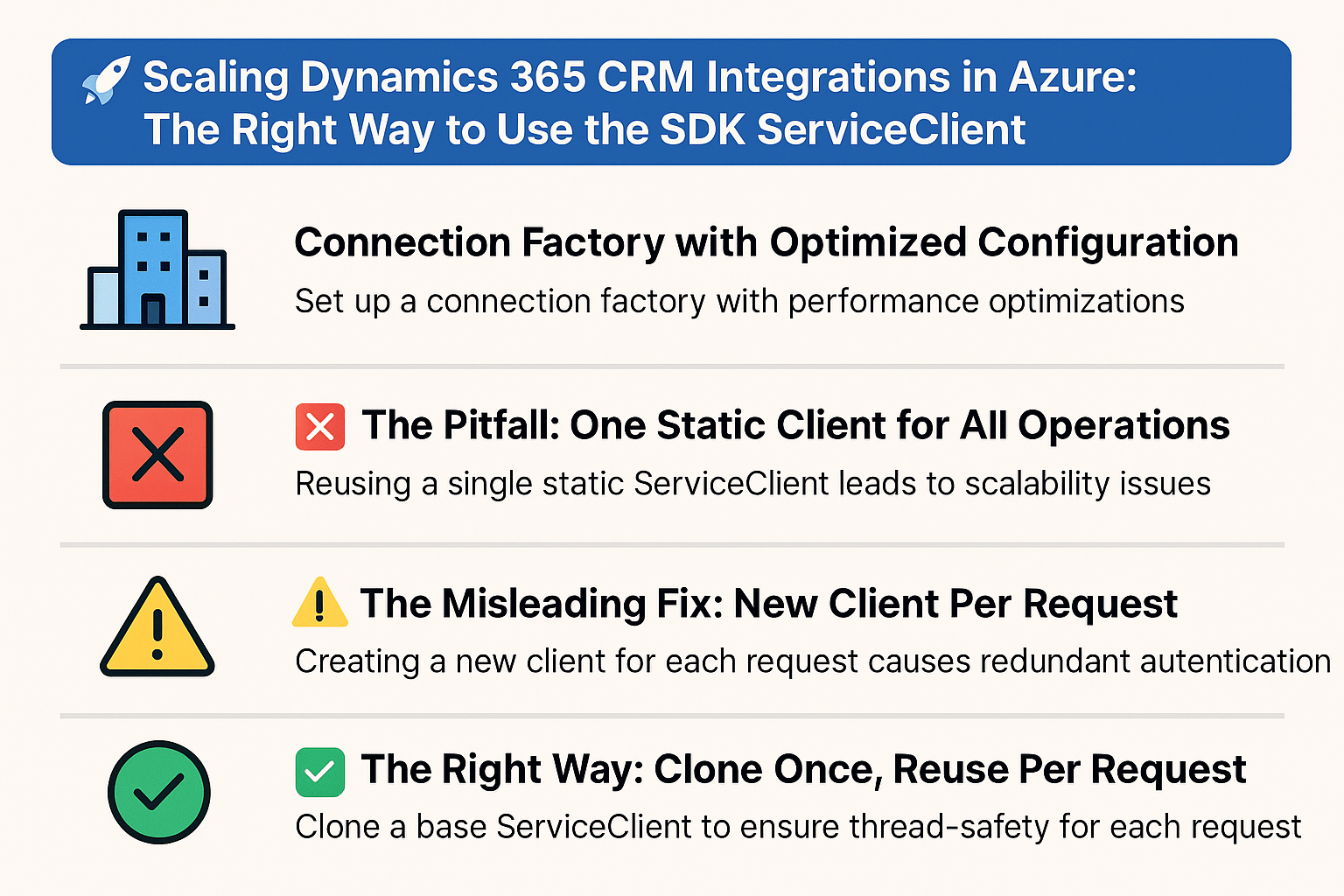

🚀 Scaling Dynamics 365 CRM Integrations in Azure: The Right Way to Use the SDK ServiceClient

This blog explores common pitfalls and presents a scalable pattern using the .Clone() method to ensure thread safety, avoid redundant authentication, and prevent SNAT port exhaustion.

🗺️ Connection Factory with Optimized Configuration

The first step to building a scalable integration is to configure your ServiceClient properly. Here's how to set up a connection factory that includes all the necessary performance optimizations:

public static class CrmClientFactory {
    private static readonly ServiceClient _baseClient;

    static CrmClientFactory() {
        ThreadPool.SetMinThreads(100, 100); // Faster thread ramp-up
        ServicePointManager.DefaultConnectionLimit = 65000; // Avoid connection bottlenecks
        ServicePointManager.Expect100Continue = false; // Reduce HTTP latency
        ServicePointManager.UseNagleAlgorithm = false; // Improve responsiveness

        _baseClient = new ServiceClient(connectionString);
        _baseClient.EnableAffinityCookie = false; // Distribute load across Dataverse web servers
    }

    public static ServiceClient GetClient() => _baseClient.Clone();
}

❌ Anti-Pattern: One Static Client for All Operations

A common anti-pattern is to create a single static instance of ServiceClient and reuse it across all operations:

public static class CrmClientFactory {
    private static readonly ServiceClient _client = new ServiceClient(connectionString);
    public static ServiceClient GetClient() => _client;
}

This struggles under load due to thread contention, throttling, and unpredictable behavior.

⚠️ Misleading Fix: New Client Per Request

To avoid thread contention, some developers create a new ServiceClient per request, however the below does not truly create seperate connection unless RequireNewInstance=True connection string param or useUniqueInstance:true constructor param are utilized. Many a times these intricate details are missed out and causing same connection be shared across threads with high lock times compounding overall slowness.

public async Task Run(HttpRequest req) {

    var client = new ServiceClient(connectionString);

    // Use client here

}

Even with above flags there is a risk of auth failures and SNAT exhaustion in a high throughout service integration scenario due to repeated OAuth authentication every time a ServiceClient instance is created with constructor.

✅ Best Practice: Clone Once, Reuse Per Request

The best practice is to create a single authenticated ServiceClient and use its .Clone() method to generate lightweight, thread-safe copies for each request:

public static class CrmClientFactory {
    private static readonly ServiceClient _baseClient = new ServiceClient(connectionString);
    public static ServiceClient GetClient() => _baseClient.Clone();
}

Then, in your Azure Function or App Service operation:

❗ Avoid calling the factory again inside helper methods. Clone once and pass the client down the call stack.

public async Task HandleRequest() {
    var client = CrmClientFactory.GetClient(); // Clone once per request
    await DoSomething1(client);
    await DoSomething2(client);
}

public async Task DoSomething1(ServiceClient client) {
    await client.Create(); // Avoid new client cloning but just use passed down client as is
}

🧵 Parallel Processing with Batching

When working with large datasets, combining parallelism with batching using ExecuteMultiple can significantly improve throughput—if done correctly.

🔄 Common Mistake: Dynamic Batching Inside Parallel Loops

Many implementations dynamically batch records inside Parallel.ForEach, assuming consistent batch sizes. But in practice, this leads to:

• Inconsistent batch sizes (1 to 100+)
• Unpredictable performance
• Difficult-to-analyze telemetry

✅ Fix: Chunk Before You Batch

        public static List> ChunkRecords(List records, int chunkSize)
        {
            return records
            .Select((record, index) => new { record, index })
            .GroupBy(x => x.index / chunkSize)
            .Select(g => g.Select(x => x.record).ToList())
            .ToList();
        }

        public static void ProcessBatches(List records, ServiceClient serviceClient, int batchSize = 100, int maxParallelism = 5)
        {

            var batches = ChunkRecords(records, batchSize);

            Parallel.ForEach(batches, new ParallelOptions { MaxDegreeOfParallelism = maxParallelism }, batch => {
                using var service = serviceClient.Clone(); // Clone once per thread
                var executeMultiple = new ExecuteMultipleRequest
                {
                    Requests = new OrganizationRequestCollection(),
                    Settings = new ExecuteMultipleSettings
                    {
                        ContinueOnError = true,
                        ReturnResponses = false
                    }
                };

                foreach (var record in batch)
                {
                    executeMultiple.Requests.Add(new CreateRequest { Target = record });
                }

                service.Execute(executeMultiple);

            });

        }

🚫 Avoiding Throttling: Plan, Don’t Just Retry

While it’s possible to implement retry logic for HTTP 429 responses using the Retry-After header, the best approach is to avoid throttling altogether.

✅ Best Practices

• Control DOP and batch size: Keep them conservative and telemetry driven.
• Use alternate app registrations: Distribute load across identities but do not overload the Dataverse org.
• Avoid triggering sync plugins or real-time workflows: These amplify load.
• Address long-running queries: Optimize operations with Microsoft support help before scaling
• Relax time constraints: There’s no need to finish a job in 1 hour if it can be done safely in 3.

🌐 When to Consider Horizontal Scaling

Even with all the right optimizations, your integration may still hit limits under the HTTP stack—such as:

• WCF binding timeouts
• SNAT port exhaustion
• Slowness not explained by Dataverse telemetry

In these cases, horizontal scaling becomes essential.

• App Services: Easily scale out using auto scale rules.
• Function Apps (service model): Scale well with HTTP or service bus triggers.
• Scheduled Functions: Require deduplication logic to avoid duplicate processing.
• On-Premises VM: When D365 SDK based integrations hosted on VM infra, they shall need horizontal scaling by increasing servers.

🧠 Final Thoughts

Scaling CRM integrations in Azure is about resilience, observability, and control. Follow these patterns:

• Clone once per thread
• Pre-chunk batches
• Tune with telemetry evidence
• Avoid overload when you can
• Scale horizontally when needed—but wisely

Build integrations that are fast, reliable, and future proof.
