Exporting Azure Container Registry Vulnerability Assessment in Microsoft Defender for Cloud

YuriDiogenes's avatar
YuriDiogenes
Icon for Microsoft rankMicrosoft
Mar 26, 2020

Using Microsoft Defender for Containers  plan, you can monitor your ARM-based Azure Container Registry. When a new image is pushed, Microsoft Defender for Cloud scans the image using a scanner from the industry-leading vulnerability scanning vendor, Qualys.

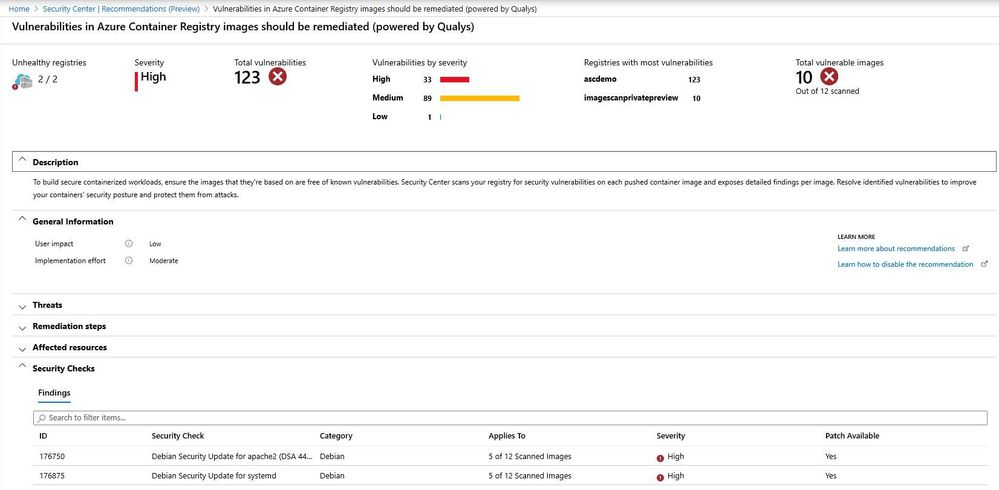

For every vulnerability, Microsoft Defender for Cloud provides actionable recommendations, along with guidance for how to remediate the issue. This assessment is available in the Microsoft Defender for Cloud dashboard as shown below:





While this visualization is very helpful and dynamic, one question that comes up very often is: how can I export this assessment to a CSV file? The answer is: you can do that using Azure Resource Graph (ARG)! Follow the steps below to perform this task:

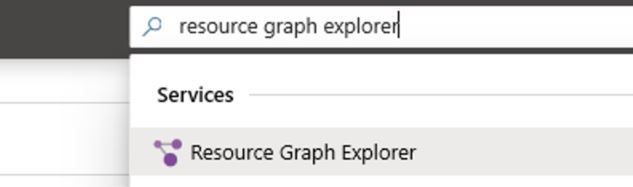

1. In the Azure Portal, go to Resource Graph Explorer as shown below:





2. Type the query below:



securityresources
| where type == "microsoft.security/assessments"
| where properties.displayName contains "Vulnerabilities in Azure Container Registry images should be remediated"
| summarize by assessmentKey=name //the ID of the assessment
| join kind=inner (
    securityresources
     | where type == "microsoft.security/assessments/subassessments"
     | extend assessmentKey = extract(".*assessments/(.+?)/.*",1,  id)
 ) on assessmentKey
| project assessmentKey, subassessmentKey=name, id, parse_json(properties), resourceGroup, subscriptionId, tenantId
| extend description = properties.description,
         displayName = properties.displayName,
         resourceId = properties.resourceDetails.id,
         resourceSource = properties.resourceDetails.source,
         category = properties.category,
         severity = properties.status.severity,
         code = properties.status.code,
         timeGenerated = properties.timeGenerated,
         remediation = properties.remediation,
         impact = properties.impact,
         vulnId = properties.id,
         additionalData = properties.additionalData

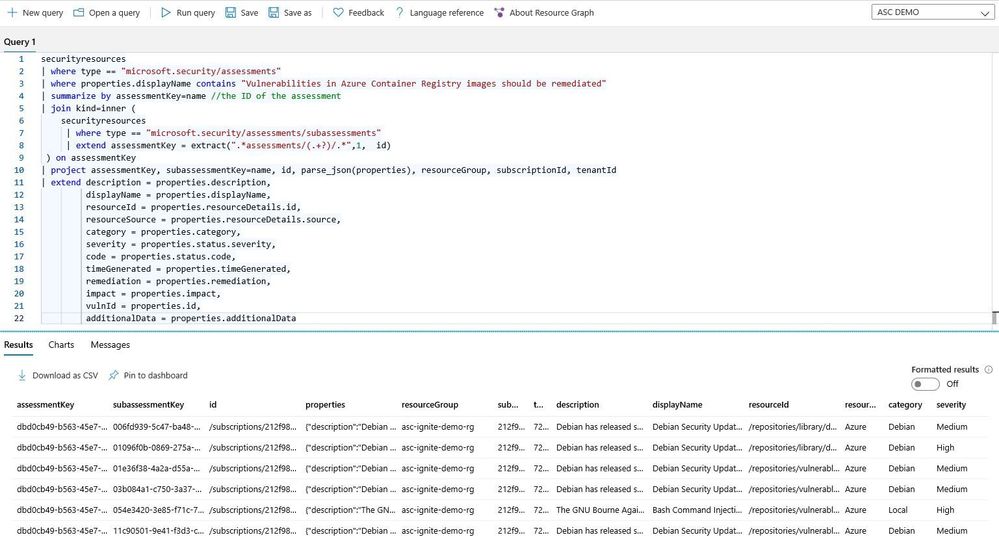

3. Click Run Query button and you will see the result, similar to figure below:



4. Click Download as CSV button.

Now that you download the CVS, you can open it and consume the data generated by the assessment.



Reviewers:

Maya Herskovic, Assaf Israel and Lana Salameh from the Microsoft Defender for Cloud Engineering Team

Updated Oct 28, 2021
Version 6.0
YuriDiogenes's avatar
Icon for Microsoft rankMicrosoft
Joined March 01, 2018
View Profile
Microsoft Defender for Cloud Blog

Microsoft Defender for Cloud is a cloud-native application protection platform (CNAPP) that offers security and compliance from code to runtime, enhanced by AI, for hybrid and multicloud environments.

When evaluating various solutions, your peers value hearing from people like you who’ve used the product. Review Microsoft Defender for Cloud by filling out a Gartner Peer Insights survey and receive a $25 USD gift card (for customers only). Here are the Privacy/Guideline links: Microsoft Privacy Statement, Gartner’s Community Guidelines & Gartner Peer Insights Review Guide.

6 Comments

Sort By
  • deval1870's avatar
    deval1870
    Copper Contributor
    Jul 23, 2024
    ### Azure Resource Graph Query for Extracting Detailed Security Assessment Data

This Azure Resource Graph query helps extract detailed information about security assessments and sub-assessments. The query is designed to handle nested JSON properties and convert them into separate columns for easier analysis and export.

**Query:**
```kusto
securityresources
| where type == "microsoft.security/assessments"
| summarize by assessmentKey = name
| join kind=inner (
   securityresources
   | where type == "microsoft.security/assessments/subassessments"
   | extend assessmentKey = extract(".*assessments/(.+?)/.*", 1, id)
) on assessmentKey
| project assessmentKey, subassessmentKey = name, id, parse_json(properties), resourceGroup, subscriptionId, tenantId
| extend
   description = tostring(properties.description),
   resourceProvider = tostring(properties.resourceDetails.ResourceProvider),
   resourceName = tostring(properties.resourceDetails.ResourceName),
   resourceType = tostring(properties.resourceDetails.ResourceType),
   nativeResourceId = tostring(properties.resourceDetails.NativeResourceId),
   vulnerabilityId = tostring(properties.id),
   source = tostring(properties.resourceDetails.source),
   displayName = tostring(properties.displayName),
   cveDescriptionAdditionalInformation = tostring(properties.additionalData.cveDescriptionAdditionalInformation),
   assessedResourceType = tostring(properties.additionalData.assessedResourceType),
   severity = tostring(properties.additionalData.vulnerabilityDetails.severity),
   lastModifiedDate = tostring(properties.additionalData.vulnerabilityDetails.lastModifiedDate),
   exploitabilityAssessment = parse_json(properties.additionalData.vulnerabilityDetails.exploitabilityAssessment),
   exploitStepsPublished = parse_json(properties.additionalData.vulnerabilityDetails.exploitabilityAssessment.exploitStepsPublished),
   exploitStepsVerified = parse_json(properties.additionalData.vulnerabilityDetails.exploitabilityAssessment.exploitStepsVerified),
   exploitUris = parse_json(properties.additionalData.vulnerabilityDetails.exploitabilityAssessment.exploitUris),
   isInExploitKit = parse_json(properties.additionalData.vulnerabilityDetails.exploitabilityAssessment.isInExploitKit),
   exploitTypes = parse_json(properties.additionalData.vulnerabilityDetails.exploitabilityAssessment.types),
   publishedDate = tostring(properties.additionalData.vulnerabilityDetails.publishedDate),
   workarounds = tostring(properties.additionalData.vulnerabilityDetails.workarounds),
   references = tostring(properties.additionalData.vulnerabilityDetails.references),
   weaknesses = tostring(properties.additionalData.vulnerabilityDetails.weaknesses),
   cveId = tostring(properties.additionalData.vulnerabilityDetails.cveId),
   cvssVectorString = tostring(properties.additionalData.vulnerabilityDetails.cvss.['3.0'].cvssVectorString),
   baseScore = todouble(properties.additionalData.vulnerabilityDetails.cvss.['3.0'].base),
   cpe = parse_json(properties.additionalData.vulnerabilityDetails.cpe),
   cpeUri = parse_json(properties.additionalData.vulnerabilityDetails.cpe.uri),
   lastPushedToRegistryUTC = tostring(properties.additionalData.artifactDetails.lastPushedToRegistryUTC),
   repositoryName = tostring(properties.additionalData.artifactDetails.repositoryName),
   artifactType = tostring(properties.additionalData.artifactDetails.artifactType),
   registryHost = tostring(properties.additionalData.artifactDetails.registryHost),
   mediaType = tostring(properties.additionalData.artifactDetails.mediaType),
   digest = tostring(properties.additionalData.artifactDetails.digest),
   tags = tostring(properties.additionalData.artifactDetails.tags),
   language = tostring(properties.additionalData.softwareDetails.language),
   version = tostring(properties.additionalData.softwareDetails.version),
   vendor = tostring(properties.additionalData.softwareDetails.vendor),
   fixedVersion = tostring(properties.additionalData.softwareDetails.fixedVersion),
   packageName = tostring(properties.additionalData.softwareDetails.packageName),
   category = tostring(properties.additionalData.softwareDetails.category),
   fixStatus = tostring(properties.additionalData.softwareDetails.fixStatus),
   osPlatform = tostring(properties.additionalData.softwareDetails.osDetails.osPlatform),
   osVersion = tostring(properties.additionalData.softwareDetails.osDetails.osVersion),
   fixReferenceDescription = tostring(properties.additionalData.softwareDetails.fixReference.description),
   fixReferenceId = tostring(properties.additionalData.softwareDetails.fixReference.id),
   fixReferenceReleaseDate = tostring(properties.additionalData.softwareDetails.fixReference.releaseDate),
   fixReferenceUrl = tostring(properties.additionalData.softwareDetails.fixReference.url),
   evidence = tostring(properties.additionalData.softwareDetails.evidence),
   cvssV30Score = todouble(properties.additionalData.cvssV30Score),
   timeGenerated = tostring(properties.timeGenerated),
   remediation = tostring(properties.remediation),
   statusSeverity = tostring(properties.status.severity),
   statusCode = tostring(properties.status.code),
   impact = tostring(properties.impact)





  • akssingh_shs's avatar
    akssingh_shs
    Copper Contributor
    Feb 21, 2022

    Rajivmishra



    Looks "properties.displayName" used in query has been changed in defender recommendation , please used given "properties.displayName" in query and then try it should work .

    "Container registry images should have vulnerability findings resolved"



    SecurityResources
    | where type == 'microsoft.security/assessments'
    | where properties.displayName contains 'Container registry images should have vulnerability findings resolved'
    | summarize by assessmentKey=name //the ID of the assessment
    | join kind=inner (
        securityresources
        | where type == 'microsoft.security/assessments/subassessments'
        | extend assessmentKey = extract('.*assessments/(.+?)/.*',1,  id)
    ) on assessmentKey
    | project assessmentKey, subassessmentKey=name, id, parse_json(properties), resourceGroup, subscriptionId, tenantId
    | extend description = properties.description,
        displayName = properties.displayName,
        resourceId = properties.resourceDetails.id,
        resourceSource = properties.resourceDetails.source,
        category = properties.category,
        severity = properties.status.severity,
        code = properties.status.code,
        timeGenerated = properties.timeGenerated,
        remediation = properties.remediation,
        impact = properties.impact,
        vulnId = properties.id,
        additionalData = properties.additionalData






    YuriDiogenes



  • Rajivmishra's avatar
    Rajivmishra
    Copper Contributor
    Dec 15, 2021

    Hi Yuri Diogenes,



    I am getting error while using your query saying The name 'displayName' does not refer to any known column, table, variable or function. from below line with displayName



    where properties.displayName contains 'Vulnerabilities in Azure Container Registry images should be remediated'

    Could you please advice here?

    Thanks
    Rajiv







  • ktaylor2285's avatar
    ktaylor2285
    Copper Contributor
    Nov 19, 2021

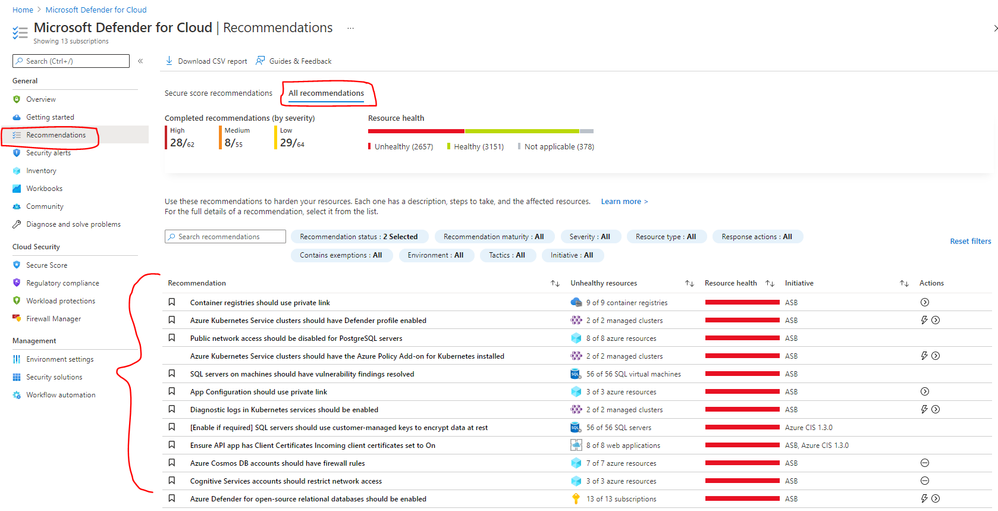

    Microsoft Defender for Cloud , Recommendation , All recommendations

    Run below kusto queries in Azure Resource Graph Explorer.


    securityresources
    | where type == "microsoft.security/assessments"
    | extend displayName = trim(" ", tostring(properties.metadata.displayName))
    | where displayName == "Deprecated accounts should be removed from your subscription"


    securityresources
    | where type == "microsoft.security/assessments"
    | extend source = trim(' ', tolower(tostring(properties.resourceDetails.Source)))
    | extend resourceId = trim(' ', tolower(tostring(case(source =~ "azure", properties.resourceDetails.Id,extract('^(.+)/providers/Microsoft.Security/assessments/.+$',1,id)))))
    | extend displayName = trim(" ", tostring(properties.metadata.displayName))
    | extend description = trim(" ", tostring(properties.metadata.description))
    | extend remediationDescription = trim(" ", tostring(properties.metadata.remediationDescription))
    | extend status = trim(" ", tostring(properties.status.code))
    | extend cause = trim(" ", tostring(properties.status.cause))
    | extend severity = trim(" ", tostring(properties.metadata.severity))
    | extend userImpact = trim(" ", tostring(properties.metadata.userImpact))
    | extend azurePortal = trim(" ", tostring(properties.links.azurePortal))
    | extend statusChangeDate = trim(" ", tostring(properties.status.statusChangeDate))
    | extend assessmentKey = tostring(name)
    | where displayName == "Deprecated accounts should be removed from your subscription"
    | sort by todatetime(statusChangeDate)


    // *** displayName = Recommendation column in below screenshot.
    // *** status = Unhealthy resources column in below screenshot.


  • gadinaor's avatar
    gadinaor
    Copper Contributor
    Oct 17, 2020

    YuriDiogenes is there a way to retrieve the package information as a typed field in the query ?

    Also, what the query should look like if one would want to have 1 CVE per line?



    {
    "description": "Debian has released security update for systemd to fix the vulnerabilities.<P>",
    "displayName": "Debian Security Update for systemd",
    "resourceDetails": {
        "source": "Azure",
        "id": "/repositories/myrepo/manyvuln/images/sha256:4343f035d365cc3968f4276e712dbb42908de6f5538611668b03b7b69c142593"
    },
    "additionalData": {
        "assessedResourceType": "ContainerRegistryVulnerability",
        "vendorReferences": [
            {
                "title": "CVE-2018-1049",
                "link": "https://security-tracker.debian.org/tracker/CVE-2018-1049"
            },
            {
                "title": "CVE-2018-15686",
                "link": "https://security-tracker.debian.org/tracker/CVE-2018-15686"
            }
        ],
        "publishedTime": "2019-05-06T10:54:00.0000000Z",
        "patchable": true,
        "type": "Vulnerability",
        "cvss": {
            "2.0": {
                "base": 10
            },
            "3.0": {
                "base": 9.8
            }
        },
        "cve": [
            {
                "title": "CVE-2018-1049",
                "link": "http://cve.mitre.org/cgi-bin/cvename.cgi?name=CVE-2018-1049"
            },
            {
                "title": "CVE-2018-15686",
                "link": "http://cve.mitre.org/cgi-bin/cvename.cgi?name=CVE-2018-15686"
            }
        ],
        "repositoryName": "myrepo/manyvuln",
        "registryHost": "myregistry.azurecr.io",
        "imageDigest": "sha256:4343f035d365cc3968f4276e712dbb42908de6f5538611668b03b7b69c142593"
    },
    "status": {
        "severity": "High",
        "code": "Unhealthy"
    },
    "timeGenerated": "2020-10-17T07:35:03.4900000Z",
    "remediation": "Refer to <A HREF=\"https://security-tracker.debian.org/tracker/CVE-2018-15686\" TARGET=\"_blank\">Debian 9 - CVE-2018-15686</A> and <A HREF=\"https://security-tracker.debian.org/tracker/CVE-2018-1049\" TARGET=\"_blank\">Debian 9 - CVE-2018-1049</A> to address this issue and obtain further details.\n<P>Patch:<BR>\nFollowing are links for downloading patches to fix the vulnerabilities:\n<P> <A HREF=\"https://security-tracker.debian.org/tracker/CVE-2018-15686\" TARGET=\"_blank\">CVE-2018-15686: Debian</A><P> <A HREF=\"https://security-tracker.debian.org/tracker/https://security-tracker.debian.org/tracker/CVE-2018-15686\" TARGET=\"_blank\">CVE-2018-1049: Debian</A>",
    "category": "Debian",
    "id": "176875",
    "impact": "This vulnerability could be exploited to gain partial access to sensitive information. Malicious users could also use this vulnerability to change partial contents or configuration on the system. Additionally this vulnerability can also be used to cause a limited denial of service in the form of interruptions in resource availability."
}
