ASC Powered by ARG (Azure Resource Graph)

Latest integration between ASC and ARG enables new very cool features like:

• Custom dashboards
• Saved queries
• KQL query to explore the data on *any* scope
• Export to CSV
• API



You can see bellow custom dashboard I created in 5 min



Search for “arg” in Azure Portal

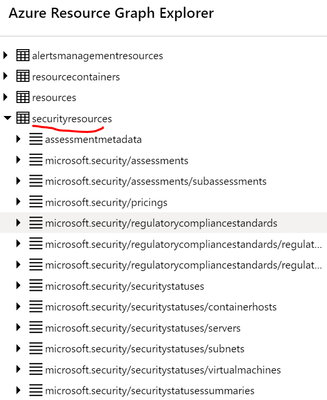

On the left pane, you can see ASC data in ARG









Few KQL queries examples on what can be extracted from data, more about KQL & ARG - here



Assessments (recommendations)

SecurityResources

| where type == 'microsoft.security/assessments'

| extend assessmentKey = name, resourceId = tolower(trim(' ',tostring(properties.resourceDetails.Id))), healthStatus = properties.status.code, displayName = properties.displayName

| summarize count() by tostring(displayName)

| order by count_



Regulatory Compliance status

securityresources

 | where type == "microsoft.security/regulatorycompliancestandards"

 | extend passedControls = trim(' ',tostring(properties.passedControls)), failedControls = trim(' ',tostring(properties.failedControls))

 | project name,passedControls,failedControls



Pricing tiers

securityresources

| where type == "microsoft.security/pricings"

| extend tier = trim(' ',tostring(properties.pricingTier))

| project name,tier,subscriptionId

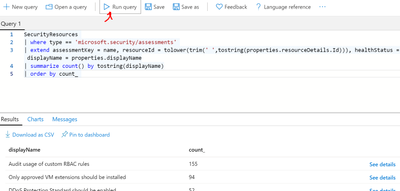

Run the query:

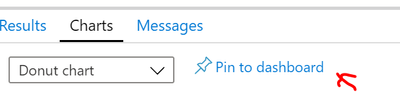

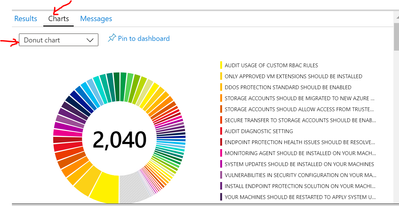

To create dashboard, just go to “charts” tab and select chart type





Now, you can pin this custom dashboard to your main Azure landing page
