Announcing performance analyzer for Microsoft Defender Antivirus

marysia_k's avatar
marysia_k
Icon for Microsoft rankMicrosoft
Sep 07, 2021

Microsoft Defender Antivirus provides always-on, real-time protection, and on-demand antivirus scans on files to protect environments from malicious entities. However, there are times that scans can take a while to complete due to various factors such as environment configurations, longer processes, or unknown files.



IT admins, developers, and other users need visibility into the impact of these scans so they can troubleshoot, assess, and address any performance issues.



We are excited to announce performance analyzer for Microsoft Defender Antivirus (available with the Defender platform update 418.2108.7+). This new PowerShell command-line tool assists in the collection of performance recordings on an individual endpoint and reports information for top scans, processes, files, and file extensions most affected by Microsoft Defender Antivirus.



Performance analyzer is simple to use, requires no installations, and focuses specifically on Microsoft Defender Antivirus system scan data. This feature provides data in a programmatic, consumable way for admins and other users to easily analyze the results.



How it works



To analyze performance, from a Windows PowerShell, run performance analyzer using the cmdlet:













New-MpPerformanceRecording -RecordTo <recording.etl>















 As shown in the image below, performance analyzer collects a recording of Microsoft Defender for Antivirus events to be analyzed.



During this time, carry out the tasks that you think may have been causing performance impact so that performance analyzer can record this. When you have finished, Press <Enter> to stop and save the recording per image below.



Once the recording is completed, using the cmdlet,













Get-MpPerformanceReport













enables you to view full tabular performance reports that show top files, scans, file extensions, and processes causing highest impact.



Image caption: Parameters for cmdlet Get-MpPerformanceReport



 Based on the specified parameters, the report includes data sorted by count, duration, and path.

Image caption: Preview of report forTop 10 files that impact scan time.



You can use nested grouping to get a more detailed report.

For example: Get-MpPerformanceReport -Path <recording.etl> -TopProcesses: 3 -TopScansPerProcess: 5 will display a report of top 3 processes that impact scan time and the top 5 scans associated with each.

Image caption: Preview of report for top 3 processes that impact scan time and the top 5 scans associated with each



You can also use multiple queries:

Get-MpPerformanceReport -Path <recording.etl>  -TopExtensions: 10  -TopProcesses:3 -TopScansPerProcess:5

Image caption: Preview of report for top 10 extensions, top 3 processes, and top scans per process that impact scan time



Other functionalities



Using -MinDuration Parameter:

You can also report only on top scans that have a certain minimum duration. In the image below, the report displays a sample preview of the top 100 scans that took a minimum of 100 ms.



Exporting & Converting to CSV and JSON:

You can also export and convert the results of the analyzer to a CSV file. The following are sample examples.



To export to CSV:













(Get-MpPerformanceReport -Path:.\Repro-Install.etl -TopScans:1000 -MinDuration:30ms).TopScans | Export-Csv -Path:.\Repro-Install-Scans.csv -Encoding:UTF8 -NoTypeInformation















To convert to CSV:













(Get-MpPerformanceReport -Path:.\Repro-Install.etl -TopScans:1000).TopScans | ConvertTo-Csv -NoTypeInformation















To convert to JSON:













(Get-MpPerformanceReport -Path:.\Repro-Install.etl -Topscans:1000). TopScans | ConvertTo-Json -Depth:1















For more information, see Performance analyzer for Microsoft Defender Antivirus.



Requirements and availability:



Availability: Early September with release of the Defender August Platform version

Defender Platform version: 4.18.2108.7+

Supported OS versions: Windows 10+ and Windows Server 2016+

PowerShell version:  PowerShell version 5.1, PowerShell ISE



We’re excited to offer you this new tool to assess performance related to Microsoft Defender Antivirus. We welcome your questions and feedback in the comments!



Updated Jan 10, 2022
Version 4.0

20 Comments

Show More
  • Fabian Bader's avatar
    Fabian Bader
    Brass Contributor
    Oct 26, 2021

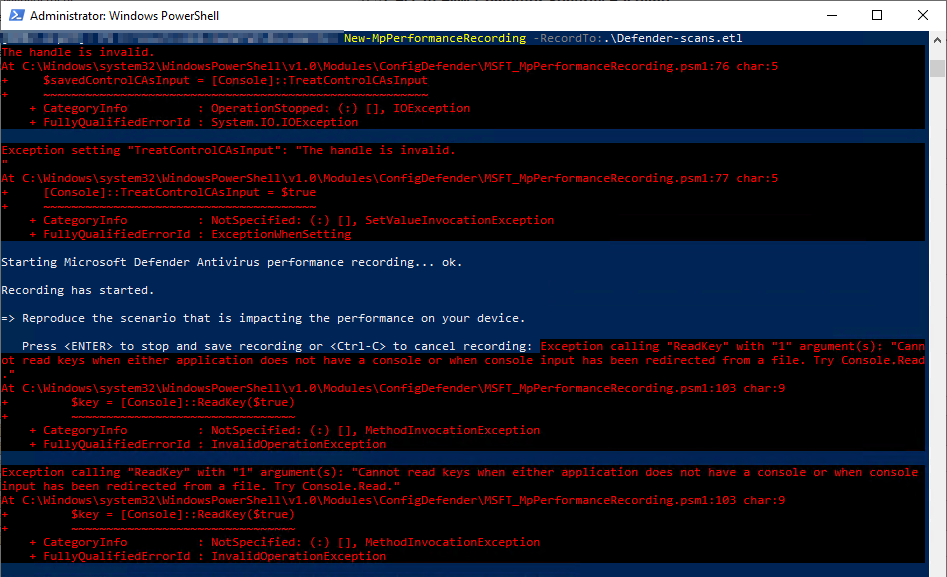

    Hi marysia_k there seems to be a problem when running this in a remote PowerShell session. Would be great if this was possible as well.





    Exception setting "TreatControlCAsInput": "The handle is invalid."
At C:\Windows\system32\WindowsPowerShell\v1.0\Modules\ConfigDefender\MSFT_MpPerformanceRecording.psm1:77 char:5

Exception calling "ReadKey" with "1" argument(s): "Cannot read keys when either application does not have a console or when console input has been redirected from a file. Try Console.Read."
At C:\Windows\system32\WindowsPowerShell\v1.0\Modules\ConfigDefender\MSFT_MpPerformanceRecording.psm1:103 char:9





  • Tha_Dude's avatar
    Tha_Dude
    Copper Contributor
    Sep 24, 2021

    marysia_k

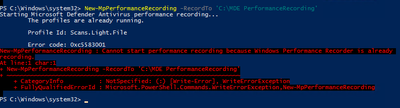

    Hi I have tried running the commands and it errors.


    I get the below problem.  I've got an application on the server that is 'playing up'.  We THINK it's Defender causing the issues, but need to check.



    Please help.



    Thank you



    Kind Regards





  • Przem0's avatar
    Przem0
    Brass Contributor
    Sep 16, 2021

    Hi Marysia, looks good! Is there any chance to present performance output in graph? Maybe some kind of charts in InTune console in the near future? Cheers.

  • ThoFord's avatar
    ThoFord
    Brass Contributor
    Sep 14, 2021

    Now all we need now is to have this to be part of Endpoint Analytics.

  • marysia_k's avatar
    marysia_k
    Icon for Microsoft rankMicrosoft
    Sep 09, 2021

    mbhmirc Hi! Thank you for your feedback. We will note it for future consideration of the product. We do not currently have a demo session planned or specific exclusion guidance, but we can look into some options. We will update when more details are ready.

  • mbhmirc's avatar
    mbhmirc
    Brass Contributor
    Sep 08, 2021

    Hello,

    This looks like a great tool!

    will there be a session on defender in the future including this tool, eg a demo, how to analyse the results and how to action them?



    How would we securely make exceptions based on this data? Eg will exceptions be able to be more fine grained in the format wdac/applocker does them in the future?  I’d much rather do certificate combined with path and vendor etc than a straight up process name or folder.  These are easily read and abused.

    will you be able to apply different scan types based on the exception, eg write only or read only.  This could be used to mitigate performance issues for developers for example without fully allowing a process.

    lastly will this be able to initiate this from defender for endpoint and get a result from the Interface?  Looking after 10k plus clients getting these results can be time consuming.

    Again thank you!  Great progress.
