Visualize Entra Sign-in Logs using an Interactive Map

timurengin's avatar
timurengin
Icon for Microsoft rankMicrosoft
Jan 16, 2024

There’s a plethora of data connectors for Microsoft Sentinel, from Microsoft and Azure services to third party sources and custom logs. This data is only as good as the analytical value it brings. During investigations – both proactive and reactive – visualizing data in different formats offers value into finding anomalies, patterns, and insights difficult to spot.



When working with data which includes geographic related information such as Microsoft Entra sign-in logs, visualizing the data through a proper medium is essential to making the most use of the data. This is where using interactive maps for Sentinel and Log Analytics workspace comes into play. As of the writing of this blog article, it’s not possible to use the interactive map directly within the Logs section of Sentinel or Log Analytics workspace. Instead, the Azure Data Explorer web app or Kusto Explorer desktop app must be used. This article will use Azure Data Explorer for all examples. The setup required for this is simple and only takes a few minutes.



Setup and configuration

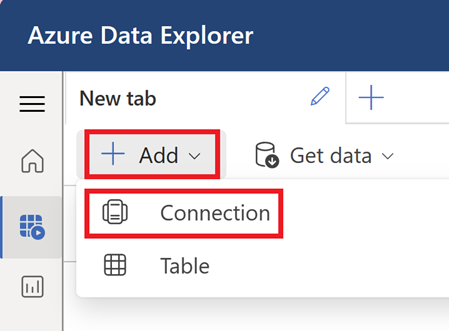

The first step is to go to the Azure Data Explorer web app and click on Add in the top left of the screen, and then select Connection.



Figure 1 Adding connection to Azure Data Explorer (ADX)



At this point, a window will appear asking for a connection. To connect to a Sentinel instance (it’s actually the Log Analytics workspace), the following information is required:



  • Subscription ID
  • Resource group name – this is the resource group where the Log Analytics workspace is in
  • Log Analytics workspace name

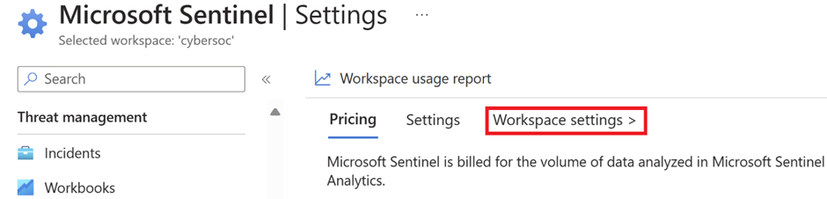

All of these can be found simply by clicking on Settings in the Sentinel menu and then clicking Workspace settings.



Figure 2 Workspace settings of the Sentinel instance



After clicking on Workspace settings, the information required will be available on the screen as shown below. This is also true if you’re connecting to a Log Analytics workspace without Sentinel. By going to the Log Analytics workspace’s page, the page below will open.



Figure 3 Workspace settings of the Sentinel instance



The connection URI needs to be in the following format:



https://ade.loganalytics.io/subscriptions/<subscription-id>/resourcegroups/<resource-group-name>/providers/microsoft.operationalinsights/workspaces/<workspace-name>

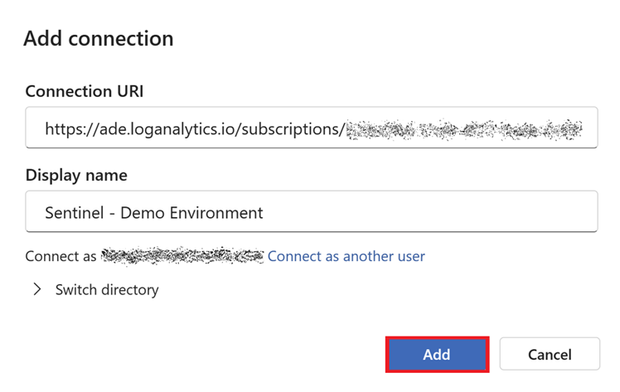

Once the connection URI has been updated with the required values, it can be added to the section in Azure Data Explorer, and once a display name has been entered click Add. Ensure that the Log Analytics workspace configured in the connection URI is in the tenant shown at the bottom of the window. If the Log Analytics workspace is in a tenant other than the one signed in as in Azure Data Explorer, the tenant can be switched on this screen as well.



Figure 4 Adding the connection URI to Azure Data Explorer (ADX)

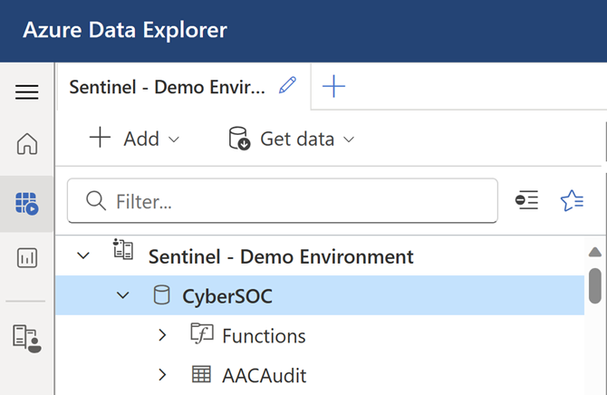

Once the connection has been set up, it should be viewable under Connections in the left menu.



Figure 5 A table from the newly configured connection



To query the tables, select the workspace and enter the query as you would normally do in the Sentinel Logs screen.



Figure 6 Running a query in ADX



Using the interactive map



To use the interactive map, the data must contain longitude and latitude data. Mapping based on country, state, or city names will not work. The format of the longitude and latitude should be in decimal degrees. This means that 41.40338 and 2.17403 will work but 41°24'12.2"N and 2°10'26.5"E will not work. Most tables in Sentinel will have geographical data in the correct format already.



The render operator must be used followed by “scatterchart with (kind=map)” to generate the interactive map. There is documentation about parameters which affect geospatial data visualizations. One rule is the first two columns of the query output must be the longitude and latitude values, in that order. While the specific columns for longitude and latitude can be selected manually after running the query, it adds an extra step that’s easily skipped by ensuring the proper order of columns.



The query below will take count of Entra sign ins from each location and then visualize it on an interactive map.





SigninLogs
| where TimeGenerated > ago(7d)
| where isnotempty(LocationDetails.geoCoordinates)
| extend Latitude = toreal(LocationDetails.geoCoordinates["latitude"])
| extend Longitude = toreal(LocationDetails.geoCoordinates["longitude"])
| summarize Count = count() by Longitude, Latitude
| project Longitude, Latitude, Count
| render scatterchart with (kind=map)





Figure 7 Interactive map result of query

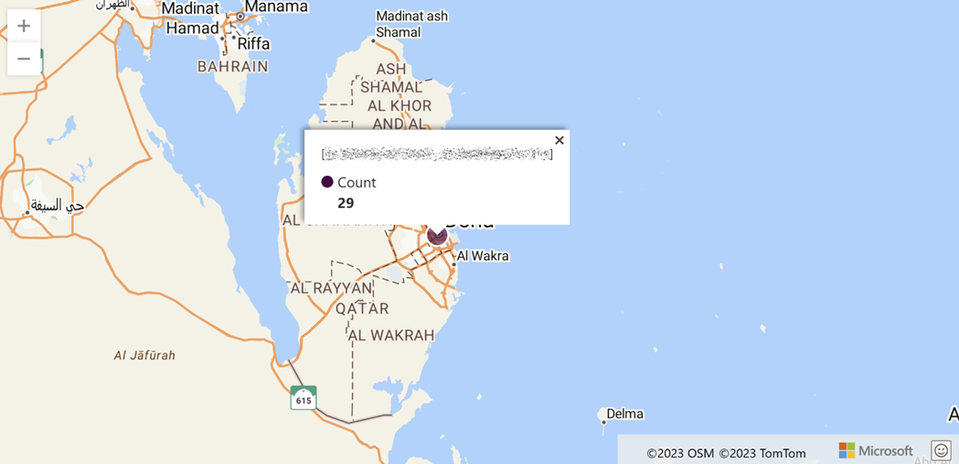

Since the map is interactive, you can zoom in and move around freely. Clicking on the objects will show the values based on the query output. In the query example above, the number of sign ins from that location were being calculated and therefore this is shown when clicked on the object.



Figure 8 Interactive map result of query

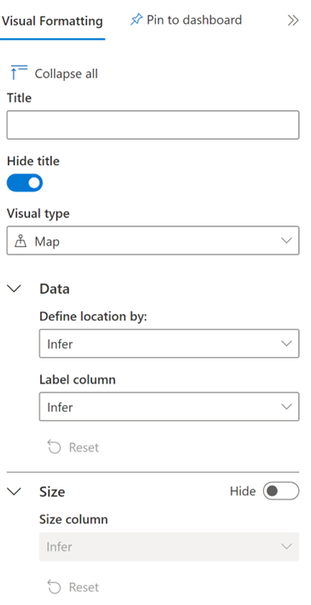

After running the query in the Azure Data Explorer page, a menu will appear to the right of the results. This section will allow you to change settings of the visualization of the query results.



Figure 9 Settings options on the right which allows you to configure which outputs will affect size on interactive map



It’s possible to set the circle sizes proportional to the number of sign ins (or any other numerical value that may exist in the query output). To do this, the Size section needs to be turned on by toggling the Hide toggle and then the column which will determine the size can be selected.



The effect of configuring the Size section can be seen below. Note how the circle sizes are now different.

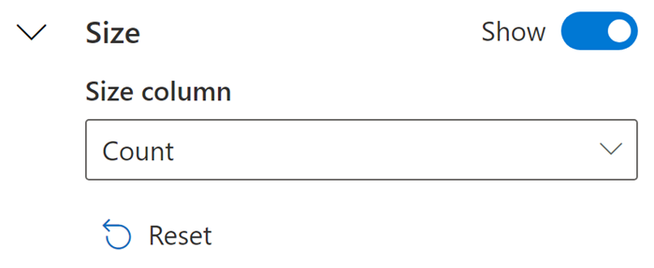

Figure 10 Ability to select which output determines the size of the items on the map



Figure 11 Interactive map result of query with point sizes based on output values



Conclusion



Visualizing geographical data can give insights that may be difficult to find when using other visualization methods. Once a connection has been setup from Azure Data Explorer Sentinel logs such as Entra ID, sign-in logs can be queried and visualized on an interactive map, making investigations much more effective.



Learn more about data visualization and how your data can be transformed into actionable insights to make an impact on your business.



Timur Engin

LinkedIn  Twitter





Learn more about Microsoft Entra:









Updated Jan 10, 2024
Version 1.0
  • RobbieJames's avatar
    RobbieJames
    Copper Contributor

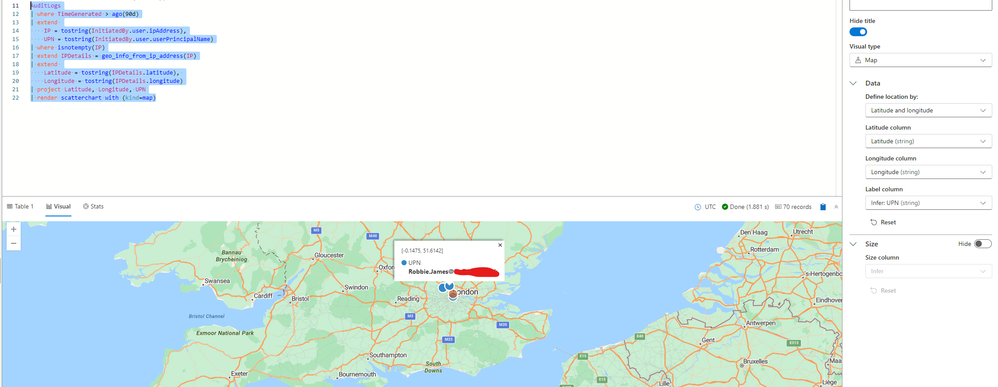

    We can actually grab geocoordinates from any data table with IP address data using the geo_info_from_ip() function.

    AuditLogs example:

    AuditLogs
    | where TimeGenerated > ago(90d)
    | extend
        IP = tostring(InitiatedBy.user.ipAddress),
        UPN = tostring(InitiatedBy.user.userPrincipalName)
    | where isnotempty(IP)
    | extend IPDetails = geo_info_from_ip_address(IP)
    | extend
        Latitude = tostring(IPDetails.latitude),
        Longitude = tostring(IPDetails.longitude)
    | project Latitude, Longitude, UPN
    | render scatterchart with (kind=map)







  • RobbieJames's avatar
    RobbieJames
    Copper Contributor

    ronalddolfsma Unsure if you've had any luck with this or a response elsewhere

    1. 'Internal account - authentication successful' you can use the 'UserType' column to filter on 'member' users and 'ResultType' of 0 for successful:

    | where UserType == "member" and ResultType == 0





    2. 'Internal account - authentication failed' the only change on the above for failures is 'ResultType' grab a few that denote some form of failure that you're interested in:

    https://learn.microsoft.com/en-us/entra/identity-platform/reference-error-codes





    3. 'Guest account - authentication successful' would be the same as top but by filtering by a 'UserType' of 'Guest':

    | where UserType == "Guest" and ResultType == 0

  • ronalddolfsma's avatar
    ronalddolfsma
    Copper Contributor

    Very nice, thx for posting this. Love the UPN addition, really makes in valuable for me.



    I'm actually looking for multiple dashboards:

    • Internal account - authentication successful
    • Internal account - authentication failed
    • Guest account - authentication successful
    • No idea if this is possible: Members of an Entra ID group - login locations
    • No idea if this is possible: Newly enrolled machine location (intune)
    • et cetera

    I've tried some things but i'm really a novice and keep on failing. Could someone point me in the right direction to achieve my goals? The top three have priority 😉



  • Hi mondra1810, you can show the UPN of the users by modifying the line after the summarize operator. The query below can be used:

    SigninLogs
    | where TimeGenerated > ago(7d)
    | where isnotempty(LocationDetails.geoCoordinates)
    | extend Latitude = toreal(LocationDetails.geoCoordinates["latitude"])
    | extend Longitude = toreal(LocationDetails.geoCoordinates["longitude"])
    | summarize Count = count(), UpnSet = make_set(UserPrincipalName) by Longitude, Latitude
    | project Longitude, Latitude, Count, UpnSet
    | render scatterchart with (kind=map)

     Note that if the number of users is high, it can become difficult to view all of the names in the UI.

  • mondra1810's avatar
    mondra1810
    Copper Contributor

    This is great, thanks for sharing!

    Is there a way to list the UPN of the users in those locations when you hover over the circles?

  • Brok3NSpear's avatar
    Brok3NSpear
    Brass Contributor

    This is great, many thanks for sharing.

    Really looking forward to when we can also simply do this in Sentinel directly.



    Is there an ETA on when that may happen, or on the Road Map?
