Introduction:
===================================================================================
This blog introduces the detailed procedures to Integrate logic apps with SQL server by API connection using credentials kept in key vault.
Solution
===================================================================================

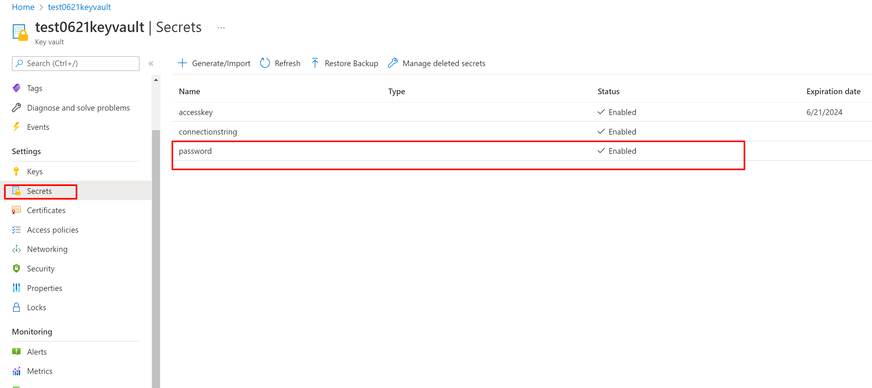

STEP1: As we chose to use “SQL server Authentication”, please save the SQL server’s password in KeyVault:
STEP2: I fetched the ARM template for SQL-API connection from network trace during API connection creating process:
(Note: Please change the highlighted part as your environment)
templatea.json
{
"$schema": "https://schema.management.azure.com/schemas/2019-04-01/deploymentTemplate.json#",
"contentVersion": "1.0.0.0",
"parameters": {
"connections_sql_name": {
"defaultValue": "sql-5",
"type": "String"
},
"password": {
"type": "String"
}
},
"variables": {},
"resources": [
{
"properties": {
"api": {
"id": "/subscriptions/a781a931-d3dc-4bd0-8f43-05528dd0b6fb/providers/Microsoft.Web/locations/eastus/managedApis/sql"
},
"parameterValueSet": {
"name": "sqlAuthentication",
"values": {
"server": {
"value": "serena0227sqloauth.database.windows.net"
},
"database": {
"value": "keyvaulttest"
},
"username": {
"value": "serenaliqing"
},
"password": {
"value": "[parameters('password')]"
}
}
},
"displayName": "testarm"
},
"kind": "V2",
"location": "eastus",
"type": "Microsoft.Web/connections",
"apiVersion": "2016-06-01",
"name": "[parameters('connections_sql_name')]"
}
]
}
templatea.parameters.json
{
"$schema": https://schema.management.azure.com/schemas/2019-04-01/deploymentParameters.json#,
"contentVersion": "1.0.0.0",
"parameters": {
"connections_sql_name": {
"value": "sql-5"
},
"password": {
"reference": {
"keyVault": {
"id": "/subscriptions/a781a931-d3dc-4bd0-8f43-05528dd0b6fb/resourceGroups/KeyVault-APIConnection-Test/providers/Microsoft.KeyVault/vaults/test0621keyvault"
},
"secretName": "password"
}
}
}
}
STEP3:Use the Powershell command to deploy both files: New-AzResourceGroupDeployment -ResourceGroupName KeyVault-APIConnection-Test -TemplateFile "templatea.json" -TemplateParameterFile "templatea.parameters.json"

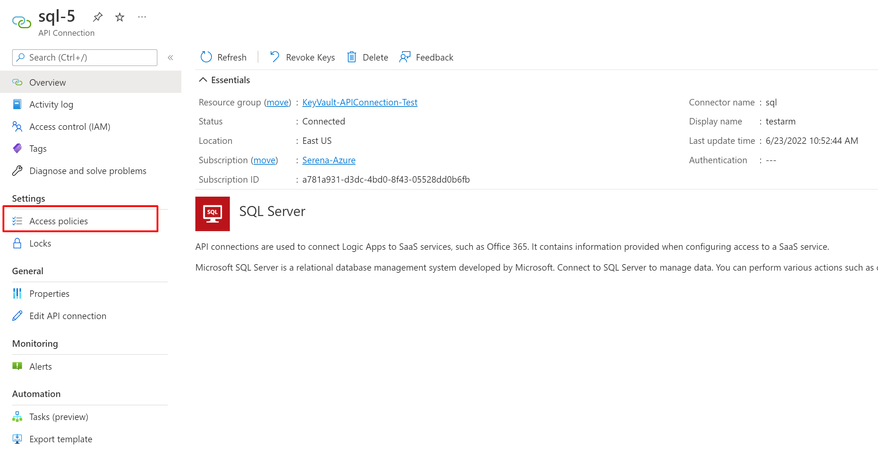

STEP4: Check the deployed API connection in portal and add access policy:

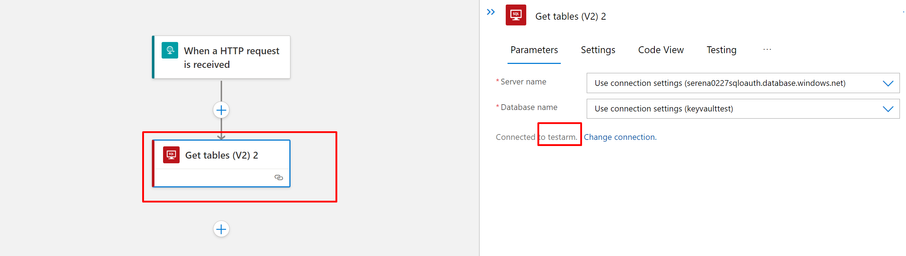

STEP5: Test the deployed API connection, it can works:
