While trying to connect to your FTP server hosted by IIS, you may run into “530 User cannot log in, home directory inaccessible” error. This error occurs whether you are using anonymous access or basic authentication.

While trying to connect to your FTP server hosted by IIS, you may run into “530 User cannot log in, home directory inaccessible” error. This error occurs whether you are using anonymous access or basic authentication.

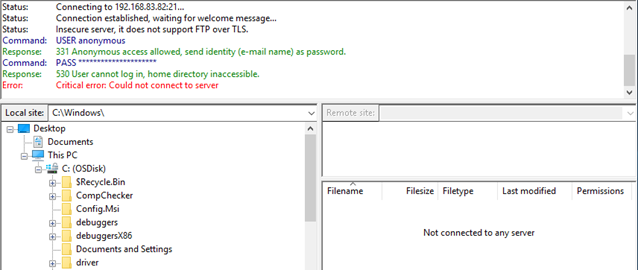

A sample connection log from an FTP client:

\n

530 User cannot log in, home directory inaccessible.
Critical error: Could not connect to server

\n

This issue may appear as “Failed to retrieve directory listing” or “Home directory inaccessible” error as well.

Depending on the FTP client, you may not see the detailed error message right away. For instance, when I tried to connect to the same site with the same configuration by using WinSCP, I received “Access Denied” error. If your FTP client doesn’t show the entire connection history, look for the log folder to get more information about the root cause.

Solution

There might be a few reasons for running into this error. Here are the most common root causes and their solutions:

\n

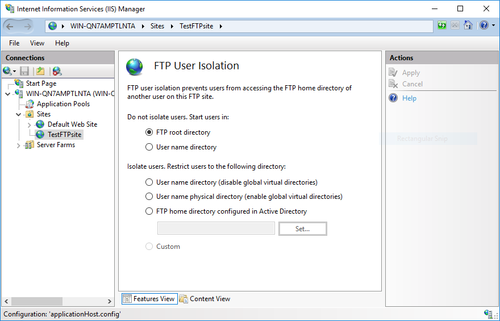

• The user may not be have access to the home directory. Go to “IIS > FTP site > FTP User Isolation”. Select the directory that your users can access. More information about User Isolation settings
\n

\n

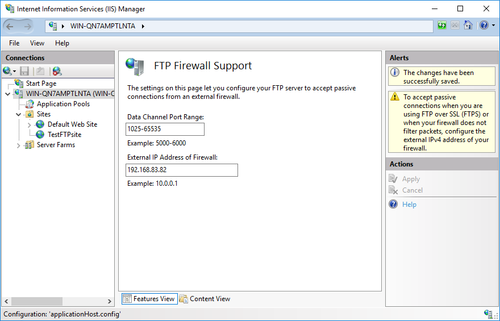

• IIS may not be configured to use passive mode FTP. There are two types of FTP connections: Active mode and passive mode. In active mode, the client opens a port. The server connects to this port for transferring data. In passive mode, the server opens a port. The client connects to this port to transfer data. In order to use passive mode, enter a port range and IP address in “IIS > Server name > FTP Firewall Support” page
\n

Note: You can configure your FTP client to use only the active mode if you don’t want to turn on passive mode

Less common reasons for 530 error

The items below may cause “530 User cannot log in, home directory inaccessible” as well.

\n
• Authorization rules. Make sure to have an Authorization rule that allows the user or anonymous access. Check “IIS > FTP site > FTP Authorization Rules” page to allow or deny access for certain or all users.
\n
• NTFS permissions. The FTP users (local or domain users) should have permissions on the physical folder. Right click the folder and go to Properties. In the Security tab, make sure the user has required permissions. You can ignore Shared tab. It is not used for FTP access.
\n
• Locked account. If you local or domain account is locked or expired, you may end up seeing “User cannot log in” error. Check local user properties or Active Directory user settings to make sure the user account is active.
\n
• Other permission issues. The user account may not have “Log on locally” or “Allow only anonymous connections security” rights.
\n

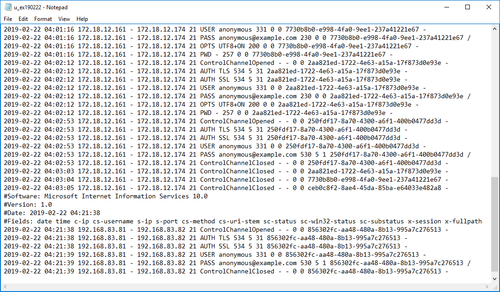

If you are still seeing the issue, check IIS and FTP logs (c:\\inetpub\\logs\\LogFiles\\FTPSVC2) but don’t let it mislead you. IIS logs sometimes may show PASS. It doesn’t mean everything is well. It’s better to check FTP logs that IIS records for FTP connections

Note: In a case with “Connection closed by the server” error for FTP connection, we determined the root cause as the corruption of system files occurred during in-place server upgrade.

While trying to connect to your FTP server hosted by IIS, you may run into “530 User cannot log in, home directory inaccessible” error. This error occurs whether you are using anonymous access or basic authentication.

A sample connection log from an FTP client:

\n

530 User cannot log in, home directory inaccessible.
Critical error: Could not connect to server

\n

This issue may appear as “Failed to retrieve directory listing” or “Home directory inaccessible” error as well.

Depending on the FTP client, you may not see the detailed error message right away. For instance, when I tried to connect to the same site with the same configuration by using WinSCP, I received “Access Denied” error. If your FTP client doesn’t show the entire connection history, look for the log folder to get more information about the root cause.

Solution

There might be a few reasons for running into this error. Here are the most common root causes and their solutions:

\n
• The user may not be have access to the home directory. Go to “IIS > FTP site > FTP User Isolation”. Select the directory that your users can access. More information about User Isolation settings
\n

\n
• IIS may not be configured to use passive mode FTP. There are two types of FTP connections: Active mode and passive mode. In active mode, the client opens a port. The server connects to this port for transferring data. In passive mode, the server opens a port. The client connects to this port to transfer data. In order to use passive mode, enter a port range and IP address in “IIS > Server name > FTP Firewall Support” page
\n

Note: You can configure your FTP client to use only the active mode if you don’t want to turn on passive mode

Less common reasons for 530 error

The items below may cause “530 User cannot log in, home directory inaccessible” as well.

\n
• Authorization rules. Make sure to have an Authorization rule that allows the user or anonymous access. Check “IIS > FTP site > FTP Authorization Rules” page to allow or deny access for certain or all users.
\n
• NTFS permissions. The FTP users (local or domain users) should have permissions on the physical folder. Right click the folder and go to Properties. In the Security tab, make sure the user has required permissions. You can ignore Shared tab. It is not used for FTP access.
\n
• Locked account. If you local or domain account is locked or expired, you may end up seeing “User cannot log in” error. Check local user properties or Active Directory user settings to make sure the user account is active.
\n
• Other permission issues. The user account may not have “Log on locally” or “Allow only anonymous connections security” rights.
\n

If you are still seeing the issue, check IIS and FTP logs (c:\\inetpub\\logs\\LogFiles\\FTPSVC2) but don’t let it mislead you. IIS logs sometimes may show PASS. It doesn’t mean everything is well. It’s better to check FTP logs that IIS records for FTP connections

Note: In a case with “Connection closed by the server” error for FTP connection, we determined the root cause as the corruption of system files occurred during in-place server upgrade.

While trying to connect to your FTP server hosted by IIS, you may run into “530 User cannot log in, home directory inaccessible” error. This error occurs whether you are using anonymous access or basic authentication.

for those that still get the 503 error after setting all the correct permissions (IIS FTP Authentication=basic, IIS FTP Authorization=allow access to user, Windows File permissions, and FTP isolation rules), you MUST restart the FTP site in order for the changes to the IIS FTP Authentication, Authorization, and Isolation rules to take effect.

All of this and removing the role, restarting the server and adding the role fix my issue. (it was a new server before migration)

I faced another scenario that when wrongly binding 2 ftp sites to the same port 21, also getting 530 error.

Stopping 1 of the 2 ftp server or changing to another port resolved this issue.

Andrey_Dmitriev

I found this post for a different reason, but we are planning to set External Firewall address and reduced ports.

We do have some users coming over an accelerated WAN. (so technically internal)

What would be the resolution in this case?  Two sites with the same folders?  Internet pointing to one and LAN/WAN pointing to the other in DNS?

there is one more situation giving the 530 error:

if you are connecting to the FTP server from LAN, but external firewall address is specified in the server configuration

yes, sounds strange.

Peter_Herzog :Please allowthe svc host process in  the ftp server firewall. Allow the tcp port 21 and other passive ports which you have defined like 5000-6000 in ftp server inbound and port 20 and passive ports on ftp server windows firewall outbound.

Allow the same in network firewall or any other nsg, then it should work.

Hi Peter_Herzog, thanks for sharing your testing result. Please create a support request so that we can analyze IIS and FTP logs for further troubleshooting: https://support.microsoft.com/en-ca/hub/4343728/support-for-business

funktioniert bei mir nicht, der server reagiert akzeptiert keine änderungen mehr in der authorisierung egal ob standard oder anonym. egal welche konfiguration gewählt wird. keine nutzung weder virtuelle verzeichnisse noch statische verzeichnisse mehr möglich.

server-dienst mehrfach neu gestartet, deinstallation leider nicht möglich.
