Deploying Apache Guacamole on Azure

Microsoft

Mar 30, 2022

In this post, I'll show you how to create your jump server using Apache Guacamole, an open-source tool that provides similar functionalities to Azure Bastion.

The environment to be built will leverage the usage of Azure Database for MySQL (DBaaS), Azure Load Balancer, and Virtual Machines with Nginx as Reverse Proxy, Tomcat as Application Service, and the Certbot to get free SSL certificates from Let's Encrypt.

What is the Apache Guacamole?

Apache Guacamole is a clientless remote desktop gateway that supports standard protocols like VNC, RDP, and SSH. Clientless means your clients don't need to install anything but just use a web browser to remotely access your fleet of VMs.

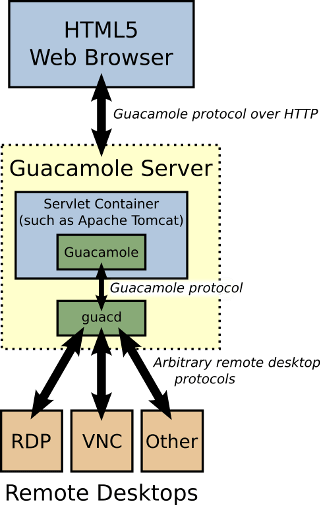

The Guacamole comprises two main components:

Guacamole Server which provides guacd which is like a proxy server for the client to connect to the remote server.
Guacamole Client is a servelet container that users will log in via web browser.

For more information about Guacamole, visit its architecture page.

Apache Guacamole on Azure Architecture

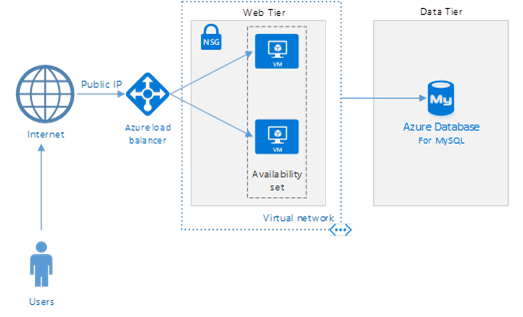

The drawing below refers to the suggested architecture. This architecture includes a public load balancer that receives external accesses and directs them to two virtual machines in the web layer. The web layer communicates with the data layer where we have a MySQL database responsible for storing login information, accesses, and connections.

The Availability Set guarantees a 99.95% SLA for virtual machines and using Azure Database for MySQL, a highly available, scalable, managed database as service guarantees a 99.99% SLA.

Prerequisites

I recommend using the Bash environment in Azure Cloud Shell. If you prefer running on your own Windows, Linux, or macOS, install the Azure CLI to run referenced commands.

Setup

Declaring variables

# Variables
rg=rg-guacamole
location=eastus
mysqldb=guacamoledb
mysqladmin=guacadbadminuser
mysqlpassword=MyStrongPassW0rd
vnet=myVnet
snet=mySubnet
avset=guacamoleAvSet
vmadmin=guacauser
nsg=NSG-Guacamole
lbguacamolepip=lbguacamolepip
pipdnsname=loadbalancerguacamole
lbname=lbguacamole

Resource group creation

az group create --name $rg --location $location

MySQL Creation

az mysql server create \
--resource-group $rg \
--name $mysqldb \
--location $location \
--admin-user $mysqladmin \
--admin-password $mysqlpassword \
--sku-name B_Gen5_1 \
--storage-size 51200 \
--ssl-enforcement Disabled

MySQL Firewall Settings

az mysql server firewall-rule create \
--resource-group $rg \
--server $mysqldb \
--name AllowYourIP \
--start-ip-address 0.0.0.0 \
--end-ip-address 255.255.255.255

VNET creation

az network vnet create \
--resource-group $rg \
--name $vnet \
--address-prefix 10.0.0.0/16 -\
-subnet-name $snet \
--subnet-prefix 10.0.1.0/24

Availability set creation

az vm availability-set create \
--resource-group $rg \
--name $avset \
--platform-fault-domain-count 2 \
--platform-update-domain-count 3

VMs Creation

for i in `seq 1 2`; do
az vm create --resource-group $rg \
--name Guacamole-VM$i \
--availability-set $avset \
--size Standard_DS1_v2 \
--image Canonical:UbuntuServer:18.04-LTS:latest \
--admin-username $vmadmin \
--generate-ssh-keys \
--public-ip-address "" \
--no-wait \
--vnet-name $vnet \
--subnet $snet \
--nsg $nsg
done

After executing these commands, two virtual machines will be created inside the Availability Set.

It is important to note that the SSH keys will be stored in the ~/.ssh directory of the host where the commands were executed (Azure Cloud Shell in this case). As the VMs are being created without a public ip address, we will be creating INAT rules a few steps ahead to be able to connect to the VMs through the Azure Load Balancer.

Setting NSG rules

az network nsg rule create \
--resource-group $rg \
--nsg-name $nsg \
--name web-rule \
--access Allow \
--protocol Tcp \
--direction Inbound \
--priority 200 \
--source-address-prefix Internet \
--source-port-range "*" \
--destination-address-prefix "*" \
--destination-port-range 80

Generating the Guacamole setup script locally on the VMs

for i in `seq 1 2`; do
az vm run-command invoke -g $rg -n Guacamole-VM$i  \
--command-id RunShellScript \
--scripts "wget https://raw.githubusercontent.com/ricmmartins/apache-guacamole-azure/main/guac-install.sh -O /tmp/guac-install.sh"
done

Adjusting database credentials to match the variables

for i in `seq 1 2`; do
az vm run-command invoke -g $rg -n Guacamole-VM$i  \
--command-id RunShellScript \
--scripts "sudo sed -i.bkp -e 's/mysqlpassword/$mysqlpassword/g' \
-e 's/mysqldb/$mysqldb/g' \
-e 's/mysqladmin/$mysqladmin/g' /tmp/guac-install.sh"
done

Executing the Guacamole setup script

for i in `seq 1 2`; do
az vm run-command invoke -g $rg -n Guacamole-VM$i \
--command-id RunShellScript \
--scripts "/bin/bash /tmp/guac-install.sh"
done

Installing Nginx to be used as Proxy for Tomcat

for i in `seq 1 2`; do
az vm run-command invoke -g $rg -n Guacamole-VM$i \
--command-id RunShellScript --scripts "sudo apt install --yes nginx-core"
done

Here is more information about Proxying Guacamole: https://guacamole.apache.org/doc/gug/reverse-proxy.html

Configuring NGINX

for i in `seq 1 2`; do
az vm run-command invoke -g $rg -n Guacamole-VM$i \
--command-id RunShellScript \
--scripts "cat <<'EOT' > /etc/nginx/sites-enabled/default
# Nginx Config
    server {
        listen 80;
        server_name _;

        location / {


                proxy_pass http://localhost:8080/;
                proxy_buffering off;
                proxy_http_version 1.1;
                proxy_set_header X-Forwarded-For \$proxy_add_x_forwarded_for;
                proxy_set_header Upgrade \$http_upgrade;
                proxy_set_header Connection \$http_connection;
                access_log off;
        }
}
EOT"
done

Restart NGINX

for i in `seq 1 2`; do
az vm run-command invoke -g $rg -n Guacamole-VM$i \
--command-id RunShellScript \
--scripts "sudo systemctl restart nginx"
done

Restart Tomcat

for i in `seq 1 2`; do
az vm run-command invoke -g $rg -n Guacamole-VM$i \
--command-id RunShellScript \
--scripts "sudo systemctl restart tomcat8"
done

Change to call guacamole directly at "/" instead of "/guacamole"

for i in `seq 1 2`; do
az vm run-command invoke -g $rg -n Guacamole-VM$i \
--command-id RunShellScript \
--scripts "sudo /bin/rm -rf /var/lib/tomcat7/webapps/ROOT/* && sudo /bin/cp -pr /var/lib/tomcat8/webapps/guacamole/* /var/lib/tomcat8/webapps/ROOT/"
done

Creation of Public IP for the Azure Load Balancer

az network public-ip create -g $rg -n $lbguacamolepip -l $location \
--dns-name $pipdnsname \
--allocation-method static \
--idle-timeout 4 \
--sku Standard

Creation of Azure Load Balancer

az network lb create -g $rg \
--name $lbname -l $location \
--public-ip-address $lbguacamolepip \
--backend-pool-name backendpool  \
--frontend-ip-name lbguacafrontend \
--sku Standard

Creation of the health probe

az network lb probe create \
--resource-group $rg \
--lb-name $lbname \
--name healthprobe \
--protocol "http" \
--port 80 \
--path / \
--interval 15

Creation of the load balancing rule

az network lb rule create \
--resource-group $rg \
--lb-name $lbname \
--name lbrule \
--protocol tcp \
--frontend-port 80 \
--backend-port 80 \
--frontend-ip-name lbguacafrontend \
--backend-pool-name backendpool \
--probe-name healthprobe \
--load-distribution SourceIPProtocol

Adding the VM1 to the Load Balancer

az network nic ip-config update \
--name ipconfigGuacamole-VM1 \
--nic-name Guacamole-VM1VMNic \
--resource-group $rg \
--lb-address-pools backendpool \
--lb-name $lbname

Adding the VM2 to the Load Balancer

az network nic ip-config update \
--name ipconfigGuacamole-VM2 \
--nic-name Guacamole-VM2VMNic \
--resource-group $rg \
--lb-address-pools backendpool \
--lb-name $lbname

Creating the INAT rules

The INAT rules will allow connections made directly to the load balancer's address to be routed to servers under it according to the chosen port.

In this case, when making the connection on port 21 of the balancer, it will be directed to VM1 on port 22 (SSH) and the connection on port 23 of the balancer will be directed to VM2 on port 22 (SSH).

az network lb inbound-nat-rule create \
--resource-group $rg \
--lb-name $lbname \
--name ssh1 \
--protocol tcp \
--frontend-port 21 \
--backend-port 22 \
--frontend-ip-name lbguacafrontend

az network lb inbound-nat-rule create \
--resource-group $rg \
--lb-name $lbname \
--name ssh2 \
--protocol tcp \
--frontend-port 23 \
--backend-port 22 \
--frontend-ip-name lbguacafrontend

az network nic ip-config inbound-nat-rule add \
--inbound-nat-rule ssh1 \
--ip-config-name ipconfigGuacamole-VM1 \
--nic-name Guacamole-VM1VMNic \
--resource-group $rg \
--lb-name $lbname

az network nic ip-config inbound-nat-rule add \
--inbound-nat-rule ssh2 \
--ip-config-name ipconfigGuacamole-VM2 \
--nic-name Guacamole-VM2VMNic \
--resource-group $rg \
--lb-name $lbname

If you want to connect to the VMs, see below how to proceed:

ssh -i .ssh/id_rsa guacauser@<loadbalancer-public-ip> -p 21 (To access VM1)
ssh -i .ssh/id_rsa guacauser@<loadbalancer-public-ip> -p 23 (To access VM2)

Testing

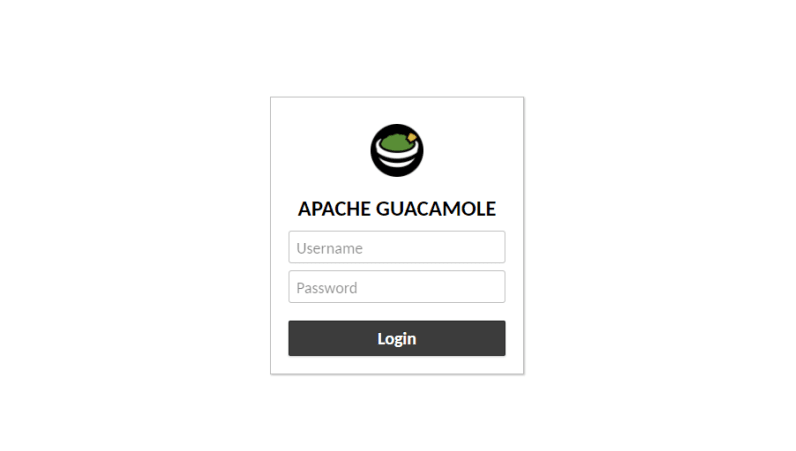

You try to access the client at http://<loadbalancer-public-ip> or http://<loadbalancer-public-ip-dns-name> and you should see the Guacamole's login screen and use the default user and password (guacadmin/guacadmin) to log in:

Adding SSL in 5 steps

Maybe you want consider the usage of an SSL to be more compliant with security requirements. To add SSL we will use Certbot to get a certificate from Let's Encrypt. Here are the steps you need to follow:

Ensure you have a valid domain with an A record pointing to the Azure Load Balancer Public IP. A valid domain with an A register defined is a pre-requisite for Certbot.

2. After addressing the steps from 1, you must adjust your Nginx config file /etc/nginx/sites-enabled/default on both servers, and set the server_name directive to point to the name of your domain:

for i in `seq 1 2`; do
az vm run-command invoke -g $rg -n Guacamole-VM$i  \
--command-id RunShellScript \
--scripts "sudo sed -i.bkp -e 's/_;/myguacamolelab.com;/g' /etc/nginx/sites-enabled/default"
done

Then let's proceed to the setup and configurations for Certbot setting new environment variables:

export DOMAIN_NAME="myguacamolelab.com"
export EMAIL="admin@myguacamolelab.com"

Remember to change according to your domain

Install snap tool to get certbot:

for i in `seq 1 2`; do
az vm run-command invoke -g $rg -n Guacamole-VM$i  \
--command-id RunShellScript \
--scripts "sudo snap install core; sudo snap refresh core"
done

Install and configure Certbot:

for i in `seq 1 2`; do
az vm run-command invoke -g $rg -n Guacamole-VM$i  \
--command-id RunShellScript \
--scripts "sudo snap install --classic certbot"
done

for i in `seq 1 2`; do
az vm run-command invoke -g $rg -n Guacamole-VM$i  \
--command-id RunShellScript \
--scripts "sudo certbot --nginx -d "${DOMAIN_NAME}" -m "${EMAIL}" --agree-tos -n"
done

Restart Nginx:

for i in `seq 1 2`; do
az vm run-command invoke -g $rg -n Guacamole-VM$i  \
--command-id RunShellScript \
--scripts "sudo systemctl restart nginx"
done

Now you need open the port 443 on the NSG:

az network nsg rule create \
--resource-group $rg \
--nsg-name $nsg \
--name ssl-rule \
--access Allow \
--protocol Tcp \
--direction Inbound \
--priority 300 \
--source-address-prefix Internet \
--source-port-range "*" \
--destination-address-prefix "*" \
--destination-port-range 443

4. Create the health probe for the port 443:

az network lb probe create \
--resource-group $rg \
--lb-name $lbname \
--name healthprobe-https \
--protocol "https" \
--port 443 \
--path / \
--interval 15

5. Create the load balancer rule for port 443 on the Load Balancer:

az network lb rule create \
--resource-group $rg \
--lb-name $lbname \
--name lbrule-https \
--protocol tcp \
--frontend-port 443 \
--backend-port 443 \
--frontend-ip-name lbguacafrontend \
--backend-pool-name backendpool \
--probe-name healthprobe-https \
--load-distribution SourceIPProtocol

Test the SSL

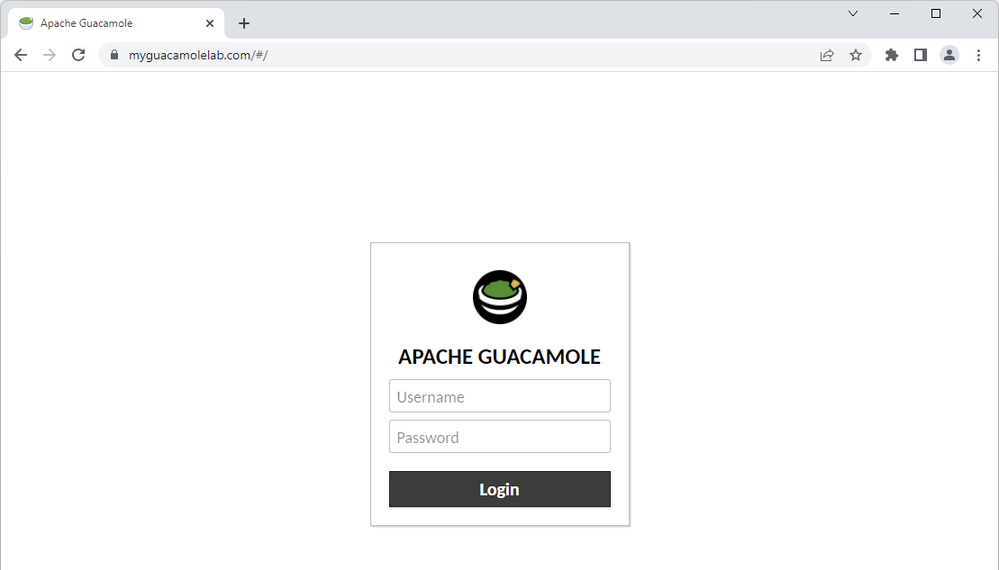

Now you can access it through https://<yourdomainname.com>

Plus!

Here I’m going to show you how to automate the process of creating a cron job that will automatically renew the expired certificates.

for i in `seq 1 2`; do
az vm run-command invoke -g $rg -n Guacamole-VM$i \
--command-id RunShellScript \
--scripts "cat <<'EOT' > /etc/cron.d/certbot
# /etc/cron.d/certbot: crontab entries for the certbot package
#
# Upstream recommends attempting renewal twice a day
#
# Eventually, this will be an opportunity to validate certificates
# haven't been revoked, etc.  Renewal will only occur if expiration
# is within 30 days.
SHELL=/bin/sh
PATH=/usr/local/sbin:/usr/local/bin:/sbin:/bin:/usr/sbin:/usr/bin

0 */12 * * * root test -x /usr/bin/certbot  -a \! -d /run/systemd/system &&  perl -e 'sleep int(rand(43200))' &&  certbot -q renew
EOT"
done

for i in `seq 1 2`; do
az vm run-command invoke -g $rg -n Guacamole-VM$i \
--command-id RunShellScript \
--scripts "systemctl restart cron"
done

Now, this cron job will check if some of the certificates are expired it will renew them automatically. This cron job would get triggered twice every day to renew the certificate. Line certbot -q renew will check if the certificate is getting expired in the next 30 days or not. If it is getting expired then it will auto-renew it quietly without generating output. If the certificate is not getting expired then it will not perform any action. While renewing the certificate it will use the same information provided during certificate creation such as email address, domain name, web server root path, etc.

Conclusion

Enjoy your own "jump-server environment", leveraging a high-available and scalable architecture. If you need more information about how to add your connections, take a look at the official documentation from Apache Guacamole here: https://guacamole.apache.org/doc/gug/administration.html
