Upload Custom Linux Hyper-V Image for Gen 2 VM in Azure

Introduction

This is Andrew Coughlin and I am a Customer Engineer at Microsoft focusing on Azure IaaS. In this blog I will focus on how to upload a custom linux Hyper-V image for generation 2 virtual machines in Azure. Support for generation 2 virtual machines in Azure was released on November 4, 2019, these systems use UEFI boot, SCSI, supported on VMs that support premium storage compared to generation 1 which use PCAT boot, IDE and are available on all VM sizes.  Generation 2 VMs provide for OS disk size greater than 2TB in size and build larger VMs, up to 12TBs. To get additional information about generation 2 virtual machines in Azure please visit this post.



If you have ever uploaded a custom image in Azure in the past you will notice the process is very similar.  Are you looking for the process for Windows VMs, head over to my post here that covers this same process but for Windows VMs.



Prerequisites

• Review the Support for generation 2 VMs on Azure.
• Install Azure PowerShell as documented here.
• Create Hyper-V Gen 2 machine to be used as the image.
• Review Generic Linux image documentation here.
• Review the specific distribution preparation documentation:
  • Debian is located here.
  • Oracle Linux is located here.
  • OpenBSD is located here.
  • Redhat is located here.
  • SUSE is located here.
  • Ubuntu is located here.
• Convert VHDX to VHD as documented here.
• Download and Install azcopy as documented here.
• Sign in with Azure as documented here.
• Select Azure subscription to upload image as documented here.



Upload Hyper-V Image to Managed Disk

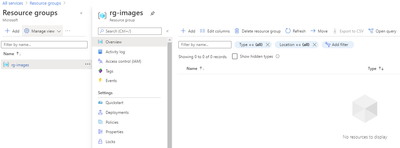

First you want to determine which resource group the image will reside in or if you will create a new resource group. As a reminder a resource group is a container that holds related solutions: virtual machines, storage accounts, disks virtual networks, etc. for your Azure solutions. A resource group can include all resources for your solutions or only those resources that you want to be managed together. For documentation on how to create a new resource group, this can be found on this page. In this example I’m going to use the resource group called “rg-images”.

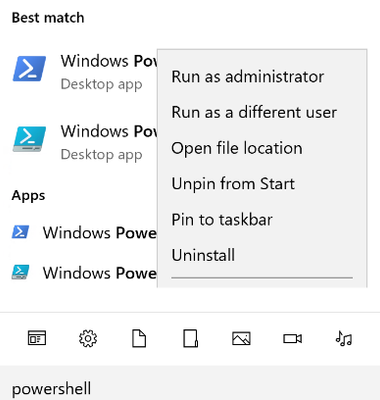

First, we need to open an elevated PowerShell command prompt.





Next, we will set some variables as we will need these throughout the process, in this example. We are going to be creating this image in Central US, with the image name CentOS7-Image-V2, in the resource group called rg-images, with a disk image called CentOS7-Image-V2.

• $location = 'Central US'
• $imageName = 'Ubuntu1804-Image-V2'
• $rgName = 'rg-images'
• $diskname = 'Ubuntu1804-Image-V2'

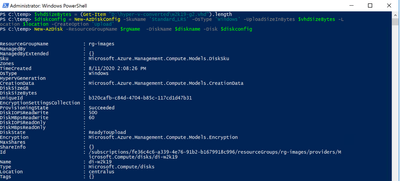

Next, we want to create an empty managed disk, we will type the following commands:



$vhdSizeBytes = (Get-Item "<full File Path>").length
$diskconfig = New-AzDiskConfig -SkuName 'Standard_LRS' -OsType 'Linux' -UploadSizeInBytes $vhdSizeBytes -Location $location -CreateOption 'Upload'
New-AzDisk -ResourceGroupName $rgName  -DiskName $diskname -Disk $diskconfig





NOTE: You can replace the Standard_LRS, with Premium_LRS or StandardSSD_LRS.  At the writing of this blog Ultra disks are currently not supported.



Next, we need to confirm the disk status is equal to “ReadyToUpload”, we will type the following:



$disk = Get-AzDisk -ResourceGroupName $rgName -DiskName $diskname
$disk.DiskState





NOTE: The disk status must be set to “ReadyToUpload”, if it is not you need to check what was typed in the “New-AzDiskConfig” command.



Now we want to create the writable shared access signature (SAS) for the managed disk we just created.  Then we will get the disk status and make sure it is equal to “ActiveUpload”, to do this we will type the following:



$diskSas = Grant-AzDiskAccess -ResourceGroupName $rgName -DiskName $diskname -DurationInSecond 86400 -Access 'Write'
$disk = Get-AzDisk -ResourceGroupName $rgName -DiskName $diskname
$disk.DiskState





Now we are ready to upload our disk to Azure, to do this we will type the following and wait for the process to complete:



cd <location of Azcopy>
.\azcopy.exe copy "<location of vhd>" $diskSas.AccessSAS --blob-type PageBlob

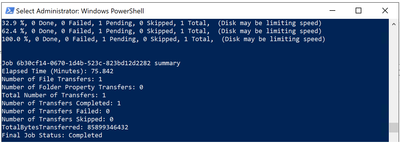

When the upload is completed you will get the following results:





After the upload has completed, we will revoke access from the disk as we no longer need the shared access signature we created above, we will type the following:



Revoke-AzDiskAccess -ResourceGroupName $rgName -DiskName $diskname





Create Image from Managed Disk

We now have the managed disk uploaded to the cloud.  The next step is to create an image from that managed disk.  When the image is created, we want to make sure to specify this image will be a V2 image.  To do this we will type the following:



$imageConfig = New-AzImageConfig -Location $location -HypervGeneration V2
$imageConfig = Set-AzImageOsDisk -Image $imageConfig -OsState Generalized -OsType Linux -ManagedDiskId $disk.Id
$image = New-AzImage -ImageName $imageName -ResourceGroupName $rgName -Image $imageConfig

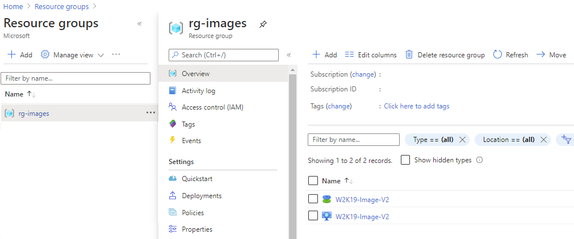

Verify in the portal that our image is now created from our managed disk.  We can now start provisioning generation 2 virtual machines with this image.





Conclusion

There you have it; we have just uploaded a custom linux image and now we can use that image to deploy generation 2 virtual machines in your Azure environment.  Thank you for taking the time to read this blog, I hope this helps you and see you next time.
