RSAT on Windows 10 1809 in Disconnected Environments

BrandonWilson's avatar
BrandonWilson
Icon for Microsoft rankMicrosoft
May 15, 2019

First published on TECHNET on Dec 18, 2018


Hello everyone, Ty McPherson here, along with some fellow engineers Andreas Pacius and Edwin Gaitan, and we wanted to put together and share some information to help you setup Remote Server Administration Tools with Windows 10 1809.

Starting with Windows 10 v1809 the Remote Server Administration Tools (RSAT) is now a Feature on Demand (FoD). Features can be installed at any time and the requested packages are obtained through Windows Update. However, some of you are not connected to the internet to retrieve these packages, but still need the RSAT features enabled. The below steps will allow you to install some or all of the RSAT features. There are a couple options available to you, so please read through them so you can determine the best course of action to meet your needs.

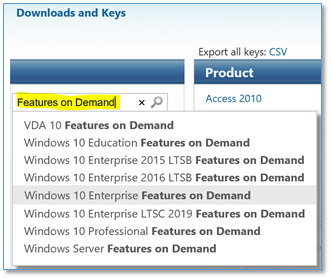

The first step in all cases is that you need to obtain the FoD media from your Volume License Servicing Center (VLSC). Login and do a search for Features on Demand , ensuring you select the same edition that you want to RSAT enabled on.

Figure 1 - VLSC Search for Features on Demand

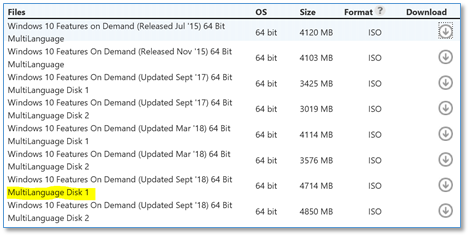

Download Disk 1 of the latest release

Figure 2 - Download Disk 1 of the latest release


Before we install the RSAT let's examine what's available we'll use Get-WindowsCapability. Run the following command:

Get-WindowsCapability -online | ? Name -like Rsat* | FT

Figure 3 - Check RSAT FoD Status


Here are your choices, some a great for single quick installations, while others can help make available the FoD resources for the Enterprise.

Option 1:
You can copy the files from the .iso media to a local directory and move to a network share and make it available to the administrative staff.




#Specify ISO Source location


$FoD_Source = "$env:USERPROFILE\Downloads\1809_FoD_Disk1.iso"


#Mount ISO


Mount-DiskImage -ImagePath "$FoD_Source"


$path = (Get-DiskImage "$FoD_Source" | Get-Volume).DriveLetter


#Language desired


$lang = "en-US"


#RSAT folder


$dest = New-Item -ItemType Directory -Path "$env:SystemDrive\temp\RSAT_1809_$lang" -force


#get RSAT files


Get-ChildItem ($path+":\") -name -recurse -include *~amd64~~.cab,*~wow64~~.cab,*~amd64~$lang~.cab,*~wow64~$lang~.cab
-exclude *languagefeatures*,*Holographic*,*NetFx3*,*OpenSSH*,*Msix* |
ForEach-Object {copy-item -Path ($path+":\"+$_) -Destination $dest.FullName -Force
-Container}


#get metadata


copy-item ($path+":\metadata") -Destination $dest.FullName -Recurse


copy-item ($path +":\"+"FoDMetadata_Client.cab") -Destination $dest.FullName -Force -Container


#Dismount ISO


Dismount-DiskImage -ImagePath "$FOD_Source"


Use the following PowerShell to install RSAT from the FoD source that was placed on a network share from Option 1.

Note:  The network share/resource needs to have permissions that allow computer objects to READ, as well as the user invoking the PowerShell.  This is due to the Windows Module Installer running as NT Authority\SYSTEM, and will need access to the READ the source.



#Specify ISO Source location


$FoD_Source = "C:\Temp\RSAT_1809_en-US"


#Grab the available RSAT Features


$RSAT_FoD = Get-WindowsCapability -Online | Where-Object Name -like 'RSAT*'


#Install RSAT Tools


Foreach ($RSAT_FoD_Item in $RSAT_FoD)


{


Add-WindowsCapability -Online -Name $RSAT_FoD_Item.name -Source $FoD_Source -LimitAccess


}


Option 2:
Alternatively, you could mount the .ISO and specify the drive as the source. Using a local drive letter as the -source parameter specified when executing the Add-WindowsCapability PowerShell.

If installing from a mounted ISO the below is an example PowerShell script



#Specify ISO Source location


$FoD_Source = "$env:USERPROFILE\Downloads\1809_FoD_Disk1.iso"


#


#Mount ISO


Mount-DiskImage -ImagePath "$FoD_Source"


$FoD_Drive = (Get-DiskImage "$FoD_Source" | Get-Volume).DriveLetter


#Grab the available RSAT Features


$RSAT_FoD = Get-WindowsCapability -Online | Where-Object Name -like 'RSAT*'


#Install RSAT Tools


Foreach ($RSAT_FoD_Item in $RSAT_FoD)


{


Add-WindowsCapability -Online -Name $RSAT_FoD_Item.name -Source ($FoD_Drive+":") -LimitAccess


}


#Dismount ISO


Dismount-DiskImage -ImagePath "$FoD_Source"

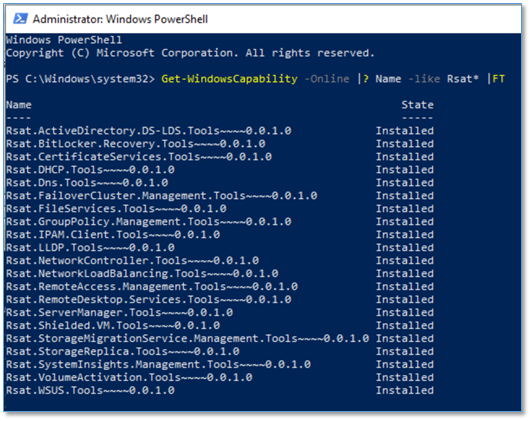

After the installation we'll use Get-WindowsCapability again to check the status of the RSAT features after the installation.



Figure 4 - Ensure RSAT features installed


Thank you for taking some time to read this and learning about the changes with RSAT in Windows 10 1809. We hope that this will help you as you transition to this recent build of Windows 10.

Good Luck!
