CPU/Memory Monitors: Include Top Processes in Alert Description

Jimmy Harper's avatar
Jimmy Harper
Occasional Reader
Mar 13, 2019

First published on TECHNET on Aug 29, 2014



Here is a Management Pack that I wrote for a customer a while back.  The requirement was to take the alerting for CPU Utilization and Available Memory from the Windows Server Management Pack and add the top 5 processes consuming CPU/Memory to the Alert Description.



The MP that I wrote for this is attached

    • The MP contains replicas of the “Available Megabytes of Memory” and “Total CPU Utilization Percentage” Monitors from the Windows Server MPs
    • The only change is a modification to the VBScript to get the Top 5 processes and include them in the Property Bag and Alert.

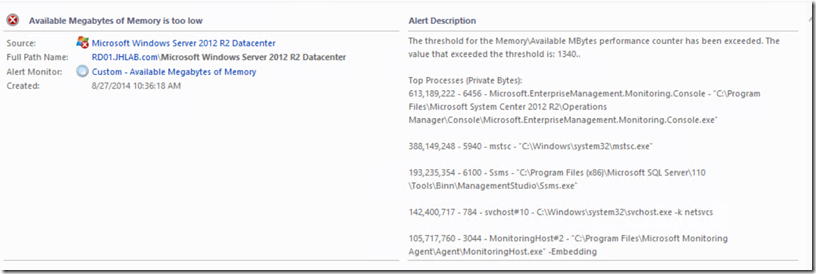

    • The memory monitor will show the top 5 instances of Process\Private Bytes

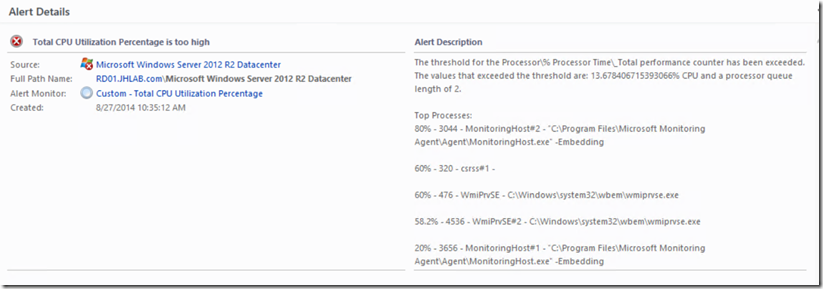

    • The CPU monitor will show the top 5 instances of Process\% Processor Time
    • The MP has separate Monitors for Server 2003, 2008, 2008 R2 and 2012



Screenshots of the alerts are below:









Updated Aug 16, 2021
Version 5.0
  • Mazch's avatar
    Mazch
    Copper Contributor

    Got few question on this MP :



    Will it worked on latest window servers, or at least on windows server 2019? I'm still on SCOM 2016



    What about reporting? Are all descriptions in alert will be generate in reports?

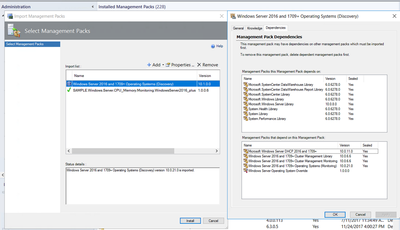

    Notice that the MP require to have Windows Servers 2016 Discovery version 10.1 , Any other MP's dependency if I going to upgrade from version 10.0.21.0?
