Azure Update Manager – Patching .NET Core

This blog will share how to configure an Azure Virtual Machine or an Azure Arc-enabled virtual machine to utilize Azure Update Manager for patching .NET Core security updates.

There are two different changes that need to be made to the server to allow .NET Core to receive updates with Azure Update Manager:

Step 1: Create a registry entry for .NET core updates

Step 2: Change the Windows Server to receive other Microsoft Updates for patching.

The registry change allows .NET Core to become available to Automatic Updates.

.NET Automatic Updates for Server Operating Systems - .NET Blog (microsoft.com)

Step 1: Create a registry entry for .NET Core updates

You may execute PowerShell to enable this registry setting or create a .reg file to execute.

PowerShell example for all of .NET core versions:

New-Item -Path "HKLM:\SOFTWARE\Microsoft" -Name ".NET" -Force | Out-Null
Set-ItemProperty -Path "HKLM:\SOFTWARE\Microsoft\.NET" -Name "AllowAUOnServerOS" -Value 1 -Type DWord

Or a PowerShell example for a specific .NET core version:

New-Item -Path "HKLM:\SOFTWARE\Microsoft\.NET" -Name "6.0" -Force | Out-Null
Set-ItemProperty -Path "HKLM:\SOFTWARE\Microsoft\.NET\6.0" -Name "AllowAUOnServerOS" -Value 1 -Type DWord

Registry File example:

To use a .reg file for creating the registry entries, copy the text below into a new file (ex: dotnetcore.reg) and execute. This example will create both options for all versions of .NET core and version 6.0 of .NET core. Remove lines as needed.

Windows Registry Editor Version 5.00
[HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\.NET]
"AllowAUOnServerOS"=dword:00000001
[HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\.NET\6.0]
"AllowAUOnServerOS"=dword:00000001

Step 2: Change the Windows Server to receive other Microsoft Updates for patching.

The other required change to make to the server is to change the Windows Server to receive “other Microsoft products” updates.  This change allows other Microsoft products such as SQL Server, and in this example of .NET Core to become available for updating Windows Machines.

Configure Windows Update settings in Azure Update Manager | Microsoft Learn

Run these commands in PowerShell to change the update settings to receive other Microsoft product updates:

$ServiceManager = (New-Object -com "Microsoft.Update.ServiceManager")
$ServiceManager.Services
$ServiceID = "7971f918-a847-4430-9279-4a52d1efe18d"
$ServiceManager.AddService2($ServiceId,7,"")

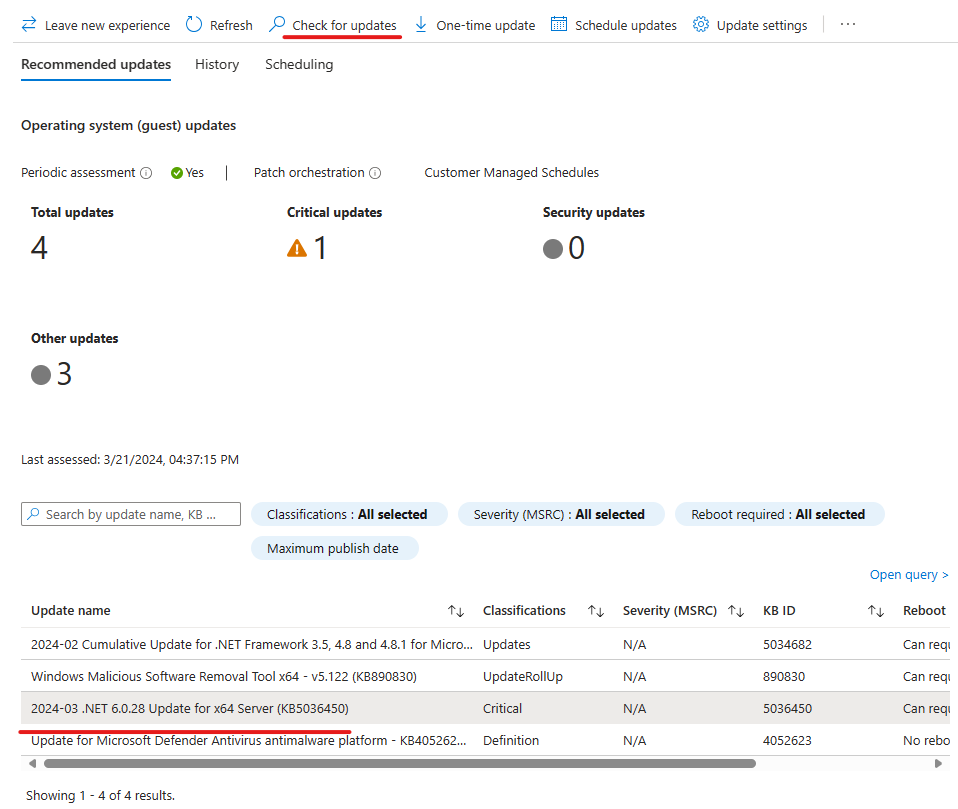

Once these settings are changed. Use the ‘Check for updates’ option in Azure Update Manager. The patch should become available to the virtual machine for .NET Core.

In this example, an Azure Windows Server 2022 machine image had the .NET Core 6.0.27 installed. After the machine was checked for new updates, the patch is available now for .NET core 6.0.28.

For testing purposes this link is the .NET Core 6.0.27 installer.  .NET Core 6.0.27 - Versions of .NET.

In conclusion, configuring Azure Update Manager to patch .NET Core security updates is a crucial step in maintaining the security and performance of your Azure Virtual Machines. By enabling the registry setting for automatic updates, you can ensure that your .NET Core installations are always up-to-date with the latest security patches.

This process not only simplifies the management of updates but also enhances the overall security posture of your environment. Whether you choose to use PowerShell commands or create a .reg file, the steps outlined in this article provide a clear and effective method for keeping your .NET Core installations secure and up-to-date.
