As discussed previously in the blog post “Fortify Your Azure Firewall: Custom Public IP Configuration on Secured Virtual Hub Deployments”, in the current cloud-focused environment, the management of network security has become increasingly important. Azure Firewall has long been an effective solution for securing virtual networks and virtual hubs, but recent updates have further enhanced its capabilities. The ability to specify your own Azure public IP to be used by your Azure Firewall within an Azure Virtual WAN Secured Virtual Hub, rather than relying on Azure to automatically assign one is a great feature that provides enhanced control over your network's public-facing IPs, enabling alignment with organizational security policies and compliance standards.
In this blog, we'll discuss enhancing your secured virtual hub Azure firewall security by configuring Azure DDoS IP Protection for a comprehensive solution.
Recap of the key benefits of using specific Public IPs for your Secured Virtual Hub Azure Firewalls
- Full Control: Gain complete ownership and management over the lifecycle of your firewall's public IP address. This means you can assign, reassign, and retire IP addresses as needed, ensuring that your network infrastructure remains agile and responsive to changing demands. By having full control, you can also implement custom configurations and policies that align with your specific security and operational requirements.
- Enhanced Security: Strengthen your network's defenses by enabling Distributed Denial of Service (DDoS) mitigation. This advanced security feature helps protect your infrastructure from malicious attacks that aim to overwhelm your network with excessive traffic. By proactively identifying and neutralizing potential threats, DDoS mitigation ensures that your services remain available and secure, providing peace of mind and uninterrupted access for your users.
- IP Address Flexibility: Enjoy the flexibility of allocating public IP addresses from a predefined IP prefix pool. This allows you to efficiently manage your IP resources, ensuring that you have the right number of addresses available for your current and future needs. With this flexibility, you can easily scale your network, accommodate new devices, and optimize IP address usage, all while maintaining a streamlined and organized IP address management system.
How-to enable Azure DDoS IP Protection
In this section we’ll configure Azure DDoS Protection to prevent DDoS attacks against the deployment. This is a key benefit that comes with the ability to configure your own public IPs on the Azure Firewall with Secured Virtual Hub.
Select any of the public IPs you have associated with the firewall, this should bring you to the Overview blade of that resource.

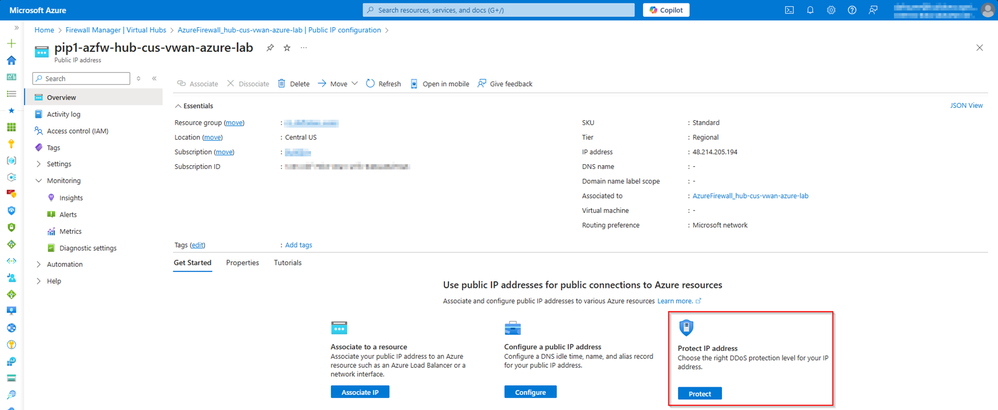

From the Overview blade, select the Protect button under Get Started. This will be how we enable the protection level for the public IP today, since the SKU that can be used for the protection will be Azure DDoS IP Protection, not Azure DDoS Network Protection. Since the virtual network used for the Virtual Hub is a managed virtual network, we cannot use the DDoS Network Protection SKU. You do have the option to enable this level of protection via Azure PowerShell or Azure CLI.

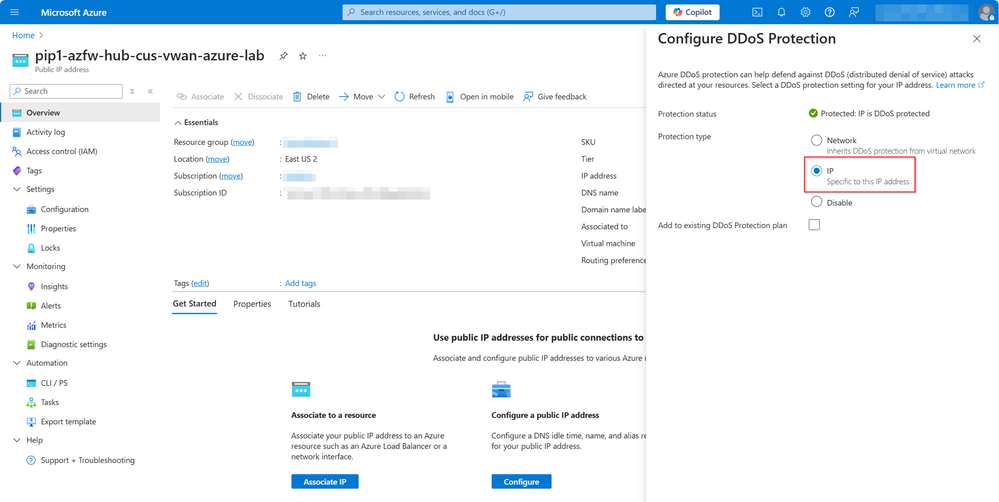

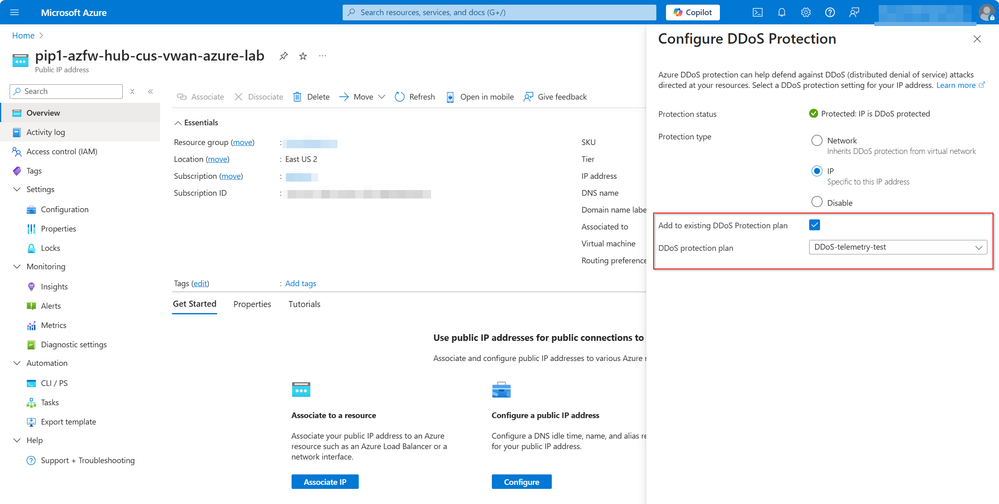

From this view, we can see the various ways to configure DDoS protection for a public IP in Azure. As mentioned before, public IPs associated with an Azure Firewall in Secured Virtual Hub must use IP protection. In case you already have a DDoS Protection Plan, you will have the option to link it to the DDoS IP SKU when enabling the IP protection. When a DDoS IP SKU is linked to a plan, you will only be charged by your DDoS Protection Plan, instead of being charged for both.

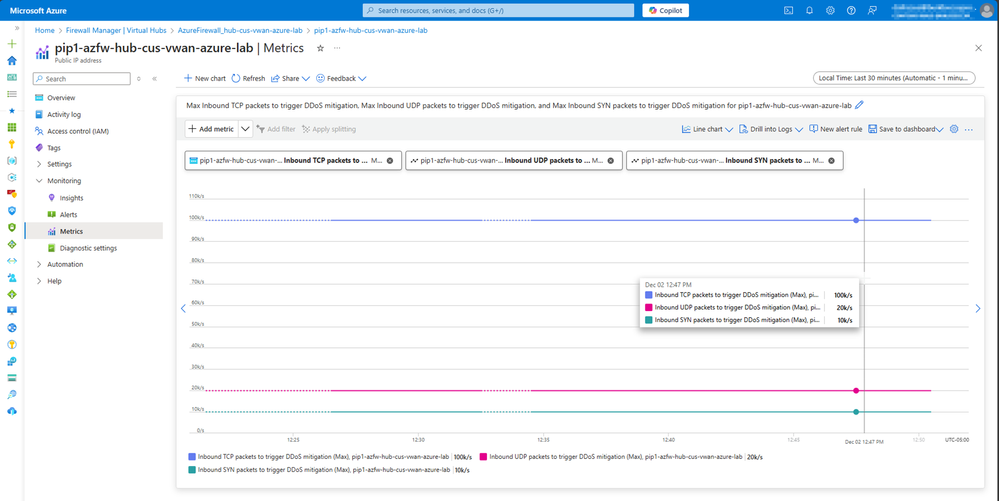

Once DDoS IP Protection is enabled, you can check the following 3 metrics, under the public IP resource, to validate the threshold levels applied to the public IP.
- Inbound SYN packet to trigger DDoS mitigation
- Inbound UDP packets to trigger DDoS mitigation
- Inbound TCP packet to trigger DDoS mitigation
This indicates that the Azure DDoS IP Protection is on and protecting the workload behind the public endpoint.
Conclusion
Configuring specific public IP addresses for your Azure Firewall within a secured virtual hub represents a major leap forward in network security management. This feature not only offers enhanced control over your firewall's public-facing IPs but also significantly bolsters your security posture by incorporating Azure DDoS IP Protection. By utilizing this capability, you can safeguard your firewall against potential DDoS attacks, ensuring a more resilient and secure environment for your applications and services.
