Application layer DDoS protection using the HTTP DDoS Ruleset in Azure WAF

Microsoft

Dec 18, 2025

Today, Distributed Denial of Service (DDoS) attacks can strike as soon as public connectivity is enabled, highlighting their widespread prevalence. Factors such as easily accessible botnets, the explosion of IoT devices, and the growth of API-driven workloads, e-commerce platforms, and global web applications have made these attacks easier to launch and more impactful.

Importantly, attackers are no longer focusing solely on the network layer, they increasingly target the application layer. Application-layer DDoS attacks often mimic normal user activity, making detection and mitigation far more challenging than traditional network-layer attacks. The most common types of Application layer/HTTP based DDOS attacks are outlined below.

Common HTTP-based DDoS attacks:

HTTP floods: Large volumes of valid looking GET or POST requests are sent to webpages or APIs, overwhelming application gateways and backend services without saturating network bandwidth.
API abuse attacks: Attackers repeatedly call specific API endpoints, such as authentication, search, or checkout that trigger expensive backend operations, quickly exhausting compute and database resources.
Slow HTTP attacks: Connections are deliberately kept open by sending data very slowly, consuming server threads and connection limits while generating relatively little traffic.
TLS-intensive attacks: A high number of encrypted connections are initiated to increase CPU usage during TLS handshakes, impacting application gateways and load balancers.

In order to defend against these sophisticated threats, organizations need application-aware protection that can identify abnormal behavior patterns rather than relying only on traffic volume. This is precisely the capability provided by the HTTP DDoS Ruleset for Azure Application Gateway WAF.

What Is the HTTP DDoS Ruleset?

The HTTP DDoS Ruleset is a built-in capability of Azure Application Gateway WAF designed to protect your applications from large-scale HTTP floods at the application layer. Unlike static rate-limiting or manual IP blocking, this ruleset uses adaptive learning to understand what “normal” traffic looks like for your gateway and then automatically mitigates anomalies.

Key features

Baseline learning: The ruleset observes traffic for about 24 hours to establish a normal request pattern per gateway.
Dynamic detection: When incoming requests exceed the learned baseline, the ruleset identifies potential abuse (Client-specific or IP specific limits are applied only when the overall request volume to the gateway exceeds its learned baseline).
Automated mitigation: Offending clients are blocked and are placed in a “penalty box” for the defined time (15 minutes).
Sensitivity levels: Choose low, medium, or high to control aggressiveness. Medium is recommended for most workloads.
Leverages Microsoft’s vast global network’s threat intelligence to establish a stricter baseline for suspected botnet traffic and when exceeded, blocks them and places those suspected bots into the penalty box.

Threat intelligence plays a critical role here. By continuously aggregating data from global telemetry, threat intelligence systems can identify sources that are likely participating in coordinated attacks. When applied to HTTP DDoS protection, this intelligence allows suspected bot traffic to be treated differently from normal user traffic. Instead of relying only on static blocklists, botnet-aware defenses use reputation, behavior, and historical signals to apply throttling or penalties dynamically. This approach reduces the attack surface, limits the impact of distributed bot-driven floods, and avoids unnecessary disruption to legitimate users.

Threat intelligence shifts DDoS defense from a purely reactive posture to a more informed, proactive one, making it far more effective against today’s botnet-driven application-layer attacks.

Enabling and validating the HTTP DDoS Ruleset:

Getting started with the HTTP DDoS Ruleset on Application Gateway WAF is simple.

Enable the Ruleset:

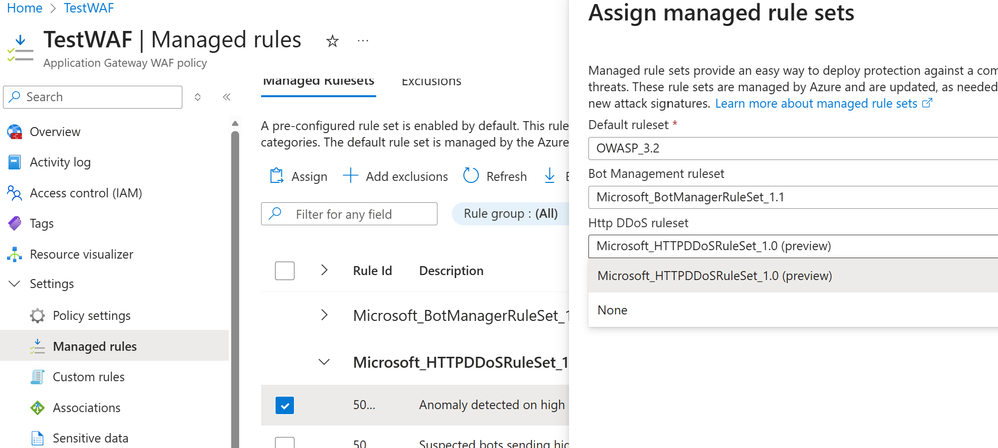

In the Azure portal, open your WAF policy.

Note: Currently the ruleset is available only in the preview portal: https://preview.portal.azure.com/

Under Managed Rules, Click on Assign and then assign the HTTP DDoS Ruleset_1.0 (Preview) and save.

Each rule can be configured to either Log traffic for observation or Deny traffic for active mitigation. Sensitivity can be adjusted to High, Medium, or Low, allowing you to balance detection speed and accuracy. Higher sensitivity enforces lower thresholds and detects anomalies sooner, while lower sensitivity raises thresholds to reduce false positives. Medium sensitivity is the default and recommended setting for most workloads.

Once enabled, the ruleset is evaluated early in the WAF pipeline, before custom rules are processed. This ensures that HTTP-based DDoS protection cannot be bypassed by DDoS protection. The ruleset works alongside the Default Rule Set (DRS) and any custom rules for comprehensive security.

After the policy is applied to an Application Gateway, the ruleset enters a learning phase that lasts at least 24 hours. During this time, it observes traffic patterns to establish normal baselines for the gateway. No detection or blocking occurs during this period, allowing the ruleset to understand typical application behavior before enforcement begins.

Metrics:

Once the learning phase completes, traffic surges that exceed the learned baseline are reflected in the Application Gateway metrics. These metrics provide immediate visibility into when the HTTP DDoS ruleset is actively detecting and mitigating abnormal behavior.

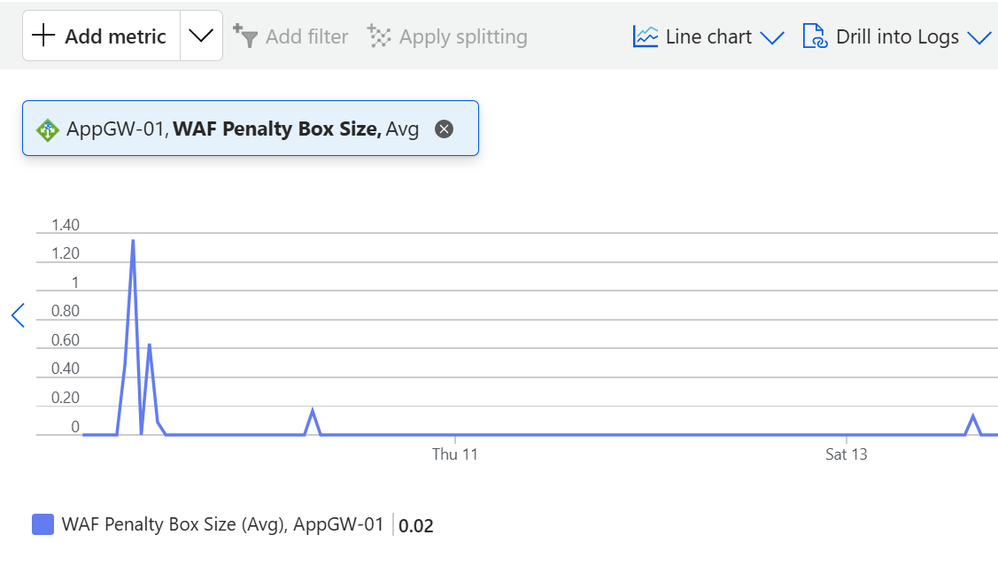

Metric – WAF Penalty Box Size

This metric shows how many IP addresses are currently inside the penalty box, meaning that the WAF has detected them exceeding the learned HTTP DDoS baseline and is temporarily blocking them. A spike here indicates that multiple clients crossed their thresholds at the same time, often during an attack or load-test scenario.

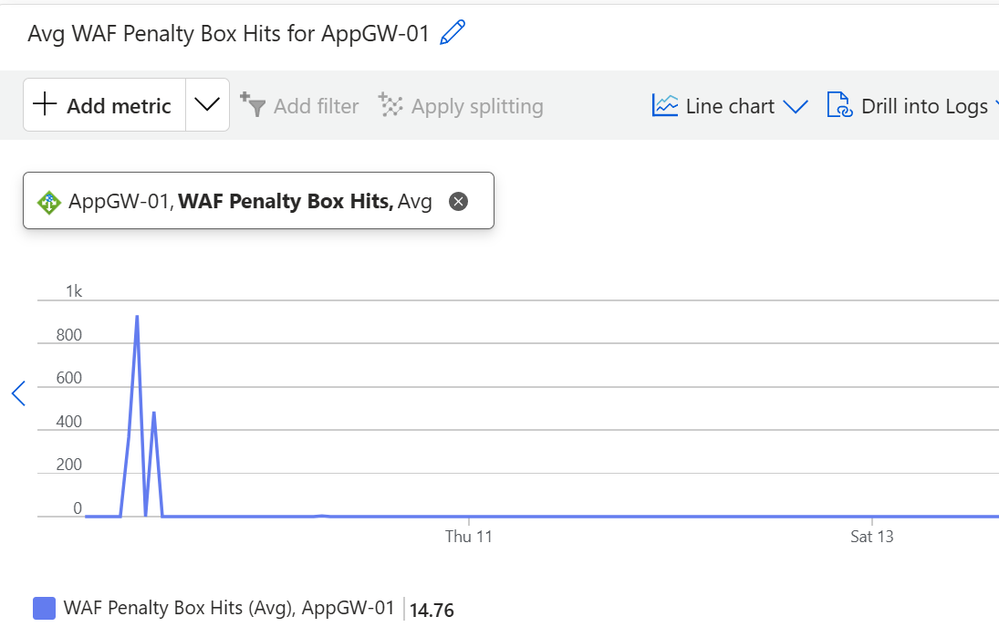

Metric – WAF Penalty Box Hits

This metric represents how many IPs entered the penalty box. Every time a client breaches its threshold, the ruleset logs a hit and places that IP into the penalty box for approximately 15 minutes. Multiple hits often correlate with repeated spikes or sustained abusive traffic patterns.

Logs:

For deeper analysis, enabling diagnostic settings allows you to inspect HTTP DDoS Ruleset events directly in the logs. These logs provide granular details about which IPs were flagged, why they were flagged, and how far they exceeded expected thresholds.

Example of DetailedData from a log: RemoteAddress: 4.x.x.x (Public IP) crossed threshold. Expected: 4400.000000 request per 900 seconds, Actual: 8407.000000 requests per 900 seconds.

KQL queries to retrieve these logs:

Resource specific logs:

AGWFirewallLogs

| where RuleSetType == "Microsoft_HTTPDDoSRuleSet"

Diagnostic logs:

AzureDiagnostics

| where Category == "ApplicationGatewayFirewallLog"

| where ruleSetType_s == "Microsoft_HTTPDDoSRuleSet"

Note: Identify IPs repeatedly flagged and confirm they’re malicious, not legitimate clients.

Conclusion:

The threat landscape continues to evolve, and defenses must evolve with it. Leveraging the HTTP DDoS Ruleset in Azure Application Gateway WAF helps ensure protections keep pace with modern application-layer attacks. With built-in visibility through metrics and logs, teams can better understand traffic behavior and operate their WAF with greater confidence.
