Introduction

Modern data pipelines demand security and compliance. Azure Stream Analytics supports Dedicated Clusters and Managed Private Endpoints, enabling jobs to run in isolated environments and connect privately to Azure resources without exposing them to the public internet.

Key benefits:

• Private connectivity via Azure Private Link.
• Managed Identity for secure, keyless authentication.
• Dedicated clusters for predictable performance and isolation.

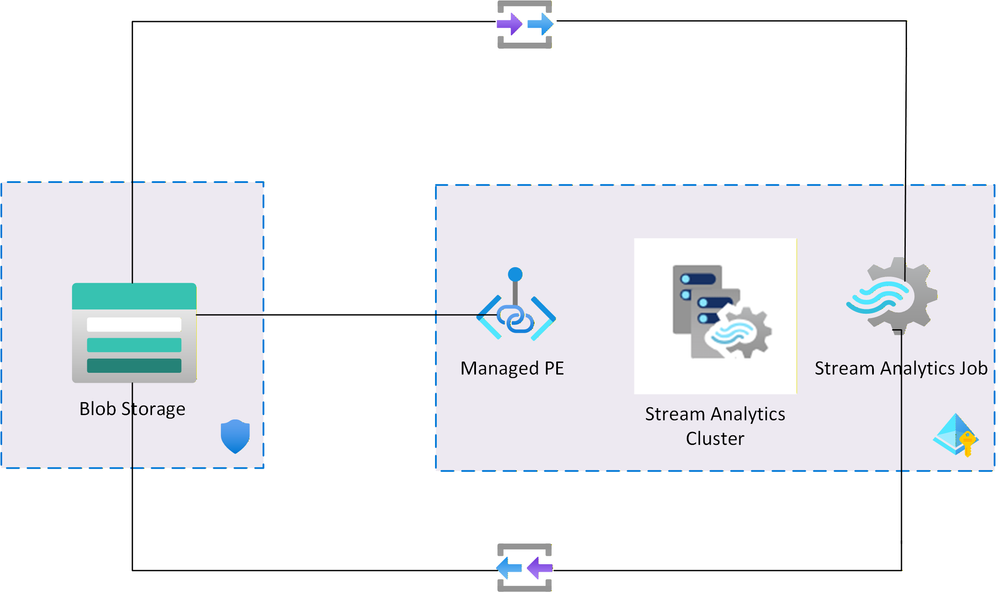

Architecture Overview



Prerequisites

• Azure subscription.
• Blob Storage with Public Network Access disabled and two containers configured for Input and Output.
• User Assigned Managed Identity created.

Implementation Steps

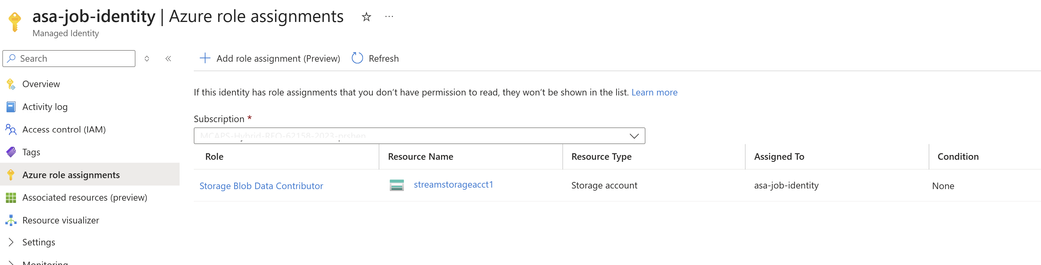

1. Assign Managed Identity

1. Navigate to Storage Account → Access Control (IAM).
2. Add role assignment:
   • Role: Storage Blob Data Contributor
   • Scope: Storage Account
   • Assign to: Your User Assigned Managed Identity.

Note: In this example, the role assignment is applied at the Storage Account level, which grants access to all containers within the account. If needed, you can scope the assignment to an individual container for more granular control.

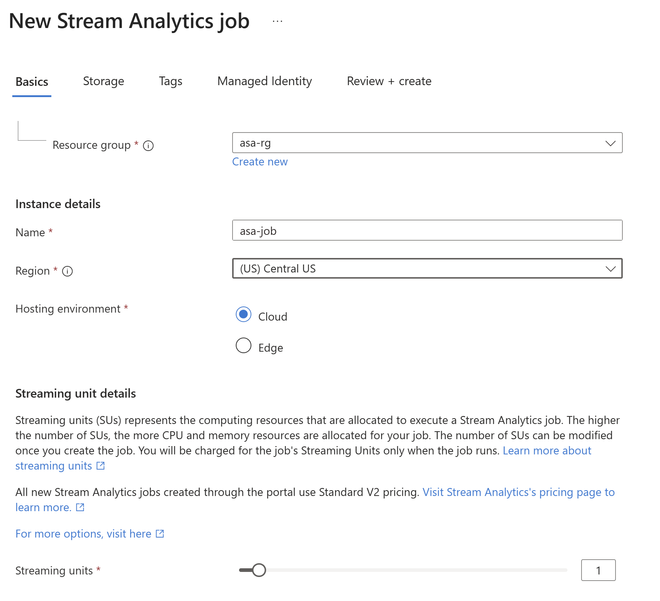

2. Configure Stream Analytics Job

1. In the Azure portal, go to Stream Analytics Jobs and create a new job if one does not already exist:

   • Name: e.g., stream-job
   • Hosting environment: Cloud
   • Streaming units: 1
2.  Managed Identity: Enable Managed Identity and assign the User Assigned Managed Identity to the job.

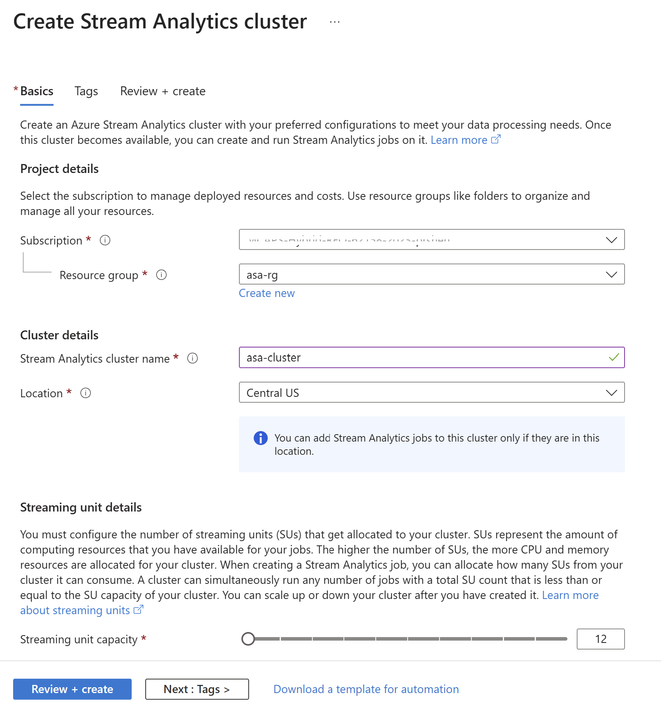

3. Configure Stream Analytics Cluster

The Stream Analytics Cluster resource provides dedicated compute for running multiple jobs securely and at scale.

1. In Azure Portal, go to Stream Analytics Clusters.
2. Select your cluster or create a new one:
   • Name: e.g., stream-cluster
   • Streaming unit details: 12
   • Location: Same as your Blob Storage and Stream Analytics Job

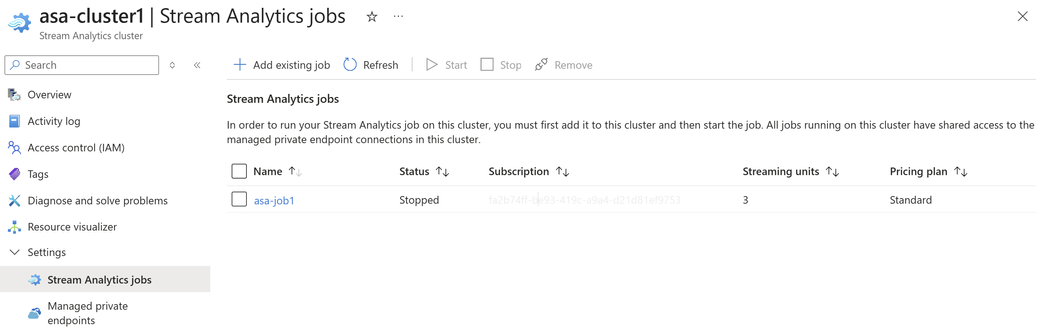

4. Add Stream Analytics Job to Cluster

Once the Stream Analytics Cluster resource is provisioned, from Stream Analytics Cluster → Settings → Stream Analytics Jobs → add the Stream Analytics Job.

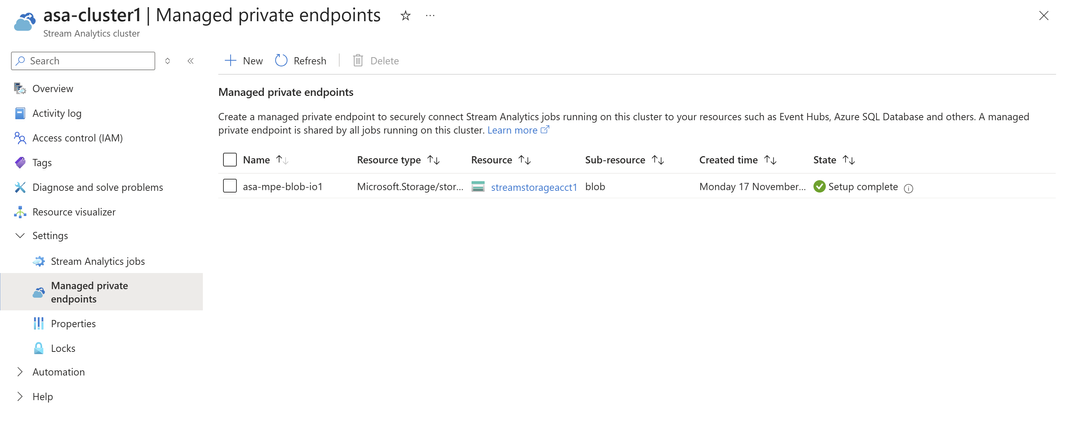

5. Add Managed Private Endpoint

From Stream Analytics Cluster → Settings → Managed Private Endpoints → add a new Managed Private Endpoint.

• • Select Blob Storage as the target resource.
  • Approve the Private Endpoint connection on the target resource.
  • Ensure Managed Private Endpoint setup is completed.

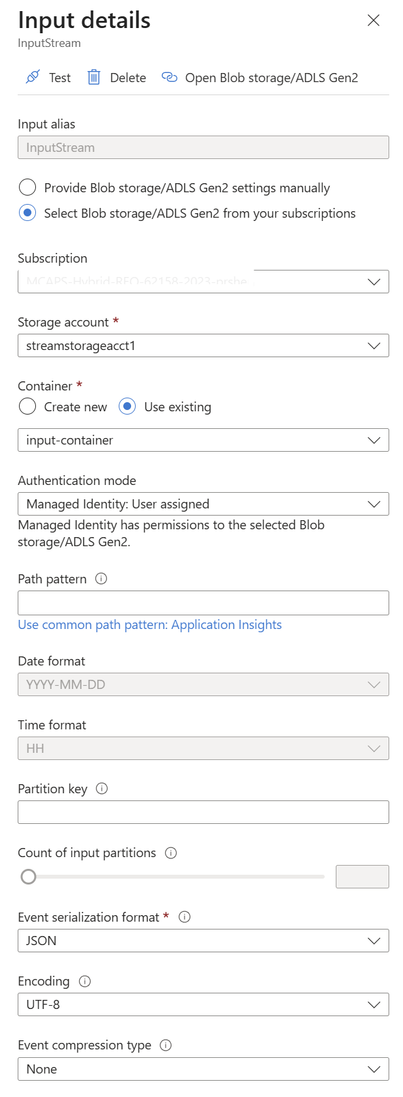

6. Configure Blob Input

• Input alias: InputStream
• Container: input-container
• Event serialization: JSON
• Encoding: UTF-8

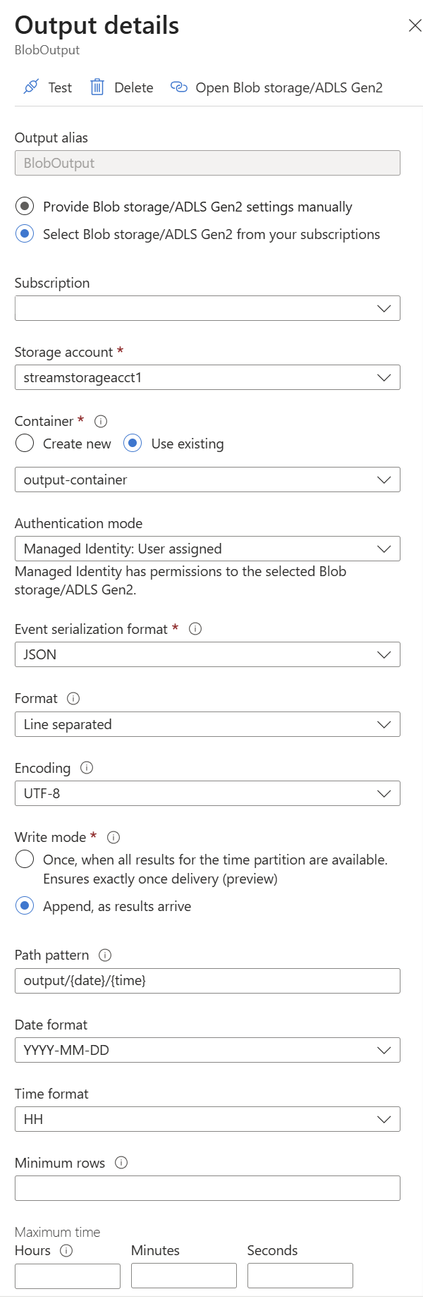

7. Configure Blob Output

• Output alias: BlobOutput
• Container: output-container
• Path pattern: output/{date}/{time}
• Serialization: JSON





8. Prepare Sample Input

• Create sample-input.json:

[
  {
    "DeviceId": "sensor-001",
    "Temperature": 28.5,
    "Humidity": 65,
    "EventEnqueuedUtcTime": "2025-10-30T10:00:00Z"
  },
  {
    "DeviceId": "sensor-002",
    "Temperature": 30.2,
    "Humidity": 60,
    "EventEnqueuedUtcTime": "2025-10-30T10:01:00Z"
  },
  {
    "DeviceId": "sensor-001",
    "Temperature": 29.0,
    "Humidity": 64,
    "EventEnqueuedUtcTime": "2025-10-30T10:02:00Z"
  },
  {
    "DeviceId": "sensor-003",
    "Temperature": 27.8,
    "Humidity": 70,
    "EventEnqueuedUtcTime": "2025-10-30T10:03:00Z"
  }
]







9. Define Query

• Use Test Query in the portal for quick validation.

SELECT
    DeviceId,
    AVG(Temperature) AS AvgTemperature,
    COUNT(*) AS ReadingCount,
    System.Timestamp AS WindowEndTime
INTO
    BlobOutput
FROM
    InputStream TIMESTAMP BY EventEnqueuedUtcTime
GROUP BY
    DeviceId,
    TumblingWindow(minute, 5)



10. Start and Validate

• Start the job.
• Upload the Sample data to Input Blob: input-container/sample-input.json

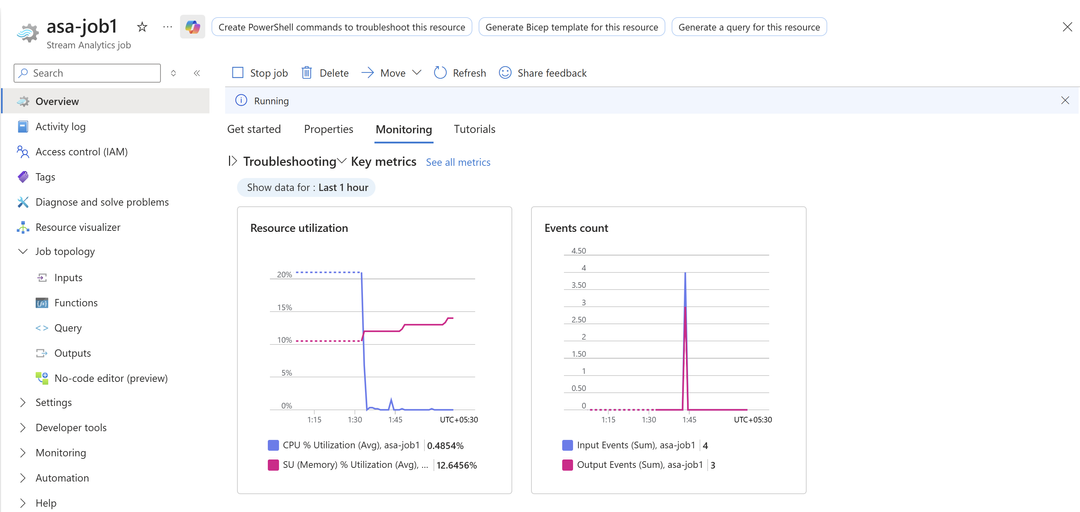

• Monitor the job:
  • Input Events
  • Output Events
• Check output files in output-container.





Troubleshooting

• Input Events = 0 → Verify path pattern and folder structure.
• Role assignment → Ensure required role assignment is configured at Storage Account level/individual Container level.

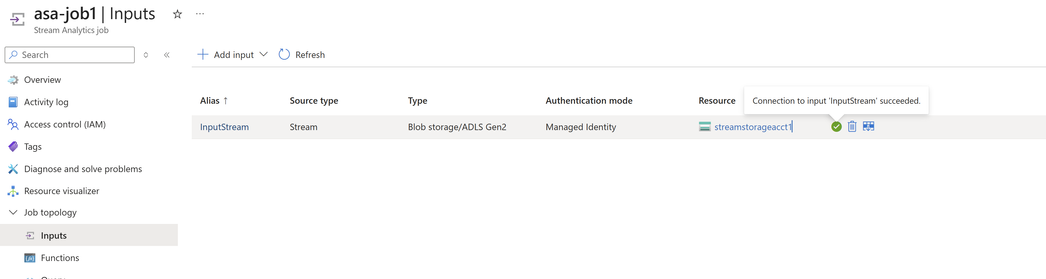

• Private Connectivity issues → Ensure Managed Private Endpoint configuration is complete and verify that the 'Test connection' for both Input and Output succeeds.



Automation with Terraform

Here’s a snippet to automate key steps:



# Create a Resource Group
resource "azurerm_resource_group" "example" {
  name     = "asa-rg"
  location = "Central US"
}

# Create a Stream Analytics Cluster
resource "azurerm_stream_analytics_cluster" "example" {
  name                = "asa-cluster1"
  resource_group_name = azurerm_resource_group.example.name
  location            = azurerm_resource_group.example.location
  streaming_capacity  = 36
}

# Create a User Assigned Managed Identity
resource "azurerm_user_assigned_identity" "example" {
  location            = azurerm_resource_group.example.location
  name                = "asa-job-identity"
  resource_group_name = azurerm_resource_group.example.name
}

# Assign Role to Managed Identity to access Storage Account
resource "azurerm_role_assignment" "example" {
  scope                = azurerm_storage_account.example.id
  role_definition_name = "Storage Blob Data Contributor"
  principal_id         = azurerm_user_assigned_identity.example.principal_id
}

# Create a Stream Analytics Job using User Assigned Managed Identity
resource "azurerm_stream_analytics_job" "example" {
  name                                     = "asa-job1"
  resource_group_name                      = azurerm_resource_group.example.name
  location                                 = azurerm_resource_group.example.location
  compatibility_level                      = "1.2"
  data_locale                              = "en-GB"
  events_late_arrival_max_delay_in_seconds = 60
  events_out_of_order_max_delay_in_seconds = 50
  events_out_of_order_policy               = "Adjust"
  output_error_policy                      = "Drop"
  streaming_units                          = 3
  sku_name                                 = "Standard"
  stream_analytics_cluster_id              = azurerm_stream_analytics_cluster.example.id
  type = "Cloud"
  identity {
    type         = "UserAssigned"
    identity_ids = [azurerm_user_assigned_identity.example.id]
  }
  content_storage_policy = "SystemAccount"
  transformation_query = <<QUERY
SELECT
    DeviceId,
    AVG(Temperature) AS AvgTemperature,
    COUNT(*) AS ReadingCount,
    System.Timestamp AS WindowEndTime
INTO
    BlobOutput
FROM
    InputStream TIMESTAMP BY EventEnqueuedUtcTime
GROUP BY
    DeviceId,
    TumblingWindow(minute, 5)
QUERY

  depends_on = [azurerm_role_assignment.example]
}

# Create a Managed Private Endpoint for Stream Analytics Job to access Storage Account
resource "azurerm_stream_analytics_managed_private_endpoint" "example" {
  resource_group_name           = azurerm_resource_group.example.name
  stream_analytics_cluster_name = azurerm_stream_analytics_cluster.example.name
  name                          = "asa-mpe-storage"
  target_resource_id            = azurerm_storage_account.example.id
  subresource_name              = "blob"
}

# Configure Input Blob and Output Blob for Stream Analytics Job using MSI authentication mode
resource "azurerm_stream_analytics_stream_input_blob" "example" {
  name                      = "InputStream"
  resource_group_name       = azurerm_resource_group.example.name
  stream_analytics_job_name = azurerm_stream_analytics_job.example.name
  storage_account_name      = azurerm_storage_account.example.name
  storage_account_key       = azurerm_storage_account.example.primary_access_key
  storage_container_name    = azurerm_storage_container.input.name
  path_pattern              = ""
  date_format               = "yyyy-MM-dd"
  time_format               = "HH"
  authentication_mode       = "Msi"
  serialization {
    type     = "Json"
    encoding = "UTF8"
  }
}

resource "azurerm_stream_analytics_output_blob" "example" {
  name                      = "BlobOutput"
  resource_group_name       = azurerm_resource_group.example.name
  stream_analytics_job_name = azurerm_stream_analytics_job.example.name
  date_format               = "yyyy-MM-dd"
  time_format               = "HH"

  storage_account_name   = azurerm_storage_account.example.name
  storage_account_key    = azurerm_storage_account.example.primary_access_key
  storage_container_name = azurerm_storage_container.output.name
  path_pattern           = "output/{date}/{time}"
  authentication_mode    = "Msi"
  serialization {
    type     = "Json"
    encoding = "UTF8"
    format   = "LineSeparated"
  }
}

# Create a Stream Analytics Job Schedule
resource "azurerm_stream_analytics_job_schedule" "example" {
  stream_analytics_job_id = azurerm_stream_analytics_job.example.id
  start_mode              = "JobStartTime"

  depends_on = [azurerm_stream_analytics_stream_input_blob.example, azurerm_stream_analytics_output_blob.example]
}



Disclaimer

The information provided in this article is for educational and informational purposes only. While the steps and configurations described are based on best practices for Azure Stream Analytics, they should be validated in your own environment before implementation. Microsoft services and features may change over time; always refer to the official https://learn.microsoft.com/azure/ for the latest guidance. The author assumes no responsibility for any issues arising from the use of this content in production environments.

References

• https://learn.microsoft.com/en-gb/azure/stream-analytics/
• https://registry.terraform.io/providers/hashicorp/azurerm/latest/docs/resources/stream_analytics_cluster
