Working With Azure AD B2C Custom Policies

GeorgeGrammatikos's avatar
GeorgeGrammatikos
Iron Contributor
Oct 02, 2021

In this post, we will learn one of the two sign-in options provided by an Azure AD B2C tenant, and this is the custom policies (the other one is the user flows). With Custom Policies, we can build customized authentication flows based on our needs.



Getting Started

Before getting started make sure we have :

  • An Azure AD B2C tenant
  • A registered web application
  • The necessary policy keys and register the Identity Experience Framework Apps
  • Download the Azure AD B2C policy starter pack from GitHub, make the configurations and upload it to the tenant.



Add signing/encryption keys

Sign in to the Azure Portal, search for the Azure AD B2C tenant, and click Open B2C Tenant.

From the overview page, under the Policies section, select Identity Experience Framework.

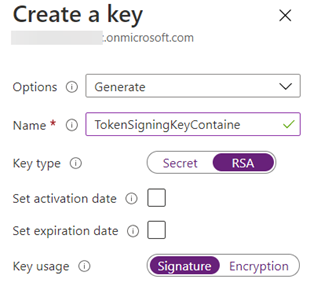

Create the signing key



Select Manage - Policy Keys





select Add





  • From the Options section, select from the drop-down menu Generate.
  • In the filed Name, type TokenSigningKeyContainer.
  • In the Key type, choose RSA.
  • In the Key usage, select Signature.





Select Create.

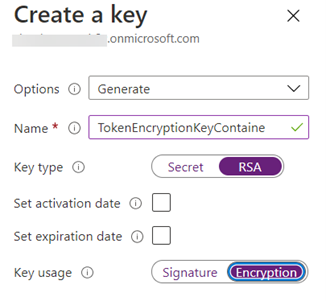

Create the encryption key

  • Select Policy Keys and then select Add.
  • From the Options section, select from the drop-down menu Generate.
  • In the filed Name, type TokenEncryptionKeyContainer.
  • In the Key type, choose RSA.
  • In the Key usage, select Encryption.







Select Create.





Register the IdentityExperienceFramework application

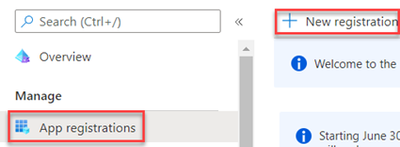

At the next step, we have to register the IdentityExperienceFramework application. From the left-hand side, blade select Manage - App registrations and then select + New registration.





In the field name, type IdentityExperienceFramework.

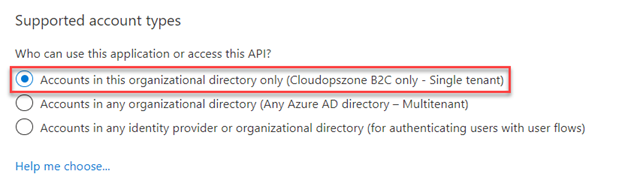

Under Supported account types, select Accounts in this organizational directory only (tenant name B2C only - Single tenant).

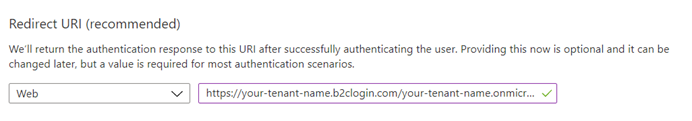

Under the Redirect URI section, select Web, and then type https://tenant-name.b2clogin.com/tenant-name.onmicrosoft.com.





Under the Permissions section, select the Grant admin consent to openid and offline_access permissions check box.

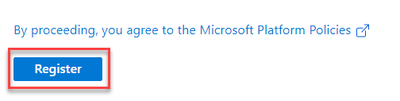

And click Register.



Expose the API by adding a scope

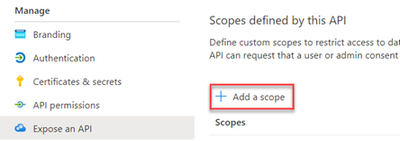

In the left-hand  side blade, under the Manage section, select Expose an API,





and then select  + Add a scope,





finally, select Save and continue





Now, we have to type the values as shown in the image below to create a scope that allows custom policy execution in the Azure AD B2C tenant:



  • Scope name: user_impersonation
  • Admin consent display name: Access IdentityExperienceFramework
  • Admin consent description: Allow the application to access IdentityExperienceFramework on behalf of the signed-in user.





Click Add scope



Register the ProxyIdentityExperienceFramework application

Go to Manage - App registrations, and then click + New registration.





In the Name field, type ProxyIdentityExperienceFramework.

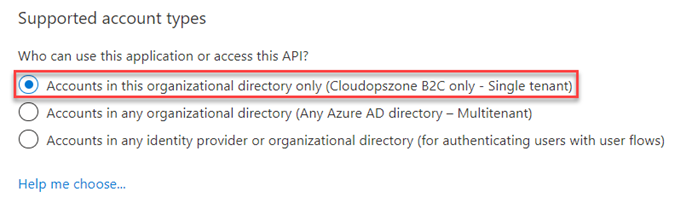

Under Supported account types, select Accounts in this organizational directory only, radio button.

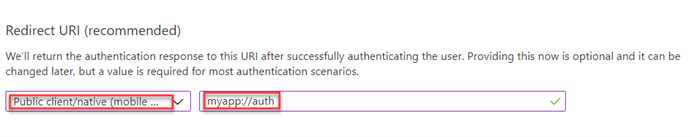

Under the Redirect URI section, use the drop-down to select Public client/native (mobile & desktop), and for Redirect URI, type myapp://auth.





Under the Permissions section, select the Grant admin consent to openid and offline_access permissions check box.





And click the Register button.



Specify that the application should be treated as a public client

In the left-hand side menu, select Manage - Authentication

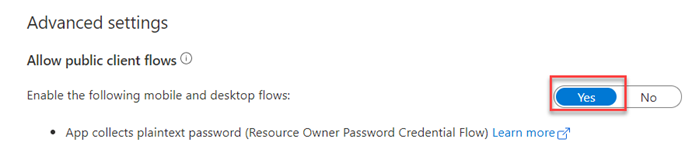

Under the Advanced settings section, in the Allow public client flows, set the Enable the following mobile and desktop flows to Yes.



Info: Make user that "allowPublicClient": true is set in the application manifest.





And select Save





Now, grant permissions to the API scope we exposed earlier in the IdentityExperienceFramework registration: In the left menu, select Manage - API permissions.





Under Configured permissions, select Add a permission.

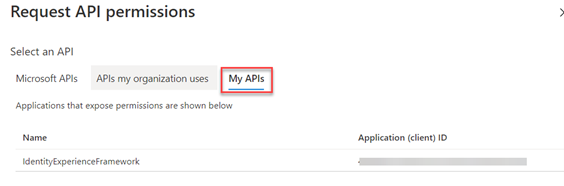

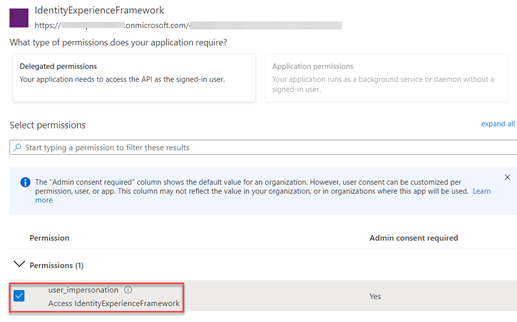

Under the Request API permissions section, click on the My APIs tab, and select the IdentityExperienceFramework application.





Under the Select Permissions section, select the user_impersonation scope.





And select the Add permissions button



Now, select Grant admin consent for (tenant name).





Working with the custom policy starter pack



After unzipping the custom policy starter pack, zip file, we will see the folders as the image below.





Folder Name Description
LocalAccounts  Includes custom policies XML files for local accounts
SocialAccounts Includes custom policies XML files for social accounts
SocialAndLocalAccounts Includes custom policies XML files for both local and social accounts
SocialAndLocalAccountsWithMfa Includes custom policies XML files for both local and social accounts with multi-factor authentication (Mfa)



Configure the Custom Policies

Before we upload the custom policy XML files we must make some changes to the TrustFrameworkExtensions.xml.



ProxyIdentityExperienceFramework <Item Key="client_id">
 IdentityExperienceFrameworkAppId
IdentityExperienceFramework <Item Key="IdTokenAudience"> IdentityExperienceFramework



Find, open the LocalAccounts/TrustFrameworkExtensions.xml, search for the <TechnicalProfile Id="login-NonInteractive"> element and replace the values as the examples below, and save the files.



<DisplayName>Local Account SignIn</DisplayName>

<TechnicalProfiles> <TechnicalProfile Id="login-NonInteractive">

<Metadata>

<Item Key="client_id">ProxyIdentityExperienceFrameworkAppId</Item>

<Item Key="IdTokenAudience">IdentityExperienceFrameworkAppId</Item>

</Metadata>

<InputClaims>

<InputClaim ClaimTypeReferenceId="client_id" DefaultValue="ProxyIdentityExperienceFrameworkAppId" />

<InputClaim ClaimTypeReferenceId="resource_id" PartnerClaimType="resource" DefaultValue="IdentityExperienceFrameworkAppId" />

</InputClaims>



     <DisplayName>Local Account SignIn</DisplayName>
      <TechnicalProfiles>
         <TechnicalProfile Id="login-NonInteractive">
          <Metadata>
            <Item Key="client_id">########-####-####-####-############</Item>
            <Item Key="IdTokenAudience">########-####-####-####-############</Item>
          </Metadata>
          <InputClaims>
            <InputClaim ClaimTypeReferenceId="client_id" DefaultValue="########-####-####-####-############" />
            <InputClaim ClaimTypeReferenceId="resource_id" PartnerClaimType="resource" DefaultValue="########-####-####-####-############" />
          </InputClaims>

Upload the Policies

The last step is to upload the custom policies to the Azure B2C tenant. Under the Policies section, select the Identity Experience Framework menu item in the B2C tenant in the Azure portal.

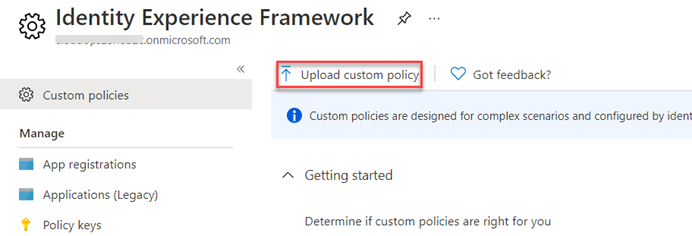

Select Upload custom policy





Upload the policy files, in the following order:



  1. TrustFrameworkBase.xml
  2. TrustFrameworkExtensions.xml
  3. SignUpOrSignin.xml
  4. ProfileEdit.xml
  5. PasswordReset.xml

Every policy file we upload will add the B2C_1A_ prefix.
