Introduction

Azure AI Landing Zones provide a solid foundation for deploying advanced AI technologies like OpenAI's GPT-4 models. These environments are designed to support AI enthusiasts, but it's essential to grasp their networking aspects, especially concerning Platform as a Service (PaaS) offerings.



In this article, we'll dive into the networking details of OpenAI Landing Zones, focusing on how PaaS services handle networking configurations, manage inbound and outbound connectivity, and handle DNS resolution. The knowledge you gain here is applicable not only to OpenAI but also to other PaaS and AI Services within Azure.

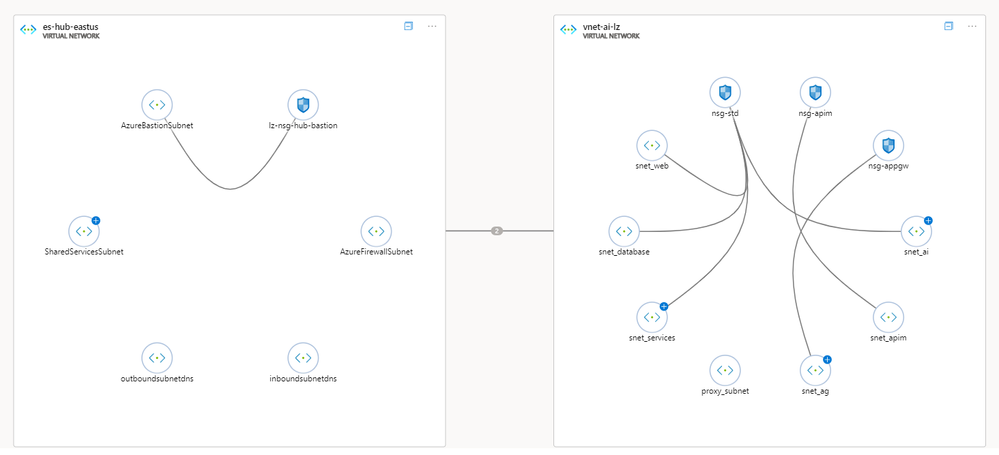

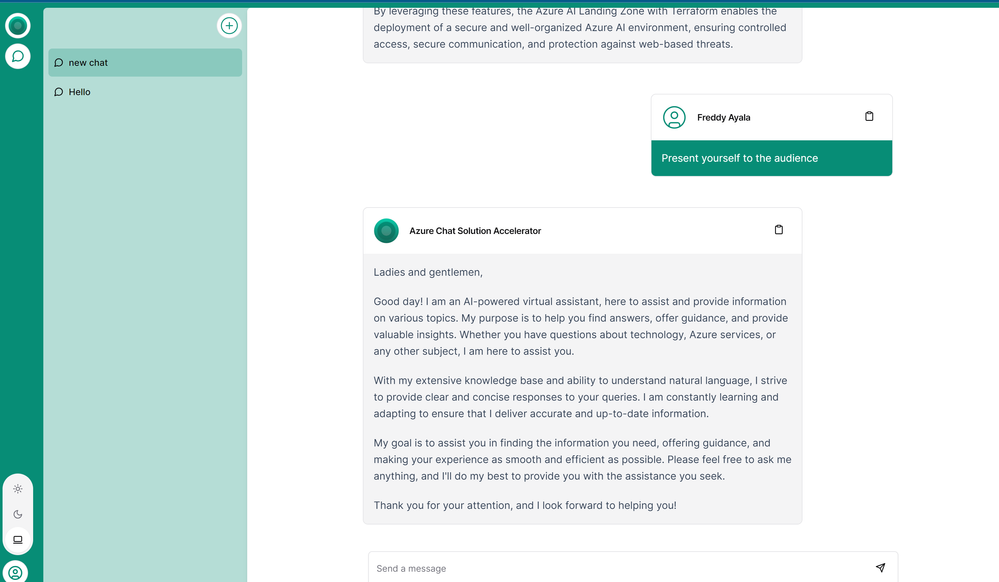

But there's more! We'll walk you through a practical scenario involving the creation of an Open AI Chat Web Application. This application allows for seamless interaction between users and AI. To make it even better, we've provided a link to a GitHub repository where you can deploy this application yourself. It's a hands-on opportunity to put what you've learned into practice, transforming concepts into real AI-powered applications.





Whether you're new to AI networking or looking to expand your knowledge, join us on this informative journey through Azure AI Landing Zones, PaaS networking, and the world of practical AI deployment.



PaaS Services Networking in Azure



PaaS services in Azure are a powerful way to host your applications without the overhead of managing infrastructure. However, understanding how PaaS services handle networking is essential for building secure and efficient solutions. Let's delve deeper into the networking aspects of PaaS services.



PaaS services in Azure do not have a private IP address assigned by default. They can only have a private IP address if they are configured with a private endpoint. Private endpoints allow the PaaS service to communicate securely within the Azure Virtual Network (VNet) using a private IP address. This private IP enables communication between the PaaS service and other resources within the same VNet, such as virtual machines or other PaaS services.



Without a private endpoint, the PaaS service can only be accessed via its public IP address or through other networking configurations like VNet integration or firewall rules. Public IP addresses enable external clients and users to access the PaaS service over the internet. VNet integration allows the PaaS service to securely access resources within a VNet, such as databases or virtual machines, over a private connection.



To summarize, PaaS services in Azure can have both public IP addresses and private IP addresses, but the private IP address is only available if the service is configured with a private endpoint. The private IP address enables communication within the VNet, while the public IP address allows external access over the internet.



Inbound and Outbound Connectivity



Inbound and outbound connectivity are essential aspects of PaaS services' networking. Let's break down how these aspects work in the context of Azure.



Inbound Connectivity:



Inbound connectivity refers to the ability of external clients or users to access a PaaS service. This can be achieved through various means, including public IP addresses or private endpoints.

• If a PaaS service has a public IP address, it can be accessed directly over the internet by external clients.
• If a PaaS service is configured with a private endpoint, inbound connectivity is achieved by mapping the service to a private IP address within a VNet. This allows clients within the same VNet to securely access the PaaS service without going through the public internet.



Outbound Connectivity:



Outbound connectivity refers to the ability of the PaaS service to initiate outbound connections to external resources, such as databases or APIs.

• By default, PaaS services have outbound connectivity enabled, allowing them to communicate with external resources over the internet.
• If a PaaS service is configured with a private endpoint, it does not necessarily mean that the service will have a private outbound IP address.
• The private endpoint primarily focuses on inbound connectivity and provides a private IP address for secure communication within the VNet. Outbound connectivity still uses the public IP address of the PaaS service to communicate with external resources.

In summary, a private endpoint for a PaaS service enhances inbound connectivity by providing a private IP address within a VNet. However, it does not automatically provide a private outbound IP address. Outbound connectivity still relies on the public IP address of the PaaS service.



Understanding Azure Network Traffic



In Azure, the flow of network traffic between Platform as a Service (PaaS) services can take different paths, depending on your network configuration and architecture. It's crucial to comprehend when traffic stays within the Azure network backbone and when it traverses to the public internet. Here's a breakdown:



Traffic Staying Within Azure's Network Backbone



1. Within the Same Azure Region: When PaaS services are located within the same Azure region, and no specific network configurations divert traffic outside of that region, the traffic usually remains within the Azure network backbone. Azure's extensive and well-connected network backbone ensures optimal performance and security.

2. Virtual Network (VNet) Integration: Integration of PaaS services with an Azure Virtual Network (VNet) enables communication entirely within Azure's network backbone. VNets create isolated network spaces within Azure, allowing PaaS services connected to the same VNet to communicate using private IP addresses without crossing the public internet.

3. Private Endpoints: Azure offers Private Endpoints for many PaaS services. When you configure PaaS services to use Private Endpoints, traffic between these services and other resources, like virtual machines or databases, can stay within the Azure network backbone. Private Endpoints provide private IP addresses within your VNet for secure and private communication.

4. Regional Peering: Azure features regional network peering, facilitating efficient and secure communication between resources in different Azure regions within the same geographical area. When PaaS services in different regions need to communicate, Azure's regional peering ensures traffic takes an optimized path within the Azure backbone, minimizing latency and ensuring security.

5. Use of Azure Front Door or Azure Application Gateway: Azure Front Door and Azure Application Gateway act as reverse proxies and load balancers for web applications. When traffic flows through these services, they can efficiently route it to PaaS services while ensuring that the traffic remains within Azure's network backbone. They also provide security features like Web Application Firewall (WAF) protection.

Internet-Bound Traffic



6. Internet-Bound Traffic: Sometimes, PaaS services need to communicate with resources external to Azure, such as external APIs, services, or the public internet. In such cases, the traffic exits the Azure network backbone and travels over the public internet to reach its destination.

7. Network Security Group (NSG) and Firewall Rules: Network Security Groups and Azure Firewall allow you to define access controls and firewall rules for traffic entering and exiting your Azure resources. The configurations within these security features determine whether traffic stays within Azure or is allowed to exit to external destinations.

Does My Traffic Go to the Public Internet?



It's essential to understand that even if a resource in Azure has a public IP address for outbound traffic, it doesn't necessarily mean that the traffic will exit the Azure network backbone. Azure's network architecture is designed for intelligent traffic routing. Here's how it works:



• Azure's Internet Egress Points: Azure strategically places internet egress points within its data centers. These egress points are where outbound traffic from Azure resources, such as virtual machines and PaaS services, is routed when it needs to access the public internet.

• Traffic Optimization: Azure's network routing is optimized to keep traffic within the Azure backbone for as long as possible. When a resource in Azure initiates an outbound connection to a destination on the public internet, Azure's network routing directs the traffic to the nearest internet egress point.

• Egress Points vs. Data Centers: It's crucial to note that these internet egress points are separate from Azure data centers. While data centers host Azure resources, egress points are specialized network infrastructure designed for efficiently routing traffic to the internet.

• Public IPs and Network Address Translation (NAT): Azure often uses Network Address Translation (NAT) to manage outbound traffic. Even if a resource has a public IP address assigned, the traffic from that resource may be translated to a different, shared IP address at the egress point before it reaches the public internet. This helps improve security and resource utilization.



In summary, Azure's network architecture is designed to intelligently route traffic based on destination and optimize performance. Even if a resource in Azure has a public IP address for outbound traffic, Azure strives to keep the traffic within its network backbone for as long as possible, ensuring efficient and secure communication. However, when traffic needs to reach external destinations on the public internet, it will exit Azure's network through designated egress points. This design balances performance, security, and efficiency in handling outbound traffic from Azure resources.



OpenAI Landing Zones and Chatbot Scenarios



Now that we have a better understanding of PaaS services' networking, let's apply this knowledge to OpenAI Landing Zones, specifically in the context of deploying a chatbot web application.

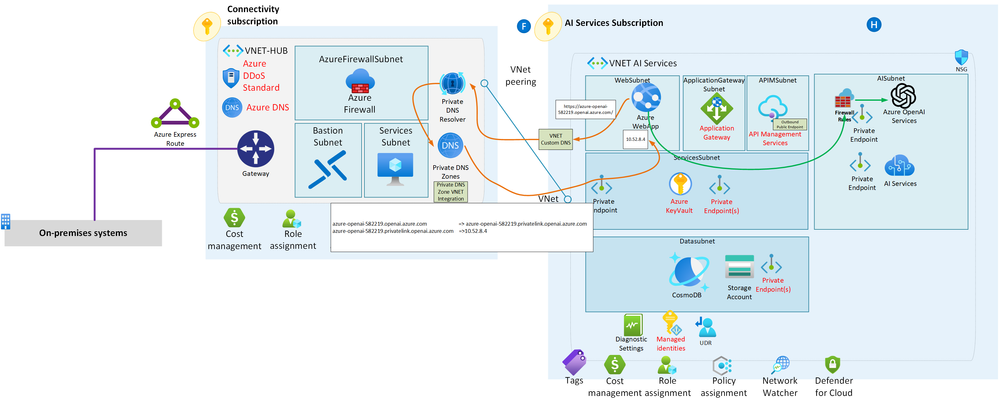

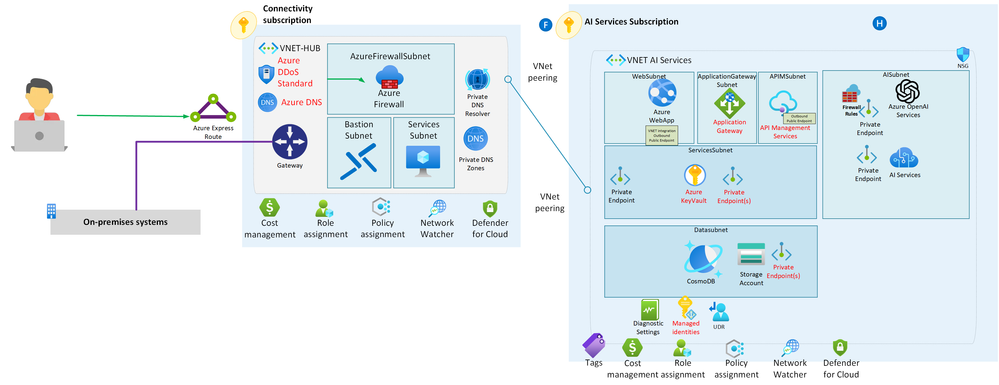

Scenario 1: Secure Communication to Azure App Service via Private Link





In this scenario, we're building a secure and structured Azure environment designed to ensure the utmost protection for your resources.



Let's break down the key components of this setup:



1. Azure Landing Zone: This serves as the foundation of our Azure environment. Think of it as a meticulously organized framework that ensures every aspect of your cloud deployment follows best practices in terms of security, compliance, and efficiency. It's like having a well-structured blueprint for your cloud infrastructure.

2. Jumpbox or Bastion Host: To access and manage our resources securely, we employ a jumpbox or bastion host. These are like gatekeepers, allowing authorized users to enter the Azure environment while keeping unauthorized access at bay. It's akin to having a secure entrance to a restricted area.

3. Azure App Service: Within our environment, we have an Azure App Service. This is where we host a web application that requires a secure connection to Azure OpenAI. Imagine it as the platform where your web application resides, like a dedicated workspace for your digital application.

4. Private Link: To ensure that our communication remains private and secure, we utilize Private Link. This feature allows us to establish a direct and private connection between our Azure App Service and Azure OpenAI. Think of it as having a secret tunnel that only authorized entities can use, keeping your data and interactions confidential.

5. Firewall Rules: In Azure OpenAI, we configure specific firewall rules that permit communication exclusively from the dynamic IP address of our Azure App Service. This meticulous configuration ensures that only the designated service can access Azure OpenAI, enhancing security by allowing only trusted communication.

This entire architectural setup is dedicated to maximizing security, maintaining isolation, and controlling communication in a well-organized manner. It's like building a fortified castle with guarded entrances, secret passages, and strict rules to safeguard your valuable digital assets.



Certainly, let's explain how this scenario represents a standard approach to securing Azure OpenAI by using networking as a perimeter. Additionally, we'll introduce the concept of creating an identity perimeter through zero trust and managed identities for an even more comprehensive security strategy.

Standard Networking Perimeter for Azure OpenAI Security:

In the described scenario, we've established a robust security perimeter around our Azure OpenAI environment using standard networking practices. Here's how it works:

• Private Link: We've employed Private Link to establish a dedicated and private connection between our Azure App Service and Azure OpenAI. This serves as a crucial networking perimeter that ensures all communication remains within the protected Azure environment. It's similar to having a secure fortress wall around your critical resources, allowing only authorized access.

• Firewall Rules: To further enhance security, we've configured precise firewall rules within Azure OpenAI. These rules specify that only communication originating from the dynamic IP address of our Azure App Service is allowed. This means that even within the private network perimeter, only a specific, trusted entity can interact with Azure OpenAI. It's akin to having a heavily guarded gate within the fortress, allowing entry only to those with the right credentials.

Identity Perimeter: Leveraging Zero Trust and Managed Identities:

While the networking perimeter is a foundational security layer, modern security strategies go beyond it to create an identity perimeter. Here's how we can extend our security approach:



• Zero Trust: Zero Trust is a security framework that operates under the principle of "never trust, always verify." In this context, it means that we don't rely solely on network perimeters but instead verify the identity of users and devices attempting to access resources. Think of it as a system of multiple checkpoints and identity verification steps throughout your environment, ensuring that only authenticated and authorized entities can proceed.

• Managed Identities: Azure provides Managed Identities, which are a secure way to handle identities and access to Azure resources. With Managed Identities, we can ensure that only authorized applications or services can interact with Azure OpenAI. These identities are centrally managed and rotated automatically for enhanced security. It's like having digital badges for your applications, allowing them to access specific resources securely.

By combining the networking perimeter with the principles of Zero Trust and Managed Identities, we create a comprehensive security strategy. It's like fortifying our castle not only with strong walls but also with rigorous identity checks at every entry point, making our Azure OpenAI environment exceptionally secure and well-protected.

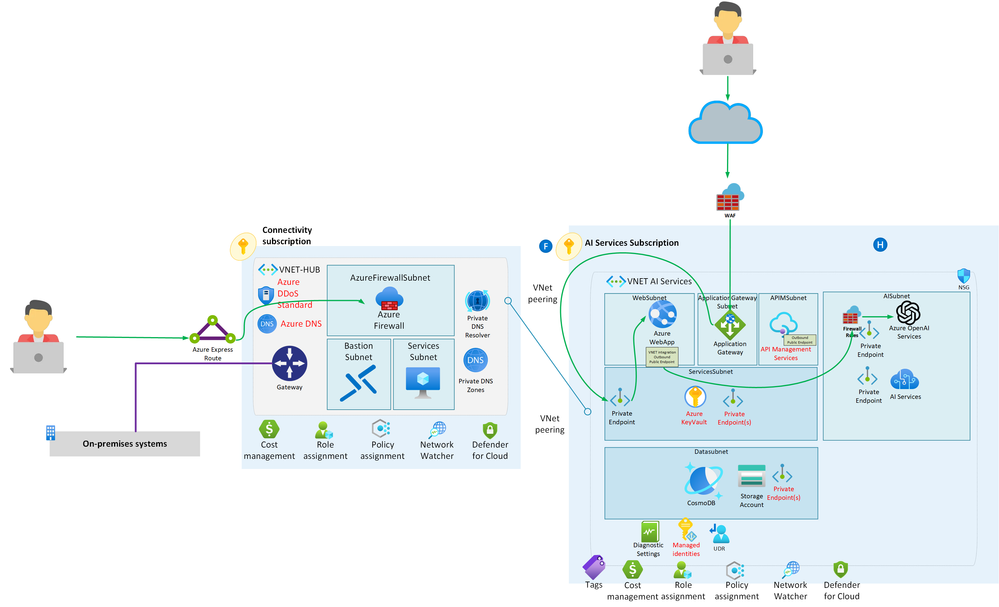

Scenario 2: Securely Exposing the Application with Application Gateway and WAF

Building upon the first scenario, this advanced configuration aims to securely expose the web application to external users while maintaining robust security measures. This scenario includes the following components:



1. Standard Azure Landing Zone: The foundation of this architecture remains consistent with the Azure Landing Zone, ensuring a well-structured and secure environment.

2. Internal Network Access: Access to the internal network is achieved through a jumpbox or bastion host, providing controlled and monitored access to critical resources.

3. Azure App Service with Private Link: The web application continues to be hosted within the Azure App Service, utilizing a private link for connections. This private link ensures that the web application can securely communicate with Azure OpenAI via a private endpoint, maintaining isolation from the public internet.

4. Azure OpenAI Integration: Azure OpenAI remains a crucial part of this scenario, facilitating AI capabilities for the web application. It is integrated through a private endpoint, ensuring data privacy and security.

5. Azure Application Gateway (App GW): An Azure Application Gateway is introduced as a key component. It acts as a reverse proxy and load balancer for the web application. App GW enhances security and traffic management.

6. Web Application Firewall (WAF): The Azure Application Gateway is equipped with a Web Application Firewall (WAF), which serves as a critical security layer. The WAF provides protection against common web vulnerabilities and attacks, safeguarding the web application from potential threats.

7. Firewall Rules in Azure OpenAI: Firewall rules in Azure OpenAI are meticulously configured to maintain secure communication. These rules ensure that only authorized traffic, including that originating from the Azure App Service's dynamic IP address, can access the OpenAI services.

This architecture brings an extra layer of protection and load balancing capabilities through the Azure Application Gateway and Web Application Firewall. The App GW efficiently distributes incoming traffic to the web application while safeguarding it against malicious activities. Meanwhile, the private link and endpoint architecture maintain the privacy and security of data exchanged between the web application and Azure OpenAI.



While Scenario 1 prioritizes the network as a perimeter for security, this advanced scenario combines network security with enhanced application-level security through the Azure Application Gateway and Web Application Firewall. This comprehensive approach ensures that the web application remains highly available, performs optimally, and is well-protected against potential threats, providing a robust and secure environment for AI-powered applications.
