The Cross-Region ECommerce Reference Application is a synthetic workload that mirrors a simple, bare-bones, e-commerce platform. Its purpose is to demonstrate how to further leverage Azure Resiliency best practices to achieve cross-regional resiliency and ensure availability during regional outages.
Authors:
- Radu Dilirici (radudilirici@microsoft.com)
- Ioan Dragan (ioan.dragan@microsoft.com)
- Ciprian Amzuloiu (camzuloiu@microsoft.com)
Introduction
The initial Resilient Ecommerce Reference Application demonstrated the best practices to achieve regional resiliency using Azure’s availability zones. Expanding on this foundation, in the current article we aim to achieve cross-region resiliency, ensuring high availability and disaster recovery capabilities across multiple geographic regions. This article outlines the enhancements made to extend the application into a cross-region resilient architecture.
The app is publicly available on GitHub and can be used for educational purposes or as a starting point for developing cross-region resilient applications.
Overview of Cross-Region Enhancements
The main architectural change needed to extend the application to a cross-region approach was to replicate the existing zonal resilient setup across multiple Azure regions and enable failover mechanisms for seamless operation during regional outages.

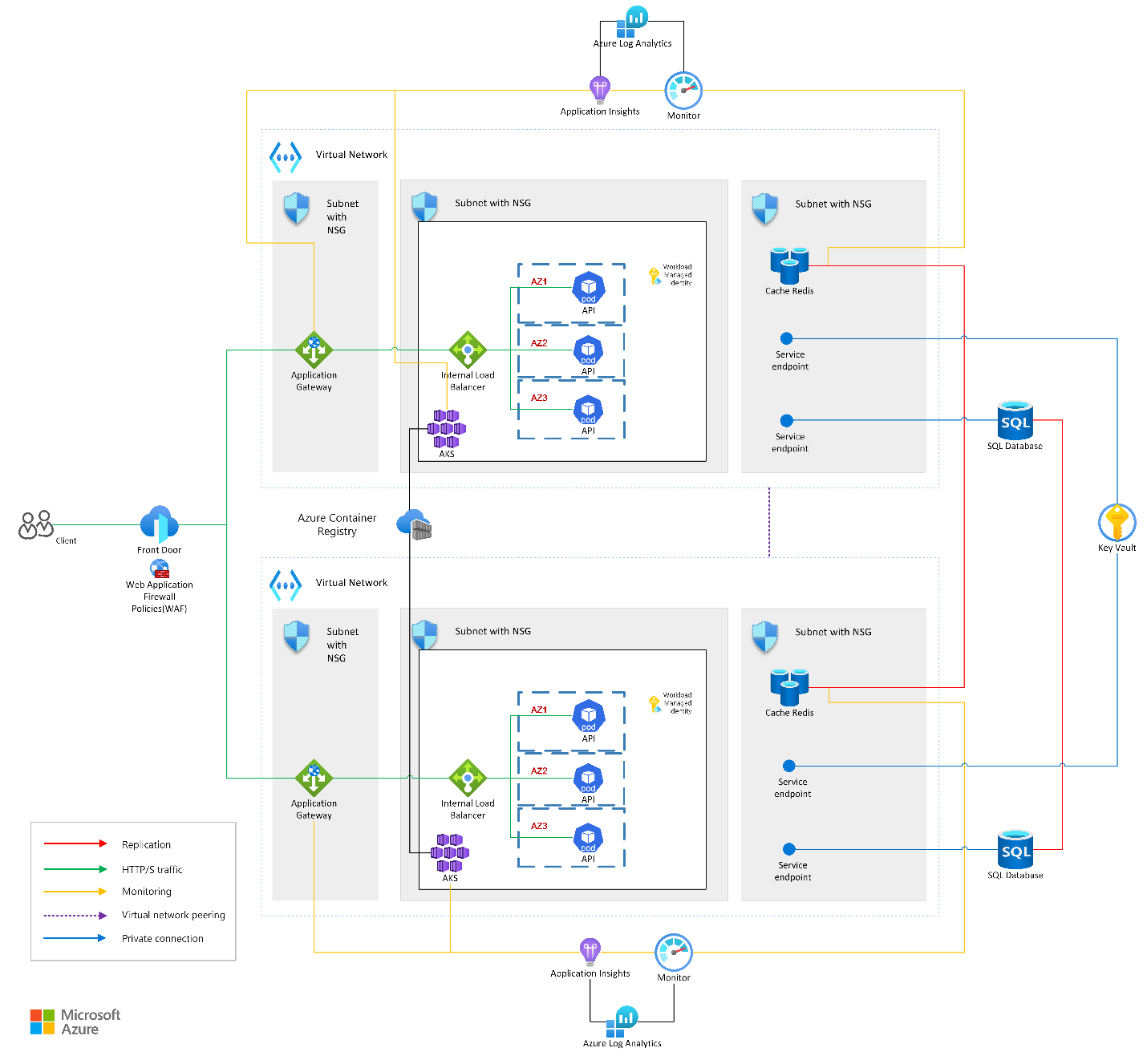

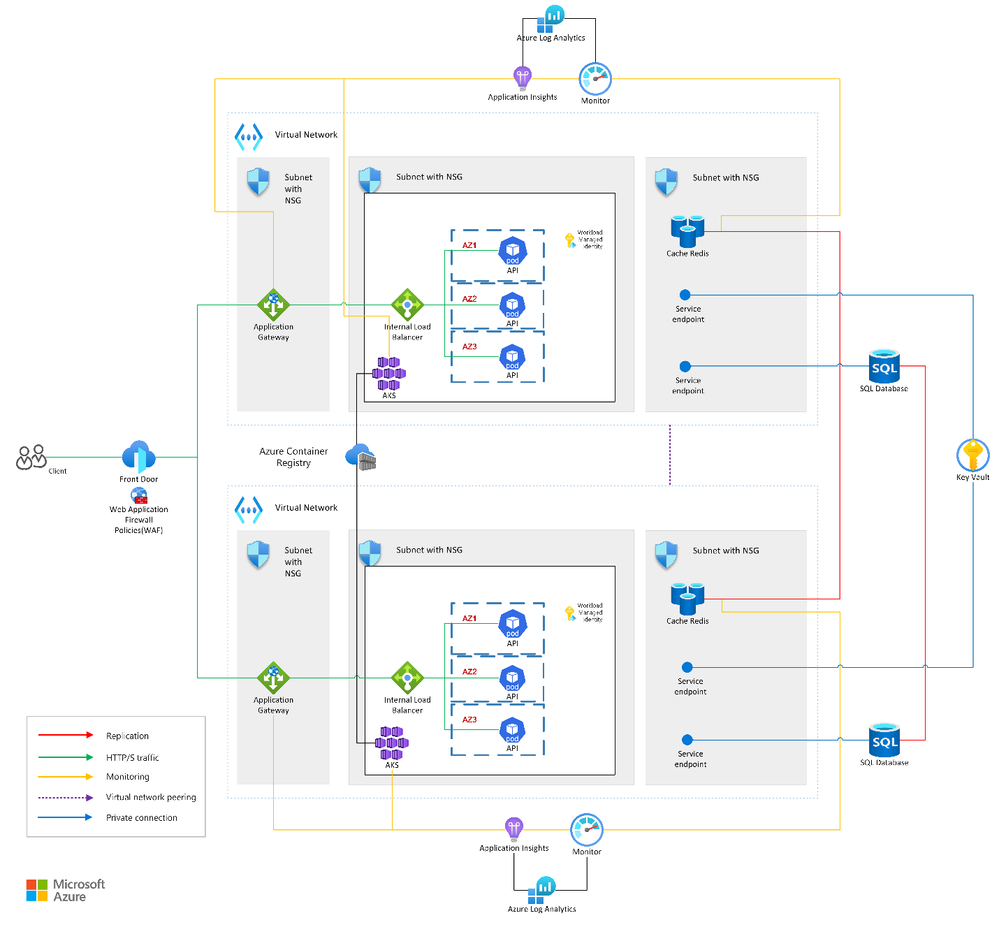

Below is a visual representation of the new architecture:
Component Details
Networking Architecture
The networking architecture has been extended to support cross-region traffic management.
Azure Front Door serves as the global entry point, routing traffic to the primary region. In case of a disaster, the traffic is redirected to the secondary region.
Global Virtual Network Peering is used to link together the virtual networks of the two regions. This enables the Redis Caches and SQL Databases to communicate with each other, keeping them in sync and allowing them to perform the switchover procedure. This change allowed us to remove the previous DNS zone groups.
Service Endpoints provide secure and direct connectivity with the Azure Virtual Network for the SQL Databases and Key Vault. They allow access to these services without exposing them to the public internet, reducing the attack surface and enhancing security.
Storage Architecture
Azure SQL Database, Azure Cache for Redis and Azure Container Registry now employ geo-replication to ensure data availability across regions. Azure Key Vault is cross-region resilient by default as it automatically replicates the data to the Azure paired region.
Read more about geo-replication for Azure SQL and Azure Cache for Redis.
Compute Architecture
The Azure Kubernetes Service (AKS) clusters are deployed across multiple regions , with each cluster running in a minimum of three Availability Zones. The autoscaling and load distribution mechanisms from the original setup are retained, ensuring optimal performance and high availability. Read more about multi-region AKS clusters.
The application supports both Active-Active and Active-Passive states, determined by the AKS configuration. In an Active-Active state, the secondary AKS is always running, providing a faster switchover at the cost of higher expenses. Conversely, in an Active-Passive state, the secondary AKS is deployed but not started, reducing costs but resulting in a slower switchover. Additionally, the secondary AKS can be configured with fewer resources for further cost savings.
Failover
The failover procedure consists of migrating the compute, storage and networking services to the secondary region. Firstly, the AKS cluster is started in the secondary region. In an Active-Active configuration, this step is skipped as the cluster is already running. Then, the SQL Database and Redis Cache are synced with their replicas and the secondary instances are elevated to the primary role. The traffic is reconfigured through the Front Door profile to hit the services in the new region.
Controlled failover is crucial for keeping systems running smoothly during a disaster. When things go wrong, an on-call engineer can start the failover process to quickly move operations to a backup system, minimizing any potential issues. Follow this guide to start experimenting with failover over the reference application.
