Architecting an Azure AI Hub-and-Spoke Landing Zone for Multi-Tenant Enterprises

VimalVerma

Microsoft

Feb 03, 2026

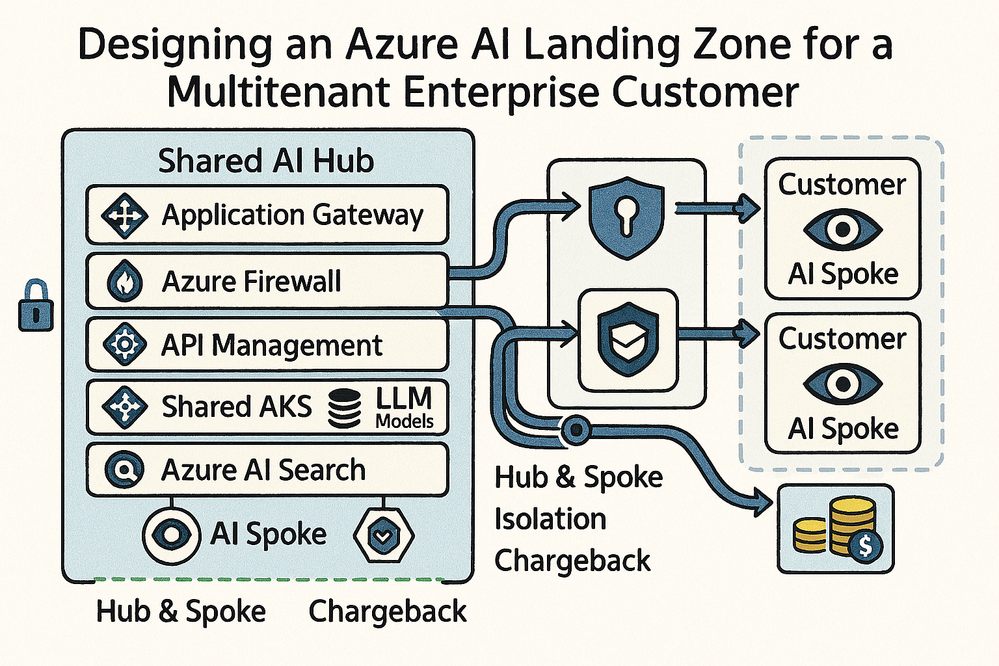

As enterprises adopt generative AI at scale, designing a platform that balances shared services, tenant isolation, and cost transparency becomes critical. In many real-world scenarios, organizations need a standalone AI platform that delivers immediate value without relying on a fully established enterprise landing zone. This blog draws from experience designing an Azure AI Hub and Spoke architecture for a multi-tenant enterprise customer. The solution uses a shared AI Hub to host common capabilities—Application Gateway, Azure Firewall, API Management, shared AKS, Azure AI Search, and LLM models via Azure AI Foundry—while serving dedicated customers through isolated AI Spokes. Customer-specific application logic is deployed on AKS and consumes shared AI services securely, enabling reuse, isolation, and usage-based chargeback without duplicating infrastructure. The AI Hub itself contains the required network and AI components, allowing the platform to operate independently of a traditional landing zone. The sections below outline the key architectural choices, isolation approach, and cost considerations involved in building a scalable, enterprise-grade Azure AI platform.

A large enterprise customer adopting AI at scale typically needs three non‑negotiables in its AI foundation:

End‑to‑end tenant isolation across network, identity, compute, and data
Secure, governed traffic flow from users to AI services
Transparent chargeback/showback for shared AI and platform services

At the same time, the platform must enable rapid onboarding of new tenants or applications and scale cleanly from proof‑of‑concept to production.

This article proposes an Azure Landing Zone–aligned architecture using a Hub‑and‑Spoke model, where:

The AI Hub centralizes shared services and governance
AI Spokes host tenant‑dedicated AI resources
Application logic and AI agents run on AKS

The result is a secure, scalable, and operationally efficient enterprise AI foundation.

1. Architecture goals & design principles

Goals

Host application logic and AI agents on Azure Kubernetes Service (AKS) as custom deployments instead of using agents under Azure AI Foundry
Enforce strong tenant isolation across all layers
Support cross chargeback and cost attribution
Adopt a Hub‑and‑Spoke model with clear separation of shared vs. tenant‑specific services

Design principles (Azure Landing Zone aligned)

Azure Landing Zone (ALZ) guidance emphasizes:

Separation of platform and workload subscriptions
Management groups and policy inheritance
Centralized connectivity using hub‑and‑spoke networking
Policy‑driven governance and automation

For infrastructure as code, ALZ‑aligned deployments typically use Bicep or Terraform, increasingly leveraging Azure Verified Modules (AVM) for consistency and long‑term maintainability.

2. Subscription & management group model

A practical enterprise layout looks like this:

Tenant Root Management Group

o Platform Management Group

Connectivity subscription (Hub VNet, Firewall, DNS, ExpressRoute/VPN)
Management subscription (Log Analytics, Monitor)
Security subscription (Defender for Cloud, Sentinel if required)

o AI Hub Management Group

AI Hub subscription (shared AI and governance services)

o AI Spokes Management Group

One subscription per tenant, business unit, or regulated boundary

This structure supports enterprise‑scale governance while allowing teams to operate independently within well‑defined guardrails.

3. Logical architecture — AI Hub vs. AI Spoke

AI Hub (central/shared services)

The AI Hub acts as the governed control plane for AI consumption:

Ingress & edge security: Azure Application Gateway with WAF (or Front Door for global scenarios)
Central egress control: Azure Firewall with forced tunneling
API governance: Azure API Management (private/internal mode)
Shared AI services: Azure OpenAI (shared deployments where appropriate), safety controls
Monitoring & observability: Azure Monitor, Log Analytics, centralized dashboards
Governance: Azure Policy, RBAC, naming and tagging standards

All tenant traffic enters through the hub, ensuring consistent enforcement of security, identity, and usage policies.

AI Spoke (tenant‑dedicated services)

Each AI Spoke provides a tenant‑isolated data and execution plane:

Tenant‑dedicated storage accounts and databases
Vector stores and retrieval systems (Azure AI Search with isolated indexes or services)
AKS runtime for tenant‑specific AI agents and backend services
Tenant‑scoped keys, secrets, and identities

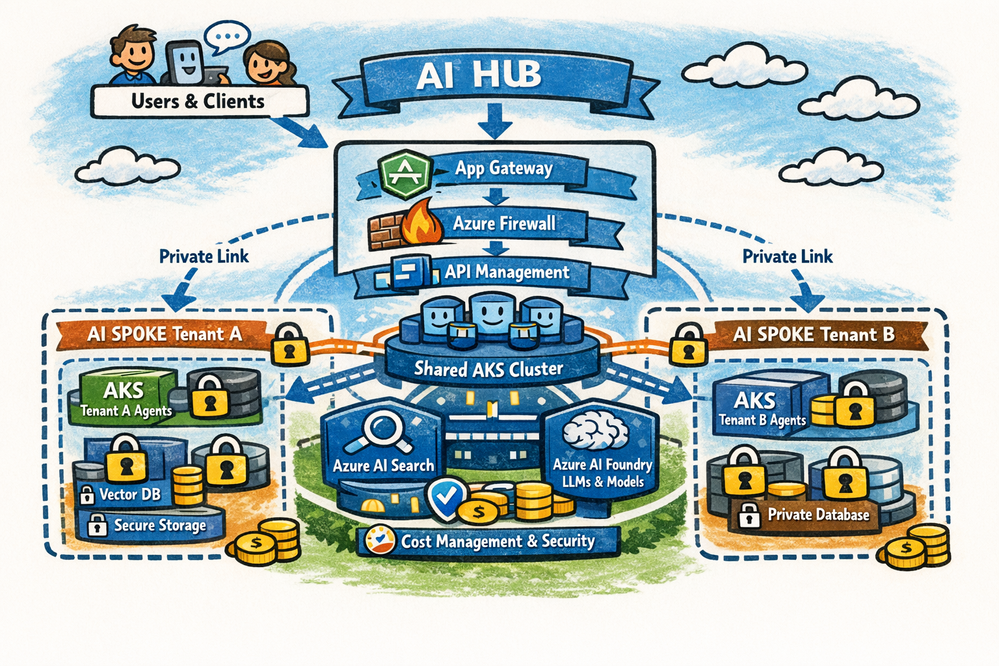

4. Logical architecture diagram (Hub vs. Spoke)

5. Network architecture — Hub and Spoke

6. Tenant onboarding & isolation strategy

Tenant onboarding flow

Tenant onboarding is automated using a landing zone vending model:

Request new tenant or application
Provision a spoke subscription and baseline policies
Deploy spoke VNet and peer to hub
Configure private DNS and firewall routes
Deploy AKS tenancy and data services
Register identities and API subscriptions
Enable monitoring and cost attribution

This approach enables consistent, repeatable onboarding with minimal manual effort.

Isolation by design

Network: Dedicated VNets, private endpoints, no public AI endpoints
Identity: Microsoft Entra ID with tenant‑aware claims and conditional access
Compute: AKS isolation using namespaces, node pools, or dedicated clusters
Data: Per‑tenant storage, databases, and vector indexes

7. Identity & access management (Microsoft Entra ID)

Key IAM practices include:

Central Microsoft Entra ID tenant for authentication and authorization
Application and workload identities using managed identities
Tenant context enforced at API Management and propagated downstream
Conditional Access and least‑privilege RBAC

This ensures zero‑trust access while supporting both internal and partner scenarios.

8. Secure traffic flow (end‑to‑end)

User accesses application via Application Gateway + WAF
Traffic inspected and routed through Azure Firewall
API Management validates identity, quotas, and tenant context
AKS workloads invoke AI services over Private Link
Responses return through the same governed path

This pattern provides full auditability, threat protection, and policy enforcement.

9. AKS multitenancy options

Model	When to use	Characteristics
Namespace per tenant	Default	Cost‑efficient, logical isolation
Dedicated node pools	Medium isolation	Reduced noisy‑neighbor risk
Dedicated AKS cluster	High compliance	Maximum isolation, higher cost

Enterprises typically adopt a tiered approach, choosing the isolation level per tenant based on regulatory and risk requirements.

10. Cost management & chargeback model

Tagging strategy (mandatory)

tenantId
costCenter
application
environment
owner

Enforced via Azure Policy across all subscriptions.

Chargeback approach

Dedicated spoke resources: Direct attribution via subscription and tags
Shared hub resources: Allocated using usage telemetry

o API calls and token usage from API Management

o CPU/memory usage from AKS namespaces

Cost data is exported to Azure Cost Management and visualized using Power BI to support showback and chargeback.

11. Security controls checklist

Private endpoints for AI services, storage, and search
No public network access for sensitive services
Azure Firewall for centralized egress and inspection
WAF for OWASP protection
Azure Policy for governance and compliance

12. Deployment & automation

Foundation: Azure Landing Zone accelerators (Bicep or Terraform)
Workloads: Modular IaC for hub and spokes
AKS apps: GitOps (Flux or Argo CD)
Observability: Policy‑driven diagnostics and centralized logging

13. Final thoughts

This Azure AI Landing Zone design provides a repeatable, secure, and enterprise‑ready foundation for any large customer adopting AI at scale.

By combining:

Hub‑and‑Spoke networking
AKS‑based AI agents
Strong tenant isolation
FinOps‑ready chargeback
Azure Landing Zone best practices

organizations can confidently move AI workloads from experimentation to production—without sacrificing security, governance, or cost transparency.
