Seamlessly Integrating Azure Document Intelligence with Azure API Management (APIM)

ManasaDevadas's avatar
ManasaDevadas
Icon for Microsoft rankMicrosoft
May 09, 2025

In today’s data-driven world, organizations are increasingly turning to AI for document understanding. Whether it's extracting invoices, contracts, ID cards, or complex forms, Azure Document Intelligence (formerly known as Form Recognizer) provides a robust, AI-powered solution for automated document processing.

But what happens when you want to scale, secure, and load balance your document intelligence backend for high availability and enterprise-grade integration?

Enter Azure API Management (APIM) — your gateway to efficient, scalable API orchestration.

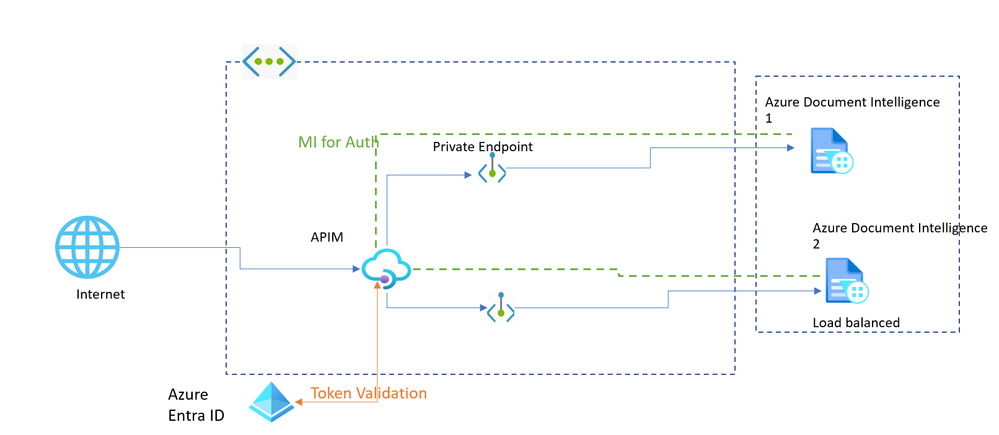

In this blog, we’ll explore how to integrate Azure Document Intelligence with APIM using a load-balanced architecture that works seamlessly with the Document Intelligence SDK — without rewriting your application logic.

Azure Doc Intelligence SDKs simplify working with long-running document analysis operations — particularly asynchronous calls — by handling the polling and response parsing under the hood.



Why Use API Management with Document Intelligence?

While the SDK is great for client-side development, APIM adds essential capabilities for enterprise-scale deployments:

  • 🔐 Security & authentication at the gateway level
  • ⚖️ Load balancing across multiple backend instances
  • 🔁 Circuit breakers, caching, and retries
  • 📊 Monitoring and analytics
  • 🔄 Response rewriting and dynamic routing

By routing all SDK and API calls through APIM, you get full control over traffic flow, visibility into usage patterns, and the ability to scale horizontally with multiple Document Intelligence backends.

SDK Behavior with Document Intelligence

When using the Document Intelligence SDK (e.g., begin_analyze_document), it follows this two-step pattern:

  1. POST request to initiate document analysis
  2. Polling (GET) request to the operation-location URL until results are ready

This is an asynchronous pattern where the SDK expects a polling URL in the response of the POST. If you’re not careful, this polling can bypass APIM — which defeats the purpose of using APIM in the first place.

So what do we do?

The Smart Rewrite Strategy

We use APIM to intercept and rewrite the response from the POST call.

POST Flow

  1. SDK sends a POST to:
    https://apim-host/analyze
  2. APIM routes the request to one of the backend services:
    https://doc-intel-backend-1/analyze
  3. Backend responds with:
    operation-location: https://doc-intel-backend-1/operations/123
  4. APIM rewrites this header before returning to the client:
    operation-location: https://apim-host/operations/poller?backend=doc-intel-backend-1

Now, the SDK will automatically poll APIM, not the backend directly.

GET (Polling) Flow

  1. Path to be set as /operations/123 in GET operation of APIM
  2. SDK polls:
    https://apim-host/operations/123?backend=doc-intel-backend-1
  3. APIM extracts the query parameter backend=doc-intel-backend-1
  4. APIM dynamically sets the backend URL for this request to:
    https://doc-intel-backend-1
  5. It forwards the request to:
    https://doc-intel-backend-1/operations/123
  6. Backend sends the status/result back to APIM → which APIM returns to the SDK.

All of this happens transparently to the SDK.

Sample policies

//Outbound policies for POST - /documentintelligence/documentModels/prebuilt-read:analyze
//---------------------------------------------------------------------------------------------------

<!--
    - Policies are applied in the order they appear.
    - Position <base/> inside a section to inherit policies from the outer scope.
    - Comments within policies are not preserved.
-->
<!-- Add policies as children to the <inbound>, <outbound>, <backend>, and <on-error> elements -->
<policies>
    <!-- Throttle, authorize, validate, cache, or transform the requests -->
    <inbound>
        <base />
    </inbound>
    <!-- Control if and how the requests are forwarded to services  -->
    <backend>
        <base />
    </backend>
    <!-- Customize the responses -->
    <outbound>
        <base />
        <set-header name="operation-location" exists-action="override">
            <value>@{
            // Original operation-location from backend
            var originalOpLoc = context.Response.Headers.GetValueOrDefault("operation-location", "");
            // Encode original URL to pass as query parameter
            var encoded = System.Net.WebUtility.UrlEncode(originalOpLoc);
            // Construct APIM URL pointing to poller endpoint with backendUrl
            var apimUrl = $"https://tstmdapim.azure-api.net/document-intelligent/poller?backendUrl={encoded}";
            return apimUrl;
        }</value>
        </set-header>
    </outbound>
    <!-- Handle exceptions and customize error responses  -->
    <on-error>
        <base />
    </on-error>
</policies>

//Inbound policies for Get (Note: path for get should be modified - /document-intelligent/poller
//----------------------------------------------------------------------------------------------

<!--
    - Policies are applied in the order they appear.
    - Position <base/> inside a section to inherit policies from the outer scope.
    - Comments within policies are not preserved.
-->
<!-- Add policies as children to the <inbound>, <outbound>, <backend>, and <on-error> elements -->
<policies>
    <!-- Throttle, authorize, validate, cache, or transform the requests -->
    <inbound>
        <base />
        <choose>
            <when condition="@(context.Request.Url.Query.ContainsKey(&quot;backendUrl&quot;))">
                <set-variable name="decodedUrl" value="@{
                var backendUrlEncoded = context.Request.Url.Query.GetValueOrDefault(&quot;backendUrl&quot;, &quot;&quot;);
                // Make sure to decode the URL properly, potentially multiple times if needed
                var decoded = System.Net.WebUtility.UrlDecode(backendUrlEncoded);
                // Check if it's still encoded and decode again if necessary
                while (decoded.Contains(&quot;%&quot;))
                {
                    decoded = System.Net.WebUtility.UrlDecode(decoded);
                }
                return decoded;
            }" />
                <!-- Log the decoded URL for debugging remove if not needed-->
                <trace source="Decoded URL">@((string)context.Variables["decodedUrl"])</trace>
                <send-request mode="new" response-variable-name="backendResponse" timeout="30" ignore-error="false">
                    <set-url>@((string)context.Variables["decodedUrl"])</set-url>
                    <set-method>GET</set-method>
                    <authentication-managed-identity resource="https://cognitiveservices.azure.com/" />
                </send-request>
                <return-response response-variable-name="backendResponse" />
            </when>
            <otherwise>
                <return-response>
                    <set-status code="400" reason="Missing backendUrl query parameter" />
                    <set-body>{"error": "Missing backendUrl query parameter."}</set-body>
                </return-response>
            </otherwise>
        </choose>
    </inbound>
    <!-- Control if and how the requests are forwarded to services  -->
    <backend>
        <base />
    </backend>
    <!-- Customize the responses -->
    <outbound>
        <base />
    </outbound>
    <!-- Handle exceptions and customize error responses  -->
    <on-error>
        <base />
    </on-error>
</policies>

Load Balancing in APIM

You can configure multiple backend services in APIM and use built-in load-balancing policies to:

  • Distribute POST requests across multiple Document Intelligence instances
  • Use custom headers or variables to control backend selection
  • Handle failure scenarios with circuit-breakers and retries

Reference: Azure API Management backends – Microsoft Learn
Sample: Using APIM Circuit Breaker & Load Balancing – Microsoft Community Hub

Conclusion

By integrating Azure Document Intelligence with Azure API Management native capabilities like Load balancing, rewrite header, authentication, rate limiting policies, organizations can transform their document processing workflows into scalable, secure, and efficient systems.

Updated May 14, 2025
Version 2.0

17 Comments

  • Exactly what I was looking for, but I have one comment and a question.

    Comment: The reference for Azure API Management backends leads to 404 not found.

    Question: Where can I find the OpenAPI json for importing the api to APIM? I tried a swagger spec I found on github (https://github.com/Azure/azure-rest-api-specs/blob/main/specification/ai/data-plane/DocumentIntelligence/stable/2024-11-30/DocumentIntelligence.json) but it generates some errors on import.

    • ManasaDevadas's avatar
      ManasaDevadas
      Icon for Microsoft rankMicrosoft

      yes you are right, import gave me errors, and had to do it manually for POST and then GET

      • Tor Ivar Asbølmo's avatar
        Tor Ivar Asbølmo
        Copper Contributor

        Thank you for answering! Will you be able to specify further how it was done? Maybe do an edit of the article? It is not clear to me how one would import the api for use in APIM when publishing document intelligence API.

  • PriyankMobiz's avatar
    PriyankMobiz
    Copper Contributor

    Considering we have both `Analyze Document` and `Get Analyze Result` configured as operations in the document intelligence API, isn't it easier just to replace the `cognitiveservices.azure.com` URL with your `azure-api.net` URL in the outbound policy of your POST? Like this:

    var apimUrl = originalOpLoc.Replace("<your cognitive services host>", "<your APIM host>");

    This eliminates the requirement to change the poller API.

    • Tor Ivar Asbølmo's avatar
      Tor Ivar Asbølmo
      Copper Contributor

      Thank you for this suggestion! This is the way I chose to go, and it works better than the code suggested in the article. I ended up with a 404 resource not found when doing it with send-request.

      In the end, this is the operation policy on my DocumentIntelligence AnalyzeDocumentFromStream:

      <!--
          - Policies are applied in the order they appear.
          - Position <base/> inside a section to inherit policies from the outer scope.
          - Comments within policies are not preserved.
      -->
      <!-- Add policies as children to the <inbound>, <outbound>, <backend>, and <on-error> elements -->
      <policies>
          <!-- Throttle, authorize, validate, cache, or transform the requests -->
          <inbound>
              <base />
          </inbound>
          <!-- Control if and how the requests are forwarded to services  -->
          <backend>
              <base />
          </backend>
          <!-- Customize the responses -->
          <outbound>
              <base />
              <set-header name="operation-location" exists-action="override">
                  <value>@{
                  // Original operation-location from backend
                  var originalOpLoc = context.Response.Headers.GetValueOrDefault("operation-location", "");
                  // Encode original URL to pass as query parameter
                  var encoded = System.Net.WebUtility.UrlEncode(originalOpLoc);
                  // Construct APIM URL pointing to poller endpoint with backendUrl
                  var apimUrl = originalOpLoc.Replace("document intelligence hostname", "apim hostname");
                  return apimUrl;
              }</value>
              </set-header>
          </outbound>
          <!-- Handle exceptions and customize error responses  -->
          <on-error>
              <base />
          </on-error>
      </policies>

      Works like a charm now 🙂

    • ManasaDevadas's avatar
      ManasaDevadas
      Icon for Microsoft rankMicrosoft

      I am not sure I understand your question completely. if we just replace with APIM host, we lose the information on the URL the subsequent get request to be sent to.

      • PriyankMobiz's avatar
        PriyankMobiz
        Copper Contributor

        The subsequent GET request is also configured in my APIM. With 'replace', the Operation-Location header becomes http:/<APIM>.azure-api.net/formrecognizer/... instead of http:/<Cognitive service>.cognitiveservices.azure.com/formrecognizer/... So now the subsequent GET request will be redirected from APIM instead of directly going to the cognitive services URL.

    • PriyankMobiz's avatar
      PriyankMobiz
      Copper Contributor

      Considering we have both `Analyze Document` and `Get Analyze Result` configured as operations in the document intelligence API, isn't it easier just to replace the `cognitiveservices.azure.com` URL with your `azure-api.net` URL in the outbound policy of your POST? Like this:

      var apimUrl = originalOpLoc.Replace("<your cognitive services host>", "<your APIM host>");

      This eliminates the requirement to change the poller API.
