Azure Spring Apps Custom Container Image CICD deployment using Azure DevOps

Microsoft

Jun 14, 2022

Since 2022 May, Azure Spring Cloud started to allow deploying an application with a custom container image (Preview).

Deploying an application with a custom container supports most features as when deploying a JAR application. Other Java and non-Java applications can also be deployed with the container image.

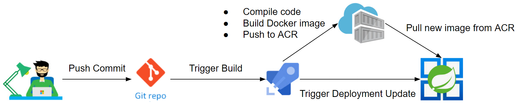

This blog aims to show an example for how to use Azure DevOps pipeline to make CICD deployment using custom container image.

Prerequisites

Azure DevOps account
Provision an instance of Azure Spring Cloud

Create an App without code deployment

az spring app create -n <app name> -s <service instance name> -g <resource group name> --assign-endpoint true

Step 1: Create a Git repo for your project in Azure DevOps

1. Go to https://dev.azure.com

2. After signing in, click on 'Create Project' in the top right of the screen. If there is no organization already created then this will need to be done first.

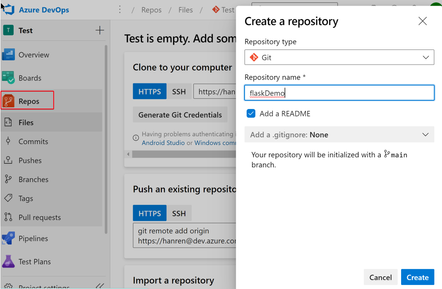

3. Create a Git repository in your Azure DevOps Project.

Get the repository URL

Step 2: Push Application code and Dockerfile to the git repository

1. Git clone the new created empty repository to your local machine

git clone https://xxx@dev.azure.com/xxx/xxxx/_git/xxx

2. Add your application code and Dockerfile

In this example I build a simple Python Flask application, and use a Dockerfile to pack it into a custom docker container.

There are 3 files need to be committed to the Git repo.

requirements.txt

Flask

App.py

from flask import Flask

app = Flask(__name__)

@app.route("/")
def hello():
    return "Hello from Azure Spring Cloud Custom Container Image!"

Dockerfile

FROM python:3.8-slim-buster

WORKDIR /flaskdemo

COPY requirements.txt requirements.txt
RUN pip3 install -r requirements.txt

COPY . .

EXPOSE 1025

CMD [ "python3", "-m" , "flask", "run", "--host=0.0.0.0", "--port=1025"]

3. Push your code to DevOps git repository

git add .
git commit -m "initial commit"
git push

Step 3: Create a new Build Pipeline to build and push Docker image

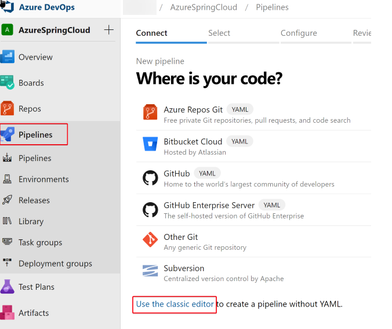

1. Create a new pipeline use the classic editor

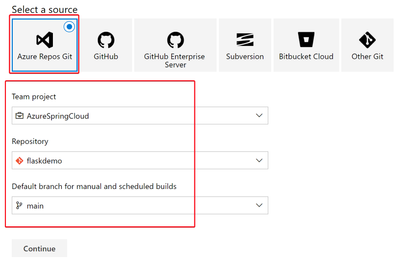

2. Select source repository

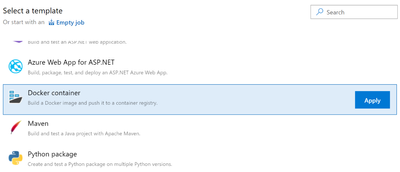

3. Select Docker container template

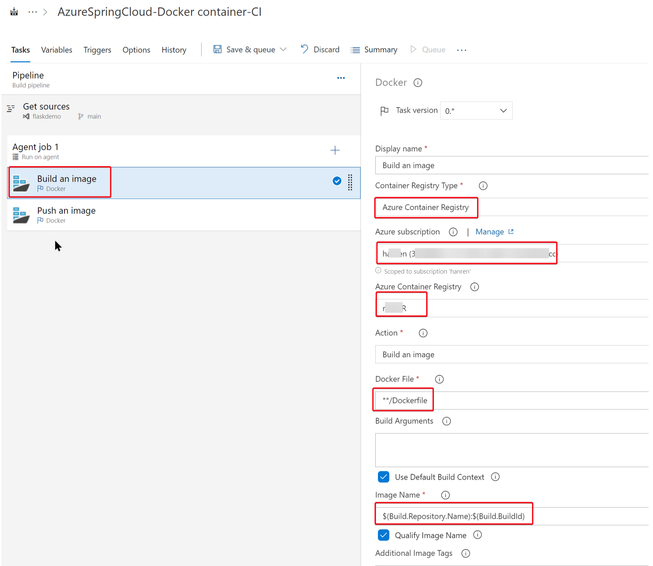

4. Fill in your Azure Container Registry information in the "Build an image" Task.
Since we added our Dockerfile in our git repository, according to "**/Dockerfile" setting, the pipeline can find our Dockerfile and use it to build the docker image.

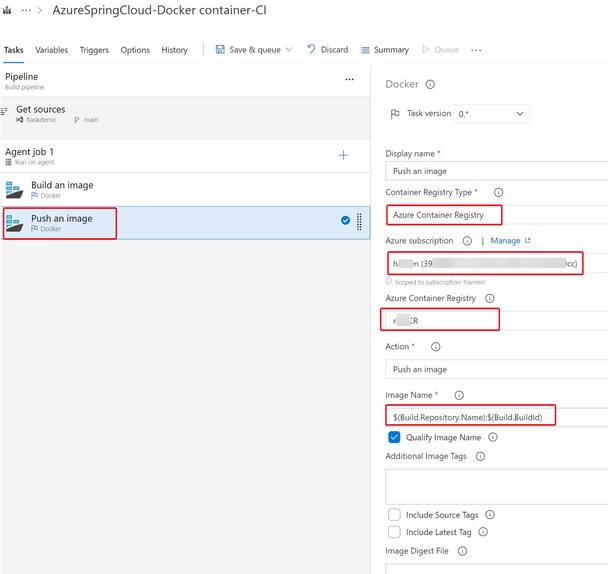

5. Fill in your Azure Container Registry information in the "Push an image" Task.

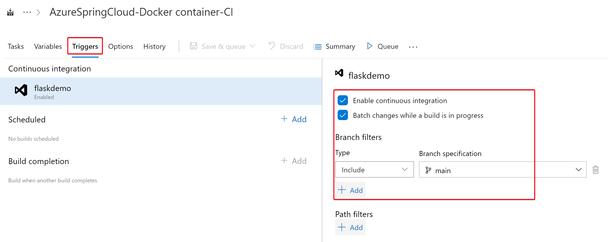

6. Enable continuous integration in Triggers

Step 4: Create New Release Pipeline

1. Set the Artifacts, select your project name, Source (the build pipeline we just created in Step 3)

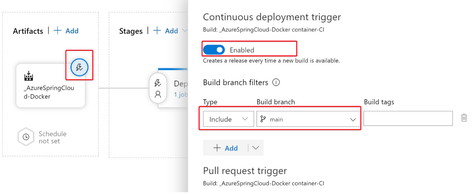

We can enable Continuous deployment trigger, so when there is any code change being pushed to our git repository, the release task will be triggered to run.

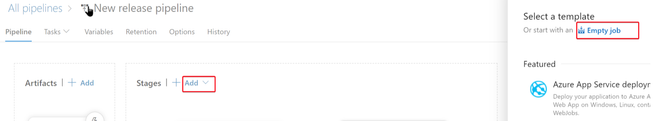

2. Add a new Stage using "Empty job" template, named it "Deploy to App"

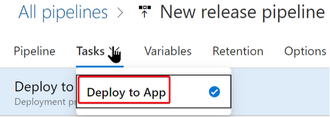

3. Create a Task in this "Deploy to App" stage

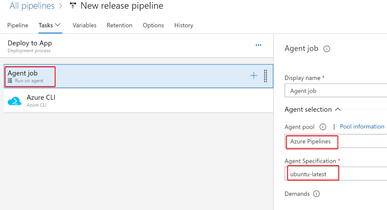

4. Select "ubuntu-latest" as the job Agent

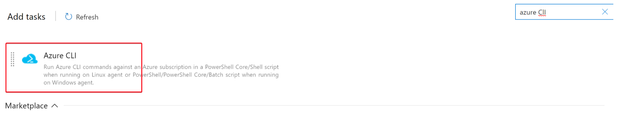

5. Add an Azure CLI task in this Agent job

6. Select your Azure subscription, and fill in the following Shell Inline script

az config set extension.use_dynamic_install=yes_without_prompt
az extension add --name spring-cloud

az spring-cloud app deploy \
   --resource-group <your resource group name> \
   --name <App name> \
   --container-image $(Build.Repository.Name):$(Build.BuildId) \
   --service <your Azure Spring Cloud service name> \
   --container-registry <Azure Container Registry url> \
   --registry-password <Azure Container Registry password> \
   --registry-username <Azure Container Registry username>

Step 5: Trigger CICD docker image build and App deployment.

Since we enabled continuous integration in Step 3 & continuous deployment in Step 4, when we commit and push any code change in the git repository, the pipeline will be automatically triggered.

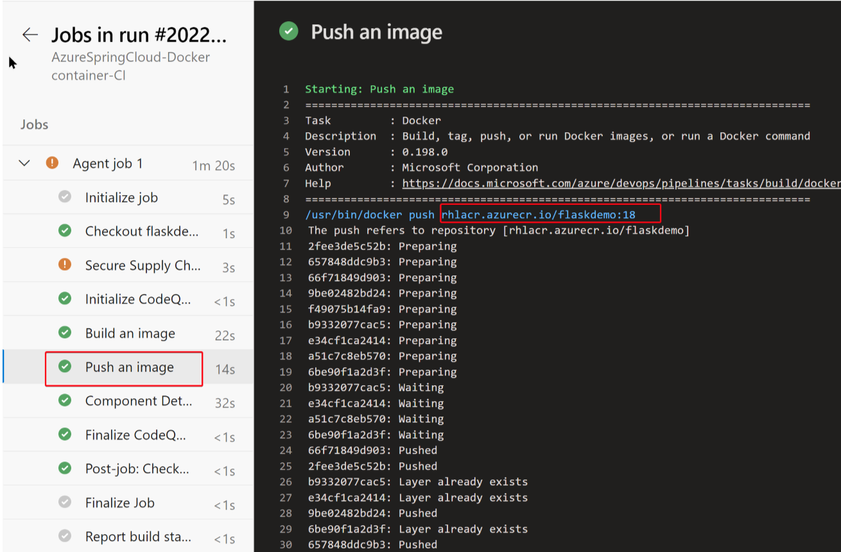

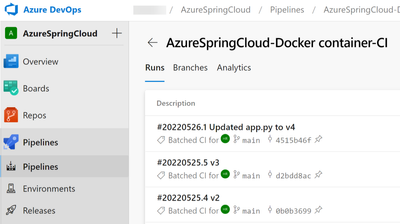

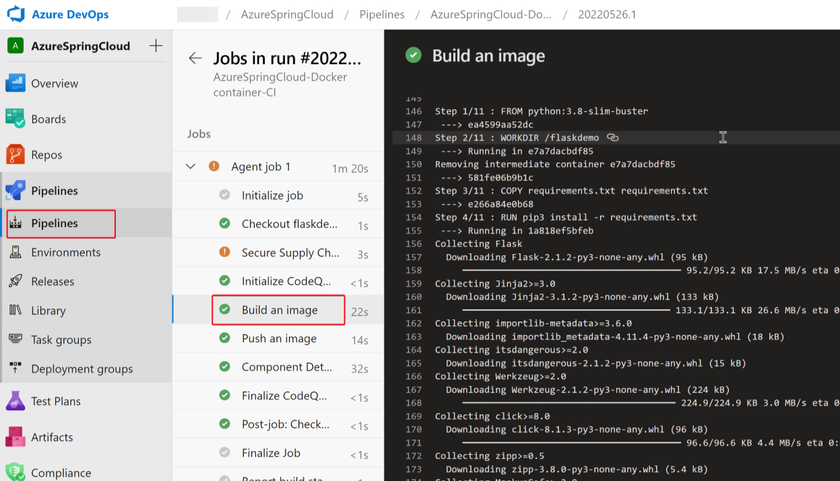

1. Push some changes in the git repo, then we can go to Pipeline -> Runs to check the build log
