Automating Azure Naming Standards using API and DevOps Pipelines

Introduction

In large Azure environments, one of the most overlooked yet critical governance challenges is resource naming consistency.

While organizations define naming standards, enforcing them at scale across multiple subscriptions, teams, and pipelines often becomes a manual and inconsistent process.

In real-world projects, this leads to:

• Operational confusion
• Difficult resource identification
• Reduced traceability
• Governance gaps

To address this, we implemented an API-driven naming validation approach integrated with Azure DevOps pipelines, ensuring every resource created follows organizational standards automatically.

The Problem: Inconsistent Naming Across Environments

In distributed teams and large-scale environments, naming issues commonly arise due to:

• Multiple developers creating resources independently
• Lack of centralized enforcement
• Manual validation during deployments
• No integration with CI/CD pipeline

Example (Before Automation)

Problems:

• No standard structure
• No environment or region context
• Hard to manage at scale

Goal

To ensure:

• ✅ Standardized naming across all resources
• ✅ Automated validation during deployments
• ✅ No manual intervention required
• ✅ Seamless integration with DevOps workflows

Solution Overview

We implemented a naming enforcement mechanism using:

• Azure Naming Tool (or similar API-based naming service)
• Azure DevOps Pipelines
• Managed Identity for secure authentication

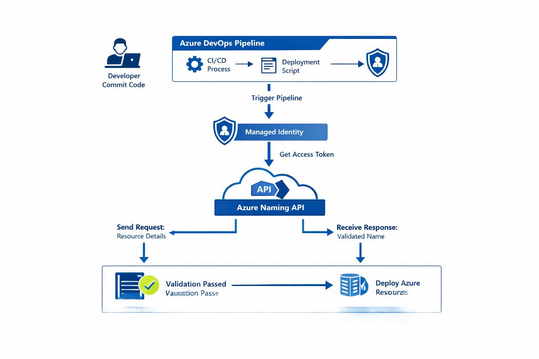

Architecture Flow

Automated Naming Validation using Naming API, Managed Identity, and DevOps Pipeline

🔍 Solution Flow Explained

1. Developer Commit
   The process begins when a developer commits code to the repository, triggering the Azure DevOps pipeline.
2. Azure DevOps Pipeline Execution
   The pipeline runs deployment scripts as part of the CI/CD process.
3. Managed Identity Authentication
   The pipeline uses Managed Identity to securely authenticate and obtain an access token—eliminating the need for storing credentials.
4. Naming API Invocation
   A request is sent to the Naming API with resource details such as:
   • Resource type
   • Environment
   • Location
   • Application name
5. Validation & Name Generation
   The Naming API validates inputs and returns a compliant resource name based on predefined standards.
6. Deployment Decision
   • If validation succeeds → resources are deployed
   • If validation fails → deployment is blocked
7. Resource Deployment
   Only validated, compliant resources are provisioned in Azure.

Note:
The “Azure Naming API” referenced in this blog represents an implementation pattern rather than a native Azure service.
Solutions such as Azure Naming Tool or custom APIs can be used to expose naming logic and integrate with DevOps pipelines for automated enforcement. This approach can be implemented using solutions like Azure Naming Tool, Resource Name Generator, or custom-built APIs

Implementation Details

Authentication using Managed Identity

To securely access the Naming API:

• Managed Identity is used
• No secrets or credentials stored in pipeline
• Token retrieved dynamically

PowerShell Implementation

Below is a simplified version of what was used in implementation:

# Get access token using Managed Identity
$token = (Get-AzAccessToken -ResourceUrl "api://NamingTool").Token

# Call naming API
$response = Invoke-RestMethod `
    -Uri "https://your-namingtool-api-endpoint/api/naming" `
    -Headers @{ Authorization = "Bearer $token" } `
    -Method POST `
    -Body @{
        resourceType = "resourceGroup"
        environment  = "prod"
        location     = "eastus"
        application  = "app01"
    } | ConvertTo-Json

# Extract generated resource name
$resourceName = $response.name

Write-Output "Generated Name: $resourceName"

🔄 Azure DevOps Pipeline Integration

Naming validation is integrated directly into the deployment pipeline. Sample Pipeline Snippet

- task: AzureCLI@2
  inputs:
    azureSubscription: 'ServiceConnection'
    scriptType: 'ps'
    scriptLocation: 'inlineScript'
    inlineScript: |
      Write-Output "Calling Naming API"
      .\scripts\Get-ResourceName.ps1

Key Benefit:

👉 Resource names are validated before deployment, preventing non-compliant resources from being created.

Security Considerations

• Use Managed Identity for API authentication
• Avoid storing secrets in pipelines
• Ensure API access is restricted and secured

Extending This Solution

This approach can be extended to:

• Enforcing tagging standards
• Policy validation before deployment
• Subscription vending automation
• Cost governance controls

✨ Final Thoughts

Naming standards are often documented—but rarely enforced effectively.

By integrating API-based naming validation into DevOps pipelines, organizations can move from:

Guidelines → ✅ Automated Enforcement

This ensures governance is:

• Scalable
• Consistent
• Developer-friendly
