Setting up Sentinel for Kubernetes Monitoring

A guide to using Microsoft Sentinel for monitoring the security of your containerized applications and orchestration platforms.

Part 3 of 3 part series about security monitoring of your Kubernetes Clusters and CI/CD pipelines by singhabhi  and Umesh_Nagdev , Security GBB

Link to Part 1

Link to Part 2



Introduction

In part 1 and part 2 of this series, we discussed the type of log sources you should consider for monitoring the security of your Kubernetes environment, most pertinent risks (and corresponding use cases) in your AKS environment, and log sources to ingest data. This blog will demonstrate how to configure Microsoft Sentinel to derive identify the risks.

More specifically we will show:

1. Mapping of container security risks with Microsoft Defender for Cloud
2. Data connectors to ingest AKS data
3. Container Security Workbooks in Sentinel
4. Search queries to mine specific log tables for more pressing risks



How Microsoft Defender for Cloud addresses container risks

Microsoft Defender for Containers is a security solution designed specifically for containerized environments. Microsoft Defender for Containers provides several key capabilities to enhance container security:

• Real-time protection: Defender for Containers offers real-time protection by continuously monitoring container activities, network traffic, and system events. It uses machine learning algorithms and heuristics to detect and respond to potential threats promptly.
• Vulnerability management: The solution helps identify vulnerabilities in container images and runtime environments. It can scan container images for known vulnerabilities, misconfigurations, and insecure dependencies, allowing organizations to address these issues before deploying containers into production.
• Malware detection: Defender for Containers can detect and block malicious code, malware, and suspicious activities within containers. It leverages signature-based detection, behavioral analysis, and sandboxing techniques to identify and mitigate threats.
• File integrity monitoring: The solution includes file integrity monitoring capabilities to detect unauthorized changes or tampering within containerized environments. It monitors critical system files, configuration files, and application binaries for any suspicious modifications.
• Network security: Defender for Containers helps secure container network traffic by enforcing access controls, segmenting network traffic, and detecting anomalies or suspicious network behavior. It can detect and block malicious network activities, such as port scanning, denial-of-service attacks, and lateral movement attempts.
• Integration with Microsoft Defender for Cloud: Defender for Containers integrates seamlessly with Microsoft Defender for Cloud, providing centralized visibility, monitoring, and management of container security across hybrid and multi-cloud environments. It leverages Azure's cloud-native security capabilities and threat intelligence to enhance container security posture.
• Incident response and remediation: In case of security incidents or suspicious activities, Defender for Containers provides tools for incident investigation, threat hunting, and automated remediation actions. It helps security teams quickly respond to security incidents and mitigate potential risks.

There are several alerts https://learn.microsoft.com/en-us/azure/defender-for-cloud/alerts-reference#alerts-for-containers---kubernetes-clusters that you get out of the box.



Additionally, you can secure the Kubernetes Control Plane using Azure Policy (https://learn.microsoft.com/en-us/azure/aks/use-azure-policy).



This resource https://techcommunity.microsoft.com/t5/microsoft-defender-for-cloud/leveraging-defender-for-containers-to-simplify-policy-management/ba-p/3755757 provides additional background on how Azure Policies work to protect your Kubernetes Control Plane.



There are several out of the box policies that can quickly get you started https://learn.microsoft.com/en-us/azure/aks/policy-reference



The table below shows a mapping of container risks to MDC alerts and Azure Policies. You will see that with the help of Defender for Containers you will get a great coverage across several risks that we discussed in blog part 2



#	Kubernetes Risk	Risk Area	MDC Alert(s)	Azure Policy(s)
1	Detect unauthorized or suspicious pods running in the cluster.	Pod Security Monitoring	Attempt to create a new Linux namespace from a container detected  Anomalous pod deployment (Preview)  Anomalous secret access (Preview)  Behavior similar to common Linux bots detected (Preview)  Command within a container running with high privileges  Container running in privileged mode  Container with a sensitive volume mount detected	Kubernetes cluster containers should only pull images when image pull secrets are present  Kubernetes cluster containers CPU and memory resource limits should not exceed the specified limits  Kubernetes cluster containers should only use allowed capabilities  Kubernetes cluster containers should only use allowed images  Kubernetes cluster containers should only use allowed pull policy  Kubernetes cluster containers should run with a read only root file system  Kubernetes cluster pod hostPath volumes should only use allowed host paths  Kubernetes cluster pods and containers should only run with approved user and group IDs
2	Monitor for privilege escalation attempts within pods.	Pod Security Monitoring	Attempt to create a new Linux namespace from a container detected  Anomalous secret access (Preview)  Command within a container running with high privileges  Container running in privileged mode  Container with a sensitive volume mount detected  Detected file download from a known malicious source  Excessive role permissions assigned in Kubernetes cluster (Preview)  Privileged container detected	Kubernetes cluster containers should only pull images when image pull secrets are present  Kubernetes cluster containers CPU and memory resource limits should not exceed the specified limits  Kubernetes cluster containers should only use allowed capabilities  Kubernetes cluster containers should only use allowed images  Kubernetes cluster containers should only use allowed pull policy  Kubernetes cluster containers should run with a read only root file system  Kubernetes cluster pod hostPath volumes should only use allowed host paths  Kubernetes cluster pods and containers should only run with approved user and group IDs
3	Track and alert on changes to pod security policies.	Pod Security Monitoring	None	None
4	Identify and alert on unexpected network traffic patterns.	Network Security Monitoring	An uncommon connection attempt detected  CoreDNS modification in Kubernetes detected  K8S API requests from proxy IP address detected  Potential reverse shell detected  Potential port forwarding to external IP address  Suspicious use of DNS over HTTPS	None
5	Monitor for unauthorized ingress and egress traffic.	Network Security Monitoring	An uncommon connection attempt detected  CoreDNS modification in Kubernetes detected  K8S API requests from proxy IP address detected  Potential reverse shell detected  Potential port forwarding to external IP address  Suspicious use of DNS over HTTPS	None
6	Detect and investigate potential denial-of-service (DoS) attacks.	Network Security Monitoring	Indicators associated with DDOS toolkit detected	None
7	Scan container images for vulnerabilities before deployment.	Container Image Security	None (Gating when released)  Scanning is automatically done as part of ACR	Running container images should have vulnerability findings resolved  Running container images should have vulnerability findings resolved (powered by Microsoft Defender Vulnerability Management)
8	Monitor for unauthorized or unsigned images.	Container Image Security	None	Kubernetes cluster containers should only use allowed images  Kubernetes clusters should only use images signed by notation  [Preview]: Deploy Image Integrity on Azure Kubernetes Service
9	Track changes to container image repositories.	Container Image Security	None	Configure container registries to disable anonymous authentication  Configure container registries to disable ARM audience token authentication.  Configure container registries to disable local admin account.  Container registries should be encrypted with a customer-managed key  Container registries should have anonymous authentication disabled.
10	Monitor kubelet logs for signs of compromise or unauthorized access.	Kubelet Activity Monitoring	Possible credential access tool detected  Abnormal Kubernetes service account operation detected  Anomalous secret access (Preview)  Creation of admission webhook configuration detected	None
11	Detect abnormal activities related to node management.	Kubelet Activity Monitoring	"K8S.NODE_" Alerts	[Preview]: Cannot Edit Individual Nodes  [Preview]: Kubernetes clusters should restrict creation of given resource type  Azure Kubernetes Clusters should enable Container Storage Interface(CSI)  Azure Kubernetes Clusters should enable Key Management Service (KMS)  Azure Kubernetes Clusters should use Azure CNI  Azure Kubernetes Service Clusters should enable node os auto-upgrade  Azure Role-Based Access Control (RBAC) should be used on Kubernetes Services  Both operating systems and data disks in Azure Kubernetes Service clusters should be encrypted by customer-managed keys  Configure Node OS Auto upgrade on Azure Kubernetes Cluster  Deploy Azure Policy Add-on to Azure Kubernetes Service clusters  Kubernetes cluster containers CPU and memory resource limits should not exceed the specified limits  Kubernetes clusters should not allow container privilege escalation  Kubernetes clusters should not allow endpoint edit permissions of ClusterRole/system:aggregate-to-edit  Kubernetes clusters should not grant CAP_SYS_ADMIN security capabilities  Kubernetes clusters should use internal load balancers
12	Monitor Kubernetes API server logs for suspicious activities.	API Server Security	"K8S_*" Alerts	None
13	Track and alert on failed authentication attempts.	API Server Security	AKS clusters should be set up to use Azure AD Authentication  https://techcommunity.microsoft.com/t5/fasttrack-for-azure/azure-kubernetes-service-rbac-options-in-practice/ba-p/3684275	Azure Kubernetes Service Clusters should enable Microsoft Entra ID integration
14	Detect unusual API server request patterns.	API Server Security	"K8S_*" Alerts	None
15	Monitor changes to RBAC policies and roles.	RBAC (Role-Based Access Control) Monitoring	Role binding to the cluster-admin role detected  AKS clusters should be set up to use Azure AD Authentication  https://techcommunity.microsoft.com/t5/fasttrack-for-azure/azure-kubernetes-service-rbac-options-in-practice/ba-p/3684275	Azure Kubernetes Service Clusters should enable Microsoft Entra ID integration
16	Detect and alert on unauthorized access attempts.	RBAC (Role-Based Access Control) Monitoring	Role binding to the cluster-admin role detected  AKS clusters should be set up to use Azure AD Authentication  https://techcommunity.microsoft.com/t5/fasttrack-for-azure/azure-kubernetes-service-rbac-options-in-practice/ba-p/3684276	Azure Kubernetes Service Clusters should enable Microsoft Entra ID integration
17	Track role binding changes and escalations.	RBAC (Role-Based Access Control) Monitoring	Role binding to the cluster-admin role detected	Kubernetes clusters should minimize wildcard use in role and cluster role
18	Monitor for unauthorized access to Kubernetes secrets and ConfigMaps.	Secrets and ConfigMap Access Monitoring	Anomalous secret access (Preview)  Process seen accessing the SSH authorized keys file in an unusual way  Defender for Key Vault also detects unusual access patterns	None
19	Detect changes to sensitive configuration data.	Secrets and ConfigMap Access Monitoring	None  Should be using Key Vault for Sensitive Data  Defender for Key Vault also detects unusual access patterns	None
20	Track usage patterns of sensitive information.	Secrets and ConfigMap Access Monitoring	None  Should be using Key Vault for Sensitive Data  Defender for Key Vault also detects unusual access patterns	None
21	Enable and monitor Kubernetes audit logs for cluster-wide activities.	Audit Logging	A history file has been cleared  Kubernetes events deleted  Possible Log Tampering Activity Detected	Deploy - Configure diagnostic settings for Azure Kubernetes Service to Log Analytics workspace
22	Correlate audit logs to identify security events and policy violations.	Audit Logging	Done natively by Defender for Container alerts	Deploy - Configure diagnostic settings for Azure Kubernetes Service to Log Analytics workspace
23	Regularly review audit logs for anomalies and potential threats.	Audit Logging	Not applicable	Not applicable
24	Ensure compliance with security standards and policies.	Compliance Monitoring	Defender for CSPM Regulatory Recommendations	None
25	Monitor for deviations from security best practices.	Compliance Monitoring	Defender for CSPM Regulatory Recommendations	None
26	Generate reports on compliance status and potential risks.	Compliance Monitoring	Defender for CSPM Regulatory Recommendations	None
27	Monitor runtime activities of containers for abnormal behavior.	Container Runtime Security	"K8S_*" Alerts	None
28	Detect and alert on suspicious system calls within containers.	Container Runtime Security	"K8S_*" Alerts	None
29	Integrate with container runtime security tools for enhanced monitoring.	Container Runtime Security	"K8S_*" Alerts	None
30	Develop and test incident response plans for Kubernetes security incidents.	Incident Response and Forensics	Not applicable	Not applicable
31	Monitor for indicators of compromise (IoCs) and initiate investigations.	Incident Response and Forensics	Done natively by Defender for Container alerts	Not applicable
32	Collect and analyze forensics data in the event of a security incident	Incident Response and Forensics	Done natively by Defender for Container alerts	Not applicable



AKS Security Workbook

There is an out of the box work that you can enable once you deploy the AKS Connector from Content Hub. If you are not familiar with Sentinel workbooks please refer to this resource https://techcommunity.microsoft.com/t5/microsoft-sentinel-blog/azure-sentinel-workbooks-101-with-sample-workbook/ba-p/1409216 to learn about how to enable and leverage workbooks.



Let’s do a walkthrough of the AKS Security Workbook

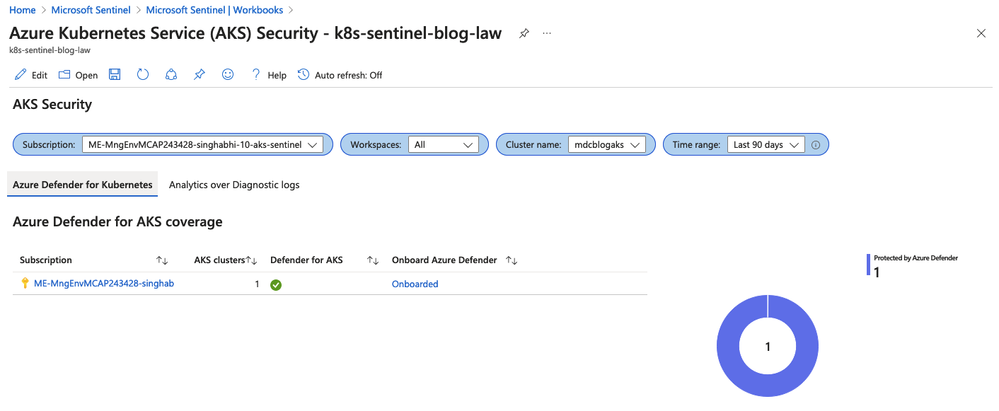

Understanding the security coverage

As we showcased above, Defender for Cloud provides a great coverage for your container security related risks.



The first part would be to understand where you might have some blind spots that is the AKS clusters that are currently not being monitored by Defender for Cloud. The workbook allows you to look at the data across different subscriptions and the coverage table provides insights into where coverage is lacking.



Note: The is a drop down for selecting the Time Range so you can see the items like alerts, recommendations etc. for that time period.

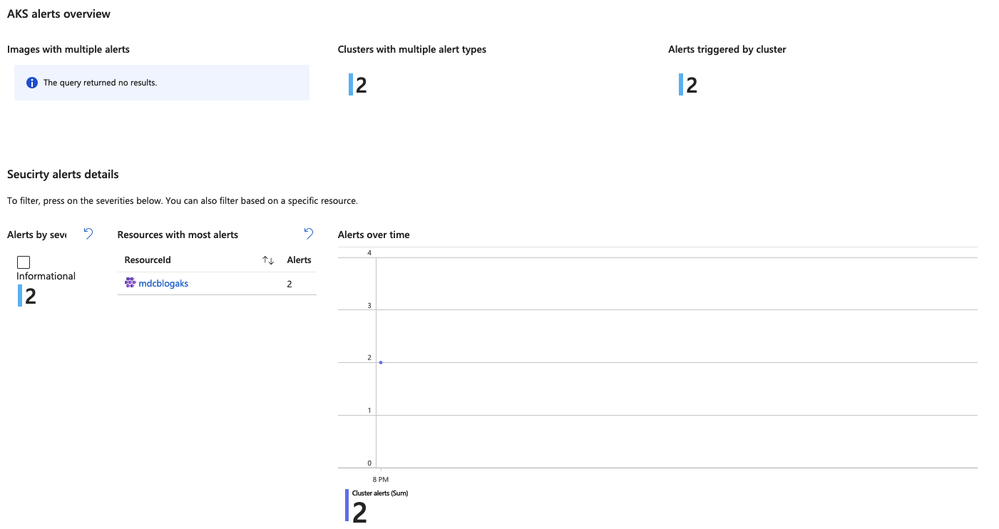

Looking at the Overview of security alerts

For the given time period as we discussed earlier, you will see the security state of your clusters. This dashboard helps you understand where you have the most exposure across container image repos and clusters.



You can also see how alerts have changed over period of time.

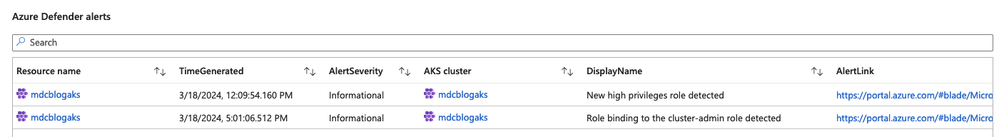

Diving deeper into specific alerts

Now that we understand our AKS Cluster coverage and areas of risk exposures, this next section shows you security alerts that exists in your environment. This way you can quickly prioritize where it would make sense to start to close most gaps.



Search queries for security monitoring

In this section we will talk about building custom content to search for common use cases.

1. Identifying the Users and IPs who have most number of denies

You would want to understand who is trying to get situational awareness of your AKS environment. This can be an existing user or a script that’s trying to query your cluster.

//API Authorization Deny by User, Source IP
AKSAudit
| where TimeGenerated > ago (1h)
| extend authorizationDecision = parse_json(Annotations)
| extend user = parse_json(User)
| extend sourceIps = parse_json(SourceIps)
| project TimeGenerated, PodName, Verb, sourceIps[0],user.username, authorizationDecision["authorization.k8s.io/decision"], RequestUri
| order by TimeGenerated asc



2. Users that are assigned to Cluster Roles

A ClusterRole can be used to grant the same permissions as a Role. Because ClusterRoles are cluster-scoped, you can also use them to grant access to:

• cluster-scoped resources (like nodes)
• non-resource endpoints (like /healthz)
• namespaced resources (like Pods), across all namespaces

You should not assign users to cluster roles. The following query shows you the users are aligned to a Cluster Role

AKSAudit
| where TimeGenerated > ago (1h)
| where RequestObject.kind == "ClusterRoleBinding"
| where ResponseObject.subjects[0].name != "aks-support"
| project TimeGenerated, PodName, Verb, SourceIP=SourceIps[0],User=ResponseObject.subjects[0].name,ClusterRoleBinding=ResponseObject.metadata.name,ClusterRole=RequestObject.roleRef.name
| order by TimeGenerated asc



3. Users that have Admin Access

Users should not be part of system:masters and system:accounts. Any user who is a member of this group bypasses all RBAC rights checks and will always have unrestricted superuser access, which cannot be revoked by removing RoleBindings or ClusterRoleBindings.

//Users part of system:masters or Users that are part of system:accounts
AKSAudit
| where TimeGenerated > ago (1h)
| extend authorizationDecision = parse_json(Annotations)
| extend user = parse_json(User)
| extend sourceIps = parse_json(SourceIps)
| where user.groups[0] in ("system:masters","system:accounts") or user.groups[1] in ("system:masters","system:accounts")
| where user.username !in ("aksService","system:apiserver","aksProblemDetector")
| project TimeGenerated, PodName, Verb, SourceIP=sourceIps[0],Username=user.username, AuthorizationDecision=authorizationDecision["authorization.k8s.io/decision"], AuthorizationDecisionReason=authorizationDecision["authorization.k8s.io/reason"], RequestUri
| order by TimeGenerated asc



4. Resources that can run unauthenticated and anonymous API calls

You would want to know who is part of system:unauthenticated group and remove them where possible, as this gives access to anyone who can contact the API server at a network level.

/Bindings of system:unauthenticated and system:anonymous group
AKSAudit
| where TimeGenerated > ago (1h)
| where PodName !startswith "kube-apiserver"
| extend authorizationDecision = parse_json(Annotations)
| extend user = parse_json(User)
| extend sourceIps = parse_json(SourceIps)
| extend ObjectRef = parse_json(ObjectRef)
| where user.groups[0] in ("system:unauthenticated","system:anonymous") or user.groups[1] in ("system:unauthenticated","system:anonymous")
| project TimeGenerated, PodName, Verb, Resource=ObjectRef.resource, SourceIP=sourceIps[0],Username=user.username, AuthorizationDecision=authorizationDecision["authorization.k8s.io/decision"], AuthorizationDecisionReason=authorizationDecision["authorization.k8s.io/reason"], RequestUri
| order by TimeGenerated asc



5. Users that are trying to get secrets

There are not many common use cases where a user is getting Kubernetes secrets.

//Users that have executed 'kubectl get secrets'
AKSAudit
| where TimeGenerated > ago (1h)
| where Verb == "get"
| extend authorizationDecision = parse_json(Annotations)
| extend user = parse_json(User)
| extend sourceIps = parse_json(SourceIps)
| extend ObjectRef = parse_json(ObjectRef)
| where ObjectRef.resource == "secrets"
| where user.username !startswith "system:serviceaccount"
| project TimeGenerated, PodName, Verb, SourceIP=sourceIps[0],Username=user.username, AuthorizationDecision=authorizationDecision["authorization.k8s.io/decision"], AuthorizationDecisionReason=authorizationDecision["authorization.k8s.io/reason"], RequestUri
| order by TimeGenerated asc



6. Users that are trying to bind to Cluster Admin roles

Like we discussed above Cluster Admin roles should be used sparingly. You would want to know who is trying to bind to Cluster Roles

//Users that have executed Cluster Role Binding on cluster admin
AKSAudit
| where TimeGenerated > ago (1h)
| where Verb == "create"
| extend authorizationDecision = parse_json(Annotations)
| extend user = parse_json(User)
| extend sourceIps = parse_json(SourceIps)
| extend ObjectRef = parse_json(ObjectRef)
| where user.username != "aksService"
| where ObjectRef.resource startswith "clusterrole"
| project TimeGenerated, PodName, Verb, Resource=ObjectRef.resource, SourceIP=sourceIps[0],Username=user.username, AuthorizationDecision=authorizationDecision["authorization.k8s.io/decision"], AuthorizationDecisionReason=authorizationDecision["authorization.k8s.io/reason"], RequestUri
| order by TimeGenerated asc



7. Pods that are in default namespace

In Kubernetes, namespaces provides a mechanism for isolating groups of resources within a single cluster. Namespaces are a way to divide cluster resources between multiple users. Kubernetes includes the default namespace so that you can start using your new cluster without first creating a namespace. Unless a namespace is specified when creating a resource Kubernetes assumes the default namespace. As a result users will deploy their resources in Default Namespace and can make potentially malicious changes to running applications in the default namespace.

ContainerLogV2
| where TimeGenerated > ago (1h)
| where LogSource == "stdout"
| where PodNamespace == "default"
| extend ContainerHostName1 = tostring(LogMessage.hostname)
| join ContainerInventory on $left.ContainerHostName1 == $right.ContainerHostname
| summarize dcount(Image) by ContainerHostname, Repository, Image
| project ContainerHostname, Repository, Image



Conclusion

In this document we showed you:

• How to set up Microsoft Sentinel to monitor security risks in Azure Kubernetes Services (AKS) clusters. It also discusses the container security risks and how Microsoft Defender for Cloud addresses them.

• Provide you a map of 32 container risks and how Microsoft Defender for Cloud alerts and Azure Policies provide a great coverage. It covers the areas of pod security, network security, container image security, kubelet activity, API server security, RBAC monitoring, secrets and ConfigMap access, audit logging, compliance monitoring, container runtime security, and incident response and forensics.

• Showed you how to configure your environment to monitor AKS. The data connectors to ingest AKS data, setting up the diagnostic settings for the AKS cluster and enabling Container Insights to get the pod level data. Showed you how to enable the AKS Connector from Content Hub, which provides a workbook, hunting queries, and a data connector.

• We show how to use the out-of-the-box workbook that comes with the AKS Connector. The workbook helps to understand the AKS cluster coverage, the security state, the security alerts, and the security recommendations. It also provides filters and drill-downs for further analysis.

• Provide some examples of custom search queries that can be used to mine the log tables for more pressing risks. The queries can help to identify unauthorized or suspicious pods, privilege escalation attempts, changes to pod security policies, unexpected network traffic patterns, unauthorized access to secrets, and more.
