HOW TO: Use REST to POST in Hosted SharePoint Apps

SPDev_Support's avatar
SPDev_Support
Icon for Microsoft rankMicrosoft
May 01, 2019

First published on TECHNET on Apr 15, 2013





This blog post is a contribution from Mustaq Patel, an engineer with the SharePoint Developer Support team.



This blog post demonstrates the use of SharePoint 2013 REST from AppWeb to issue HTTP POST on HostWeb. This  does not require cross domain calls or the use of SP.RequestExecutor.js.  Cross-site collection calls are demonstrated in Solving cross-domain problems in apps for SharePoint .



So let’s dive into the App. This App is an OnPrem SharePoint hosted app which will create a sub-site in the hostweb, create a custom List within that sub-site and create list item in the custom list.



This can be further enhanced to do the full CRUD operations using REST as demonstrated in http://msdn.microsoft.com/en-us/library/jj164022.aspx



Prerequisite



You will need a SharePoint 2013 environment that is configured to develop and deploy SharePoint Apps. If not please follow below MSDN to configure your environment for SharePoint Apps : How to: Set up an on-premises development environment for apps for SharePoint



Steps



1. Create a SharePoint Hosted App using Visual Studio 2012  using your on premise Site Url to deploy the App.



2. Edit default.aspx markup and add the following to PlaceHolderMain


<asp:Content ContentPlaceHolderID="PlaceHolderMain" runat="server">

<div>

<p id="message"></p>

</div>

<br /><br />

<input id="btncreatespweb" type="button" value="Create SPWeb on HostWeb" onclick="createSPWeb();" />

&nbsp;&nbsp;

<input id="btncreatesplist" type="button" value="Create SPList on HostWeb" onclick="createSPList();" />

&nbsp;&nbsp;

<input id="btncreatesplistitem" type="button" value="Create SPListItem" onclick="createSPListItem();" />

</asp:Content>

3. Edit App.js and replace all the code with the following :


'use strict';

var hostweburl;

var appweburl;

// This code runs when the DOM is ready and creates a context object which is needed to use the SharePoint object model

$(document).ready(function () {

hostweburl= decodeURIComponent(getQueryStringParameter("SPHostUrl"));

appweburl = decodeURIComponent(getQueryStringParameter("SPAppWebUrl"));

});

function createSPWeb() {

$.ajax(

{

url: appweburl +

"/_api/SP.AppContextSite(@target)/web/webinfos/add?@target='" +

hostweburl + "'",

type: "POST",

data: JSON.stringify(

{

'parameters':

{

'__metadata': { 'type': 'SP.WebInfoCreationInformation' },

'Url': 'RestSubWeb',

'Title': 'RestSubWeb',

'Description': 'REST created web',

'Language': 1033,

'WebTemplate': 'sts',

'UseUniquePermissions': false

}

}

),

headers: {

"accept": "application/json;odata=verbose",

"content-type": "application/json;odata=verbose",

"X-RequestDigest": $("#__REQUESTDIGEST").val()

},

success: successHandler,

error: errorHandler

});

}

function createSPList() {

$.ajax(

{

url: appweburl +

"/_api/SP.AppContextSite(@target)/web/lists?@target='" +

hostweburl + "/RestSubWeb'",

type: "POST",

data: JSON.stringify({

'__metadata': { 'type': 'SP.List' },

'AllowContentTypes': true,

'BaseTemplate': 100,

'ContentTypesEnabled': true,

'Description': 'My TestCustomList description',

'Title': 'TestCustomList'

}),

headers: {

"accept": "application/json;odata=verbose",

"content-type": "application/json;odata=verbose",

"X-RequestDigest": $("#__REQUESTDIGEST").val()

},

success: successHandler,

error: errorHandler

});

}

function createSPListItem() {

$.ajax(

{

url: appweburl +

"/_api/SP.AppContextSite(@target)/web/lists/GetByTitle('TestCustomList')/items?@target='" +

hostweburl + "/RestSubWeb'",

type: "POST",

data: JSON.stringify({

'__metadata': { 'type': 'SP.Data.TestCustomListListItem' },

'Title': 'Added from RESTSPApp'

}),

headers: {

"accept": "application/json;odata=verbose",

"content-type": "application/json;odata=verbose",

"X-RequestDigest": $("#__REQUESTDIGEST").val()

},

success: successHandler,

error: errorHandler

});

}

function successHandler() {

$('#message').text('Success');

}

function errorHandler(data, errorCode, errorMessage) {

$('#message').text('Error ' + errorMessage);

}

function getQueryStringParameter(paramToRetrieve) {

var params =

document.URL.split("?")[1].split("&");

var strParams = "";

for (var i = 0; i < params.length; i = i + 1) {

var singleParam = params[i].split("=");

if (singleParam[0] == paramToRetrieve)

return singleParam[1];

}

}

4. Next navigate to AppManifest –> Permissions. Select Scope=Site Collection and Permission=Full Control

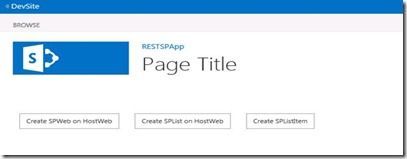

5. Deploy the App. Once deployed, the default page should load





6. Click “ Create SPWeb on HostWeb ”. Once you see the text “Success” above the button, go to the Host web where you will see the new sub-site “ RestSubWeb ” created



7. Create a List  and List item using “Create SPList on HostWeb” and “Create SPListIiem” buttons.



Here’s how the code works without using cross-domain JavaScript library. The AppContextSite object will create appropriate context based on target parameter and call the appropriate REST endpoint to do POST to SharePoint. REST url syntax used here is appWebUrl/_api/SP.AppContextSite(@target)/web?@target='http://devsite'



Where appWebUrl/_api/SP.AppContextSite(@target)/ does not change but the parameters web? is the based the object that you’re accessing and target value  is the url of the site from where you are trying to access it.



For example to access list on the host web use  appWebUrl/_api/SP.AppContextSite(@target)/web/lists?@target='” +hostWebUrl+ “’”



To create custom field for a list in host web



appWebUrl/_api/SP.AppContextSite(@target)/web/lists(guid ‘list GUID’)/Fields?@target='” +hostWebUrl+ “’”



I hope this simple demo helps writing robust Apps for SharePoint using REST API.
