Introduction

Often, customers ask why additional workload protection is needed when a web application firewall is already in place. Azure Web Application Firewall (WAF) serves as a critical control at the application edge, inspecting inbound HTTP/S traffic and blocking common web-based exploits before they reach backend services. However, modern attack paths are no longer limited to the web entry point. Attackers increasingly target components that bypass HTTP/S inspection altogether such as direct access to storage and SQL through SDKs, native integration tools, private endpoints, or compromised identities and third-party integrations.

This is where Microsoft Defender for Cloud complements WAF. While WAF focuses on securing the application boundary, Defender for Cloud extends protection into the resource layer by providing Cloud-Native Application Protection Platform (CNAPP) capabilities, including security posture management and workload protection. Using resource-native signals, it helps identify misconfigurations and detect suspicious control-plane and data-plane activity that would otherwise remain invisible to perimeter controls.

The Azure Networking Security blog post “Zero Trust with Azure Firewall, Azure DDoS Protection, and Azure WAF: A practical approach” highlights WAF’s role in inspecting inbound HTTP/S traffic, detecting malicious request patterns (such as OWASP Top 10 vulnerabilities), and reducing direct exposure of backend endpoints by enforcing a controlled application entry point.

Building on that foundation, this blog focuses on a “better together” approach that combines WAF with Microsoft Defender for Cloud protecting storage and database. Through practical scenarios and posture insights, we will underline how these controls together:

• Reduces attack surface at the application entry point
• Continuously improves security posture through configuration and exposure analysis
• Detects and responds to threats targeting storage accounts and SQL databases beyond the web perimeter

By the end of this post, you will understand how Defender for Cloud’s Storage and SQL protections extend the visibility provided by WAF, enabling protection not only at the edge, but also across the underlying data services. Together, these controls form a cohesive model that addresses both external attack vectors and internal or indirect access paths.

Note: This is not a deep configuration guide for rule tuning, nor a replacement for official product documentation. It is intended to help architects and security teams align responsibilities and understand how these services reinforce each other.

Architecture:

The architecture below shows the traffic flow and where each service fits in the lab used in this blog to simulate the attacks. Azure Application Gateway with WAF is the internet-facing entry point, inspecting inbound HTTP/S traffic before it reaches the backend. Behind it, Azure Firewall provides both network- and application-layer inspection for inbound and outbound flows. In the backend subnet, multiple VMs host the workload.

For our demonstration, we focus on a single host running:

• OWASP Juice Shop (port 3000),
• An upload API that writes to Azure Storage (port 8080)
• An API that connects to Azure SQL Database (port 5000).

This setup allows us to simulate realistic attack paths originating both from the internet and from within the network.

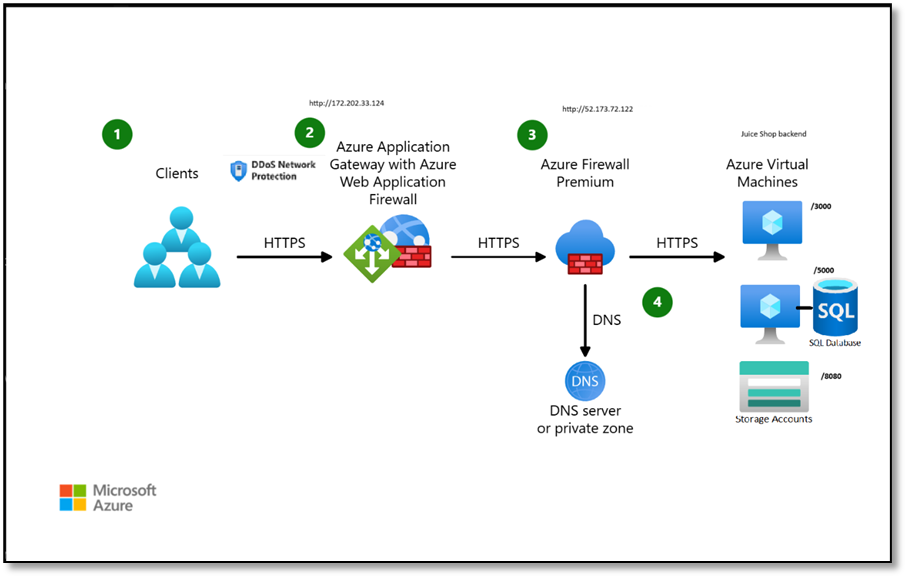

Figure 1: Architecture that shows resources with Application Gateway with WAF, Azure Firewall Premium and inbound traffic

Note: The patterns in this blog apply to both Azure WAF platforms — Application Gateway WAF and Azure Front Door WAF. The lab uses Application Gateway WAF for the demonstration.

Now, let’s head to the next section where we dive deep into these services to understand their capabilities with some attacks, alerts and insights.

Azure Web Application Firewall at the Edge

As we may have understood by now, Azure WAF is the first layer of protection, inspecting external web traffic for malicious patterns. Each incoming request is evaluated against its rulesets to either allow, block or log this traffic by using its managed and custom rulesets. Now, what are these rulesets?

Azure WAF uses managed rule sets like the Default Rule Set (DRS) (version 2.2 as of this writing), which incorporate OWASP Top 10 protections and Microsoft threat intelligence to block common attacks (SQL injection, XSS, remote file inclusion, etc.) in real time. Additional managed sets include a Bot Protection rule set (to guard against malicious bots scraping content) and HTTP DDoS rule set (to detect Layer 7 DDoS patterns). Beyond the built-ins, you can define custom WAF rules for application-specific needs—blocking or allowing traffic based on attributes like geolocation, IP ranges, or specific URL paths.”

Now let’s talk about an example scenario- in our lab, Azure WAF is protecting multiple backend services on different paths and ports. When an external attacker tries to exploit the Juice Shop app with a crafted XSSattack, Azure WAF immediately detects the malicious pattern and blocks the request at the gateway as seen below.

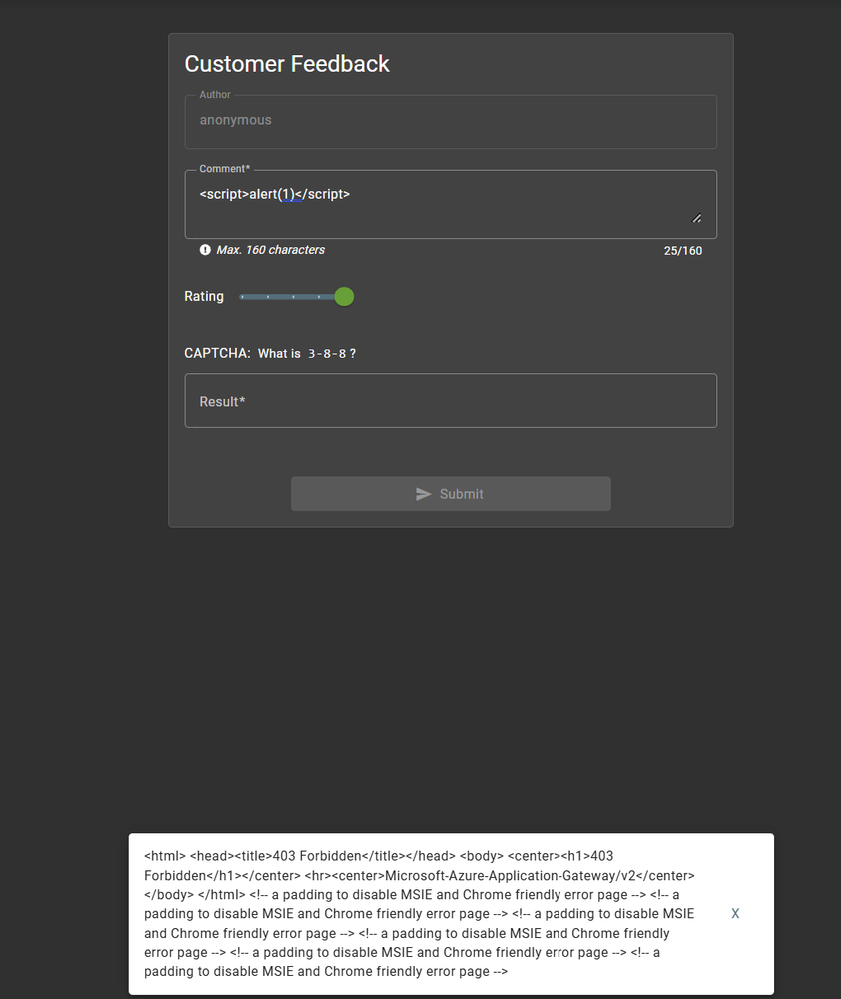

Figure 2: An XSS attack on the juiceshop website, immediately results in a 403 Forbidden as WAF catches this attack in the application layer.

However, WAF’s inspection is inherently limited to traffic it can see – primarily, the HTTP/S flows it fronts. Let’s say our attacker changes tactics: instead of trying to force malicious code through the web interface, they obtain a stolen storage key or credentials through phishing and attempt to access the Azure Storage account directly via APIs. This request never goes through WAF, so WAF cannot assess or block it. In such a case, Microsoft Defender for Storage’s threat detection monitors for such suspicious activity, for example by raising an alert about the unusual direct access or flagging a malware file uploaded to a blob container. Likewise, if our attacker exploited a weakness in application code to run malicious SQL commands on the database (whether through potentially harmful application or a suspicious service account), Defender for SQL monitors for and alerts anomalous query patterns or suspicious logins. This illustrates why WAF and Defender for Cloud are complementary – WAF stops web attacks at the door, while Defender for Cloud watches for threats that get inside or come through alternate doors.

Figure 3: Single-host lab architecture with Azure Application Gateway (WAF) and resource‑level protection

Figure 3 illustrates the key distinction: WAF inspects and protects the application entry point, while Defender for Cloud provides visibility into the resources themselves. Together, they cover both the path into the application and the behavior within the environment—forming a complete protection model across layers. Because not all access to storage and databases may flow through the application gateway, you also need resource-level posture and threat detection to see and stop activity that never appears in WAF logs.

Cloud Security Posture Management with Defender for Cloud

With the edge covered, the next challenge is reducing risk that originates from misconfiguration and resource exposure. Most successful attacks originate from exposed services and misconfigurations rather than direct application-layer exploits.

Microsoft Defender for Cloud’s storage and database protection provide security posture insights that help identify and prioritize these security gaps at the resource level. Defender for Cloud has visibility insights that capture the resources’ misconfigurations on the control and data plane via the Recommendations view in the Azure portal, as shown in the example below:

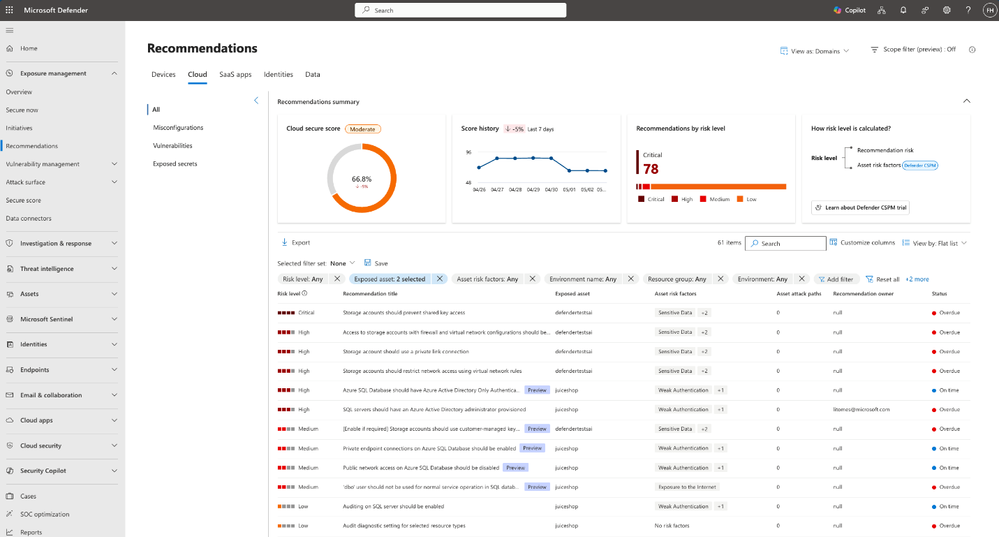

Figure 4: Juice Shop’s storage account and SQL server recommendations

Figure 4 is a list of recommendations organized by risk level for this particular environment. The security team should harden the “defendertestsai” storage asset by preventing shared access keys, and the “juiceshop” SQL database by provisioning an Entra administrator. Each recommendation will also provide guidance to remediate these findings.

The “Data & AI Dashboard” in Defender for Cloud will also provide security posture insight into storage, database and AI resources by surfacing their risks, alerts and sensitive data discovery all in one dashboard.

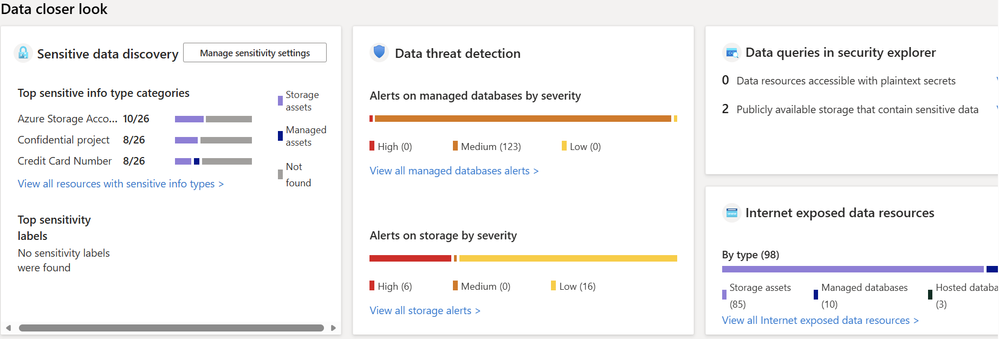

Figure 5: Juice Shop’s Sensitive data discovery and Data threat detection dashboard in Defender for Cloud’s “Data&AI section”.

Under Data closer look, in Figure 5, you can see in this example, starting from the left, sensitive information found in scanned resources, level alerts for databases and storage resources based on severity, templatized queries from the Cloud Security Explorer, and a graph displaying all internet exposed data resources below. These powerful insights on data resources all come from Defender for Cloud, designed to help customers harden their environment by priority through visibility across their entire data ecosystem based on risk level.

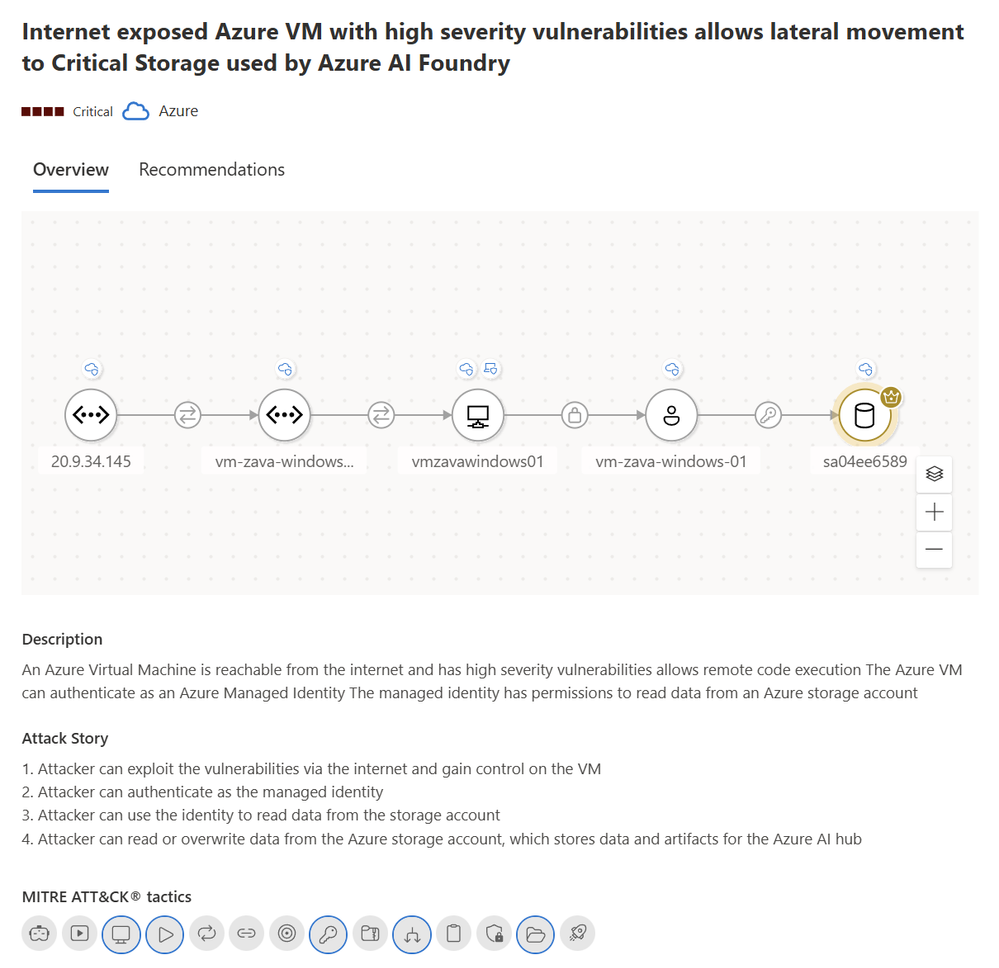

Figure 6: Juice Shop’s attack path “Internet exposed Azure VM with high severity vulnerabilities allows lateral movement to Critical Storage used by Azure AI Foundry”.



Attack paths are potential avenues in which an attacker can infiltrate and compromise data. In Figure 6 above, we see insight into not only the storage account itself, but the context around it: an internet exposed storage account is connected to other assets like a virtual machine and a managed identity that has permissions to manipulate data.

These Defender for Cloud security posture insights complement WAF and complete the defense-in-depth security approach: harden the data services so that even if an attacker reaches them the blast radius is smaller, and the likelihood of compromise is reduced.

Defender for Cloud’s advanced threat protection

Even in well-secured environments, attackers often interact directly with storage accounts or databases—through identities, APIs, or trusted internal paths. Reducing exposure is critical—but not sufficient. Detection is required once an attacker begins interacting with data Defender for Cloud’s advanced threat protection for Storage and SQL surfaces resource-level security alerts—such as suspicious access patterns, anomalous queries, and malware detections—often with richer context than perimeter telemetry alone.

Let’s use a malware alert for a storage account in the Defender portal as an example:

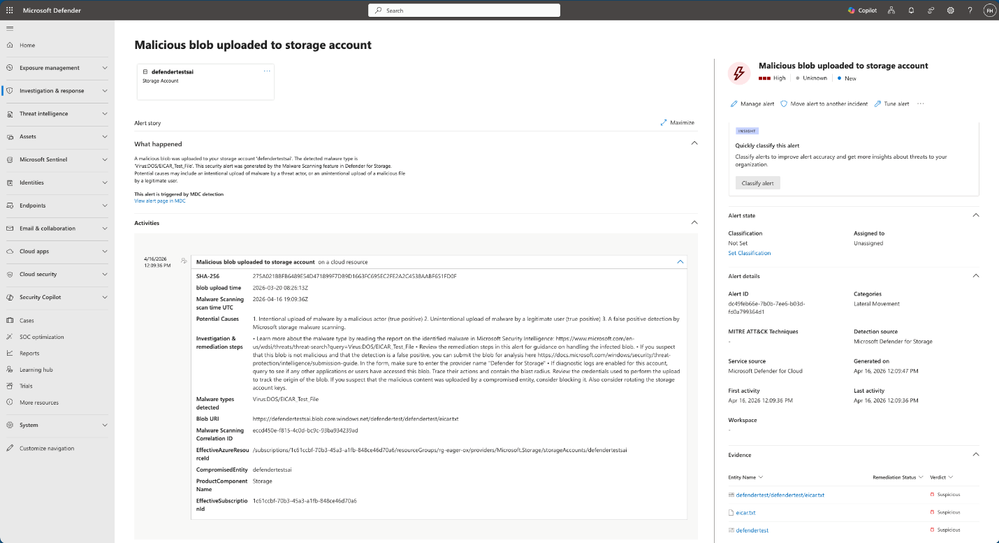

Figure 7: Juice Shop’s storage account security alert “Malicious blob uploaded to storage account”.

Malware scanning is a common requirement for teams that process user uploads or must meet security benchmarks. In this lab, Juice Shop allows users to upload files (for example, feedback attachments), and the upload API writes those files to Azure Blob Storage.

Azure WAF inspects the HTTP request that delivers the upload headers, parameters, payload patterns and blocks web-layer attacks like XSS or SQLi. Scanning blob contents after they land is a different job, performed at the resource layer by Defender for Storage. With Defender for Storage malware scanning enabled, each uploaded blob is scanned; if the verdict is malware, Defender for Cloud raises an alert such as “Malicious blob uploaded to storage account” as shown in figure 7.  Then, with Defender for Storage’s automated malware remediation, the malicious blog is set to soft-delete for quarantine and further analysis.

SQL databases are high-value targets for data access, privilege escalation, and exploitation of vulnerable applications. Database protection in Defender for Cloud has the visibility to provide customers with control plane and data plane level insight to alert on suspicious activity—such as anomalous logons, unusual client applications, and injection-like query patterns.

For example, here’s a potential SQL injection alert for a database in the Defender portal:

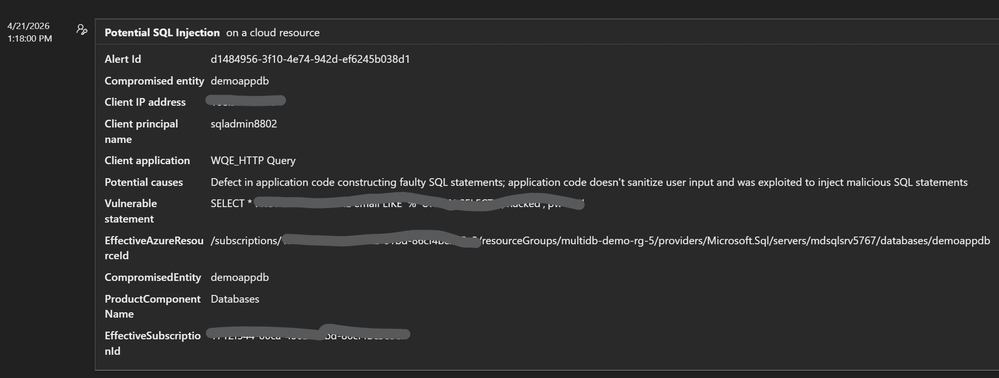

Figure 8: Juice Shop’s database security alert on a potential SQL injection.

These alerts typically include investigation context such as the client application, client principal name, and the statement or pattern in question, along with severity to help you prioritize, as shown in Figure 8. From there, analysts can use recommended response actions (for example, to contain risky access paths or harden the database) to reduce the chance of repeat activity.

In practice, Defender for Cloud threat detection gives SOC teams prioritized, resource-specific alerts with the context needed to investigate quickly and take action at the storage and database layers.

Conclusion

Azure Application Gateway with WAF is a necessary control to reduce application-layer risk at the edge. But defense in depth requires the assumption that some threats will reach or target data services directly. By layering Microsoft Defender for Storage and Microsoft Defender for SQL on top of Azure WAF, you add continuous posture insights to reduce preventable exposure, plus threat protection that detects suspicious activity at the resource layer. Operated together, these services provide stronger prevention, better detection coverage, and clearer response paths than single control alone.
