Reliability is easy to reduce to a single number. You find the SLA, you put it on a slide, and you move on. But a service-level agreement describes an outcome, not the set of decisions that produce it. The same Azure Service Bus namespace can keep running when a single server fails, survive the loss of an entire datacenter, or stay available through a regional outage, and which of those is true depends on choices you make, not on a percentage you read. Reliability is a stack of layers you compose to fit the workload, and the only real mistake is stopping at a layer below what the workload needs.

That framing matters because the failures you are protecting against are not all the same size. A single host can fail. A whole availability zone can lose power. An entire region can go dark in a way that no amount of in-region redundancy will save you from. Each of those is a different blast radius, and each has a different control that answers it. Treating reliability as one setting leaves you protected against the small failures and exposed to the large ones, which is exactly the situation you do not want to discover during an incident.

Why one copy is never enough

Start with what the service already does for you, because it sets the baseline. Inside a region, every messaging store that Service Bus keeps for your namespace is held as three copies: one primary and two secondaries, kept in sync for both message data and management operations. If the primary copy fails, the service promotes a secondary to take its place with no downtime for your clients and no action from you. You did not configure this and you cannot turn it off. It is the floor.

The floor is high, but it has an edge. Three copies protect you from a failed disk or a failed broker. They do not, on their own, tell you whether those three copies sit in the same building. That question, where the copies live, is what separates a namespace that survives a hardware fault from one that survives the loss of a datacenter, and it is the first real decision in the stack.

We learned this in the datacenter too

Nobody who ran their own infrastructure trusted a single disk. They put disks in a RAID array so one could fail without taking the data. Then they realized the array lived in one server, so they spread copies across servers. Then the servers lived in one room with one power feed, so they spread across rooms, and eventually across buildings. Each step answered a failure the step before it could not. The cloud did not retire that thinking. It packaged each layer into something you can turn on with far less effort than racking a second datacenter ever took, which means the only thing standing between you and the next layer of protection is deciding to use it.

The reliability toolkit in Azure Service Bus

Azure Service Bus gives you a set of reliability controls that map directly to those blast radii. As with every other part of the platform, the point is that they layer. You are not picking one. You are deciding how far out you need protection to reach.

• Built-in redundancy keeps multiple in-sync copies of your data inside the region and fails over between them automatically.
• Availability zones spread those copies across physically separate datacenters in the region, so the loss of a whole zone is survivable.
• Geo-Replication extends the namespace across regions, replicating both configuration and messages so you can promote a second region when the first one fails.

The sections below walk through each and the failure it answers.

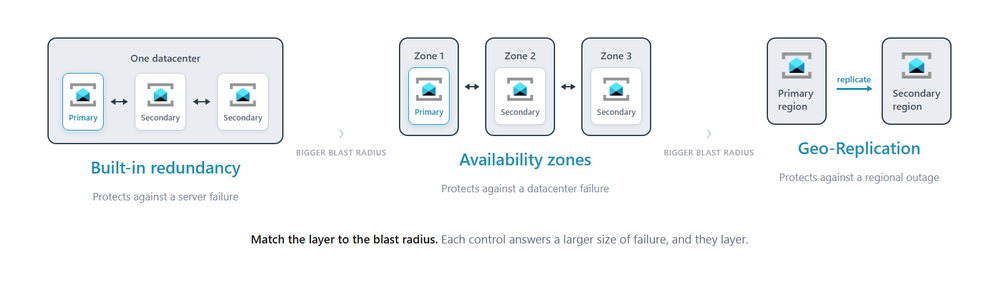

Built-in redundancy, availability zones, and Geo-Replication, each protecting against a larger failure

Availability zones are on by default

Availability zones are physically separate groups of datacenters within a region, each with independent power, cooling, and networking. When a namespace is zone redundant, Service Bus spreads its compute, networking, and storage across zones and replicates message data synchronously between them, so a write is acknowledged only once multiple copies in different zones have it. Lose a zone and the service reroutes to the healthy zones automatically, with no data loss. The Service Bus SDKs already retry transient faults, so to the client it looks like any other brief reconnect.

The best part is what you have to do to get it: nothing. Zone redundancy is automatically enabled when you create a namespace in a region that supports availability zones, it applies to every tier, and every namespace in such a region is zone redundant by default. For the overwhelming majority of namespaces, this is the reliability layer you want, and you already have it.

Geo-Replication crosses regions with your messages

Zones protect you inside a region. They do not help if the whole region is unavailable. For that, Geo-Replication extends a Premium namespace across regions, continuously replicating both the metadata (your queues, topics, subscriptions, and their configuration) and the data (the messages themselves, along with their state and property changes) from a primary region to a secondary. Clients connect to a single namespace hostname that always points at the current primary, so there are no connection string changes and no separate endpoints to juggle. When you need to move, you promote the secondary, the hostname repoints to it, and the old primary becomes the new secondary.

Promotion is always yours to initiate. Azure never fails you over automatically, because only you know whether your wider system is ready to move regions. You choose a planned promotion, which waits for replication to catch up so nothing is lost, or a forced promotion, which moves immediately and may lose whatever has not yet replicated. How much a forced promotion can lose depends on the replication mode you configure, which is the real decision underneath Geo-Replication.

Synchronous or asynchronous, and what you are really choosing

Geo-Replication runs in one of two modes, and the difference is a trade between latency and data assurance. With synchronous replication, every write has to commit in both the primary and the secondary before the client gets its acknowledgment. Your recovery point objective is zero, no acknowledged message is ever lost, but each publish now pays the round trip to the other region, and your write availability depends on the secondary as well as the primary. With asynchronous replication, the primary commits and acknowledges first and replicates a moment later, up to a maximum lag you configure. Latency stays low and the loss of the secondary does not immediately stop the primary, but a forced promotion can lose whatever was still in flight, and if the lag grows past your configured maximum the primary starts throttling so replication can catch up.

Which mode fits depends on the workload. Synchronous replication suits data you cannot afford to lose and where the regions are close enough that the latency is tolerable. Asynchronous replication suits workloads that value throughput and primary-region availability and can absorb a bounded amount of data loss on a forced promotion. Keep the primary and secondary close to each other when you run synchronously, because each write then pays the round trip between them. Asynchronous replication moves that round trip off the write path, so distance matters far less.

How reliability meets the network

Reliability and network security are designed as one system, and Geo-Replication is where they meet most visibly. A namespace locked down with private endpoints has to keep that isolation working through a promotion, and that takes planning. A private endpoint is an IP in a single region, and Azure DNS private zones resolve the namespace name to it. Promote to the secondary region without preparing for it and clients can end up resolving to a private IP that no longer answers. The fix is to create a private endpoint in each region, peer the virtual networks so clients can reach either one, and manage DNS so the namespace name always resolves to the private endpoint in the current primary, updating it as part of the promotion. Service endpoints have it easier, because a subnet rule is not tied to a regional address and keeps working across a promotion untouched. The companion post on network security walks the controls themselves; the point here is that you plan the failover and the network together, never one after the other.

Right-size the stack to the workload

None of this means every namespace needs every layer. The workload draws the lines. Built-in redundancy and zone redundancy are on by default, so the floor of your reliability stack is already as high as the platform can make it. The decision that takes real thought is whether to cross regions, and that depends on how much data loss the workload can tolerate. A namespace that ingests telemetry you can afford to lose for a few minutes does not need a second region. A payment pipeline that cannot drop a single instruction does, and probably wants synchronous replication on top.

So treat reliability the way you treat the rest of the platform: a stack you assemble to the workload, not a number you accept. Take the layers that are already on, reach across zones without thinking about it because the platform already did, and add cross-region replication where the workload's tolerance for an outage demands it. And remember that the higher reliability tiers reward you twice: running Premium in a region with availability zones lifts your availability commitment as well as your actual resilience. The strongest resilience is rarely one dramatic setting. It is the right layer for each size of failure, chosen on purpose.

Getting started

Open your namespace in the portal and check the region it runs in. If that region supports availability zones, your namespace is already zone redundant and the reliability floor is in place. The decision that takes real thought is whether to cross regions: for any workload that cannot afford to lose messages in a regional outage, enable Geo-Replication on a Premium namespace and choose synchronous or asynchronous replication based on how much data loss it can tolerate. Everything else can stay on the layers that are already on. The reliability documentation covers each step. Match the layer to the failure you actually need to survive.
