NDES EA Certificates – Quick Recap

By default, three version 1 certificate templates are assigned to your Certification Authority by the configuration routine of the NDES service:

1. CEP Encryption - Used by the device to encrypt communication with NDES
2. Exchange Enrollment Agent (Offline Request) - Used to request certificates on behalf of another subject
3. IPSec (Offline request) - Default template to enroll certificates to devices

All certificate templates from the list above are version 1 certificate templates. Number 1 and 2 share the common characteristic of having the Extended Key Usage (EKU) extension set to include the OID 1.3.6.1.4.1.311.20.2.1, which corresponds to “Certificate Request Agent”. In this article template number 1 and 2 (from the list above) will be referred to as “NDES Enrollment Agent certificate(s) templates”.

The enrollment of the NDES EA certificates based on certificate templates number 1 and 2 (see above) during NDES configuration is hard‑coded in the configuration routine. This design choice from many years ago introduces several challenges:

• Security: in case you misconfigure the default NDES certificate templates security settings, they are vulnerable to CVE-2024-49019. A detailed explanation of this vulnerability is out of scope here; however, as a general best practice, certificate templates version 1 should not be used.
• The default “Exchange Enrollment Agent (Offline request)” certificate template (default template number 2. as per above) is a user template and the installation routine “somehow magically” imports this certificate into the machine store. This makes automatic renewal challenging...
• Version 1 certificate templates have significant functional limitations, as they cannot be modified (except for security settings):

  • The validity period (2 years) cannot be changed. For NDES EA certificate templates the validity period is 2 years.

  • The template’s CSP[1] cannot be modified. As a result, NDES Enrollment Agent certificates cannot be enrolled in a Hardware Security Module (HSM).

  • Version 1 templates do not support Autoenrollment. Consequently, NDES service certificates therefore must be renewed manually. When the Enrollment Agent certificates expire, NDES stops working.

  • Version 1 templates lack template-level access control and modern enrollment safeguards (e.g. Certificate Manager Approval).

[1] NDES does not support KSP for EA certificates.

As you can see, there are several reasonable arguments to replace the default NDES service certificate templates.

Configuring custom NDES Service Certificate Templates

Generally, there are two ways of creating some kind of “fire and forget” certificate templates for NDES:

1. Common Windows Active Directory Autoenrollment can be used if there is no need for a custom name/subject in the request agent certificates.
2. We can use key-based renewal (KBR) which allows us to create custom subjects in the certificates even together with automatic renewals.

The NDES service will not verify the certificates’ subject information. It will just verify that the certificates have “request Agent” EKU (1.3.6.1.4.1.311.20.2.1).

In a nutshell, you will need to duplicate two version 1 certificate templates and modify those to fit your needs. See table below for detailed description of settings.

In addition to that, there are a few more things to consider:

NDES service account

There are different options for creating the SCEP IIS App Pool identity. As Microsoft recommends using a hardened Tier 0 domain user account, this article will focus on this configuration. By default, domain user accounts do not have any permissions on private keys in the computer certificate store. Therefore, you must grant READ permissions to the NDES service certificate private keys either manually or in the certificate template configuration. This can be configured on the Request Handling tab as we will see later in this article.

(Source) Certificate Templates to duplicate

Certificate templates include a flag that is hidden from the GUI and determines whether a template is treated as a user or a computer certificate template. If you are curious, the command certutil -ds -v “CEPEncryption” will make it visible. Look out for CT_FLAG_MACHINE_TYPE in the output. This distinction is important in our scenario because the Exchange Enrollment Agent (Offline Request) template does not include this flag. As a result, certificates based on this template can only be enrolled into the user certificate store. To ensure the new template replacing the Exchange Enrollment Agent (Offline Request) template supports enrollment into the computer certificate store, we use the Enrollment Agent (Computer) default template as the source template.

Subject and SAN for NDES Service Certificates

Subject/SAN can either be built from Active Directory or provided in the request.

a) Build (subject) from this Active Directory information (option 1 from above – using common autoenrollment)

Using Common Name and DNS name is common practice. Subject and/or SAN will simply include the NDES computer account name.

As this may not be appropriate in all scenarios, we also have option...

b) Supply (subject) in the request (option 2 from above – using key-based renewal)

While this option gives you the freedom of choosing a proper Enrollment Agent subject information and SAN, it comes at the price of some additional configuration requirements to allow secure and automatic renewal of NDES service certificates. Using the key based renewal feature, we will have to initially enroll the NDES service certificates manually. Renewal will happen automatically. To implement this, both NDES service certificate templates must be configured as described below:

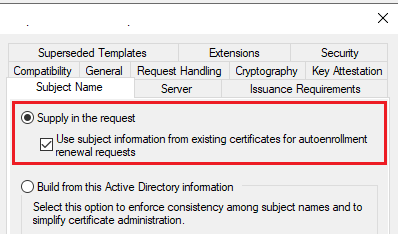

Subject Name tab















Issuance Requirements tab

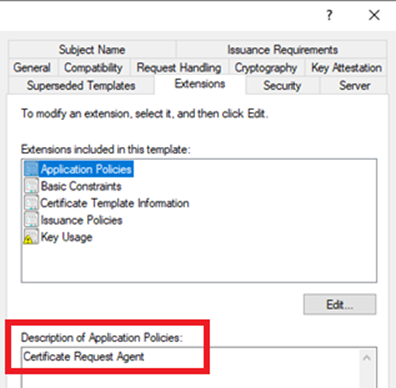

Extensions tab

“Certificate Request Agent” is the only Application Policy required.

Please note that “Client Authentication” is required as an additional Application Policy in case you use CEP and CES for key based renewal.

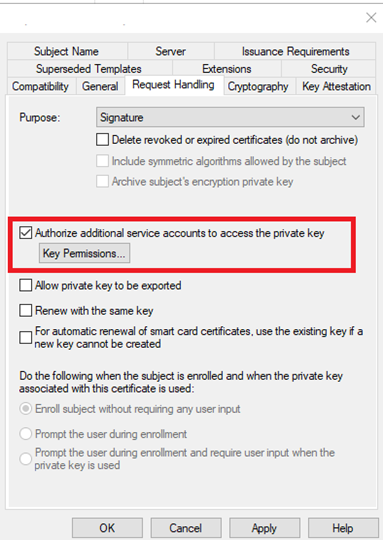

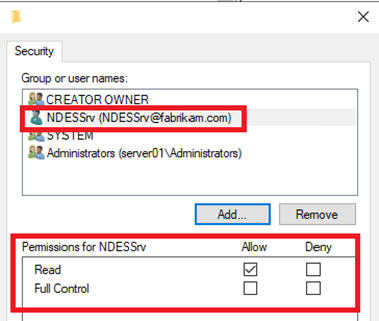

Request Handling and Security tab































Housekeeping

After new EA certificates have been enrolled…

• Unassign version 1 certificate templates from all CAs
• Revoke all previously issued NDES EA certificates and remove them from NDES server.
• Restart NDES service (execute to reload the web service and certificates)

Final Thoughts

NDES Enrollment Agent certificates are highly privileged and should never rely on legacy version 1 templates. Replacing them with custom templates that support HSMs and secure automatic renewal significantly reduces outage risk and closes known security gaps.
