Assess Azure DDoS Protection Status Across Your Environment

Introduction

Distributed Denial of Service (DDoS) attacks continue to be one of the most prevalent threats facing organizations with internet-facing workloads. Azure DDoS Protection provides cloud-scale protection against L3/4 volumetric attacks, helping ensure your applications remain available during an attack.

However, as Azure environments grow, maintaining visibility into which resources are protected and whether diagnostic logging is properly configured becomes increasingly challenging. Security teams often struggle to answer basic questions:

• Which Public IP addresses are protected by Azure DDoS Protection?
• Are we using IP Protection or Network Protection (DDoS Protection Plan)?
• Is diagnostic logging enabled for protected resources?

To address these questions at scale, we’ve developed a PowerShell script that assesses your Azure DDoS Protection posture across all subscriptions.

Understanding Azure DDoS Protection SKUs

Azure offers three DDoS Protection tiers:

For more details, see Azure DDoS Protection overview.

The Assessment Script

The Check-DDoSProtection.ps1 script provides a full view of DDoS Protection status across your Azure environment. This section covers the script’s key capabilities and the resource types it supports.

Key Features

• Multi-subscription support: Scan a single subscription or all subscriptions you have access to
• DDoS Protection status: Identifies which Public IPs are protected and which SKU is being used
• VNET correlation: Automatically determines the VNET associated with each Public IP to assess Network Protection inheritance
• Diagnostic logging check: Verifies if DDoS diagnostic logs are configured for protected resources
• CSV export: Export results for further analysis or reporting

Prerequisites

Before running the script, ensure you have:

Azure PowerShell modules installed:

Run the following commands in PowerShell (version 5.1+) or PowerShell Core to install the required Azure modules. No special permissions are needed, these will install in your user profile.

Install-Module -Name Az.Accounts -Scope CurrentUser -Force Install-Module -Name Az.Network -Scope CurrentUser -Force Install-Module -Name Az.Monitor -Scope CurrentUser -Force



Appropriate Azure permissions:

o   Reader role on subscriptions you want to scan

o   Microsoft.Network/publicIPAddresses/read

o   Microsoft.Network/virtualNetworks/read

o   Microsoft.Insights/diagnosticSettings/read



Azure login:

Authenticate to Azure before running the script. This opens a browser window for interactive sign-in.

Connect-AzAccount

How to Use the Script

Run the script from a PowerShell session where you’ve already authenticated with Connect-AzAccount. The account must have Reader role on the subscriptions you want to scan.

Download the Script

You can download the script from: - GitHub: Check-DDoSProtection.ps1

Basic Usage: Scan Current Subscription

Scans only the subscription currently selected in your Azure context.

.\Check-DDoSProtection.ps1

Scan a Specific Subscription

Scans a single subscription by its ID.

.\Check-DDoSProtection.ps1 -SubscriptionId "12345678-1234-1234-1234-123456789012"

Scan All Subscriptions

Scans every subscription your account has Reader access to.

.\Check-DDoSProtection.ps1 -AllSubscriptions

Export Results to CSV

Exports the assessment results to a CSV file for reporting or further analysis.

.\Check-DDoSProtection.ps1 -AllSubscriptions -ExportPath "C:\Reports\DDoS-Report.csv"

Large Environment Options

For organizations with many subscriptions or thousands of Public IPs, use the following parameters to handle errors gracefully and avoid API throttling.

.\Check-DDoSProtection.ps1 -AllSubscriptions `
    -ContinueOnError `
    -SavePerSubscription `
    -ExportPath "C:\Reports\DDoS-Report.csv" `
    -ThrottleDelayMs 200

Parameters for large environments:

Understanding the Output

The script provides both console output and optional CSV export. This section covers what each output type contains.

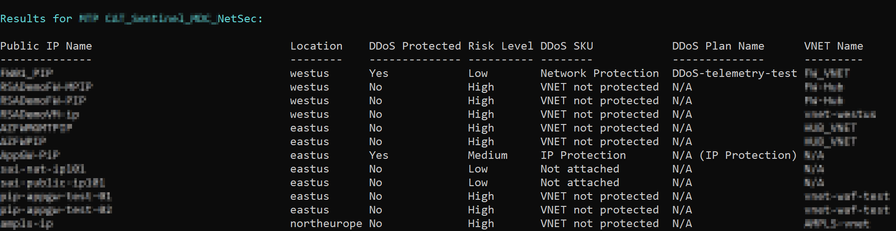

Console Output

The script displays a summary table for each subscription:

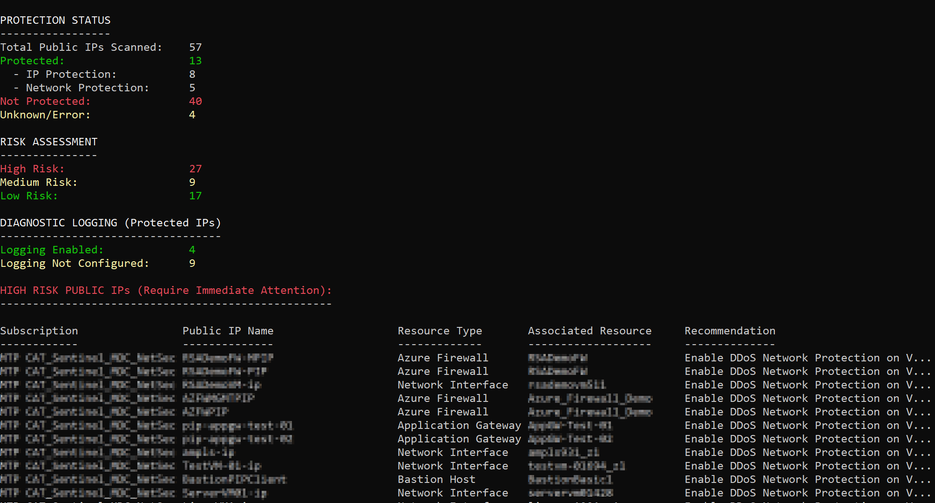

Summary Statistics

At the end of each subscription scan:

CSV Export Columns

Sample Scenarios

Scenario 1: Protected Application Gateway

Public IP Name: appgw-frontend-pip
DDoS Protected: Yes
DDoS SKU: Network Protection
DDoS Plan Name: contoso-ddos-plan
VNET Name: production-vnet
Diagnostic Logging: Configured (Log Analytics)
Risk Level: Low

Explanation: The Application Gateway’s Public IP inherits protection from the VNET which has a DDoS Protection Plan attached. Diagnostic logging is properly configured.

Scenario 2: Unprotected External Load Balancer

Public IP Name: external-lb-pip
DDoS Protected: No
DDoS SKU: VNET not protected
VNET Name: (External LB)
Diagnostic Logging: N/A
Risk Level: High
Recommendation: Enable DDoS Protection on associated VNET or enable IP Protection

Explanation: This external Load Balancer’s Public IP is not in a protected VNET. The script flags this as high risk.

Scenario 3: IP Protection Without Logging

Public IP Name: standalone-api-pip
DDoS Protected: Yes
DDoS SKU: IP Protection
VNET Name: -
Diagnostic Logging: Not Configured
Risk Level: Low
Recommendation: Configure diagnostic logging for DDoS-protected resources

Explanation: The IP has IP Protection enabled, but diagnostic logging is not configured. While protected, you won’t have visibility into attack telemetry.

Troubleshooting

Script Doesn’t Find All Subscriptions

Use the following command to list your Azure role assignments and verify you have Reader access to the target subscriptions. Run this from Azure Cloud Shell or a local PowerShell session after authenticating with Connect-AzAccount.

# Check your role assignments

Get-AzRoleAssignment -SignInName (Get-AzContext).Account.Id | Select-Object Scope, RoleDefinitionName

API Throttling

The script includes built-in retry logic for API throttling. If you still experience rate limit errors, increase the delay between API calls. Run this from the directory containing the script.

.\Check-DDoSProtection.ps1 -AllSubscriptions -ThrottleDelayMs 500

Access Denied for Specific Resources

The script displays “(Access Denied)” for VNETs or resources you don’t have permission to read. This doesn’t affect the overall assessment but may result in incomplete VNET information.

Summary

This guide covered how to use the Check-DDoSProtection.ps1 script to identify unprotected Public IP addresses, determine which DDoS SKU (Network Protection vs. IP Protection) is in use, verify diagnostic logging configuration, and assess risk levels across all subscriptions. Running this script periodically helps security teams track protection coverage as their Azure environment evolves.
