How to Create a Harness Pipeline and integrate with Azure

Building reliable, automated CI/CD pipelines is crucial for modern cloud applications. Harness — with its powerful pipeline orchestration — integrates seamlessly with Microsoft Azure, enabling teams to deploy applications faster, with stronger governance, security, and visibility.

In this blog, you’ll learn how to create a Harness pipeline and integrate it with Azure services. We will walk through:

• Introduction to Harness and its role in CI/CD
• High-level explanation of key Harness components, including:
  • Harness Delegate
  • Azure Connector
  • Secrets Manager
  • Organizational Hierarchy
• Overview of how Harness integrates with Azure

• Step-by-step creation and execution of a CI pipeline in Harness, including adding stages, configuring infrastructure, defining execution steps, and running the pipeline.

Whether you're new to Harness or looking to streamline your cloud deployments, this guide will help you set up a clean, scalable, production-ready delivery workflow.

What is Harness?

Harness is a modern CI/CD platform that automates software delivery using:

• Continuous Integration (CI)

• Continuous Delivery (CD)

• Feature Flags

• Cloud Cost Management

• Security Testing

• Chaos Engineering

What makes Harness unique is its Delegate-based execution model, which performs deployments securely from your own environment.



Key Harness Components

To successfully integrate Harness with Azure for modern CI/CD workflows, it’s important to understand the core components that drive secure, scalable automation. This section highlights the Harness Delegate, Azure Connector, Secrets Manager, and Organizational Hierarchy—each playing a vital role in connecting, managing, and deploying your applications in the cloud.



1. Harness Delegate

The Harness Delegate is a lightweight agent you install in your own infrastructure (such as an Azure VM, Kubernetes cluster, or VNet). It acts as a secure bridge between Harness’s SaaS control plane and your internal resources. The Delegate executes pipeline tasks, connects to Azure services, and manages deployments—all while keeping your credentials and secrets within your environment. Delegates communicate outbound over HTTPS, making them firewall-friendly and easy to manage.



Source: https://developer.harness.io/docs/platform/get-started/key-concepts

2. Azure Connector

A Connector in Harness is a configuration that securely stores all the information needed to connect to external tools—like Azure. The Azure Connector holds credentials, endpoints, and metadata, allowing the Delegate to authenticate and interact with Azure resources (VMs, storage, AKS, etc.) during pipeline execution. Connectors abstract away connection details, so you can reference them by name in your pipelines and keep your secrets safe.

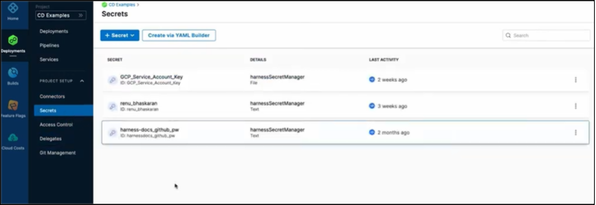

3. Secrets Manager

Secrets Management in Harness ensures that sensitive values (like Azure service principal credentials, API keys, or passwords) are encrypted and securely stored. Harness can integrate with external secrets managers (such as Azure Key Vault or HashiCorp Vault) or use its own built-in secrets store. Delegates retrieve secrets only at runtime, ensuring credentials are never exposed in logs or pipeline code. This is critical for secure CI/CD in cloud environments.

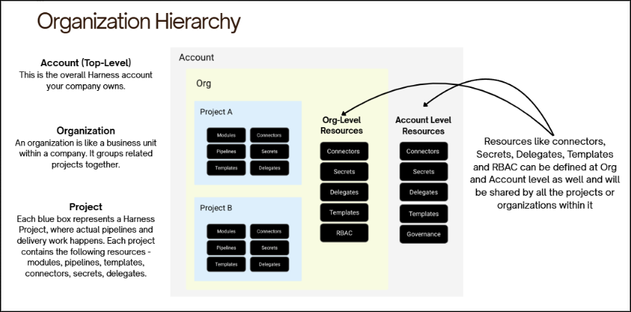

4. Organizational Hierarchy

Harness organizes resources using a clear hierarchy:

• Account: The top-level container for your company.
• Organization: Represents a business unit or division, grouping related projects.
• Project: Where actual pipelines, connectors, secrets, and delegates are defined and used.

Resources like connectors, secrets, delegates, and templates can be defined at the account, org, or project level, and shared as needed. This structure makes it easy to manage access, governance, and reusability across teams and applications.

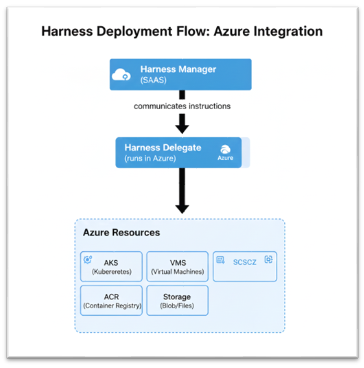

How Harness Connects to Azure

To integrate with Azure, Harness uses:

1. Azure Connector

Used to authenticate Harness with your Azure Subscription using:

• Client ID

• Tenant ID

• Client Secret

• Subscription ID

2. Kubernetes Connector

Used when deploying to Azure Kubernetes Service (AKS).

3. Secrets Manager

Stores Azure SP credentials securely.

4. Harness Delegate

A lightweight agent installed inside your Azure environment (VM/AKS).
It executes:

• Deployment tasks

• Authentication

• Manifest retrieval

• Rollbacks

• Script execution

Step-by-step pipeline creation in Harness

This guide explains how to set up a CI pipeline in Harness with Azure from scratch—covering each major step, what it means, and why it is needed.

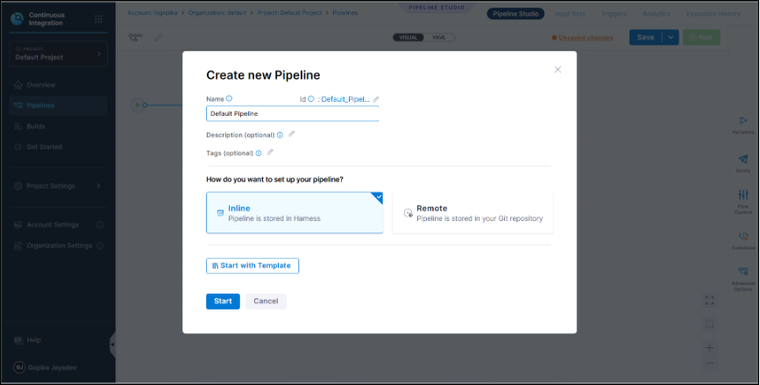

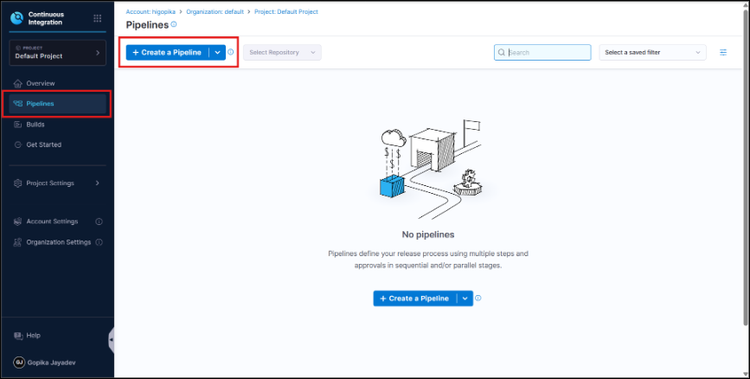

Step 1: Create a New Pipeline

This creates an empty pipeline where you can add stages that define what work the pipeline performs.

• Go to your Harness Project
• Click Pipelines → New Pipeline

• Enter a name for your pipeline
• Click Start

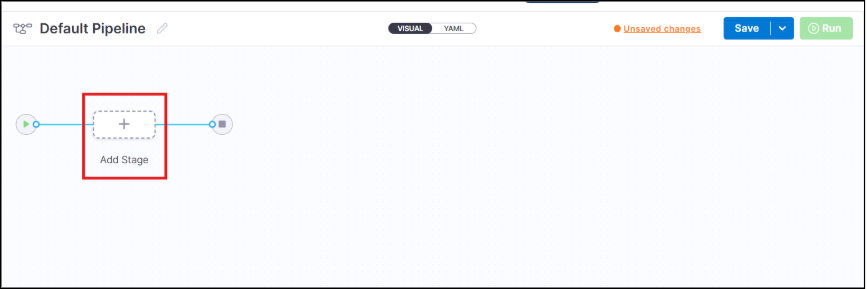

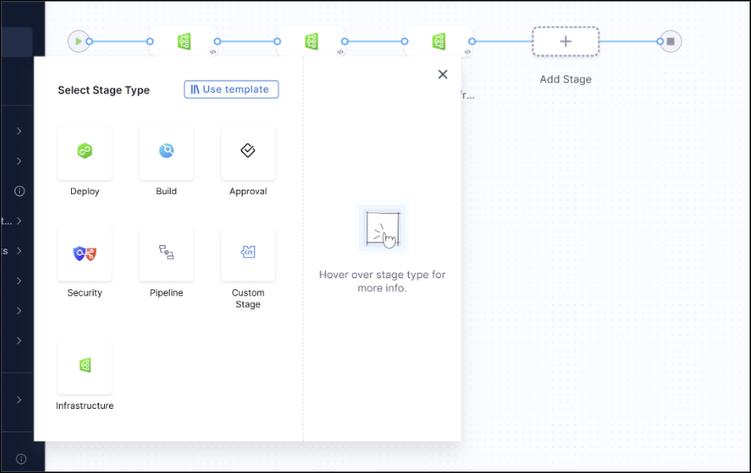

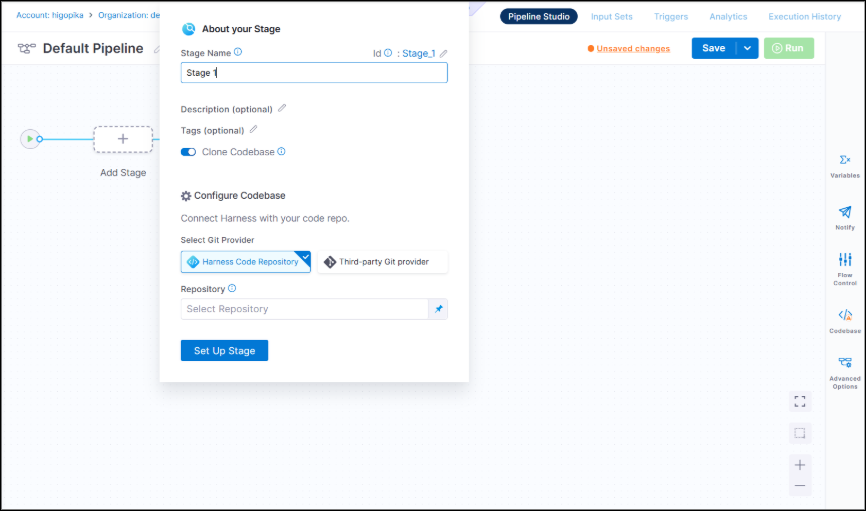

Step 2: Add a CI Stage

A CI (Continuous Integration) stage is used for running code, scripts, builds, tests, or automation tasks. This is the core of your pipeline.

• Click Add Stage





• Choose CI
• Select Infrastructure Stage (Build for trial version)



•  Give the stage a name (example: Build, Script Execution, etc.)
• Click Set Up Stage

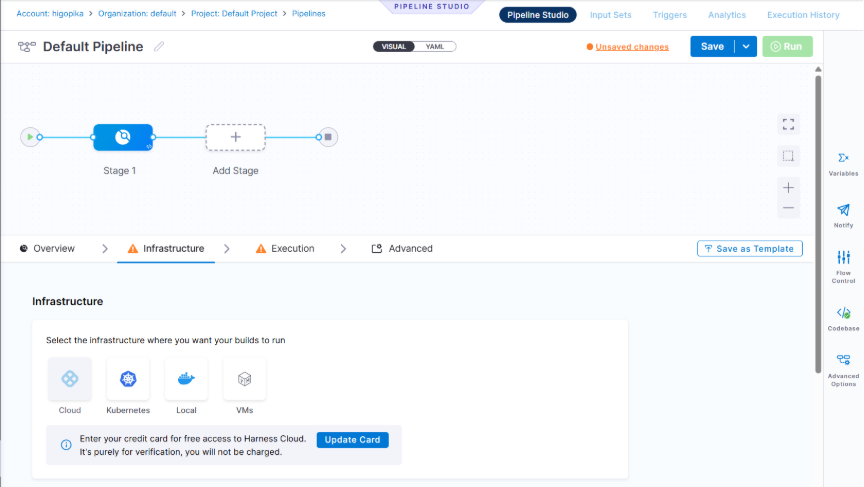

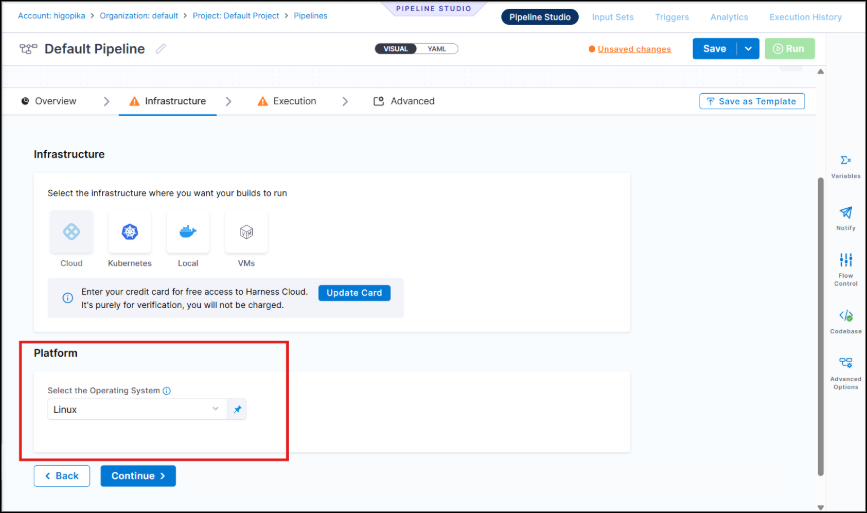

Step 3: Select the Build Infrastructure

The pipeline must run somewhere. This step tells Harness which environment (cloud/K8s/local) will execute your tasks.

Inside the stage, open the infrastructure tab.



Choose where the CI tasks should run:

Options you will see:

• Cloud

• Kubernetes

• Local

• VMs

Most common choice:

✔ Kubernetes (runs your steps using your Harness delegate inside a Kubernetes cluster)

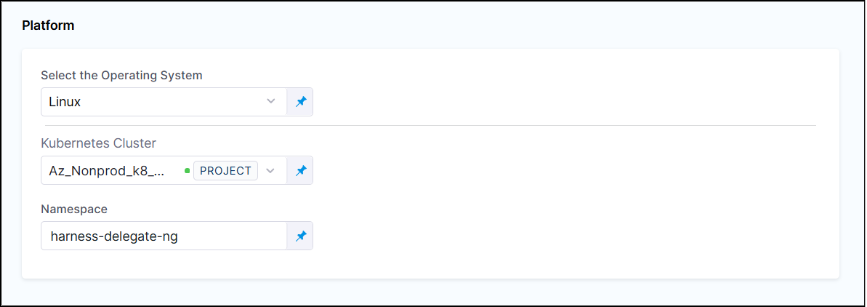

After selecting the infrastructure:

• Choose the platform





• Choose your Kubernetes Connector
• Select the Namespace



• Save

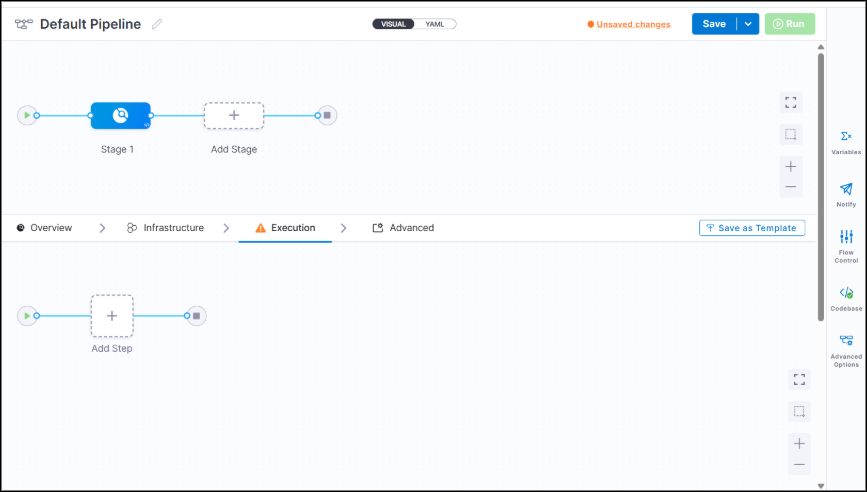

Step 4: Add Execution Steps in the Stage

This is the actual work your pipeline will perform. Every task is added as a step.

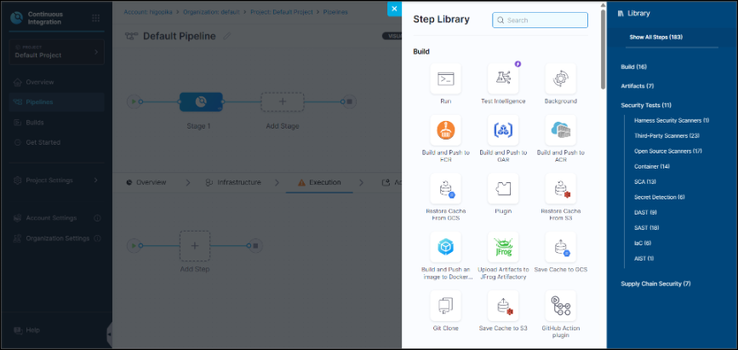

Go to the Execution tab → click Add Step

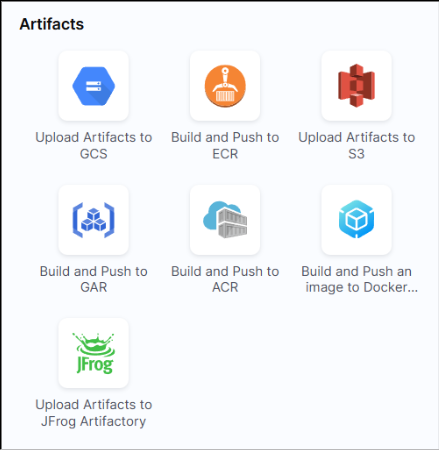

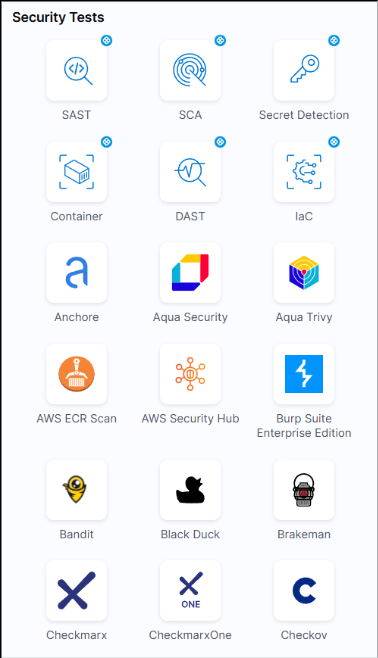

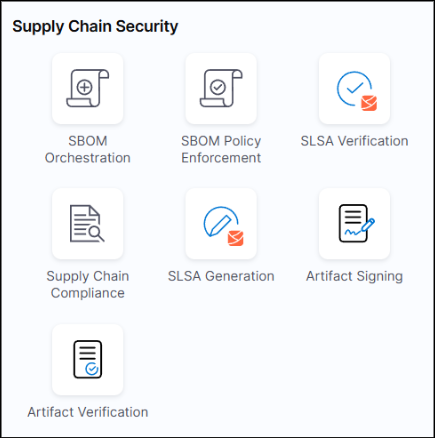

You can choose:

• Run Step → execute shell or PowerShell commands

• Build & Push → build container images

• Plugin Step → use pre-built plugins

• Test Step → run automated tests



For a basic CI pipeline, choose:

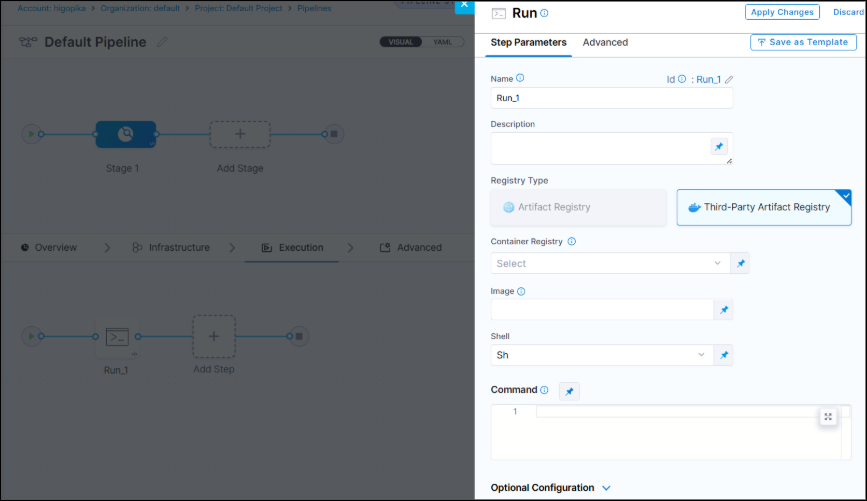

✔ Run Step

Then configure:

• Name (example: Run Script, Print Message, etc.)

• Shell Type → Bash / PowerShell

• Container Image (example: alpine, ubuntu, mcr.microsoft.com/azure-powershell, etc.)

• Command
  Example: echo "Running basic CI pipeline in Harness"

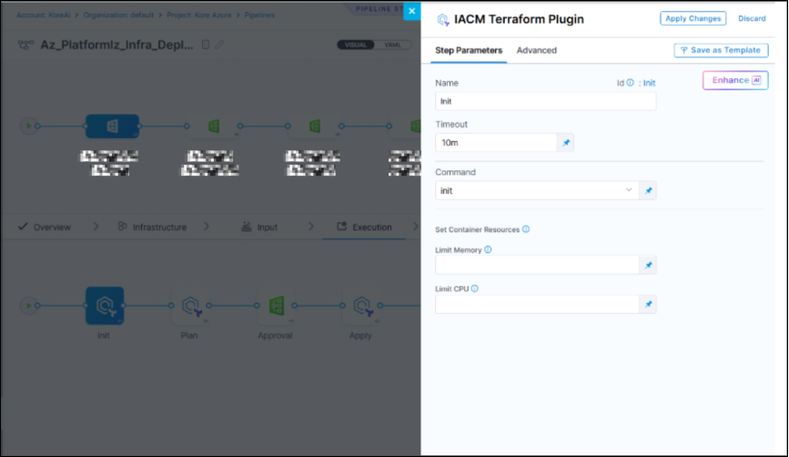

A Terraform step would like below

Step 5: Configure Environment Variables

Allows scripts to use dynamic values without hardcoding them.

If your script needs inputs, API keys, or configs:

• Open your Run Step
• Scroll to Environment Variables
• Add key–value pairs or map them from Harness Secrets





Step 6: Add Multiple Steps

Enables you to design a full automation flow inside the pipeline.

You can add more steps such as:

• Running unit tests

• Running linting

• Running more shell scripts

• Uploading artifacts

• Sending notifications

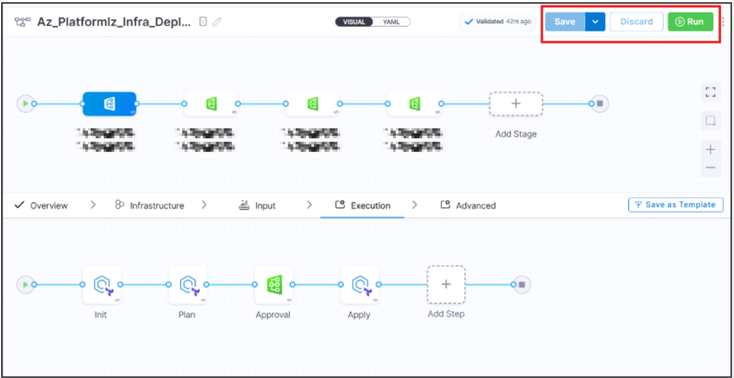

Step 7: Save and Run the Pipeline

Execute your pipeline using the Harness Delegate and infrastructure you configured.

• Click Save
• Click Run

Harness will now:

• Spin up a pod or VM (based on your infrastructure selection)
• Pull the container image you selected
• Execute your CI steps one by one
• Show real-time logs
• Mark the run as Success or Failed
