Building an AI Agent for Azure Infrastructure Validation

1. Introduction

Infrastructure consistency is critical in large-scale Azure environments, especially in migration programs and DevOps-driven deployments. While Infrastructure as Code (IaC) using Terraform improves reproducibility, it does not fully eliminate:

• Manual errors in design specifications
• Drift between Terraform and deployed resources
• Misalignment between approved design (Excel/architecture docs) and deployed state

To address this, we propose building an AI-powered Infrastructure Validation Agent that continuously validates and reconciles:

1. Excel (Source of Truth)
2. Terraform (.tf files)
3. Azure Deployed Resources

This blog explains the architecture, implementation, validation logic, and real-world applicability of such an agent.

2. Problem Statement

In enterprise environments, infrastructure data flows through multiple stages:

3.Common Challenges

• Configuration mismatches across stages
• Drift due to manual portal changes
• Incorrect SKU, region, or configuration deployment
• Lack of automated validation before and after deployment

The absence of unified validation leads to compliance risks, deployment errors, and operational inefficiencies.

4. Solution Overview

The proposed solution is an AI-powered validation agent that:

• Ingests Excel as configuration input
• Parses Terraform configurations
• Fetches deployed resource details from Azure

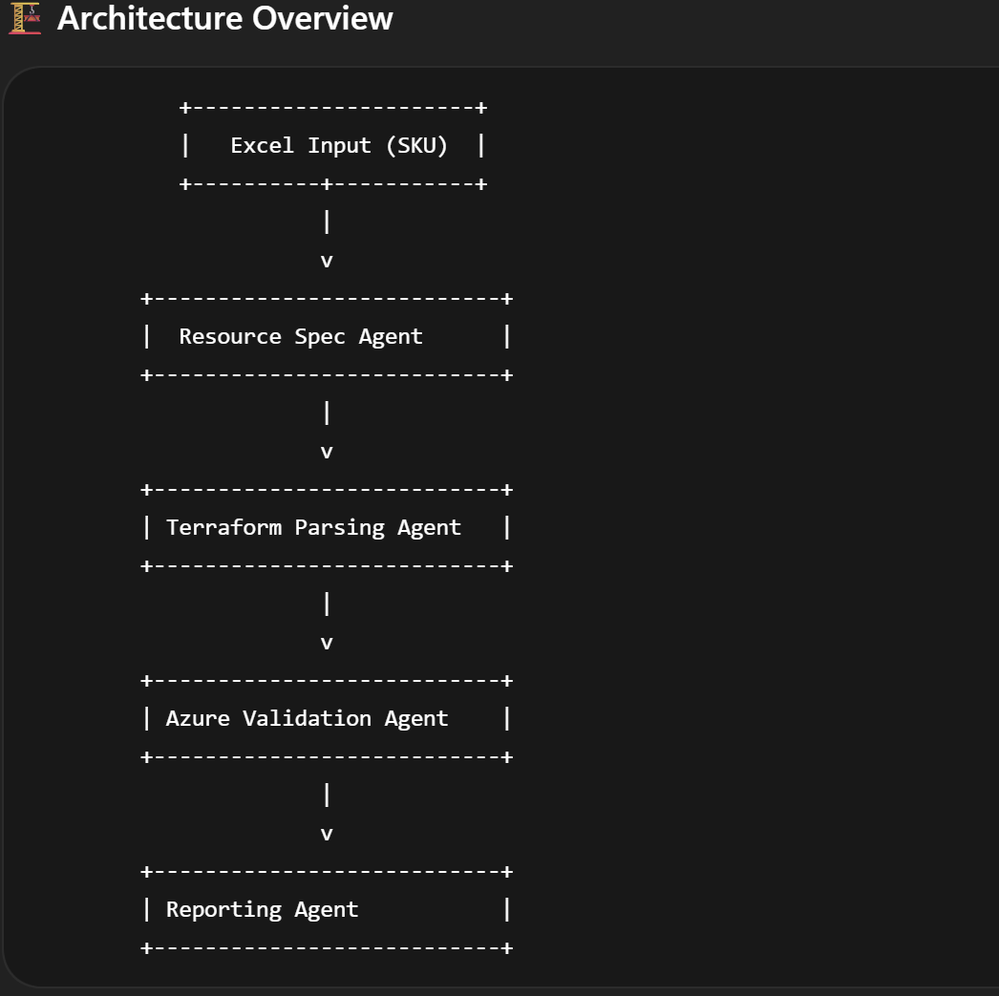

5. Architecture Overview

High-Level Architecture Components

1. 1. Input Layer
      • Excel file (configuration source)
   2. Processing Layer
      • Terraform Parser
      • Azure Resource Fetcher
      • AI-based Validator (optional reasoning layer)
   3. Comparison Engine
      • Schema-based comparison
      • Drift detection logic
   4. Output Layer
      • Validation report (JSON / Excel / HTML)
   5. Hosting
      • Azure Function App
   6. Optional Enhancements
      • Azure AI Search for semantic matching and reasoning

6. Agent Design (Modular Components)

7. Agent Design
Step 1: Read Excel Input

import pandas as pd

ef read_excel(file_path):

df = pd.read_excel(file_path)

df.columns = df.columns.str.strip()

return df

excel_df = read_excel("infra_config.xlsx")

print(excel_df.head())

Step 2:Parse Terraform Files

import hcl2

def parse_terraform(file_path):

with open(file_path, 'r') as file:

data = hcl2.load(file)

resources = []

for resource_type in data.get('resource', []):

for rtype, instances in resource_type.items():

for name, config in instances.items():

resource = {

"resource_type": rtype,

"resource_name": name,

"config": config

}

resources.append(resource)

return resources

tf_resources = parse_terraform("main.tf")

print(tf_resources)

Step 3:Parse Terraform Files

from azure.identity import DefaultAzureCredential

from azure.mgmt.resource import ResourceManagementClient

credential = DefaultAzureCredential()

subscription_id = "your-subscription-id"

resource_client = ResourceManagementClient(credential, subscription_id)

def fetch_azure_resources():

resources = []

for resource in resource_client.resources.list():

res = {

"name": resource.name,

"type": resource.type,

"location": resource.location,

"id": resource.id

}

resources.append(res)

return resources

azure_resources = fetch_azure_resources()

print(azure_resources)

Step 4:Normalize Data

def normalize_excel(df):

return df.to_dict(orient='records')

def normalize_tf(tf_resources):

normalized = []

for res in tf_resources:

normalized.append({

"resource_name": res["resource_name"],

"resource_type": res["resource_type"],

"config": res["config"]

})

return normalized

def normalize_azure(azure_resources):

normalized = []

for res in azure_resources:

normalized.append({

"resource_name": res["name"],

"resource_type": res["type"],

"location": res["location"]

})

return normalized

Step 5: Validation Logic (Drift Detection)

def compare_resources(excel_data, tf_data, azure_data):

issues = []

for excel_res in excel_data:

name = excel_res['resource_name']

tf_match = next((r for r in tf_data if r['resource_name'] == name), None)

az_match = next((r for r in azure_data if r['resource_name'] == name), None)

if not tf_match:

issues.append({

"resource": name,

"issue": "Missing in Terraform",

"severity": "High"

})

if not az_match:

issues.append({

"resource": name,

"issue": "Missing in Azure",

"severity": "Critical"

})

if tf_match and az_match:

if excel_res['region'] != az_match.get('location'):

issues.append({

"resource": name,

"issue": "Region mismatch",

"expected": excel_res['region'],

"actual": az_match.get('location')

})

return issues

drift_report = compare_resources(

normalize_excel(excel_df),

normalize_tf(tf_resources),

normalize_azure(azure_resources)

)

print(drift_report)

Step 6: Export Report to Excel

Sample validation
