Using Different Azure Key Vault Keys for Azure SQL Servers in a Failover Group

Transparent Data Encryption (TDE) in Azure SQL Database encrypts data at rest using a database encryption key (DEK). The DEK itself is protected by a TDE protector, which can be either:

• A service-managed key (default), or
• A customer-managed key (CMK) stored in Azure Key Vault.

Many enterprises adopt customer-managed keys to meet compliance, key rotation, and security governance requirements.

When configuring Geo-replication or Failover Groups, Azure SQL supports using different Key Vault keys on the primary and secondary servers. This provides additional flexibility and allows organizations to isolate encryption keys across regions or subscriptions.

Microsoft documentation describes this scenario for new deployments in detail. If you are configuring geo-replication from scratch, refer to the following article: Geo-Replication and Transparent Data Encryption Key Management in Azure SQL Database | Microsoft Community Hub

However, customers often ask:

How can we change the Azure Key Vault and use different customer-managed keys on the primary and secondary servers when the failover group already exists without breaking the replication?

This article walks through the safe process to update Key Vault keys in an existing failover group configuration.

Architecture Overview

In a failover group configuration:

• Primary Server
• Uses CMK stored in Key Vault A
• Secondary Server
• Uses CMK stored in Key Vault B

Even though each server uses its own key, both servers must be able to access both keys. This requirement exists because during failover operations the database must still be able to decrypt the existing Database Encryption Key (DEK).

Therefore:

• Each logical server must have both Key Vault keys registered and have the required permissions
• Only one key is configured as the active TDE protector



Scenario

Existing environment:

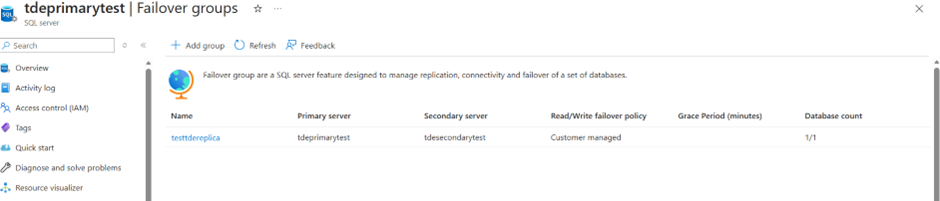

• Azure SQL Failover Group configured



• TDE enabled with Customer Managed Key with same key.

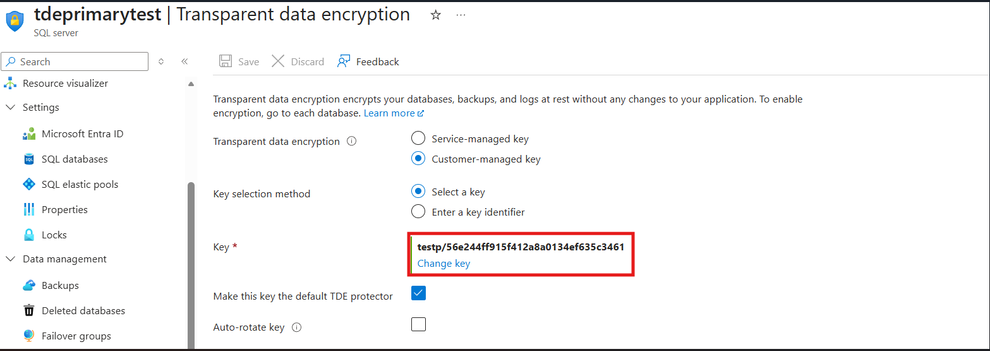

Primary server:

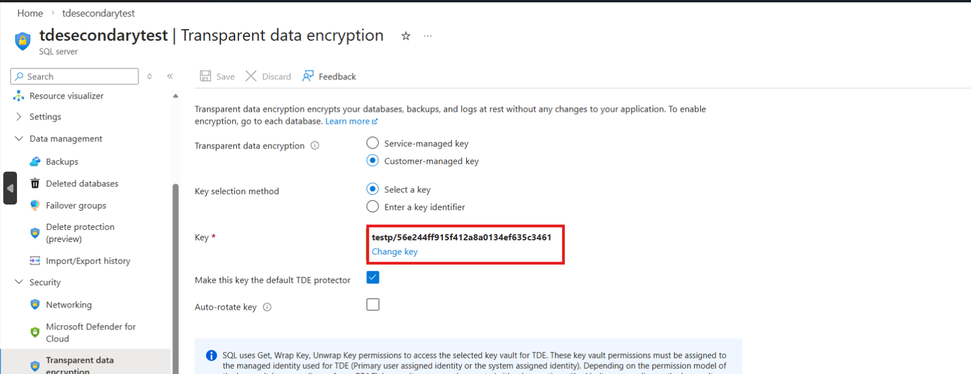

Secondary server:



• Customer wants to:
• Move to different Azure Key Vaults
• Use separate CMKs for primary and secondary servers



Step-by-Step Implementation

Step 1 – Add the Secondary Server Key to the Primary Server

Before changing the TDE protector on the secondary server, the secondary CMK must first be registered on the primary logical server.

This ensures that both servers are aware of both encryption keys.

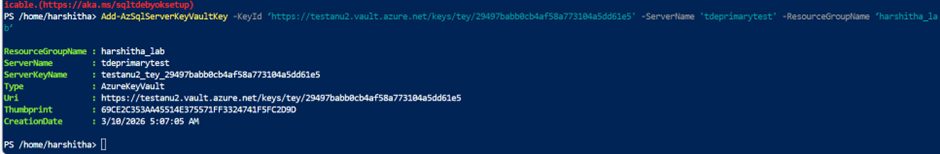

Add-AzSqlServerKeyVaultKey -KeyId ‘https://testanu2.vault.azure.net/keys/tey/29497babb0cb4af58a773104a5dd61e5' -ServerName 'tdeprimarytest' -ResourceGroupName ‘harshitha_lab’

This command registers the Key Vault key with the logical SQL server but does not change the active TDE protector.

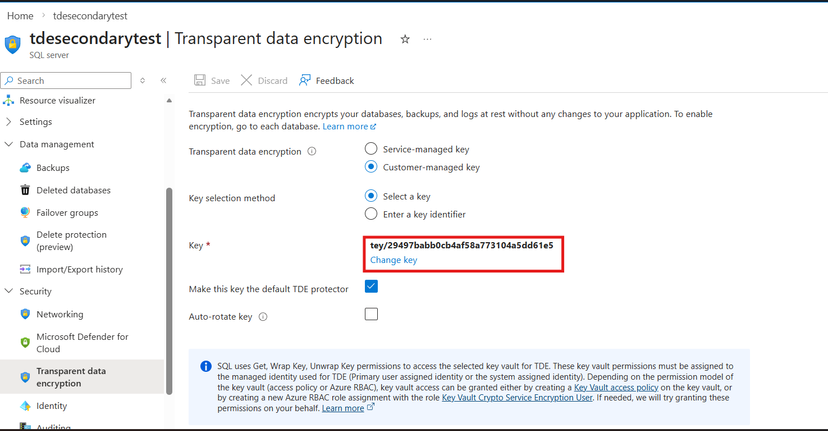

Step 2 – Change the TDE Protector on the Secondary Server

After registering the key, update the TDE protector on the secondary server to use its designated CMK.

This can be done from the Azure Portal:

1. Navigate to Azure SQL Server (Secondary)
2. Select Transparent Data Encryption
3. Choose Customer-managed key
4. Select the Key Vault key intended for the secondary server
5. Save the configuration

At this stage:

• Secondary server uses Key Vault B
• Primary server still uses Key Vault A

Step 3 – Add the Primary Server Key to the Secondary Server

Next, perform the same operation in reverse.

Register the primary server CMK on the secondary server.

Add-AzSqlServerKeyVaultKey -KeyId ‘https://testprimarysubham.vault.azure.net/keys/subham/e0637ed7e3734f989b928101c79ca565' -ServerName ‘tdesecondarytest’ -ResourceGroupName ‘harshitha_lab’

Now both servers contain references to both keys.

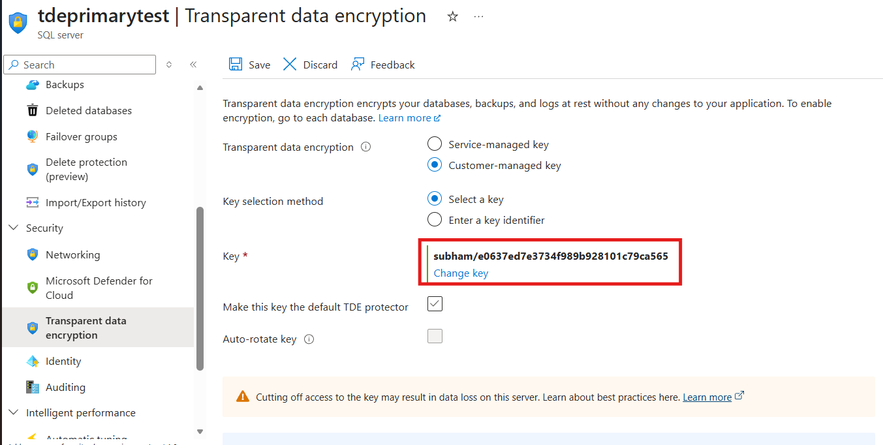

Step 4 – Change the TDE Protector on the Primary Server

Once the key is registered, update the primary server TDE protector to use its intended CMK.

This can also be done through the Azure Portal or PowerShell.

After this step:



Step 5 – Verify Keys Registered on Both Servers

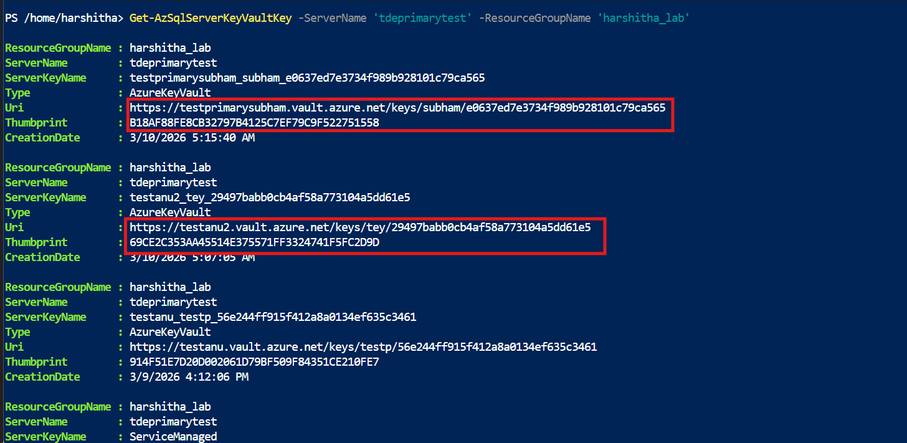

Use the following PowerShell command to confirm that both keys are registered on each server.

Primary Server

Get-AzSqlServerKeyVaultKey -ServerName "tdeprimarytest" -ResourceGroupName "harshitha_lab"

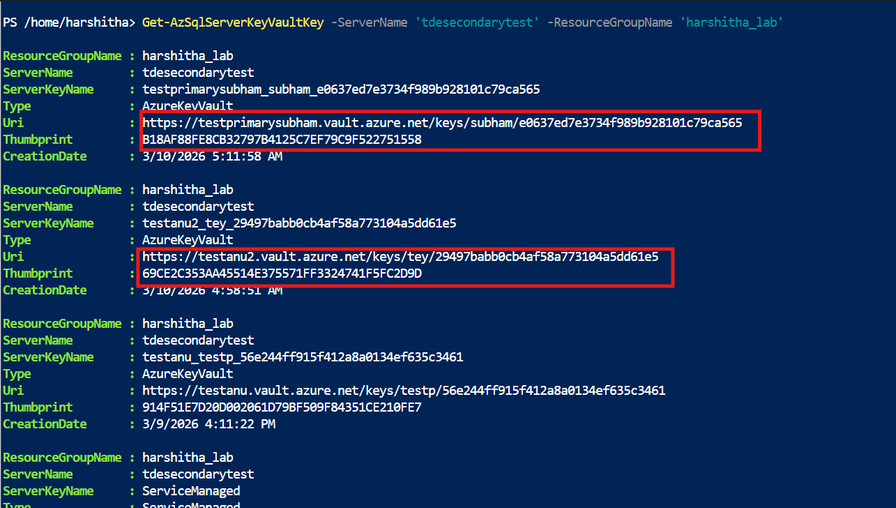

Secondary Server

Get-AzSqlServerKeyVaultKey -ServerName "tdesecondarytest" -ResourceGroupName "harshitha_lab"

Both outputs should list both Key Vault keys.



Step 6 – Verify Database Encryption State

Connect to the database using SQL Server Management Studio (SSMS) and run the following query to verify the encryption configuration.

SELECT
    DB_NAME(db_id()) AS database_name,
    dek.encryption_state,
    dek.encryption_state_desc,
    dek.key_algorithm,
    dek.key_length,
    dek.encryptor_type,
    dek.encryptor_thumbprint
FROM sys.dm_database_encryption_keys AS dek
WHERE database_id <> 2;

Key columns to check:

At this stage, the primary database thumbprint should match the primary server CMK on the secondary database.

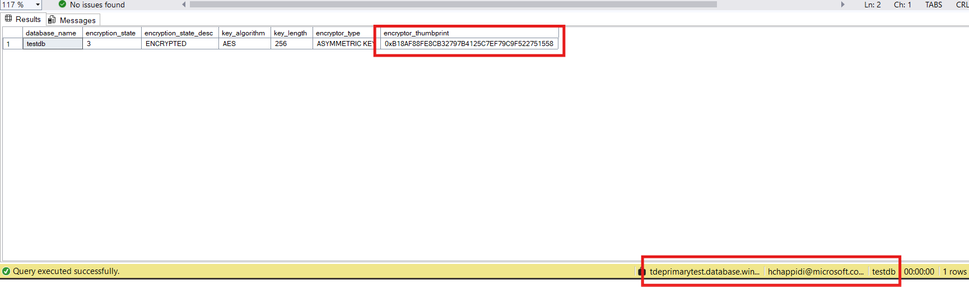

Primary:

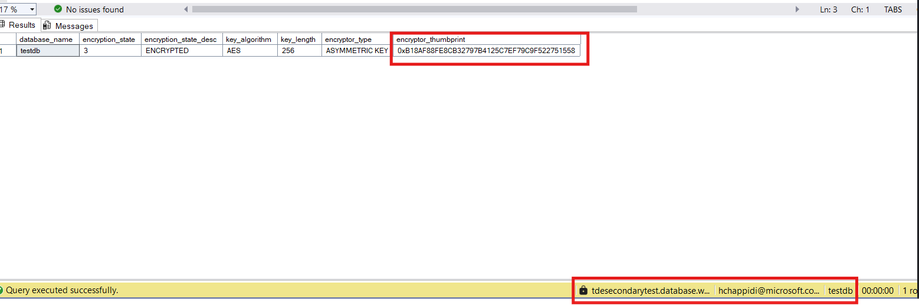

Secondary:

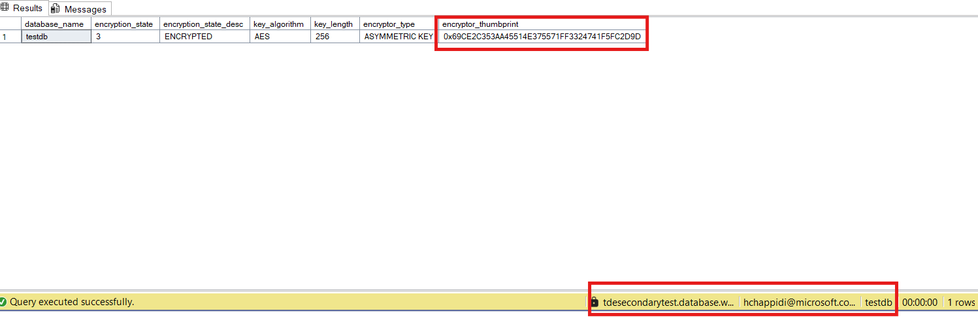

Step 7 – Validate After Failover

Perform a planned failover of the failover group.

After failover, run the same query again.

SELECT
    DB_NAME(db_id()) AS database_name,
    dek.encryption_state,
    dek.encryption_state_desc,
    dek.key_algorithm,
    dek.key_length,
    dek.encryptor_type,
    dek.encryptor_thumbprint
FROM sys.dm_database_encryption_keys AS dek
WHERE database_id <> 2;

You should observe:

• The encryptor_thumbprint changes
• The database is now encrypted using the secondary server’s CMK which is now primary

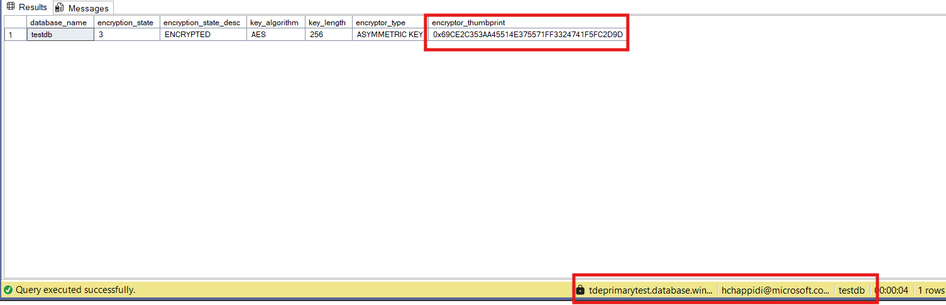

Primary server after failover:

Secondary server which is primary before failover

This confirms that the failover group is successfully using different Key Vault keys for each server.

Key Takeaways

• Azure SQL Failover Groups support different Customer Managed Keys across regions.
• Both logical servers must have access to both keys.
• Only one key acts as the active TDE protector per server.
• Validation should always include checking the encryptor thumbprint before and after failover.

This approach allows organizations to implement regional key isolation, meet compliance requirements, and maintain high availability with secure key management.
