Resiliency Patterns for Azure Front Door: Field Lessons

pbeegala

Microsoft

Mar 17, 2026

Abstract

Azure Front Door (AFD) sits at the edge of Microsoft’s global cloud, delivering secure, performant, and highly available applications to users worldwide. As adoption has grown—especially for mission‑critical workloads—the need for resilient application architectures that can tolerate rare but impactful platform incidents has become essential.

This article summarizes key lessons from Azure Front Door incidents in October 2025, outlines how Microsoft is hardening the platform, and—most importantly—describes proven architectural patterns customers can adopt today to maintain business continuity when global load‑balancing services are unavailable.

Who this is for

This article is intended for:

Cloud and solution architects designing mission‑critical internet‑facing workloads
Platform and SRE teams responsible for high availability and disaster recovery
Security architects evaluating WAF placement and failover trade‑offs
Customers running revenue‑impacting workloads on Azure Front Door

Introduction

Azure Front Door (AFD) operates at massive global scale, serving secure, low‑latency traffic for Microsoft first‑party services and thousands of customer applications. Internally, Microsoft is investing heavily in tenant isolation, independent infrastructure resiliency, and active‑active service architectures to reduce blast radius and speed recovery.

However, no global distributed system can completely eliminate risk. Customers hosting mission‑critical workloads on AFD should therefore design for the assumption that global routing services can become temporarily unavailable—and provide alternative routing paths as part of their architecture.

Resiliency options for mission‑critical workloads

The following patterns are in active use by customers today. Each represents a different trade‑off between cost, complexity, operational maturity, and availability.

1. No CDN with Application Gateway

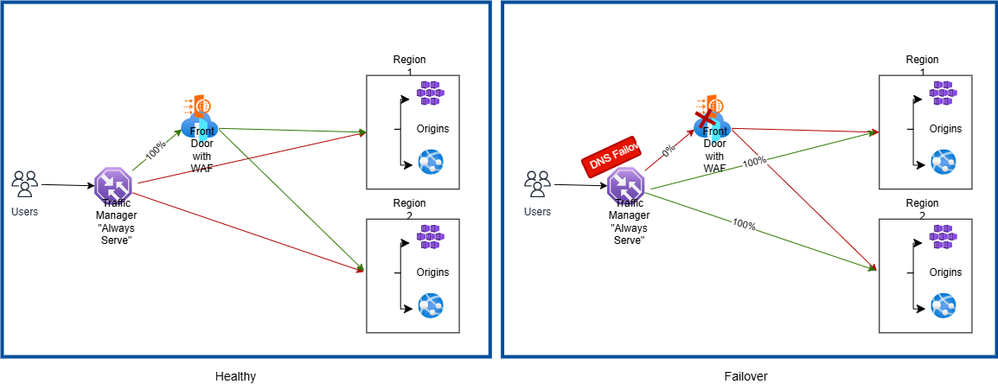

Figure 1: Azure Front Door primary routing with DNS failover

When to use: Workloads without CDN caching requirements that prioritize predictable failover.

Architecture summary

Azure Traffic Manager (ATM) runs in Always Serve mode to provide DNS‑level failover.
Web Application Firewall (WAF) is implemented regionally using Azure Application Gateway.
App Gateway can be private, provided the AFD premium is used, and is the default path. DNS failover available when AFD is not reachable.
When Failover is triggered, one of the steps will be to switch to AppGW IP to Public (ATM can route to public endpoints only)
Switch back to AFD route, once AFD resumes service.

Pros

DNS‑based failover away from the global load balancer
Consistent WAF enforcement at the regional layer
Application Gateways can remain private during normal operations

Cons

Additional cost and reduced composite SLA from extra components
Application Gateway must be made public during failover
Active‑passive pattern requires regular testing to maintain confidence

2. Multi‑CDN for mission‑critical applications

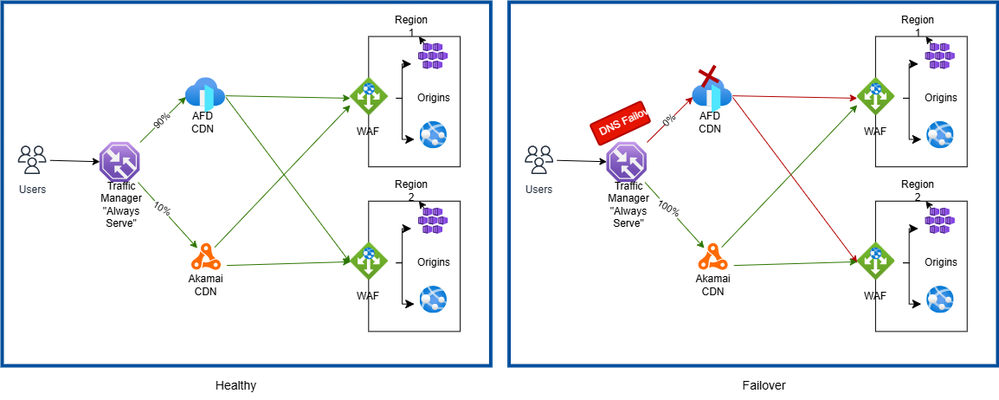

Figure 2: Multi‑CDN architecture using Azure Front Door and Akamai with DNS‑based traffic steering

When to use: Mission critical Applications with strict availability requirements and heavy CDN usage.

Architecture summary

Dual CDN setup (for example, Azure Front Door + Akamai)
Azure Traffic Manager in Always Serve mode
Traffic split (for example, 90/10) to keep both CDN caches warm
During failover, 100% of traffic is shifted to the secondary CDN
Ensure Origin servers can handle the load of extra hits (Cache misses)

Pros

Highest resilience against CDN‑specific or control‑plane outages
Maintains cache readiness on both providers

Cons

Expensive and operationally complex
Requires origin capacity planning for cache‑miss surges
Not suitable if applications rely on CDN‑specific advanced features

3. Multi‑layered CDN (Sequential CDN architecture)

Figure 3: Sequential CDN architecture with Akamai as caching layer in front of Azure Front Door

When to use: Rare, niche scenarios where a layered CDN approach is acceptable. Not a common approach, Akamai can be a single entry point of failure. However if the AFD isn't available, you can update Akamai properties to directly route to Origin servers.

Architecture summary

Akamai used as the front caching layer
Azure Front Door used as the L7 gateway and WAF
During failover, Akamai routes traffic directly to origin services

Pros

Direct fallback path to origins if AFD becomes unavailable
Single caching layer in normal operation

Cons

Fronting CDN remains a single point of failure
Not generally recommended due to complexity
Requires a well‑tested operational playbook

4. No CDN – Traffic Manager redirect to origin (with Application Gateway)

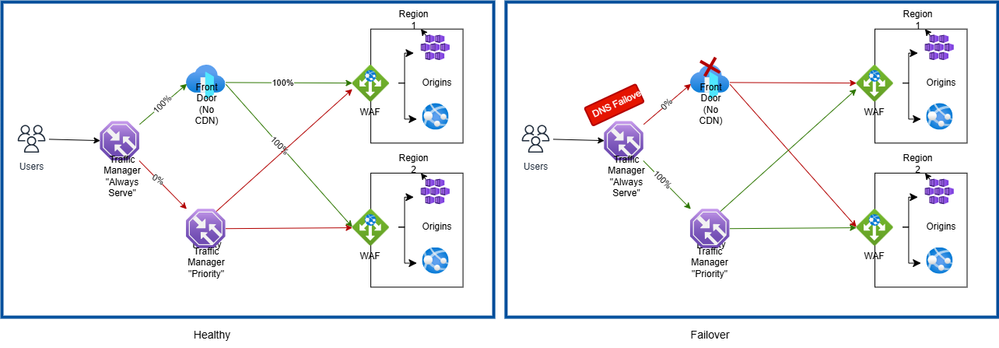

Figure 4: DNS‑based failover directly to origin via Application Gateway when Azure Front Door is unavailable

When to use: Applications that require L7 routing but no CDN caching.

Architecture summary

Azure Front Door provides L7 routing and WAF
Azure Traffic Manager enables DNS failover
During an AFD outage, Traffic Manager routes directly to Application Gateway‑protected origins

Pros

Alternative ingress path to origin services
Consistent regional WAF enforcement

Cons

Additional infrastructure cost
Operational dependency on Traffic Manager configuration accuracy

5. No CDN – Traffic Manager redirect to origin (no Application Gateway)

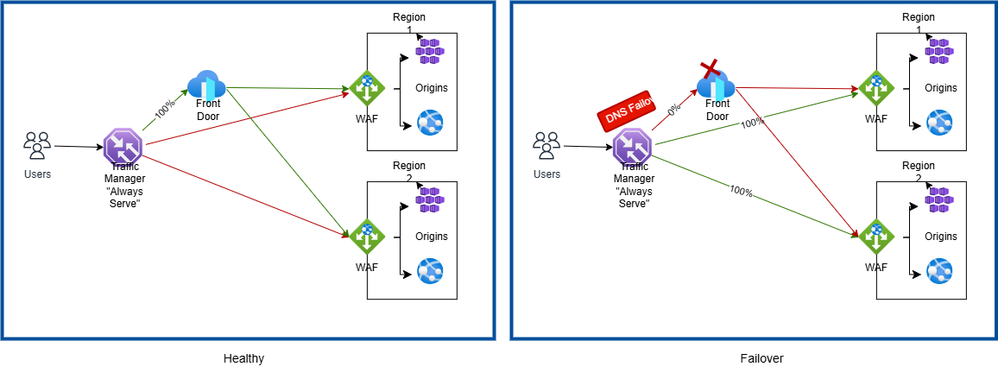

Figure 5: Direct DNS failover to origin services without Application Gateway

When to use: Cost‑sensitive scenarios with clearly accepted security trade‑offs.

Architecture summary

WAF implemented directly in Azure Front Door
Traffic Manager provides DNS failover
During an outage, traffic routes directly to origins

Pros

Simplest architecture
No Application Gateway in the primary path

Cons

Risk of unscreened traffic during failover
Failover operations can be complex if WAF consistency is required

Frequently asked questions

Is Azure Traffic Manager a single point of failure?
No. Traffic Manager operates as a globally distributed service. For extreme resilience requirements, customers can combine Traffic Manager with a backup FQDN hosted in a separate DNS provider.

Should every workload implement these patterns?
No. These patterns are intended for mission‑critical workloads where downtime has material business impact. Non critical applications do not require multi‑CDN or alternate routing paths.

What does Microsoft use internally?
Microsoft uses a combination of active‑active regions, multi‑layered CDN patterns, and controlled fail‑away mechanisms, selected based on service criticality and performance requirements.

What happened in October 2025 (summary)

Two separate Azure Front Door incidents in October 2025 highlighted the importance of architectural resiliency:

A control‑plane defect caused erroneous metadata propagation, impacting approximately 26% of global edge sites
A later compatibility issue across control‑plane versions resulted in DNS resolution failures

Both incidents were mitigated through automated restarts, manual intervention, and controlled failovers. These events accelerated platform‑level hardening investments.
