I’m writing this article to document a real-world scaling issue we hit while exposing many applications from an Azure Kubernetes Service (AKS) cluster using Application Gateway Ingress Controller (AGIC). The problem is easy to miss because Kubernetes resources keep applying successfully, but the underlying Azure Application Gateway has a hard platform limit of 100 backend pools—so once your deployment pattern requires the 101st pool, AGIC can’t reconcile the gateway configuration and traffic stops flowing for new apps. This post explains how the limit is triggered, how to reproduce and recognize it, and what practical mitigation paths exist as you grow.
A real-world scalability limit, reproduction steps, and recommended mitigation options:
- AGIC typically creates one Application Gateway backend pool per Kubernetes Service referenced by an Ingress.
- Azure Application Gateway enforces a hard limit of 100 backend pools.
- When the 101st backend pool is required, Application Gateway rejects the update and AGIC fails reconciliation.
- Kubernetes resources appear created, but traffic does not flow due to the external platform limit.
- Gateway API–based application routing is the most scalable forward-looking solution.
Architecture Overview
The environment follows a Hub-and-Spoke network architecture, commonly used in enterprise Azure deployments to centralize shared services and isolate workloads.
Hub Network
- Azure Firewall / Network security services
- VPN / ExpressRoute Gateways
- Private DNS Zones
- Shared monitoring and governance components
Spoke Network
- Private Azure Kubernetes Service (AKS) cluster
- Azure Application Gateway with private frontend
- Application Gateway Ingress Controller (AGIC)
- Application workloads exposed via Kubernetes Services and Ingress
Ingress Traffic Flow
Client → Private Application Gateway → AGIC-managed routing → Kubernetes Service → Pod
Application Deployment Model
Each application followed a simple and repeatable Kubernetes pattern that ultimately triggered backend pool exhaustion.
- One Deployment per application
- One Service per application
- One Ingress per application
- Each Ingress referencing a unique Service
Kubernetes Manifests Used
Note: All Kubernetes manifests in this example are deployed into the demo namespace. Please ensure the namespace is created before applying the manifests.
Deployment template
apiVersion: apps/v1
kind: Deployment
metadata:
name: app-{{N}}
namespace: demo
spec:
replicas: 1
selector:
matchLabels:
app: app-{{N}}
template:
metadata:
labels:
app: app-{{N}}
spec:
containers:
- name: app
image: hashicorp/http-echo:1.0
args:
- "-text=Hello from app {{N}}"
ports:
- containerPort: 5678
Service template
apiVersion: v1
kind: Service
metadata:
name: svc-{{N}}
namespace: demo
spec:
selector:
app: app-{{N}}
ports:
- port: 80
targetPort: 5678
Ingress template
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: ing-{{N}}
namespace: demo
spec:
ingressClassName: azure-application-gateway
rules:
- host: app{{N}}.example.internal
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: svc-{{N}}
port:
number: 80
Reproducing the Backend Pool Limitation
The issue was reproduced by deploying 101 applications using the same pattern. Each iteration resulted in AGIC attempting to create a new backend pool.
for ($i = 1; $i -le 101; $i++) {
(Get-Content deployment.yaml) -replace "{{N}}", $i | kubectl apply -f -
(Get-Content service.yaml) -replace "{{N}}", $i | kubectl apply -f -
(Get-Content ingress.yaml) -replace "{{N}}", $i | kubectl apply -f -
}
Observed AGIC Error
Code="ApplicationGatewayBackendAddressPoolLimitReached"
Message="The number of BackendAddressPools exceeds the maximum allowed value.
The number of BackendAddressPools is 101 and the maximum allowed is 100.
Root Cause Analysis
Azure Application Gateway enforces a non-configurable maximum of 100 backend pools. AGIC creates backend pools based on Services referenced by Ingress resources, leading to exhaustion at scale.
Available Options After Hitting the Limit
Option 1: Azure Gateway Controller (AGC)
AGC uses the Kubernetes Gateway API and avoids the legacy Ingress model. However, it currently supports only public frontends and does not support private frontends.
Option 2: ingress-nginx via Application Routing
This option is supported only until November 2026 and is not recommended due to deprecation and lack of long-term viability.
Option 3: Application Routing with Gateway API (Preview)

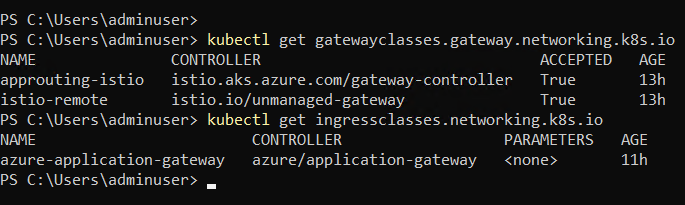

Gateway API–based application routing is the strategic long-term direction for AKS. Although currently in preview, it has been stable upstream for several years and is suitable for onboarding new applications with appropriate risk awareness. Like in the below screenshot, I am using two controllers.
Reference Microsoft documents:
Secure ingress traffic with the application routing Gateway API implementation
Conclusion
The 100-backend pool limitation is a hard Azure Application Gateway constraint. Teams using AGIC must plan for scale early by consolidating services or adopting Gateway API–based routing to avoid production onboarding blockers.
Author: Kumar Shashi Kaushal(Sr. Digital Cloud solutions Architect)
