At Microsoft Build, we introduced smaller form factor infrastructure in public preview. Today, we’re refreshing that preview with version 2607, available right now in the Azure portal. This release introduces several new features:
- Expanded support for multiple network interfaces (NICs) and additional disks
- Just-in-Time (JIT) device access through the new Connect experience
- Cloud-managed operating system updates and recovery using an A/B image model
These new capabilities give operators greater flexibility in how edge devices are configured, accessed, and maintained throughout their lifecycle. Let’s look at what each capability delivers and what it looked like in practice when I deployed the release on an OnLogic Helix 521.
Greater networking and storage flexibility
Small form factor infrastructure now supports multiple network interfaces (NICs) and disks on a single device. To give you full control, each NIC appears natively in Azure Resource Manager (ARM) as a child resource of the Machine, which you can view and configure through Azure portal and Azure CLI.

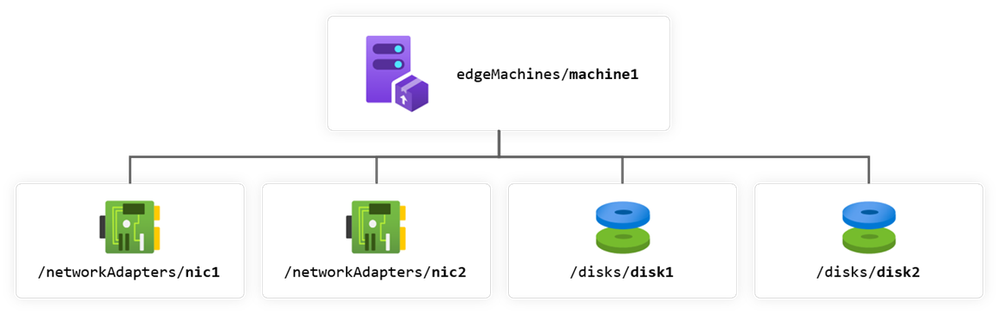

With version 2607, you can view and configure multiple network interfaces on the same machine using Azure Resource Manager child resources. Similar ARM modeling for Disks will follow in a later release.
Distributed infrastructure often faces unique and challenging requirements: for example, a device on a factory floor may need one network for management traffic and a separate, isolated network for operational technology (OT) or workload traffic, while a retail or robotics deployment may need additional local storage for AI models, video, or sensor data that shouldn’t leave the site. Support for multiple NICs allows a single device to connect to more than one network for segmentation, redundancy, or reaching equipment on a dedicated segment, while support for additional disks lets customers size local capacity to the workload rather than constraining the workload to fit the device. From Azure, you can configure each network interface individually, applying values like IP address, DNS server, and more. Azure also automatically detects and flags configuration drift to help maintain consistency with the desired state.

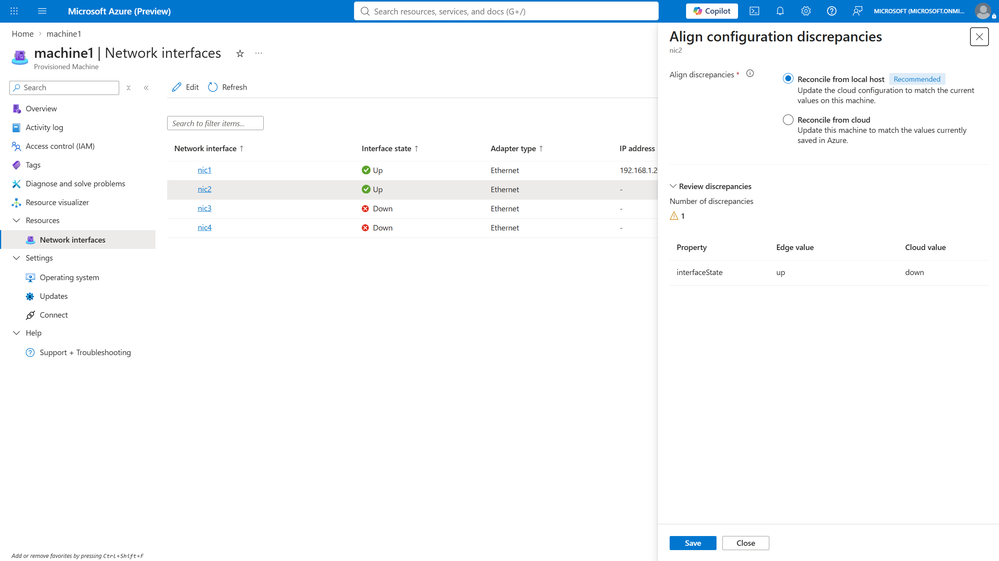

Drift is automatically detected and flagged for you to resolve.
This is an exciting step forward since the initial preview. Previously, each device was limited to a single network path and its built-in storage, forcing customers to compromise on network separation, add external hardware, or offload data sooner than they would like. Now the same compact device can support real-world network topologies and larger local datasets, without stepping up to larger, more costly infrastructure.
Together, these enhancements allow Azure Local devices to align more closely with real-world edge deployment requirements without requiring additional infrastructure.
Secure access when you need it: Just-in-Time (JIT) access
Connecting to a distributed edge device for maintenance has traditionally required a difficult trade-off. Troubleshooting a device requires administrative access and granting that access permanently means standing permissions that remain in place on the resource whether or not anyone is using them. Across a fleet of hundreds or thousands of devices, often deployed in physically exposed locations such as store back rooms, remote sites, or factory floors, those always-on credentials become a persistent and hard-to-audit part of the attack surface.
Just-In-Time (JIT) access, delivered through the new Connect experience, eliminates standing access. Rather than holding permanent permissions, users are granted eligible roles through Microsoft Entra Privileged Identity Management (PIM) and activate them only when access is actually needed. Activation requires a business justification and administrator approval, is bound to a defined duration of up to eight hours and connects the user to the device over SSH using a short-lived certificate. When the window expires, the role is deactivated automatically.
The result is a model where access is the exception rather than the default: every session is requested, justified, approved, time-bound, and logged. For organizations operating critical infrastructure at the edge, administrators retain the ability to reach any device the moment they need to, without maintaining persistent access on every device for the rest of the time.

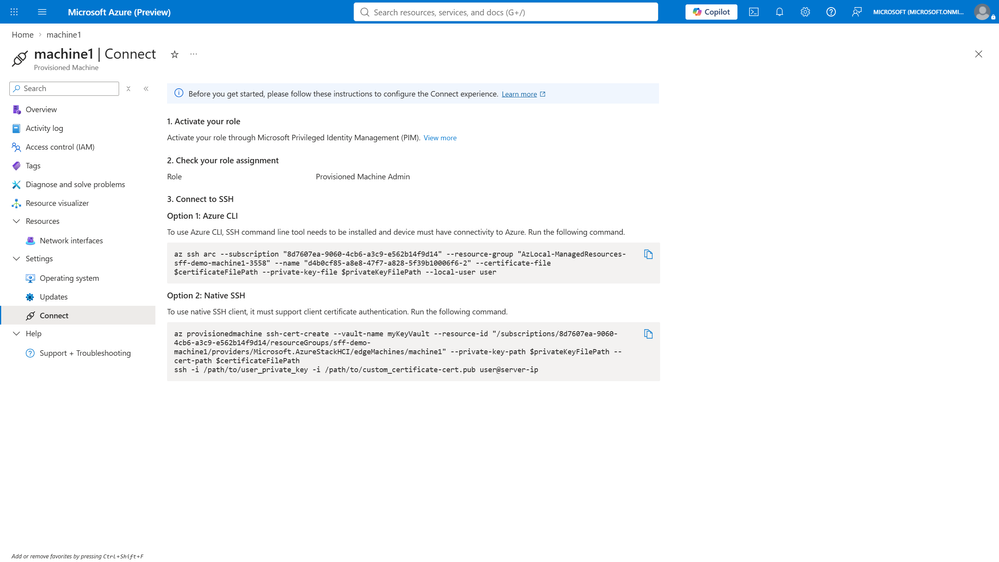

Before users can connect with administrative privileges, they must activate their role through Microsoft Privileged Identity Management (PIM) for role-based and time-bound access.
Simplified OS lifecycle management with A/B image updates
Last month’s preview introduced a novel capability: provisioning a bare metal OS onto an edge machine from Azure. With 2607, we’re building on that capability with the capability to update a bare metal OS using an image-swap approach.
Updates now use an A/B image-swap model, one of the most impactful reliability improvements in this release. The new image is installed on an inactive partition while the current operating system continues running. During reboot, the device switches to the updated image. If the new image fails to boot successfully, the device automatically rolls back to the last known-good version. This design keeps the risk of a failed update tightly contained. Because the update is staged in the inactive slot while the current image stays live, workload downtime is minimal, and because the previous image is always preserved, a failed update rolls back on its own rather than leaving a device stranded. Every device either comes up healthy on the new image or returns to the one that was working.

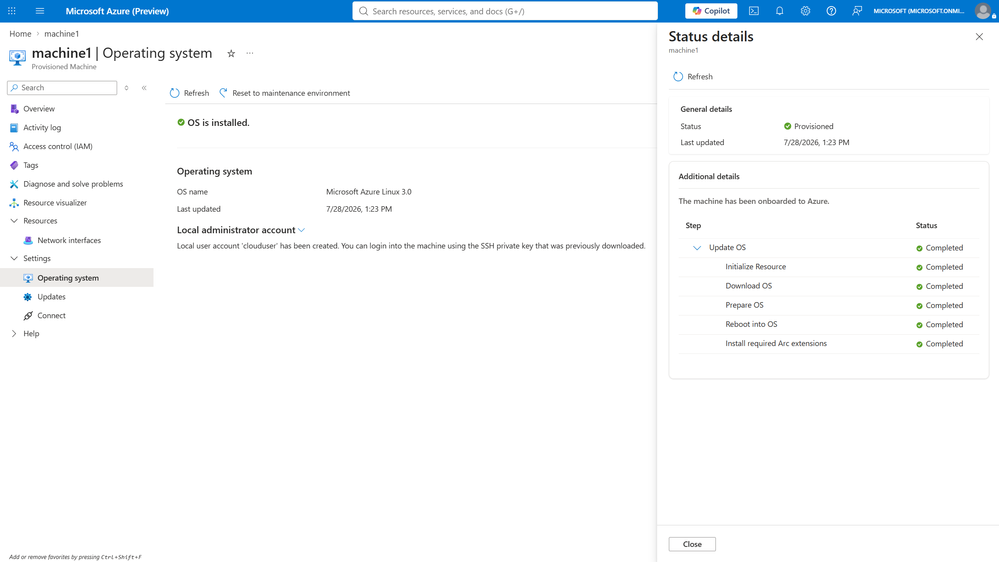

Track update progress in Azure Portal.
For organizations managing thousands of devices in locations with no on-site IT, this safeguard can be very helpful because a failed update has historically been one of the most costly failures to recover from: a device that does not come back online can require a costly on-site visit or a physical replacement.
Putting it to the test on an OnLogic Helix 521
To see how these capabilities come together in practice, I deployed the release on an OnLogic Helix 521, one of the validated small form factor devices for Azure Local. The Helix 521 is great for exercising the new networking features, with its I/O dense design featuring four Ethernet ports on its front side.
These new features move small form factor infrastructure closer to what production edge deployments require: the flexibility to match real network and storage needs, access that is secure by default, and updates that can be rolled out across an entire fleet with confidence. To try preview version 2607 for yourself, visit Microsoft Learn for information about supported hardware and https://learn.microsoft.com/azure/azure-local/small-form-factor/small-form-factor-overview in Azure portal. The preview is free of charge and typically takes about an hour to set up.
