Troubleshooting TPM Certificate: How to Fix the "Missing Stored Keyset" Error

Understanding the "Missing Stored Keyset" Error

The "missing stored keyset" error typically appears when an application or service cannot find a necessary key within the system's Key Storage Provider (KSP). This can result from various underlying causes, including corrupted registry keys, improper configurations, or expired certificates. Below are some potential causes of this error:

• Corrupted Registry Entries: Sometimes, entries related to certificate keys might become corrupt, causing access issues.

• Permissions Issues: Inadequate permissions can prevent the necessary access to retrieve or manage keys.

• Software Bugs or Misconfiguration: System or application-specific bugs or incorrect configurations might cause improper handling of the TPM-stored certificates.

Step-by-Step Guide to Fix "Missing Stored Keyset"

Here's a troubleshooting process to resolve this error. Ensure you have administrative privileges on the system.

Step 1: Windows Update and TPM Firmware

• Ensure Latest Windows Updates:

• Access Settings by pressing Windows Key + I and click Update & Security.

• Ensure the system is up to date as newer patches often resolve TPM issues.

• Firmware Update:

• Check the manufacturer’s site for the latest TPM firmware and BIOS updates specific to your model, especially for addressing known issues and bugs.

Step 2: Verify TPM Initialization and Ownership

Before diving deeper, ensure that the TPM is initialized, and the system has clear ownership of it:

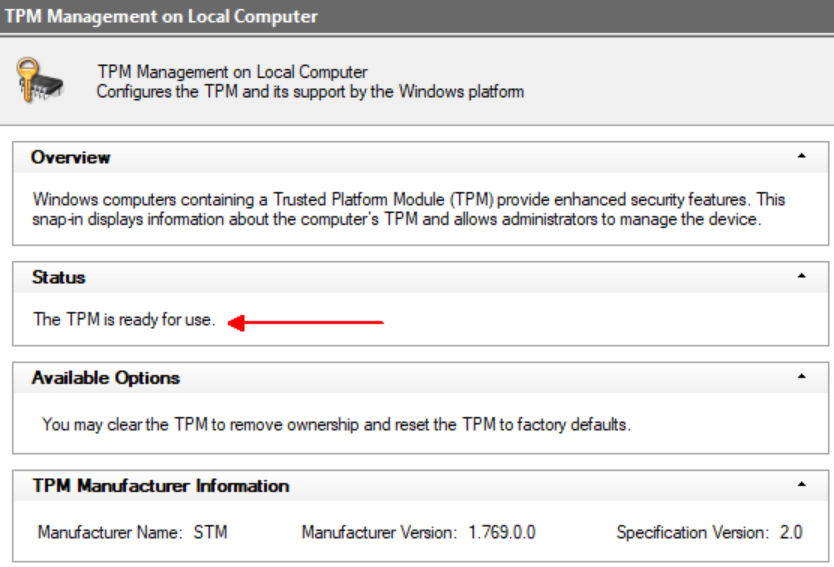

• Open the TPM Management Console by typing tpm.msc in the Run dialog.

• Verify that the status states: "The TPM is ready for use."

 Step 3: Verify Certificate Keysets or Store

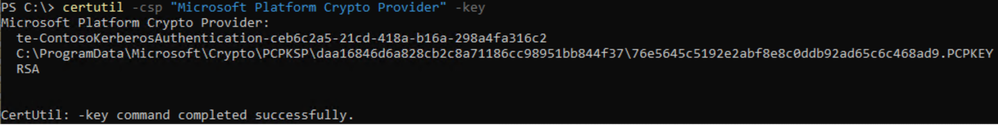

To verify the Platform cryptographic provider certificate using cmd.exe, use the following steps:

• Open cmd.exe as Administrator.

• Run the command: CertUtil -CSP "Microsoft Platform Crypto Provider" -Key

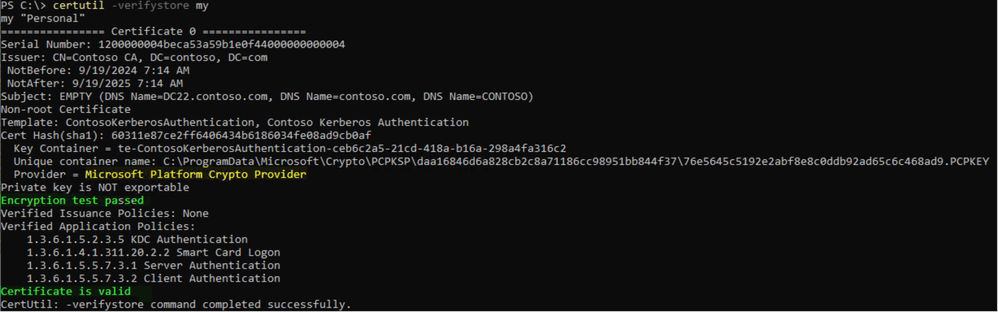

 To verify the local machine certificate using cmd, use the following steps:

• Open Cmd as Administrator.

• Execute the command: CertUtil -v -VerifyStore MY

 Step 4: Repair Certificate Keysets

If registry or keyset corruption is suspected, follow these steps:

• Open Cmd as Administrator.

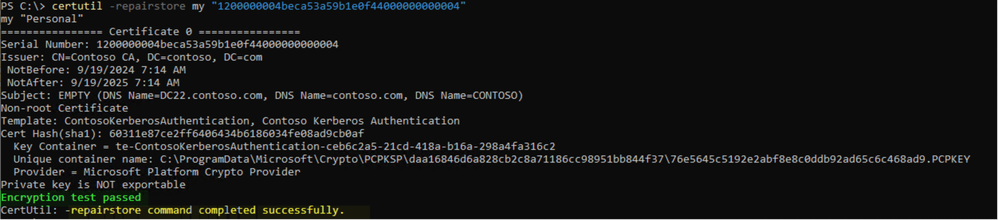

• Execute the command: CertUtil -RepairStore MY "SerialNumber"

 Step 5: Check and Reset Permissions

Correct any permissions related problems:

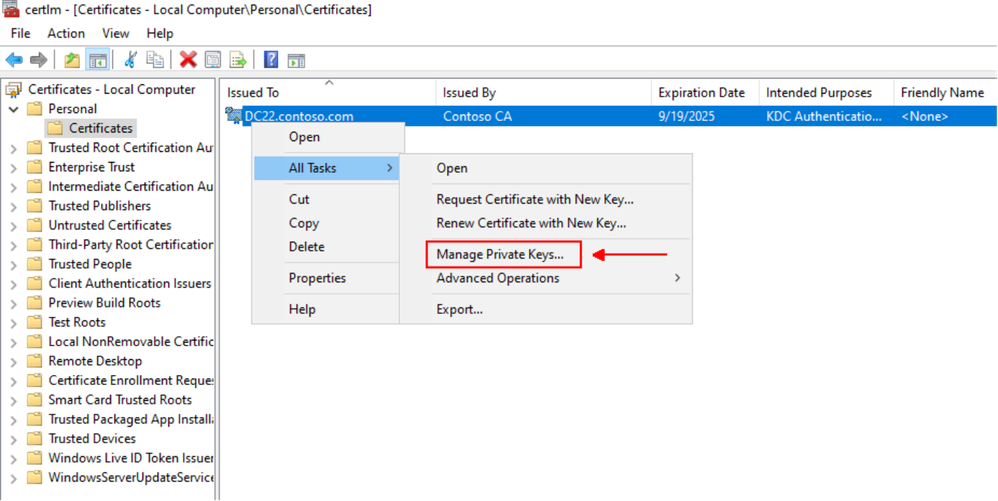

• Open the Certificates MMC Snap-in for the local computer (certlm.msc).

• Locate the specific certificate.

• Right-click and select All Tasks > Manage Private Keys.

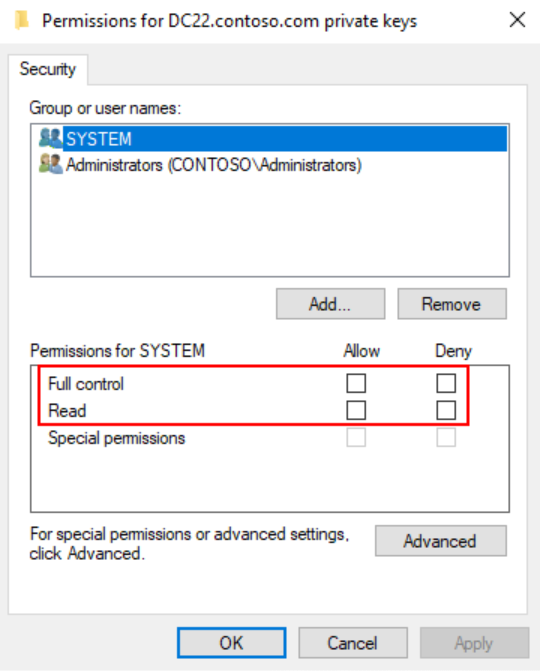

• Ensure that necessary accounts (such as SYSTEM, Service or application account,  and the user account) have Full Control.

 Step 6: Re-enroll Certificates if Necessary

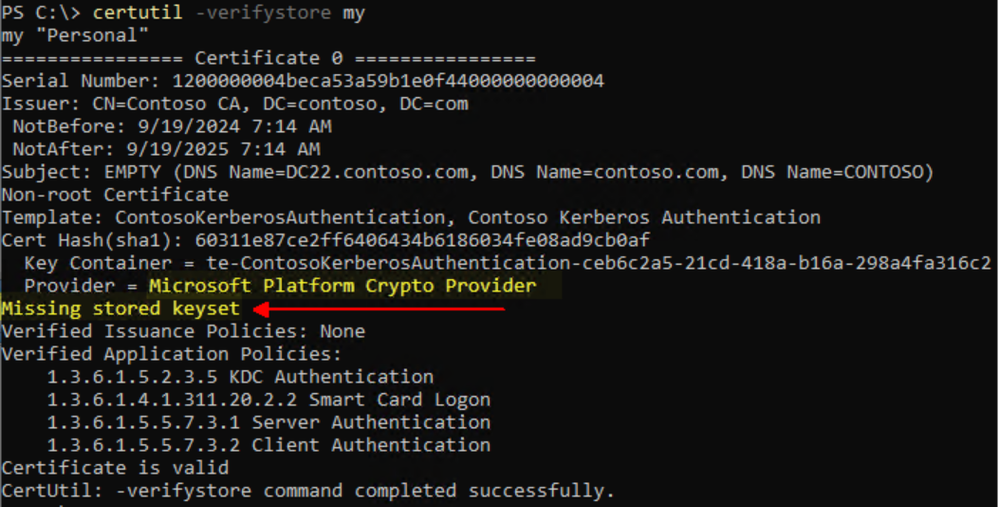

Certificate reports “Missing stored Keyset”

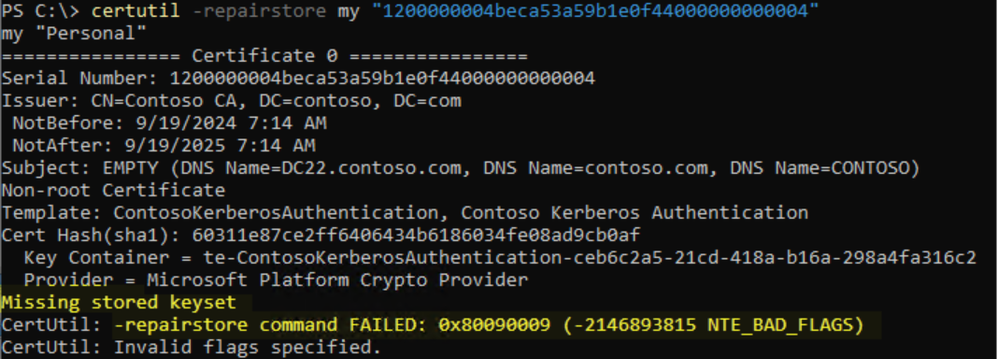

CertUtil RepairStore command fails.

If reports for "Missing stored keyset" persist and repair fails, certificates may need to be restored or re-enrolled:

• Request and issue new certificates using your organizational procedures.

Conclusion

Encountering a "missing stored keyset" error with a TPM can be frustrating but can usually be resolved with a methodical approach. By ensuring that the TPM is functional, managing security permissions correctly, checking certificate validity, and keeping systems up to date, this issue can be mitigated. If these steps do not resolve the problem, reaching out to Microsoft Support or consulting the device manufacturer's guidelines may provide additional assistance. For more detailed documentation on troubleshooting TPM errors, please visit Microsoft’s official TPM Technology Documentation. Trusted Platform Module Technology Overview | Microsoft Learn

Remember, always ensure a data backup strategy when dealing with cryptographic components to avoid unexpected data loss. These steps can help guide you through fixing the “missing stored keyset” error for TPM certificates effectively. As always, stay informed and backed up. Proper understanding and manipulation of TPM can bolster the security and trustworthiness of your systems. Keep striving for a more secure enterprise environment, and feel free to comment below if you have additional questions or suggestions from your experiences. Until next time, happy troubleshooting!
