Azure SRE Agent is an AI‑powered reliability assistant that helps teams diagnose and resolve production issues faster while reducing operational toil. It analyzes logs, metrics, alerts, and deployment data to perform root cause analysis and recommend or execute mitigations with human approval. It’s capable of integrating with azure services across subscriptions and resource groups that you need to monitor and manage. Today’s enterprise customers live in a multi-tenant world, and there are multiple reasons to that due to acquisitions, complex corporate structures, managed service providers, or IT partners. Azure Lighthouse enables enterprise IT teams and managed service providers to manage resources across multiple azure tenants from a single control plane.

In this demo I will walk you through how to set up Azure SRE agent to manage and monitor multi-tenant resources delegated through Azure Lighthouse.

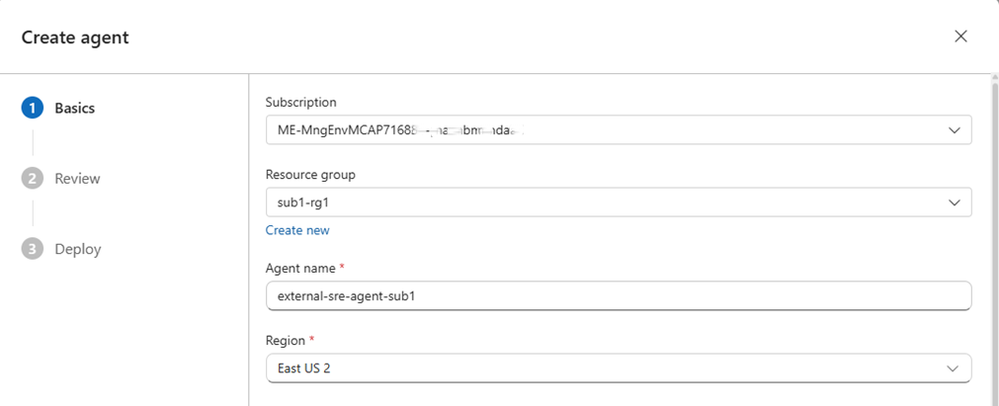

Navigate to the Azure SRE agent and select Create agent. Fill in the required details along with the deployment region and deploy the SRE agent.

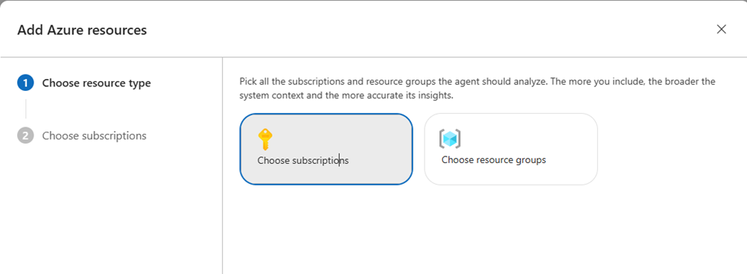

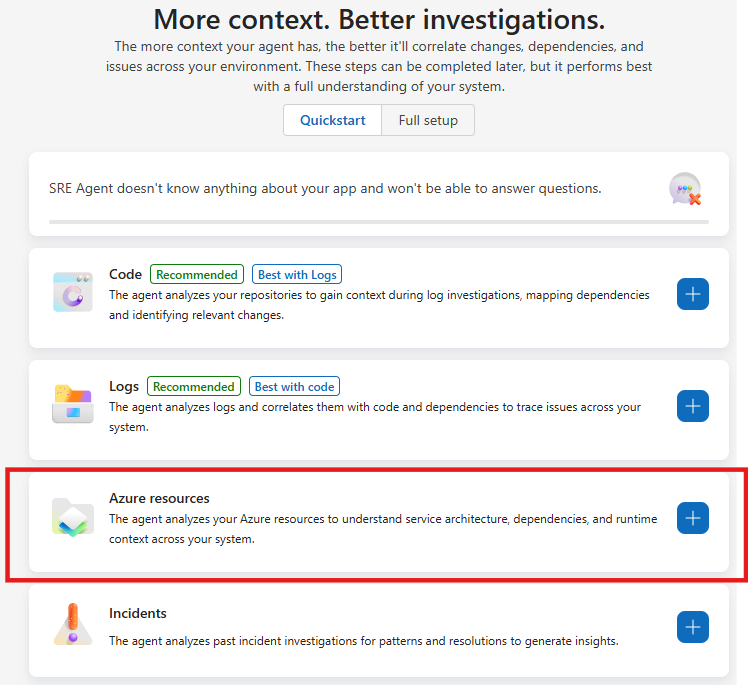

Once the deployment is complete, hit Set up your agent. Select the Azure resources you would like your agent to analyze like resource groups or subscriptions.

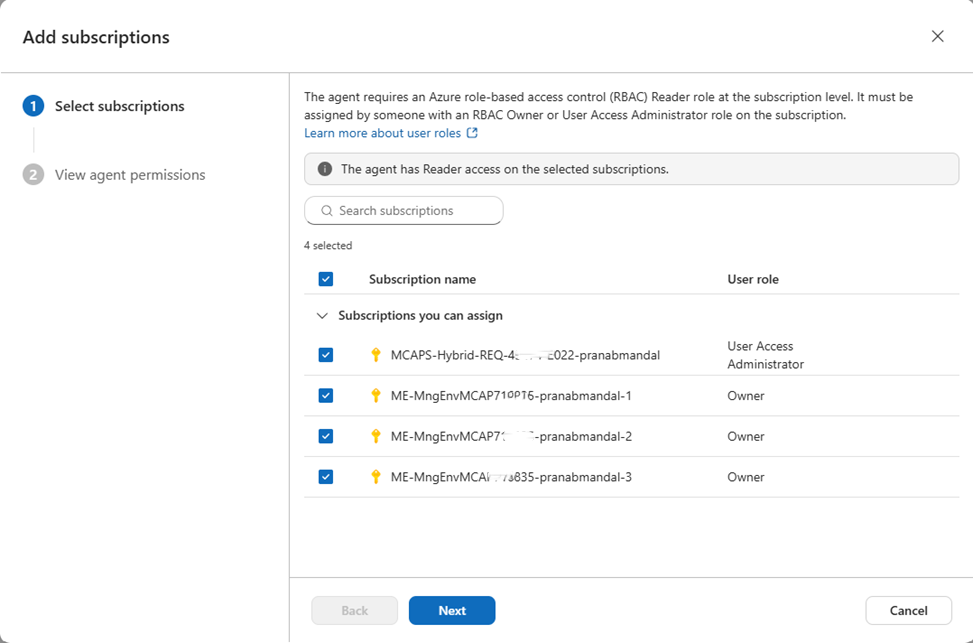

This will land you to the popup window that allows you to select the subscriptions and resource groups that you would like SRE agent to monitor and manage. You can then select the subscriptions and resource groups under the same tenant that you want SRE agent to manage; Great, So far so good 👍

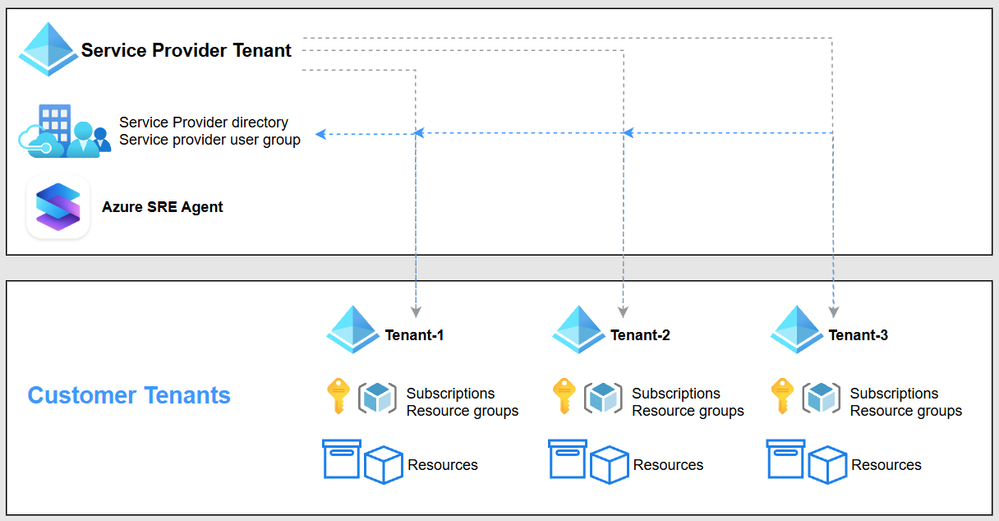

As a Managed Service Provider (MSP) you have multiple tenants that you are managing via Azure Lighthouse, and you need to have SRE agent access to those.

So, to demo this will need to set up Azure Lighthouse with correct set of roles and configuration to delegate access to management subscription where the Centralized SRE agent is running.

From Azure portal search Lighthouse. Navigate to the Lighthouse home page and select Manage your customers. On My customers Overview select Create ARM Template

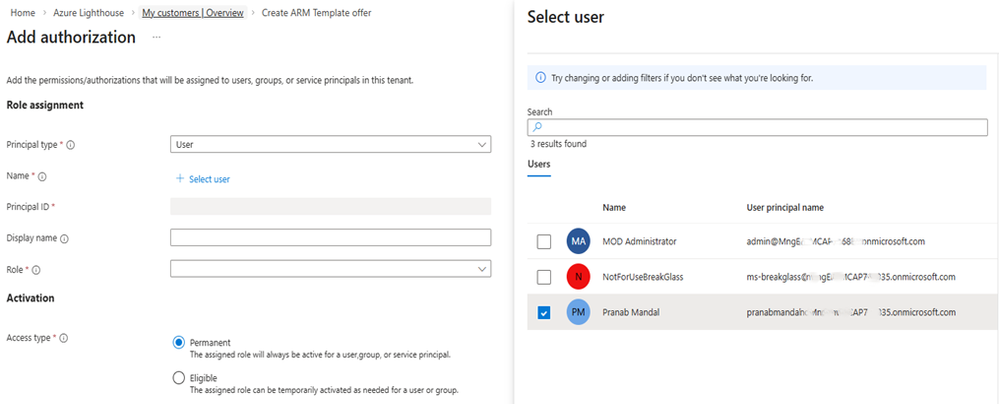

Provide a Name and Description. Select subscriptions on a Delegated scope. Select + Add authorization which will take you to Add authorization window. Select Principal type, I am selecting User for demo purposes. The pop-up window will allow Select users from the list.

Select the checkbox next to the desired user who you want to delegate the subscription and hit Select

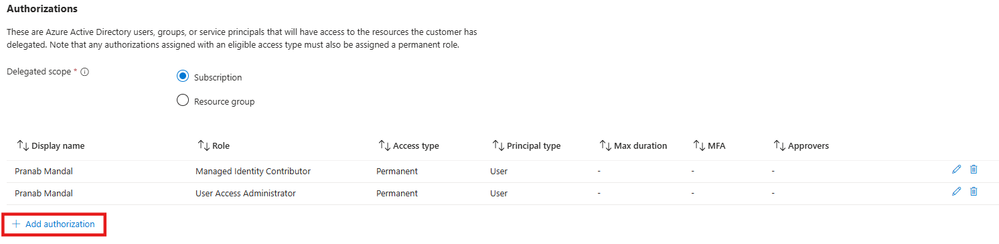

Then select the Role that you would like to assign the user from the managing tenant to the delegated tenant and select add. You can add multiple roles by adding additional authorization to the selected user. This step is important to make sure the delegated tenant is assigned with the right role in order for SRE Agents to add it as Azure source.

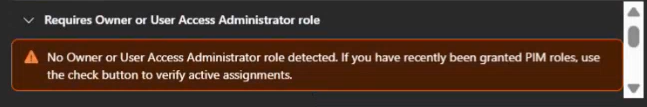

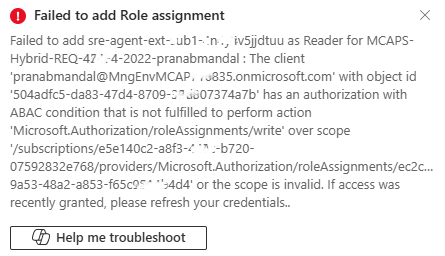

Azure SRE agent requires an Owner or User Administrator RBAC role to assign the subscription to the list of managed resources. If an appropriate role is not assigned, you will see an error when selecting the delegated subscriptions in SRE agent Managed resources.

As per Lighthouse role support Owner role isn’t supported and User access Administrator role is supported, but only for limited purpose. Refer Azure Lighthouse documentation for additional information. If role is not defined correctly, you might see an error stating: 🛑Failed to add Role assignment “The 'delegatedRoleDefinitionIds' property is required when using certain roleDefinitionIds for authorization.

To allow a principalId to assign roles to a managed identity in the customer tenant, set its roleDefinitionId to User Access Administrator. Download the ARM template and add specific Azure built-in roles that you want to grant in the delegatedRoleDefinitionIds property. You can include any supported Azure built-in role except for User Access Administrator or Owner. This example shows a principalId with User Access Administrator role that can assign two built in roles to managed identities in the customer tenant: Contributor and Log Analytics Contributor.

{
    "principalId": "00000000-0000-0000-0000-000000000000",
    "principalIdDisplayName": "Policy Automation Account",
    "roleDefinitionId": "18d7d88d-d35e-4fb5-a5c3-7773c20a72d9",
    "delegatedRoleDefinitionIds": [
         "b24988ac-6180-42a0-ab88-20f7382dd24c",
         "92aaf0da-9dab-42b6-94a3-d43ce8d16293"
    ]
}

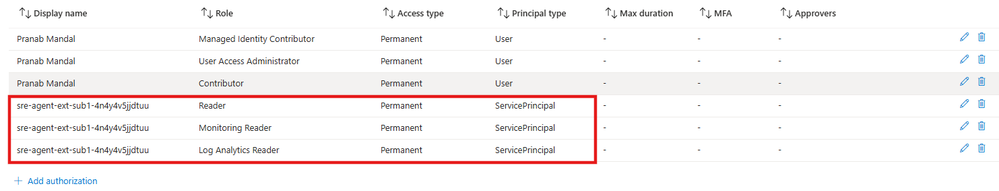

In addition SRE agent would require certain roles at the managed identity level in order to access and operate on those services. Locate SRE agent User assigned managed identity and add roles to the service principal. For the demo purpose I am assigning Reader, Monitoring Reader, and Log Analytics Reader role.

Here is the sample ARM template used for this demo.

{
  "$schema": "https://schema.management.azure.com/schemas/2019-08-01/subscriptionDeploymentTemplate.json#",
  "contentVersion": "1.0.0.0",
  "parameters": {
    "mspOfferName": {
      "type": "string",
      "metadata": {
        "description": "Specify a unique name for your offer"
      },
      "defaultValue": "lighthouse-sre-demo"
    },
    "mspOfferDescription": {
      "type": "string",
      "metadata": {
        "description": "Name of the Managed Service Provider offering"
      },
      "defaultValue": "lighthouse-sre-demo"
    }
  },
  "variables": {
    "mspRegistrationName": "[guid(parameters('mspOfferName'))]",
    "mspAssignmentName": "[guid(parameters('mspOfferName'))]",
    "managedByTenantId": "6e03bca1-4300-400d-9e80-000000000000",
    "authorizations": [
      {
        "principalId": "504adfc5-da83-47d4-8709-000000000000",
        "roleDefinitionId": "e40ec5ca-96e0-45a2-b4ff-59039f2c2b59",
        "principalIdDisplayName": "Pranab Mandal"
      },
      {
        "principalId": "504adfc5-da83-47d4-8709-000000000000",
        "roleDefinitionId": "18d7d88d-d35e-4fb5-a5c3-7773c20a72d9",
        "delegatedRoleDefinitionIds": [
          "b24988ac-6180-42a0-ab88-20f7382dd24c",
          "92aaf0da-9dab-42b6-94a3-d43ce8d16293"
        ],
        "principalIdDisplayName": "Pranab Mandal"
      },
      {
        "principalId": "504adfc5-da83-47d4-8709-000000000000",
        "roleDefinitionId": "b24988ac-6180-42a0-ab88-20f7382dd24c",
        "principalIdDisplayName": "Pranab Mandal"
      },
      {
        "principalId": "0374ff5c-5272-49fa-878a-000000000000",
        "roleDefinitionId": "acdd72a7-3385-48ef-bd42-f606fba81ae7",
        "principalIdDisplayName": "sre-agent-ext-sub1-4n4y4v5jjdtuu"
      },
      {
        "principalId": "0374ff5c-5272-49fa-878a-000000000000",
        "roleDefinitionId": "43d0d8ad-25c7-4714-9337-8ba259a9fe05",
        "principalIdDisplayName": "sre-agent-ext-sub1-4n4y4v5jjdtuu"
      },
      {
        "principalId": "0374ff5c-5272-49fa-878a-000000000000",
        "roleDefinitionId": "73c42c96-874c-492b-b04d-ab87d138a893",
        "principalIdDisplayName": "sre-agent-ext-sub1-4n4y4v5jjdtuu"
      }
    ]
  },
  "resources": [
    {
      "type": "Microsoft.ManagedServices/registrationDefinitions",
      "apiVersion": "2022-10-01",
      "name": "[variables('mspRegistrationName')]",
      "properties": {
        "registrationDefinitionName": "[parameters('mspOfferName')]",
        "description": "[parameters('mspOfferDescription')]",
        "managedByTenantId": "[variables('managedByTenantId')]",
        "authorizations": "[variables('authorizations')]"
      }
    },
    {
      "type": "Microsoft.ManagedServices/registrationAssignments",
      "apiVersion": "2022-10-01",
      "name": "[variables('mspAssignmentName')]",
      "dependsOn": [
        "[resourceId('Microsoft.ManagedServices/registrationDefinitions/', variables('mspRegistrationName'))]"
      ],
      "properties": {
        "registrationDefinitionId": "[resourceId('Microsoft.ManagedServices/registrationDefinitions/', variables('mspRegistrationName'))]"
      }
    }
  ],
  "outputs": {
    "mspOfferName": {
      "type": "string",
      "value": "[concat('Managed by', ' ', parameters('mspOfferName'))]"
    },
    "authorizations": {
      "type": "array",
      "value": "[variables('authorizations')]"
    }
  }
}

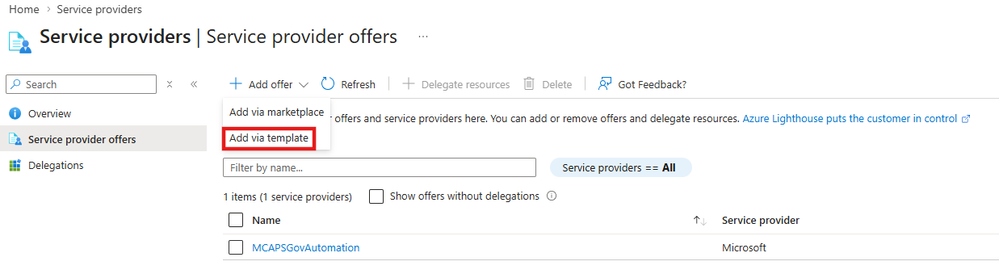

Login to the customers tenant and navigate to the service provides from the Azure Portal. From the Service Providers overview screen, select Service provider offers from the left navigation pane. From the top menu, select the Add offer drop down and select Add via template.

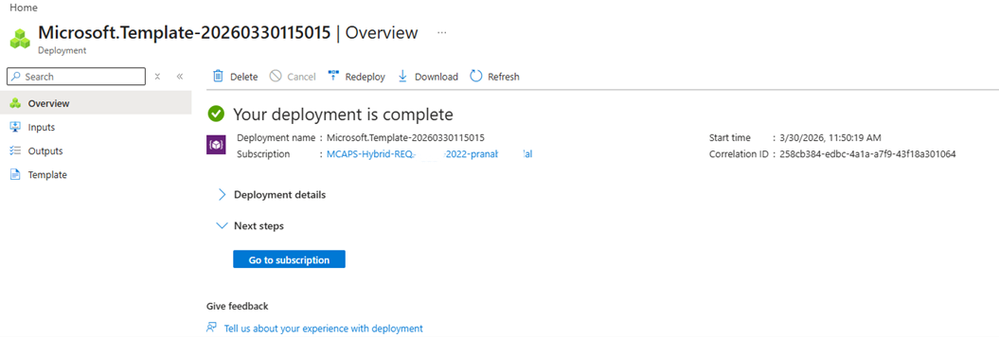

In the Upload Offer Template window drag and drop or upload the template file that was created in the earlier step and hit Upload. Once the file is uploaded, select Review + Create. This will take a few minutes to deploy the template, and a successful deployment page should be displayed.

Navigate to Delegations from Lighthouse overview and validate if you see the delegated subscription and the assigned role. Once the Lighthouse delegation is set up sign in to the managing tenant and navigate to the deployed SRE agent. Navigate to Azure resources from top menu or via Settings > Managed resources. Navigate to Add subscriptions to select customers subscriptions that you need SRE agent to manage.

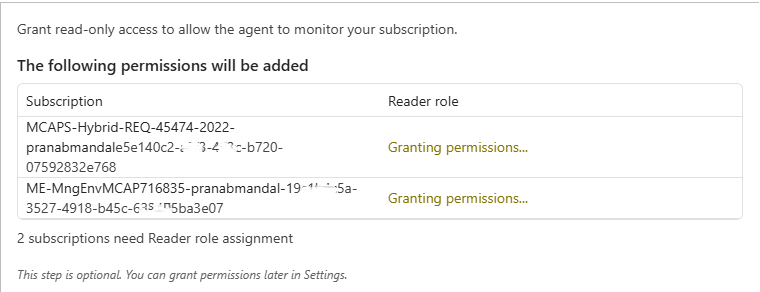

Adding subscription will automatically add required permission for the agent.

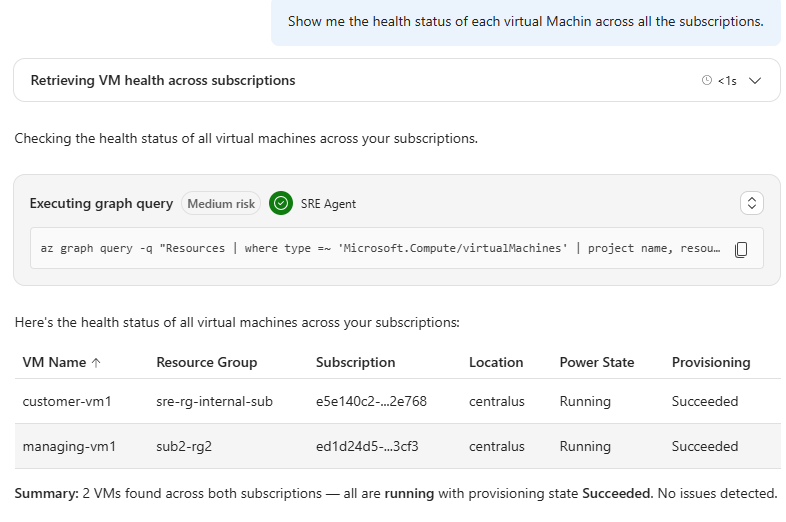

Once the appropriate roles are added, the subscriptions are ready for the agent to manage and monitor resources within them.

Summary - Benefits

This blog post demonstrates how Azure SRE Agent can be used to centrally monitor and manage Azure resources across multiple tenants by integrating it with Azure Lighthouse, a common requirement for enterprises and managed service providers operating in complex, multi-tenant environments. It walks through:

• Centralized SRE operations across multiple Azure tenants
• Secure, role-based access using delegated resource management
• Reduced operational overhead for MSPs and enterprise IT teams
• Unified visibility into resource health and reliability across customer environments
