If you've been following my previous posts on the Ingress NGINX retirement, you'll know the story so far. The community Ingress NGINX project was retired in March 2026, and Microsoft's extended support for the NGINX-based App Routing add-on runs until November 2026. I've covered migrating from standalone NGINX to the App Routing add-on to buy time, and migrating to Application Gateway for Containers as a long-term option. In both of those posts I mentioned that Microsoft was working on a new version of the App Routing add-on based on Istio and the Gateway API. Well, it's here, in preview at least.
The App Routing Gateway API implementation is Microsoft's recommended migration path for anyone currently using the NGINX-based App Routing add-on. It moves you off NGINX entirely and onto the Kubernetes Gateway API, with a lightweight Istio control plane handling the gateway infrastructure under the hood. Let's look at what this actually is, how it differs from other options, and how to migrate from both standalone NGINX and the existing App Routing add-on.
What Is It?
The new App Routing mode uses the Kubernetes Gateway API instead of the Ingress API. When you enable the add-on, AKS deploys an Istio control plane (istiod) to manage Envoy-based gateway proxies. The important thing to understand here is that this is not the full Istio service mesh. There's no sidecar injection, no Istio CRDs installed for your workloads. It's Istio doing one specific job: managing gateway proxies for ingress traffic.
When you create a Gateway resource, AKS provisions an Envoy Deployment, a LoadBalancer Service, a HorizontalPodAutoscaler (defaulting to 2-5 replicas at 80% CPU), and a PodDisruptionBudget. All managed. You write Gateway and HTTPRoute resources, and AKS handles everything else.
This is a fundamentally different API from what you're used to with Ingress. Instead of a single Ingress resource that combines the entry point and routing rules, Gateway API splits things into layers:
- GatewayClass defines the type of gateway infrastructure (provided by AKS in this case)
- Gateway creates the actual gateway with its listeners
- HTTPRoute defines the routing rules and attaches to a Gateway
This separation is one of Gateway API's main selling points. Platform teams can own the Gateway resources while application teams manage their own HTTPRoutes independently, without needing to modify shared infrastructure. If you've ever had a team accidentally break routing for everyone by editing a shared Ingress, you'll appreciate why this matters.
How It Differs From the Istio Service Mesh Add-On
If you're already running or considering the Istio service mesh add-on for AKS, this is a different thing.
The App Routing Gateway API mode uses the approuting-istio GatewayClass, doesn't install Istio CRDs, doesn't enable sidecar injection, and handles upgrades in-place. The full Istio service mesh add-on uses the istio GatewayClass, installs Istio CRDs cluster-wide, enables sidecar injection, and uses canary upgrades for minor versions.
The two cannot run at the same time. If you have the Istio service mesh add-on enabled, you need to disable it before enabling App Routing Gateway API (and vice versa). If you need full mesh capabilities like mTLS between services, traffic policies, and telemetry, stick with the Istio service mesh add-on. If you just need managed ingress via Gateway API without the mesh overhead, this is the right choice.
Current Limitations
The new App Routing solution is in preview, so should not be run in production yet. There are also some gaps compared to the existing add-on, which you need to be aware of before planning a production migration.
The biggest one: DNS and TLS certificate management via the add-on isn't supported yet for Gateway API. If you're currently using az aks approuting update and az aks approuting zone add to automate Key Vault and Azure DNS integration with the NGINX-based add-on, that workflow doesn't carry over. TLS termination is still possible, but you'll need to set it up manually. The AKS docs cover the steps, but it's more hands-on than what the NGINX add-on gives you today. This is expected to be addressed when the feature reaches GA.
SNI passthrough (TLSRoute) and egress traffic management aren't supported either. And as mentioned, it's mutually exclusive with the Istio service mesh add-on.
For production workloads that depend heavily on automated DNS and TLS management, you may want to wait until GA, or look at Application Gateway for Containers as an alternative. But for teams that can handle TLS setup manually, for non-production environments, there's no reason not to start testing this now.
Getting Started
Before you can enable the feature, you need the aks-preview CLI extension (version 19.0.0b24 or later), the Managed Gateway API CRDs enabled, and the App Routing Gateway API preview feature flag registered:
az extension add --name aks-preview
az extension update --name aks-preview
# Managed Gateway API CRDs (required dependency)
az feature register --namespace "Microsoft.ContainerService" --name "ManagedGatewayAPIPreview"
# App Routing Gateway API implementation
az feature register --namespace "Microsoft.ContainerService" --name "AppRoutingIstioGatewayAPIPreview"Feature flag registration can take a few minutes. Once they're registered, enable the add-on on a new or existing cluster. You need both --enable-gateway-api (for the managed Gateway API CRD installation) and --enable-app-routing-istio (for the Istio-based implementation):
# New cluster
az aks create \
--resource-group ${RESOURCE_GROUP} \
--name ${CLUSTER} \
--location swedencentral \
--enable-gateway-api \
--enable-app-routing-istio
# Existing cluster
az aks update \
--resource-group ${RESOURCE_GROUP} \
--name ${CLUSTER} \
--enable-gateway-api \
--enable-app-routing-istioVerify istiod is running:

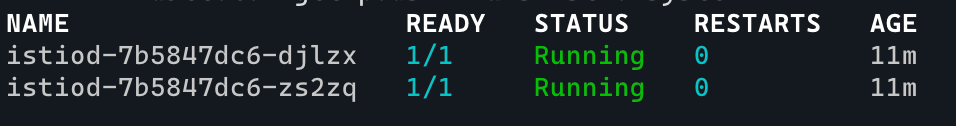

kubectl get pods -n aks-istio-systemYou should see two istiod pods in a Running state.
From here, you can create a Gateway and HTTPRoute to test traffic flow. The AKS quickstart walks through this with the httpbin sample app if you want a quick validation.
Migrating From NGINX Ingress
Whether you're running standalone NGINX (self-installed via Helm) or the NGINX-based App Routing add-on, the migration process is essentially the same. You're moving from Ingress API resources to Gateway API resources, and the new controller runs alongside your existing one during the transition. The only real differences are what you're cleaning up at the end and, if you're on the App Routing add-on, whether you were relying on its built-in DNS and TLS automation.
Inventory Your Ingress Resources
Before anything else, understand what you have:
kubectl get ingress --all-namespaces \
-o custom-columns='NAMESPACE:.metadata.namespace,NAME:.metadata.name,CLASS:.spec.ingressClassName'Look specifically for custom snippets, lua configurations, or anything that relies heavily on NGINX-specific behaviour. These won't have direct equivalents in Gateway API and will need manual attention.
Convert Ingress Resources to Gateway API
The ingress2gateway tool (v1.0.0) handles conversion of Ingress resources to Gateway API equivalents. It supports over 30 common NGINX annotations and generates Gateway and HTTPRoute YAML. It works regardless of whether your Ingress resources use the nginx or webapprouting.kubernetes.azure.com IngressClass:
# Install
go install github.com/kubernetes-sigs/ingress2gateway@v1.0.0
# Convert from live cluster
ingress2gateway print --providers=ingress-nginx -A > gateway-resources.yaml
# Or convert from a local file
ingress2gateway print --providers=ingress-nginx --input-file=./manifests/ingress.yaml > gateway-resources.yamlReview the output carefully. The tool flags annotations it can't convert as comments in the generated YAML, so you'll know exactly what needs manual work. Common gaps include custom configuration snippets and regex-based rewrites that don't map cleanly to Gateway API's routing model.
Make sure you update the gatewayClassName in the generated Gateway resources to approuting-istio. The tool may generate a generic GatewayClass name that you'll need to change.
Handle DNS and TLS
If you're coming from standalone NGINX, you're likely managing DNS and TLS yourself already, so nothing changes here: just make sure your certificate Secrets and DNS records are ready for the new Gateway IP.
If you're coming from the App Routing add-on and relying on its built-in DNS and TLS management (via az aks approuting zone add and Key Vault integration), this is the part that needs extra thought. That automation doesn't carry over to the Gateway API implementation yet, so you'll need to handle it differently until GA.
For TLS, you can either create Kubernetes Secrets with your certificates manually or set up a workflow to sync them from Key Vault. The AKS docs on securing Gateway API traffic cover the manual approach. For DNS, you'll need to manage records yourself or use ExternalDNS to automate it. ExternalDNS supports Gateway API resources, so this is a viable path if you want automation.
Deploy and Validate
With the add-on enabled, apply your converted resources:
kubectl apply -f gateway-resources.yamlWait for the Gateway to be programmed and get the external IP:
kubectl wait --for=condition=programmed gateways.gateway.networking.k8s.io <gateway-name>
export GATEWAY_IP=$(kubectl get gateways.gateway.networking.k8s.io <gateway-name> -ojsonpath='{.status.addresses[0].value}')The key thing here is that your existing NGINX controller (whether standalone or add-on managed) is still running and serving production traffic. The Gateway API resources are handled separately by the Istio-based controller in aks-istio-system. This parallel running is what makes the migration safe.
Test your routes against the new Gateway IP, you'll need to provide the appropriate URL as a host header, as your DNS will still be pointing at the NGINX Add-On at this point.
curl -H "Host: myapp.example.com" http://$GATEWAY_IPRun your full validation suite. Check TLS, path routing, headers, authentication, anything your applications depend on. Take your time here; nothing changes for production until you update DNS.
Cut Over DNS and Clean Up
Once you're confident, lower your DNS TTL to 60 seconds (do this well in advance), then update your DNS records to point to the new Gateway IP. Keep the old NGINX controller running for 24-48 hours as a rollback option.
After traffic has been flowing cleanly through the Gateway API path, clean up the old setup. What this looks like depends on where you started:
If you were on standalone NGINX:
helm uninstall ingress-nginx -n ingress-nginx
kubectl delete namespace ingress-nginxIf you were on the App Routing add-on with NGINX:
Verify nothing is still using the old IngressClass:
kubectl get ingress --all-namespaces \
-o custom-columns='NAMESPACE:.metadata.namespace,NAME:.metadata.name,CLASS:.spec.ingressClassName' \
| grep "webapprouting"Delete any remaining Ingress resources that reference the old class, then disable the NGINX-based App Routing add-on:
az aks approuting disable --resource-group ${RESOURCE_GROUP} --name ${CLUSTER}Some resources (configMaps, secrets, and the controller deployment) will remain in the app-routing-system namespace after disabling. You can clean these up by deleting the namespace once you're satisfied everything is running through the Gateway API path:
kubectl delete ns app-routing-systemIn both cases, clean up any old Ingress resources that are no longer being used.
Upgrades and Lifecycle
The Istio control plane version is tied to your AKS cluster's Kubernetes version. AKS automatically handles patch upgrades as part of its release cycle, and minor version upgrades happen in-place when you upgrade your cluster's Kubernetes version or when a new Istio minor version is released for your AKS version.
One thing to be aware of - unlike the Istio service mesh add-on, upgrades here are in-place, not canary-based. The HPA and PDB on each Gateway help minimise disruption, but plan accordingly for production. If you have maintenance windows configured, the istiod upgrades will respect them.
What Should You Do Now?
The timeline hasn't changed. The standalone NGINX Ingress project was retired in March 2026, so if you're still running that, you're already on unsupported software. The NGINX App Routing add-on is supported until November 2026, which gives you a window, but it's not a long one.
If you're on standalone NGINX you could get onto the App Routing add-on now to buy time (I covered this in my earlier post), then plan your migration to either the Gateway API mode or AGC.
If you're on the NGINX App Routing add-on: start testing the Gateway API mode in non-production now. Get familiar with the Gateway API resource model, understand the TLS and DNS gaps in the preview, and be ready to migrate when the feature reaches GA or when November gets close, whichever comes first.
If you need production-ready TLS and DNS automation today and can't wait for GA, App Gateway for Containers is your best option right now.
Whatever path you choose, make sure you have a plan in place before November. Running unsupported ingress software on production infrastructure isn't where you want to be.
