MCP in Azure: Using API Management for Authentication, Access, Logging & Governance

If MCP is becoming the “USB-C for AI,” enterprises need something equally familiar on the other side of that port: a control plane. The Model Context Protocol (MCP) gives AI applications a standard way to discover tools, retrieve context, and call capabilities from external systems. But once you move beyond a single local server and start connecting multiple remote tools across teams, environments, and data domains, the protocol alone is not enough, you also need a way to manage identity, access, traffic, visibility, and lifecycle consistently.

That is where Azure API Management (APIM) becomes strategically important. APIM is not “MCP instead of APIs.” It is the layer that can sit in front of MCP servers or even turn existing REST APIs into MCP-compatible tool surfaces so that organizations can apply the same security, policy, and operational controls they already use for business APIs. In other words, MCP standardizes how agents talk to tools; APIM helps standardize how the enterprise governs those tool endpoints at runtime.

What MCP actually is and why it changes AI integration

At its core, MCP defines a host / client / server model. The host is the AI application or agent experience, the client manages the MCP connection, and the server exposes capabilities to that client. Those capabilities are commonly expressed as tools (actions an AI model can call), resources (context or data an application can read), and prompts (reusable interaction templates). The same model works whether the server is local or remote, which is one of the reasons MCP is becoming an attractive way to make tool integrations reusable across many AI surfaces.

That portability matters because most teams do not want to rebuild connector logic for every host, model, or IDE. Microsoft’s Azure guidance explicitly describes two broad ways developers work with MCP: consume existing MCP servers, or build their own when they need custom tools, resources, or prompts.

Why MCP sprawl becomes an enterprise problem

MCP is easy to love in a demo because a single server can make an agent instantly smarter. It is harder in production because success creates sprawl. One team wraps an inventory API. Another exposes compliance rules. Another adds DevOps data. Soon, you have multiple remote MCP endpoints, different authentication models, inconsistent rate limits, uneven logging, and no clear answer to “which tools are approved, versioned, and discoverable?”  This is the anti-pattern of a monolithic, over-privileged MCP server, and instead one must align server boundaries to business capabilities so access, observability, and ownership remain tractable.

This is exactly the point at which centralization becomes valuable. Microsoft’s MCP ecosystem organizes the landscape into three layers: a foundation of built-in servers, a build/govern layer that includes Azure Functions, APIM, and API Center, and a consumption layer where agents and runtimes use those tools. That framing is useful because it shows MCP management is not only about building servers; it is equally about establishing how those servers are exposed, governed, and discovered across the enterprise.

APIM as the front door for MCP

Azure API Management supports two especially important patterns for MCP centralization. The first is exposing an APIM-managed REST API as a remote MCP server, which lets you turn selected REST operations into MCP tools without rebuilding the backend. The second is putting APIM in front of an existing MCP server, so APIM acts as a facade or proxy that applies policy and governance to a server you already run somewhere else such as Azure Functions, App Service, Container Apps, or another HTTP host.

This is why APIM is best understood as the front door rather than the destination. It can route requests, apply transformations, enforce policy, and mediate access while preserving the standardized MCP interaction pattern for clients. MCP server endpoints can be described as “backend APIs” from a governance perspective, which is precisely the enterprise advantage: once a remote MCP endpoint is treated as an API surface, you can bring familiar controls, security, reliability, monitoring, and access policy to an otherwise fast-spreading agent/tool ecosystem.

Authentication and authorization: where APIM earns its keep

Remote MCP servers need a strong authorization story because they are not just returning text, they are gateways to systems, data, and actions. MCP authorization guidance uses OAuth 2.1, Protected Resource Metadata (PRM / RFC 9728) for discovery, dynamic client registration (RFC 7591) where supported, and resource indicators (RFC 8707) so tokens remain bound to the intended resource. The practical flow is clear: a client tries the server, gets a 401 with metadata, discovers the authorization server, requests consent with PKCE and the resource parameter, exchanges for a token, and then includes that bearer token on subsequent calls.

APIM becomes powerful here because it can be the authorization gateway in front of the MCP server. Internal security guidance and APIM-focused enablement both converge on the same pattern: use APIM to validate JWTs, apply OAuth/Entra-based access policies, and avoid unsafe token-handling shortcuts such as token passthrough. In practice, this means the caller authenticates against Microsoft Entra ID, APIM validates the token and audience, and only then forwards the call to the MCP backend, optionally with credential mediation patterns such as managed identity, On-Behalf-Of (OBO), or backend credential management depending on the scenario.

For Azure builders, the authentication options are already familiar. Microsoft’s Foundry guidance for custom MCP tools maps server authentication patterns to key-based auth, Microsoft Entra authentication, and OAuth identity passthrough (OBO). That same guidance explicitly recommends requiring authentication, treating credentials as secrets, applying least privilege to downstream APIs, and logging tool calls for troubleshooting. If you already think in terms of Entra ID, managed identities, audience validation, and OBO, centralizing MCP behind APIM lets you use those same patterns at the agent-tool boundary rather than reinventing them server by server.

Logging, monitoring, and observability without losing the plot

Observability is where many MCP deployments discover that a protocol is not the same thing as an operations platform. Internal field guidance is explicit that MCP monitoring today is often product-specific rather than fleet-wide: enterprise MCP usage can show up in Graph activity logs, Foundry uses OpenTelemetry-based tracing through Application Insights, and custom servers hosted in Azure Functions can rely on standard Function/App Insights diagnostics. The practical implication is that you can get strong telemetry, but you still have to stitch it together intentionally rather than expecting a single universal “MCP operations” pane out of the box.

APIM improves that picture because gateway traffic becomes a consistent choke point for diagnostics. That makes APIM valuable not only for security but also for operational visibility: which tools are being called, how often, by whom, with which response codes, and where latency or backend errors are emerging.

There is, however, an important streaming caveat. MCP transports, especially remote ones can depend on streaming-friendly behavior, and response buffering can break MCP interactions. In other words: yes, centralize observability, but do it in a way that respects streaming transports and does not accidentally make the MCP server stop working while you are trying to observe it.

Governance: from “cool tool” to managed platform capability

If authentication answers “who can call this?”, governance answers “what is this server, which version is trusted, and how should anyone discover it?” That is where Azure API Center matters. API Center is centralized location for registering and discovering MCP servers, including those exposed through APIM and those hosted elsewhere. Microsoft’s Foundry guidance similarly describes API Center registration as the path to creating a private organizational tool catalog, where authentication and access settings can be configured consistently and users can discover approved servers rather than trading raw URLs in chat threads.

This matters more than it sounds. Governance is not only about storage of metadata, it is about versioning, lifecycle, access management, tags, and exposure policy. Recommendation is to version MCP endpoints, document usage patterns, and using API Center to make discovery enterprise-ready.

A practical Azure reference pattern

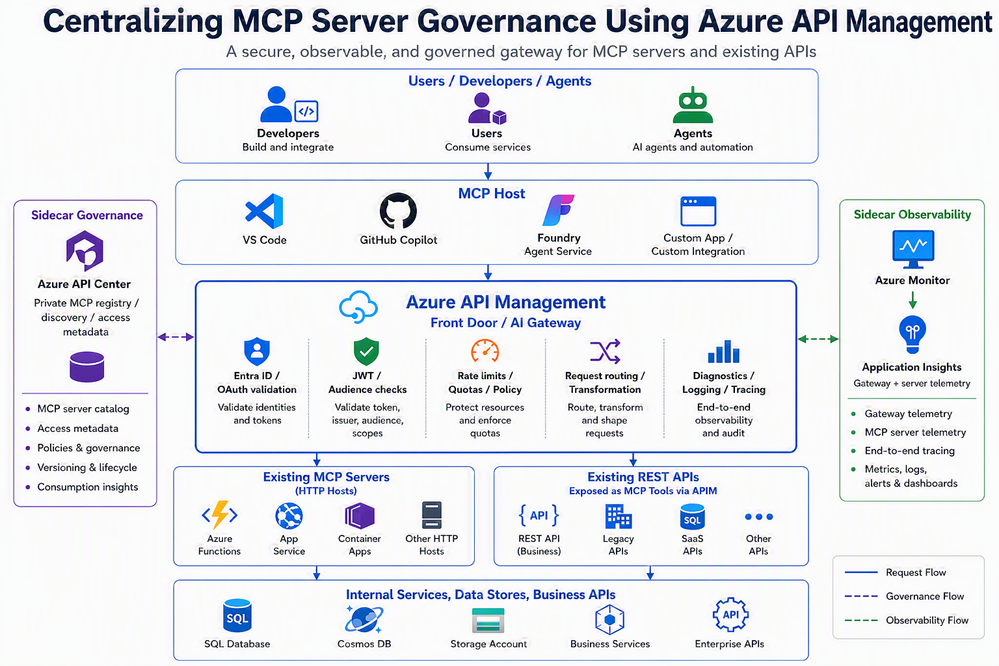

A useful way to think about the architecture is this: MCP hosts and agent runtimes stay at the edge of user experience, while APIM becomes the edge of enterprise control. The agents or developer tools speak MCP. APIM governs the runtime surface. MCP backends provide tools, and API Center catalogs them. Azure Monitor and Application Insights provide telemetry. Entra ID provides identity. The protocol stays standardized; the operations model becomes centralized.

Centralizing via APIM vs. letting clients call MCP servers directly

Design guidance and best practices

1) Treat MCP servers as business capability boundaries, not as a giant “AI super-endpoint” Monolithic, over-privileged MCP servers are an anti-pattern; separate servers improve least privilege, ownership clarity, and observability. A focused capability boundary also gives the model clearer tool descriptions, which improves invocation quality and reduces collisions between unrelated tools.

2) Prefer a no-code APIM path when you already have good REST APIs; use a pro-code MCP server when you need custom orchestration, transformation, or non-API-native logic. Implement No-Code via APIM for existing REST interfaces and Pro-Code for scenarios requiring more control, custom logic, or deeper integration patterns. This is one of the cleanest ways to make the architecture pragmatic instead of ideological: not every MCP server should be handwritten if the backend capability already exists in API form.

3) Use Entra ID and avoid token passthrough. Token passthrough creates audit gaps, bypass risks, and lateral movement opportunities. A better pattern is for APIM to validate and mediate identity at the edge, with audience/resource validation and downstream access configured explicitly. When you need delegated access, use OBO or equivalent identity-aware patterns rather than forwarding arbitrary bearer tokens through the stack unchecked.

4) Design for observability from day one, but keep streaming in mind. Log tool invocations, failure paths, latency, and correlation identifiers. Use Azure Monitor / Application Insights on the backend and APIM diagnostics at the gateway. But for remote MCP transports, avoid diagnostics or policy configurations that introduce response buffering and unintentionally break stream-oriented behavior.

5) Make discovery a governance problem, not a tribal-knowledge problem. Register internal MCP servers in API Center when you want them discoverable across projects or teams. Use metadata, access management, and lifecycle conventions to decide what is visible, what is approved, and which versions are current. That gives platform teams a catalog to govern and developers a trusted place to discover servers without guessing which endpoint is “the right one.”

The bottom line

MCP standardizes how AI applications talk to external capabilities. APIM standardizes how the enterprise protects and operates those capabilities. Put differently: MCP solves interoperability, while APIM helps solve operability. When organizations start treating remote MCP endpoints like first-class API assets with identity, policy, telemetry, registry, and lifecycle attached, tmhey move from isolated agent demos to something that can actually survive production.

That is why centralizing MCP management in Azure is not really about “putting a gateway in front of servers.” It is about giving your emerging agent ecosystem a governed front door: one place to authenticate, authorize, observe, version, discover, and evolve the tools your models depend on. And for enterprises already invested in Azure, APIM plus API Center is one of the clearest ways to build that front door without throwing away the APIs and security patterns they already trust.
